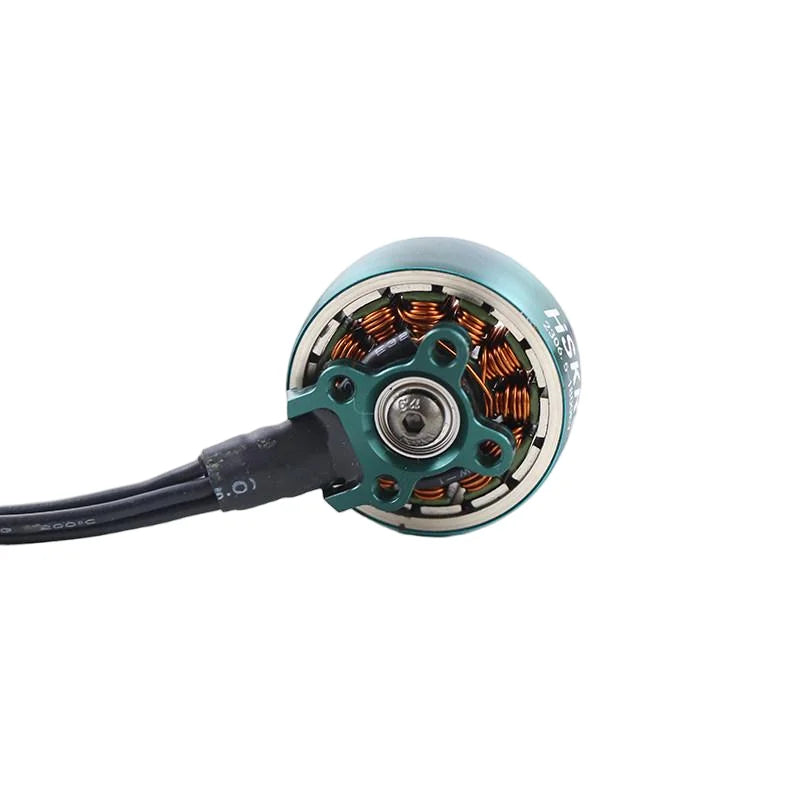

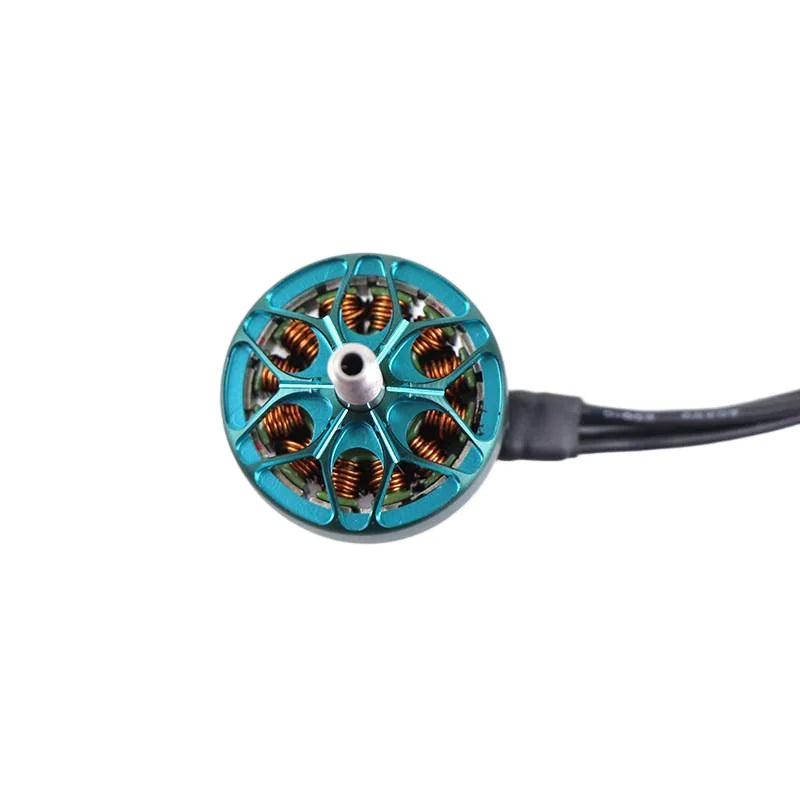

Brushless FPV Drone Motor 1800KV 6S 12N14P 5mm – 721W Racing
Brushless FPV Drone Motor 1800KV 6S 12N14P 5mm – 721W Racing
Brushless FPV Drone Motor – 1800KV | 6S | 12N14P | 721.97W Max Power
Upgrade your racing quadcopter with this high-performance 1800KV brushless FPV drone motor. Engineered for 6S LiPo setups, it delivers a massive 721.97W of maximum power and a robust 30.76A maximum current — giving your FPV build the thrust and responsiveness it needs to dominate on the track. Whether you're replacing a worn-out motor or building a fresh racing rig, this 12N14P stator configuration ensures smooth, efficient, and reliable performance flight after flight.
Made in Mainland China.
Key Features
- High KV Rating: 1800KV for aggressive throttle response and high-speed performance
- 6S Compatible: Optimized for 6S LiPo battery configurations for maximum thrust output
- 12N14P Stator Design: 12 stator poles and 14 permanent magnet poles for smooth, efficient power delivery
- 5mm Rotor Shaft Diameter: Fits a wide range of FPV racing quadcopter frames and prop adapters
- Max Power Output: 721.97W — built to handle the demands of competitive FPV racing
- Max Current: 30.76A for consistent, reliable performance under load
- Low Internal Resistance: Phase-to-phase resistance of just 77.55mΩ (including wire) for minimal energy loss
- Quality Silicone Wiring: 20AWG, 150mm silicone wire — flexible, heat-resistant, and easy to route
- Low No-Load Current: Only 0.71A at 10V for efficient idle operation
- Direct Replacement: Drop-in replacement motor compatible with most racing quadcopter builds
Full Specifications
| Spec | Value |
|---|---|
| KV Value | 1800KV |
| Stator Configuration | 12N14P |
| Shaft Diameter | 5mm |
| Working Voltage | 6S LiPo |
| Maximum Power | 721.97W |
| Maximum Current | 30.76A |
| No-Load Current (10V) | 0.71A |
| Phase-to-Phase Internal Resistance | 77.55mΩ (incl. wire) |
| Silicone Wire Gauge / Length | 20AWG / 150mm |
| Battery Included | No |
| Country of Origin | Mainland China |
What's in the Box?
- 1x Brushless FPV Drone Motor (1800KV)
Please Note:
- Due to lighting and display differences, the item's color may appear slightly different from product images.
- Please allow 1mm–1cm variance due to manual measurement.
- Battery and quadcopter frame are NOT included.
For safe operation of drone motors and electronics, refer to the U.S. Consumer Product Safety Commission – Drone Safety Guidelines for best practices when building and operating FPV racing quadcopters.
Frequently Asked Questions
Q: What battery voltage is this brushless FPV drone motor compatible with?
A: This motor is designed for 6S LiPo battery configurations, making it ideal for high-performance FPV racing quadcopter builds that demand maximum thrust and speed.
Q: What is the KV rating and what does it mean for my FPV build?
A: The motor has a 1800KV rating, meaning it spins approximately 1800 RPM per volt of input. On a 6S setup (~22.2V), this translates to very high RPM, making it well-suited for aggressive racing and freestyle FPV flying.
Q: Is this motor a direct replacement for my existing racing quadcopter motor?
A: This motor features a 5mm shaft diameter and a standard 12N14P stator configuration, making it a compatible replacement for many popular FPV racing quadcopter builds. Always verify your frame's motor mounting pattern and prop shaft size before installing.
Q: Does the package include a battery or ESC?
A: No — the package includes one (1) brushless motor only. A compatible 6S LiPo battery and an appropriately rated ESC (Electronic Speed Controller) are required and must be purchased separately.
