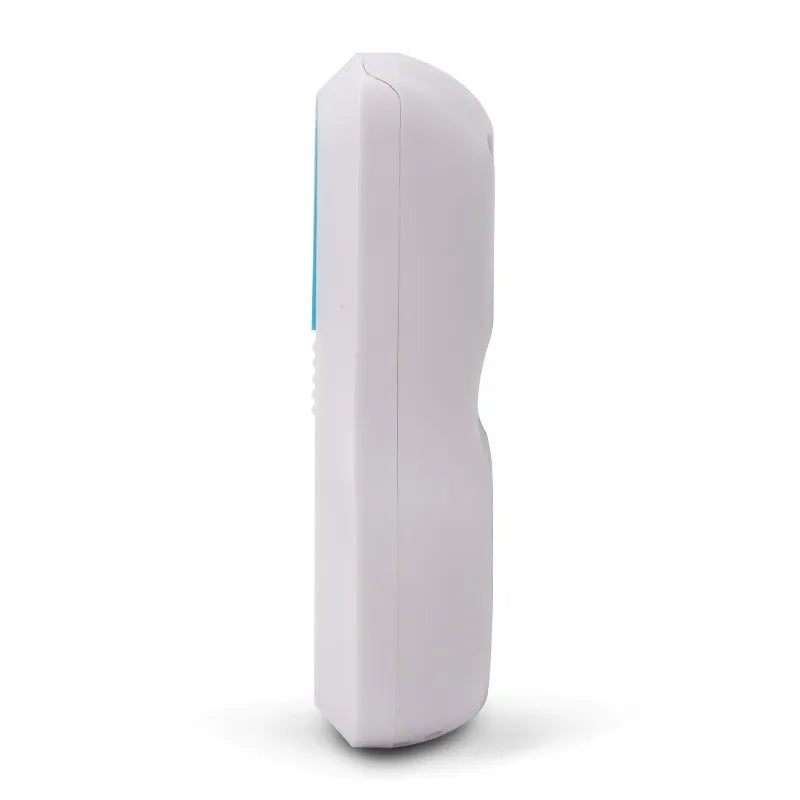

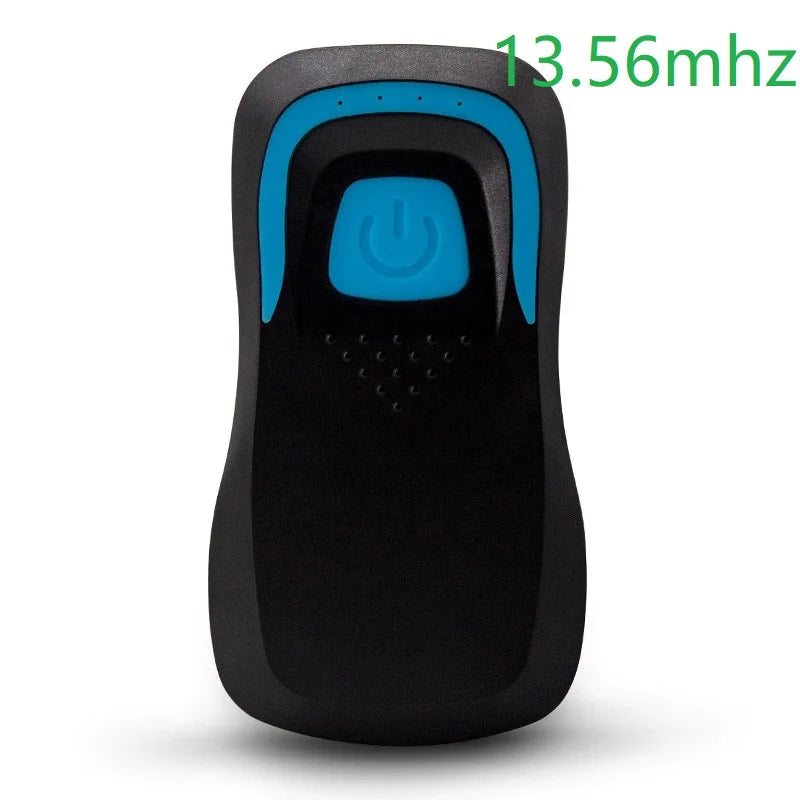

LIHTNE R58D Bluetooth Wireless RFID Card Reader — 125KHz & 13.56MHz
The LIHTNE R58D is a compact, cable-free RFID card reader that uses Bluetooth to transmit card UID data wirelessly to your Android, iOS, or Windows device. No extra power supply needed — the built-in rechargeable lithium battery delivers an extraordinary standby time of up to 1 year on a single full charge. Simply pair once and start scanning instantly.
Key Features
- Dual Frequency Support: Reads both 125KHz (TK4100, EM4100 compatible ID cards) and 13.56MHz cards for maximum versatility.
- Bluetooth Wireless Transmission: Stable connection range of up to 10 meters — no cables, no dongles required.
- No Password Pairing: Direct, hassle-free Bluetooth pairing with no authentication code needed.
- Ultra-Long Battery Life: Charges via standard 5V phone charger; fully charged in ~8 hours with up to 1 year standby.
- Fast Read Speed: Card reads completed in just 0.2 seconds at a reading rate of 106K/bit.
- Broad OS Compatibility: Works seamlessly with iOS, Android, Windows 7, and Windows 10.
- No Software Installation Needed: Outputs data directly with no program loading required on the receiving device.
- Status Indicators: Dual LED indicators (red = power, blue = status) plus a built-in buzzer for audible scan confirmation.
- Effective Card Reading Distance: 20mm–60mm from the reader surface.
Technical Specifications
| Model | R58D/C |
| Working Frequency | 125KHz / 13.56MHz |
| Card Types Supported | TK4100, EM4100 compatible ID cards |
| Bluetooth Range | Up to 10 meters |
| Card Read Distance | 20mm – 60mm |
| Reader Rate | 106K/bit |
| Read Speed | 0.2 seconds |
| Operating Temperature | -20°C to 70°C |
| Operating Current | 100mA |
| Charging Voltage | 5V (standard phone charger) |
| Dimensions (Product) | 105mm × 48mm × 25mm |
| Weight (Net) | 50g |
| Operating Systems | iOS, Android, Windows 7, Windows 10 |
| Indicators | Dual LED (red + blue) + buzzer |
What's in the Box
- 1× LIHTNE R58D Bluetooth RFID Card Reader
- Packaging dimensions: 143mm × 90mm × 61mm
Made in Mainland China.
For more information on RFID technology standards and security practices, visit the NIST Guide to RFID Technology at nist.gov.
Frequently Asked Questions
Q: What card types does the LIHTNE R58D Bluetooth RFID Reader support?
A: The R58D supports both 125KHz cards (including TK4100 and EM4100 compatible ID cards) and 13.56MHz cards, making it compatible with a wide range of standard RFID credentials used in access control, attendance tracking, and identification systems.
Q: Does the LIHTNE R58D require any software or drivers to work?
A: No. The R58D is designed for plug-and-play Bluetooth use. It pairs directly with iOS, Android, Windows 7, and Windows 10 devices without password authentication, and transmits RFID card UID data immediately — no software installation or driver loading is needed.
Q: How long does the battery last on the LIHTNE R58D wireless card reader?
A: The built-in lithium battery provides up to 1 year of standby time after a full charge of approximately 8 hours. It charges via any standard 5V phone charger, making it extremely convenient and cost-effective for long-term deployment.
Q: What is the effective Bluetooth range of the R58D RFID reader?
A: The R58D maintains a stable Bluetooth connection at distances of up to 10 meters from the paired device, while the RFID card reading distance from the reader surface is 20mm to 60mm.
