Bluetooth Fingerprint RFID Access Controller – IP66 Tuya App
Bluetooth Fingerprint RFID Access Controller – IP66 Tuya App

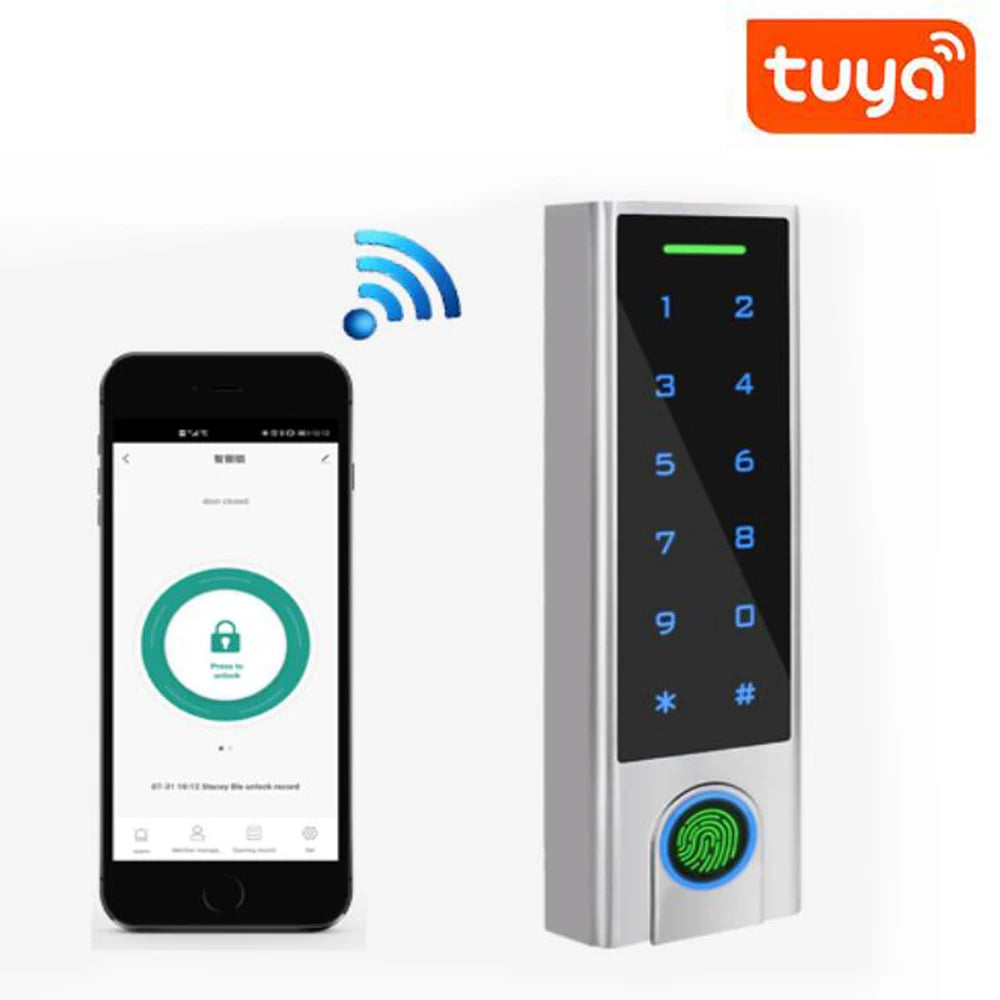

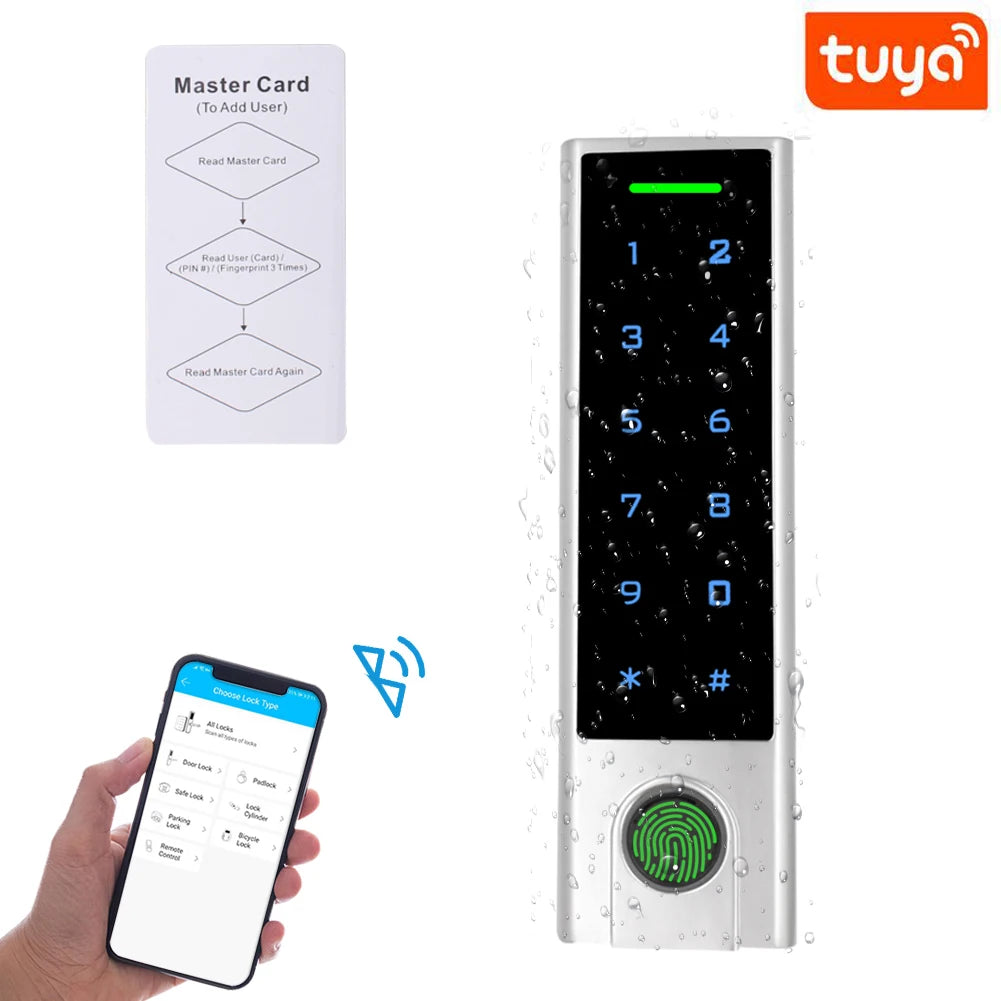

Smart Bluetooth Access Controller with Fingerprint, RFID & PIN – IP66 Waterproof
Take full control of who enters your space with the Asia-Teco HF3-BT Bluetooth Access Controller. Combining capacitive fingerprint sensing, 125KHz RFID card reading, touch keypad PIN entry, and smartphone-based Bluetooth access, this robust unit brings modern smart security to homes, offices, warehouses, and more — all manageable from the Tuya App on iOS or Android.
Key Features
- 4-in-1 Access Modes: Unlock via smartphone app, fingerprint, RFID card (EM 125KHz), or 4–6 digit PIN — use any combination that suits your setup.
- Tuya Smart App Integration: Add or delete up to 1,000 hardware users remotely through the Tuya App. Supports 10 visitor user slots for temporary access.
- IP66 Waterproof Rating: Engineered for indoor and outdoor installation, the IP66-certified enclosure shields against heavy rain, dust, and environmental exposure.
- Anti-Vandal Metal Housing: Rugged metal construction resists tampering and stands up to demanding conditions.

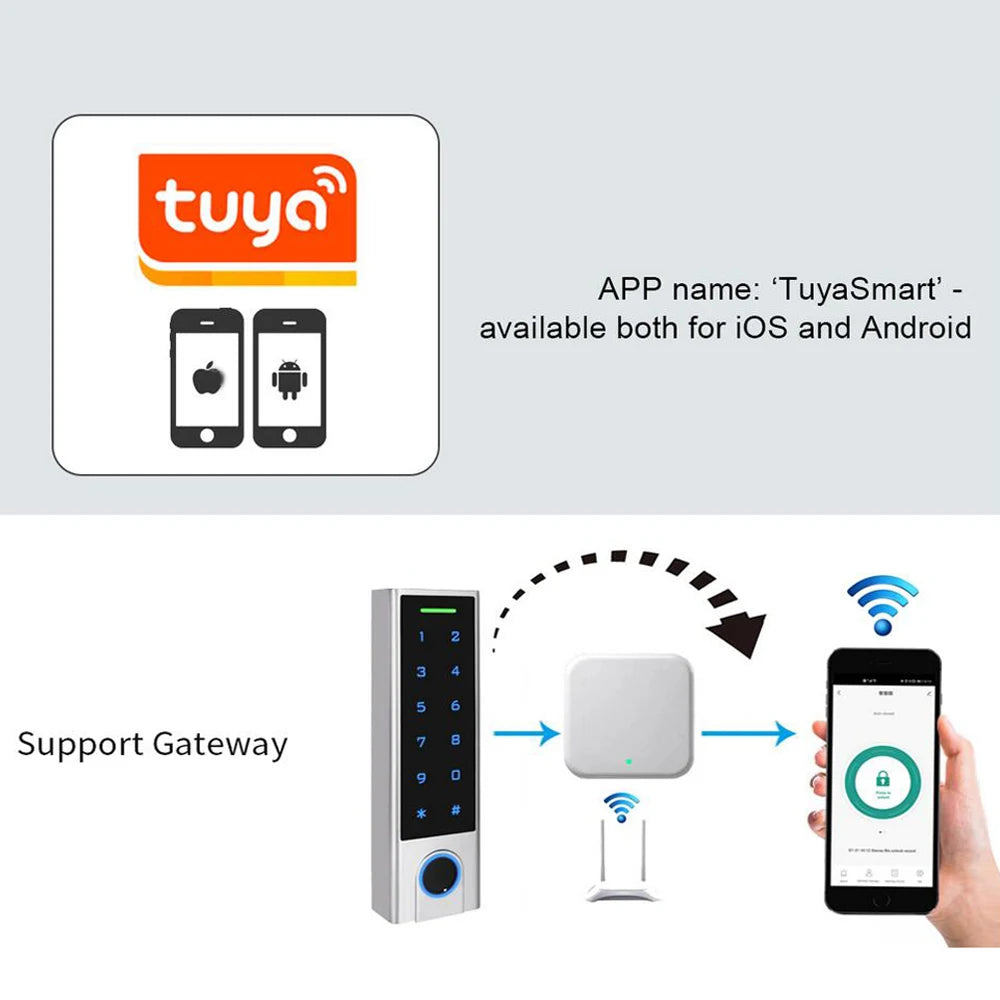

- Bluetooth V4.0 with Gateway Support: Connects via Bluetooth 4.0 and supports a Bluetooth/Wi-Fi gateway for extended remote access and cloud connectivity.
- Wiegand 26–44 Bit Interface: Fully compatible with standard Wiegand input/output for integration into existing access control systems.
- Relay Output (NO/NC/Common): Single relay output with configurable normally-open or normally-closed wiring for electric locks, strikes, and door controllers.
- Access Log: Review opening records directly from the Tuya App to keep a clear audit trail of entry events.
- iOS & Android Compatible: Works seamlessly with both major mobile platforms.
Specifications
| Model | HF3-BT |
| Brand | Asia-Teco |
| Bluetooth Version | V4.0 |
| RFID Frequency | EM 125KHz |
| PIN Length | 4–6 digits |
| User Capacity | 1,000 hardware users / 10 visitor users |
| Waterproof Rating | IP66 |
| Wiegand Interface | 26–44 bit input & output |
| Relay | 1 × (NO, NC, Common) |
| Smart Platform | Tuya |
| Gateway | Bluetooth / Wi-Fi Gateway |
| Card Type | EM Card or Mifare Card |
| Country of Origin | Made in China |
What's in the Box?
- 1 × Asia-Teco HF3-BT Access Controller
- Mounting hardware
- User manual
Why Choose the HF3-BT?
Whether you're securing a business, rental property, or home entry point, the HF3-BT gives you enterprise-grade flexibility without the complexity. Manage every user remotely, check access logs on the go, and trust in an IP66-sealed, metal-armored device built to last. For guidance on evaluating electronic security systems for your property, visit CPSC.gov – Consumer Product Safety Commission.
Frequently Asked Questions

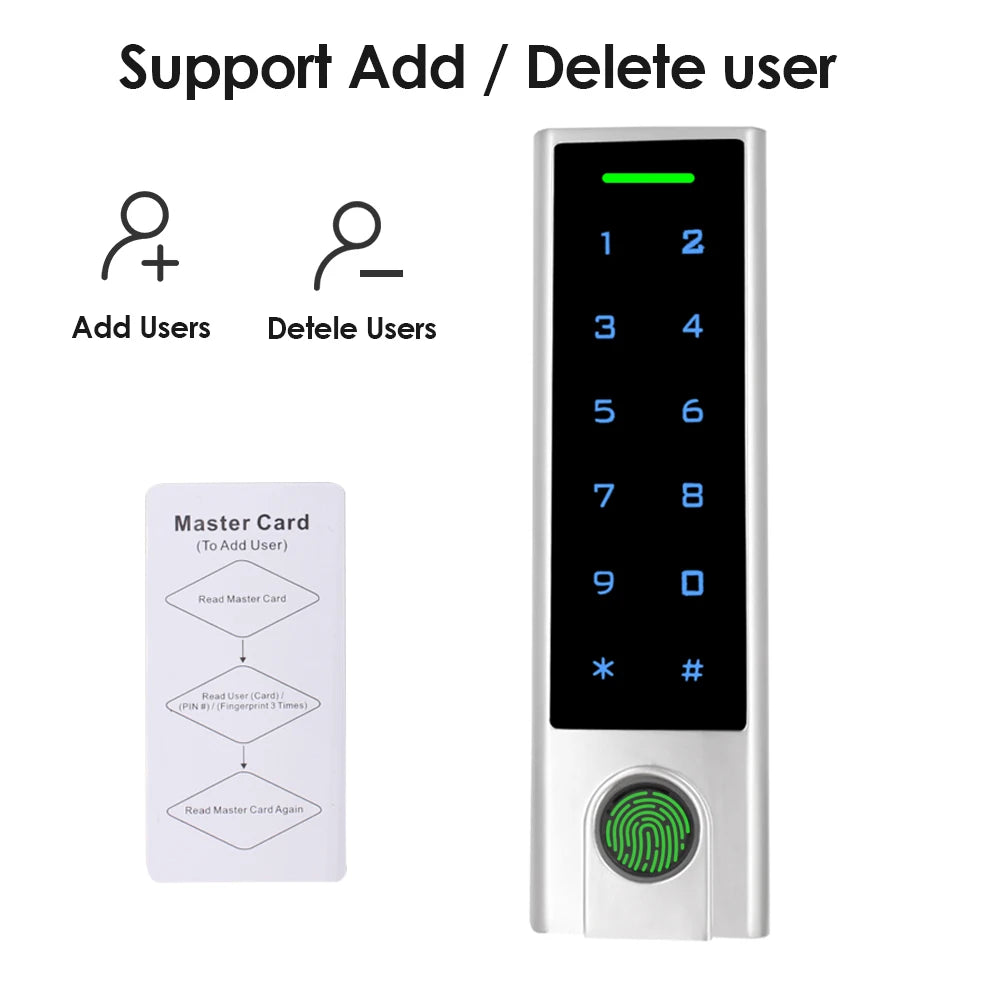

Q: How do I add or delete users on the Bluetooth fingerprint access controller?
A: Users can be added or deleted directly through the Tuya App on iOS or Android via Bluetooth. The controller supports up to 1,000 hardware users and 10 visitor slots, all managed remotely without needing to be physically at the device (when paired with a Bluetooth/Wi-Fi gateway).
Q: Is this access controller suitable for outdoor installation?
A: Yes. The HF3-BT carries an IP66 waterproof rating, meaning it is fully protected against dust ingress and powerful water jets, making it ideal for outdoor gates, building entrances, parking facilities, and other exposed environments. Its anti-vandal metal housing adds an extra layer of durability.
Q: Does this unit work with my existing Wiegand access control system?
A: Absolutely. The HF3-BT supports Wiegand 26–44 bit input and output, allowing it to integrate with the vast majority of standard access control panels already deployed in commercial and residential settings.
Q: What access methods does the HF3-BT support?
A: The controller supports four access modes: smartphone app (Bluetooth), capacitive fingerprint, 125KHz RFID card (EM or Mifare), and 4–6 digit PIN. These can be used individually or in combination for added security.
