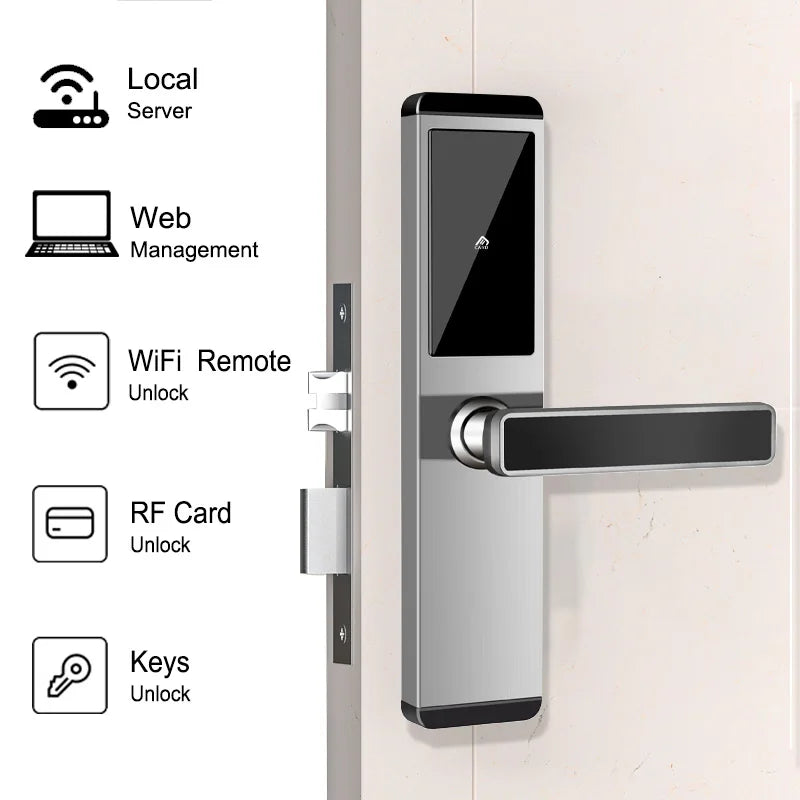

JCSMARTS BLE RFID Hotel Lock System – Web Managed Wooden Door

JCSMARTS Online BLE RFID Hotel Lock System for Wooden Doors

Upgrade your hotel's access control with the JCSMARTS JCHDSR918 Web-Managed BLE RFID Hotel Lock System — a professional-grade, network-connected smart lock built for hospitality environments. Manage all your guest rooms from a single browser-based dashboard, with no annual cloud fees and no proprietary client software to install. Made in China.

⚠️ Important Note: The lock alone is not sufficient for full operation. A complete system requires a server, encoder, gateway (optional), and card stock. Cards are not included. Please contact JCSMARTS before ordering to receive a full system quotation if you need to test or set up the software.

Key System Advantages

• Real-Time Web Management: Browser-based (B/S architecture) — access the management interface from Windows, macOS, Android, or Linux. No client app installation required.
• LAN Server Architecture: Fully operational on a local area network (LAN) — no internet connection needed to issue cards or manage rooms. Low system load, fast recovery, and always-on reliability.
• No Cloud Subscription Fees: Host your own data on your own server (Linux or Windows). No annual cloud ISP fees and no risk of data exposure to third parties.
• Automatic Lock Record Upload: Access logs, battery status, and clock corrections sync automatically to your central server.
• Remote Authority Management: Cancel or grant guest access remotely in real time — ideal for early check-outs or lost cards.
• Multi-Staff Support: Configure multiple reception and staff accounts with flexible role-based access permissions.
• Custom Localization: Change the management interface background, title, and language to suit your property's branding and regional requirements.
• Third-Party PMS Integration: Open HTTP Web API for seamless integration with Property Management Systems (PMS), kiosks, or other platforms.

Lock Hardware Specifications

System Components Overview

1. LAN Server: Runs the core hotel lock management software. All devices connect via LAN. Supports open HTTP API for PMS/Kiosk integration.
2. Router: Standard LAN router (available locally).
3. Computer / Browser: Any modern browser on any OS — no software installation required.
4. Encoder: RJ45 LAN interface with static IP/DHCP support. Used to program and issue guest cards via the web management software.
5. Handset Programmer: For on-site lock installation, clock correction, emergency card issuing, log collection, and firmware updates.
6. Gateway (Optional): Enables remote unlock, real-time lock status, passage mode control, lost-card sync, energy-saving switch monitoring, and more.

Reception Interface Highlights

• Visual room map showing all room statuses and battery levels at a glance
• Search and filter by building, floor, or room type
• Color-coded room status for instant identification
• Pending operations list with quick-access authorization removal
• Card quick menu: view card info, recycle/blank cards, extend stays, and process checkouts
• Card issuance works fully over LAN — stays available even if internet goes down

Card Types Supported

• Guest Card: Room-specific access with time-based control
• Master Card: Access to all doors in the system
• Building Card: Access all doors in an assigned building (up to 10 buildings)
• Floor Card: Access all doors on an assigned floor (up to 10 floors)

Remote Unlock (Gateway Required)

Front desk staff can remotely unlock any specific room with a single click — no need to walk to the door to hand over keys. Ideal for guests who arrive without their card.

System Integration via HTTP API

Direct server-side HTTP API integration — platform-agnostic, no Windows DLL or Linux .so files needed. The encoder receives commands directly from the server once an API request is received. Supports: card issuing, IC card sending, stay extension, checkout, and data sync.

For inquiries, contact JCSMARTS at sales@jcsmarts.com or +86 177 2743 9775.

For general guidance on electronic security systems and access control standards, see the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Can I use this BLE RFID hotel lock system without an internet connection?

A: Yes. The JCSMARTS hotel lock system operates on a Local Area Network (LAN), so all core functions — including card issuance, room status monitoring, and guest management — remain fully available without an internet connection. Internet is only needed if you want remote access to the management interface from outside the LAN.

Q: What do I need to buy to get the full hotel lock system working?

A: The lock itself is one component of the full system. You will also need: a LAN server (Linux or Windows) to run the core software, a router, an encoder (for card issuance), and MIFARE 13.56 MHz cards. A gateway is optional but recommended for real-time remote features. Please contact JCSMARTS for a complete quotation before ordering.

Q: What card types does this RFID hotel lock support?

A: The lock supports 13.56 MHz MIFARE RFID cards. Cards are not included in the package. Guest cards, master cards, building cards, and floor cards can all be programmed through the web-based management system using the encoder.

Q: Is this hotel lock system compatible with my existing Property Management System (PMS)?

A: Yes. The system provides an open HTTP Web API, making it compatible with virtually any PMS, kiosk, or third-party platform regardless of operating system. Functions supported include card issuing, stay extension, checkout, and data sync.

Q: What is the battery life of the JCSMARTS RFID door lock?

A: The lock runs on 4 × AA batteries with an estimated life of 4 to 8 months depending on usage. A low-battery alarm is automatically sent to the central management system (when a gateway is installed), so your team can proactively replace batteries before they run out.
