BLDC Brushless Servo Motor 10W 24-48V Hall Sensor ABZ Encoder

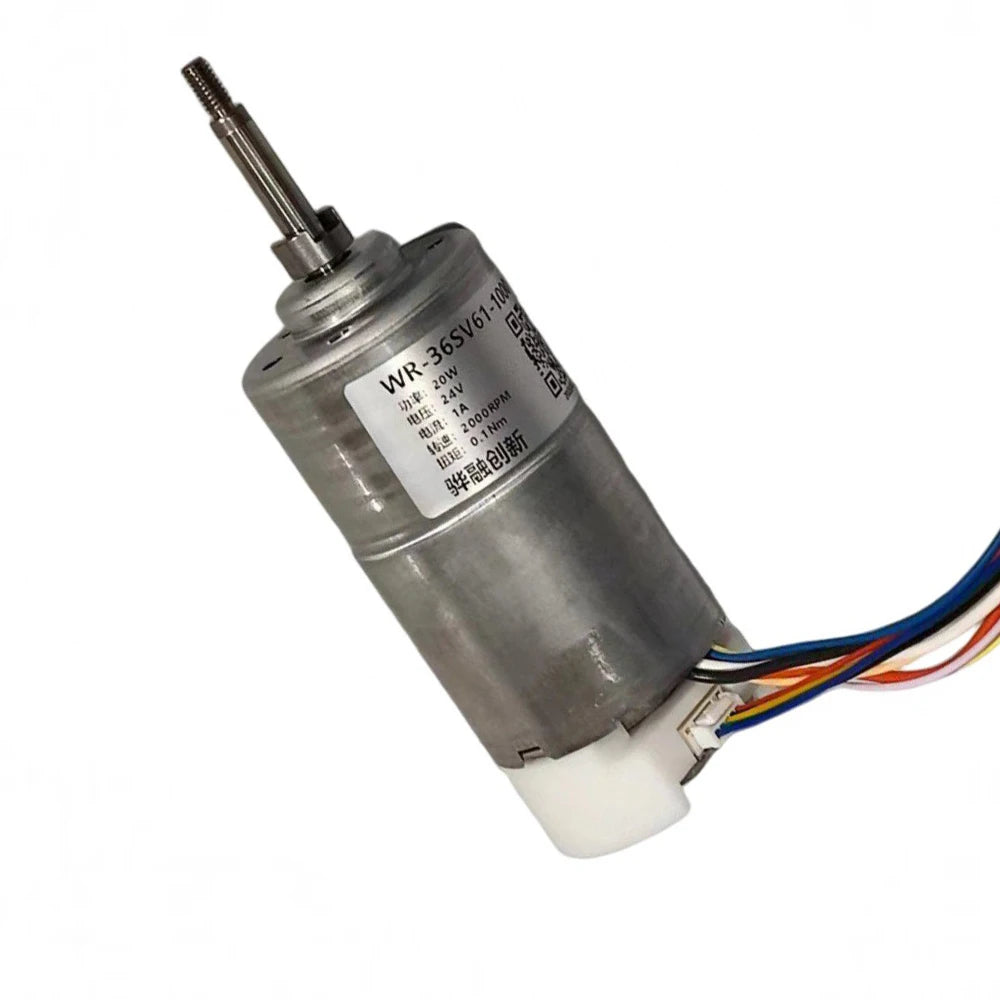

BLDC Brushless Servo Motor — 10W | 24–48V | 3-Phase | Hall Sensor & 1000 CPR ABZ Encoder

Upgrade your automation, robotics, or precision drive project with this compact yet powerful 10W BLDC (Brushless DC) Servo Motor. Engineered for smooth, efficient, and highly controllable motion, this 3-phase brushless motor combines an integrated Hall sensor for reliable commutation with a high-resolution 1000 CPR ABZ TTL encoder for accurate position and speed feedback — all in a single, ready-to-wire package.

Key Features

• Wide Voltage Range: Operates on 24V, 36V, or 48V DC — flexible for a variety of power supplies and control systems.
• Variable Speed Output: Achieves 2000 rpm @ 24V, 3000 rpm @ 36V, and 4000 rpm @ 48V — scale performance to your application.
• High-Resolution Encoder: 1000 CPR ABZ TTL signal encoder delivers precise position and velocity feedback for closed-loop control.
• Hall Sensor Commutation: Built-in Hall sensors (U, V, W) ensure smooth, efficient 3-phase commutation and accurate rotor position detection.
• Brushless Design: Eliminates brush wear for longer service life, reduced maintenance, and quieter, more consistent operation.
• Clear Wiring Definitions: Color-coded motor and sensor wires simplify integration into your driver or controller.

Technical Specifications

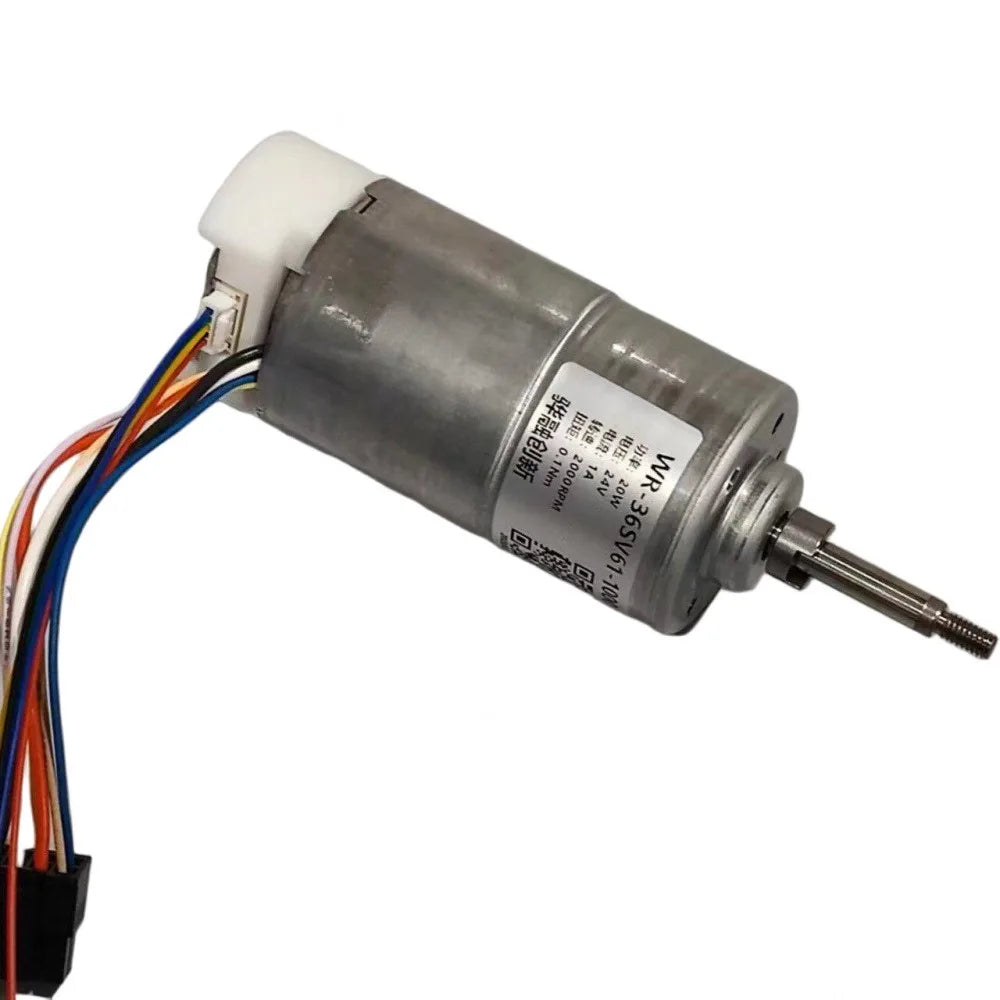

Wiring Reference

Motor Wires: Red = U | White = V | Black = W

Hall Sensor Wires: Brown = +5V | Blue = GND | Orange = Hall_U | Purple = Hall_V | Yellow = Hall_W

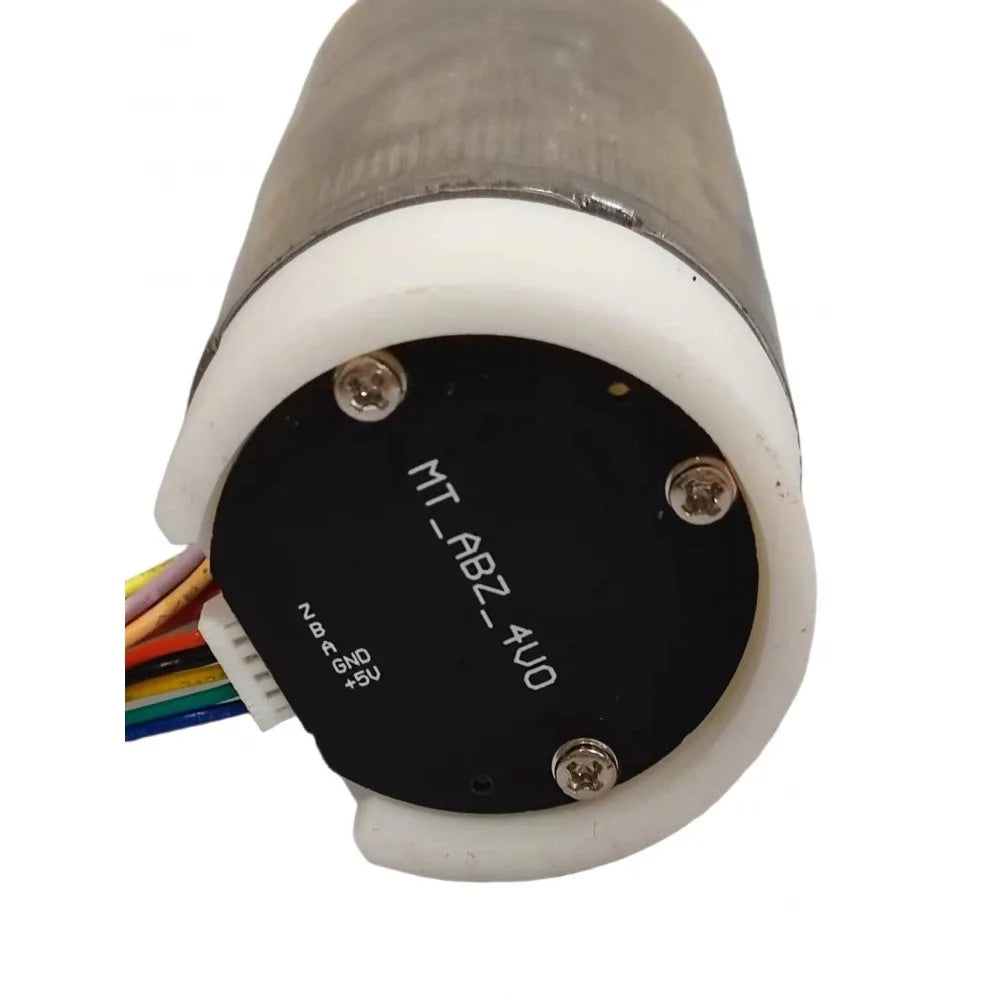

Encoder Signals: Pin 1 = +5V | Pin 2 = GND | Pin 3 = A | Pin 4 = B | Pin 5 = Z

Ideal Applications

• Robotics and automation systems
• CNC machines and precision linear stages
• DIY servo drive projects
• Conveyor and feed systems
• Educational and prototyping platforms

Package Contents

• 1× BLDC Brushless Servo Motor (10W)
• 2× Cables

Made in Mainland China.

For general guidance on electric motor safety standards and best practices, refer to the OSHA Electrical Safety Guidelines. For standards related to electrical equipment in automation, visit NIST Intelligent Systems Division.

Note: Due to lighting and display differences, actual product color may vary slightly from images. Please allow 1–10 mm tolerance due to manual measurement.

Frequently Asked Questions

Q: What type of controller is compatible with this BLDC brushless servo motor?

A: This motor is compatible with most 3-phase BLDC motor controllers or servo drives that support Hall sensor commutation and accept ABZ TTL encoder signals. Ensure your driver supports the motor's voltage range (24–48V DC) and current capacity. FOC (Field Oriented Control) and trapezoidal commutation controllers are both suitable.

Q: Can I run this motor at voltages other than 24V, 36V, or 48V?

A: The motor is rated for operation within the 24–48V DC range. Operating within this range is recommended for safe and optimal performance. Running the motor at intermediate voltages is generally acceptable, but exceeding 48V may damage the windings or encoder circuitry.

Q: What does 1000 CPR mean for the ABZ encoder on this brushless motor?

A: CPR stands for Counts Per Revolution. A 1000 CPR encoder outputs 1000 pulses per full revolution on each of the A and B channels, providing high-resolution position feedback. The Z (index) channel outputs one pulse per revolution for homing and reference positioning — ideal for closed-loop speed and position control applications.

Q: Does this BLDC motor come with a driver or motor controller?

A: No, a motor driver or controller is not included in the package. The kit includes the brushless servo motor and 2 cables. You will need a compatible 3-phase BLDC driver or servo controller to operate the motor in your system.
