BLDC Brushless Servo Motor 10W 24-48V Hall Sensor 1000CPR Encoder

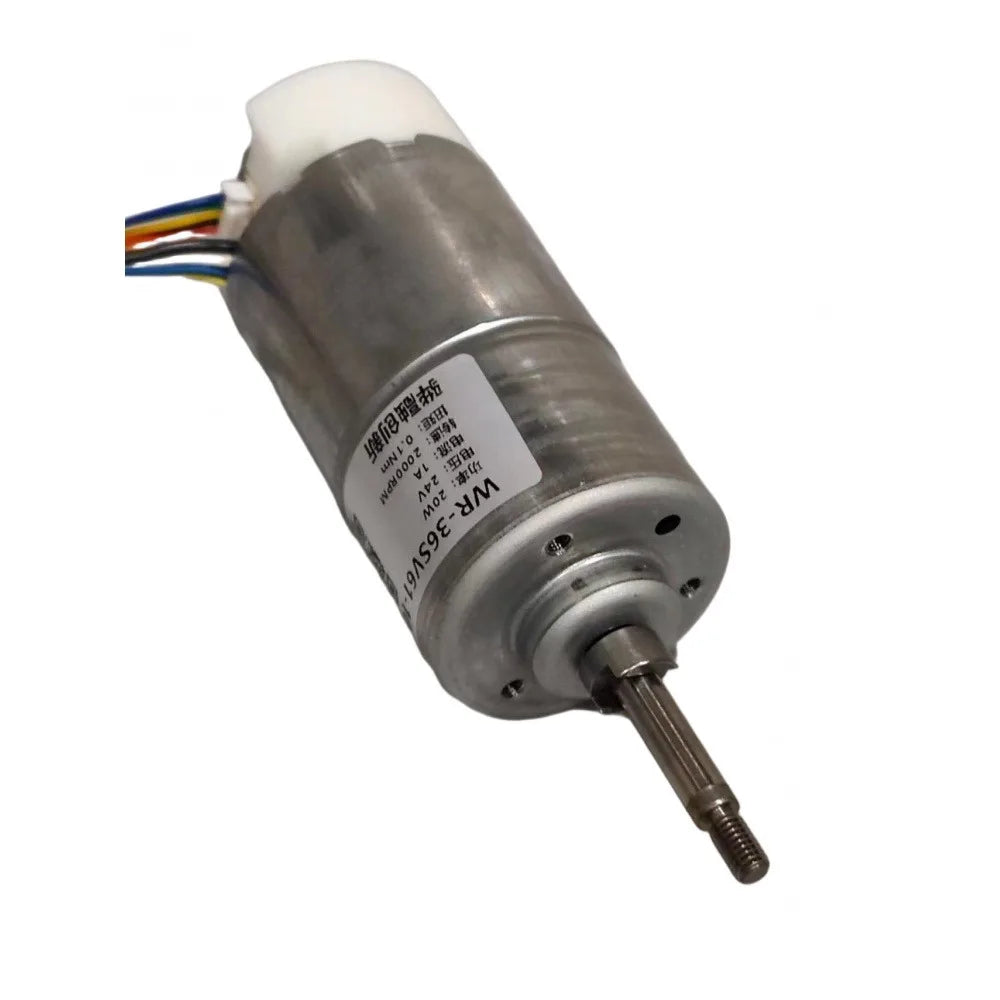

BLDC Brushless Servo Motor 10W | 24-48V | 3-Phase | Hall Sensor & 1000CPR ABZ Encoder

Take your motion control projects to the next level with this high-performance 10W BLDC (Brushless DC) Servo Motor. Designed for precision and reliability, this 3-phase brushless motor operates across a wide voltage range (24V–48V) and delivers scalable speeds from 2,000 to 4,000 RPM. Equipped with integrated Hall sensors and a high-resolution 1000 CPR ABZ TTL encoder, it's ideal for robotics, CNC systems, automation equipment, electric vehicles, and DIY servo drive projects. Made in Mainland China.

Key Features

• Wide Voltage Range: Operates at 24V, 36V, or 48V for flexible integration into various systems
• Scalable Speed: 2000 RPM @ 24V | 3000 RPM @ 36V | 4000 RPM @ 48V
• High-Resolution Encoder: 1000 CPR ABZ TTL signal for accurate position and velocity feedback
• Integrated Hall Sensors: Enables precise commutation and smooth closed-loop control
• 3-Phase Brushless Design: Lower maintenance, longer lifespan, and efficient operation vs. brushed motors
• Compact & Lightweight: Easy to mount and integrate into tight spaces
• Clear Wiring Labels: Color-coded wires for quick and accurate connections

Technical Specifications

Wiring Reference

Motor Wires:

• Red = U Phase
• White = V Phase
• Black = W Phase

Hall Sensor Wires:

• Brown = +5V
• Blue = GND
• Orange = Hall_U
• Purple = Hall_V
• Yellow = Hall_W

Encoder Signals:

• Pin 1 = +5V
• Pin 2 = GND
• Pin 3 = A
• Pin 4 = B
• Pin 5 = Z (Index)

Package Includes

• 1× BLDC Brushless Servo Motor (10W)
• 2× Cables

Note: Due to lighting and screen calibration differences, the item's color may vary slightly from product images. Please allow 1mm–1cm measurement tolerance due to manual measurement methods.

For more information on motor safety standards and electrical equipment guidelines, visit OSHA Electrical Safety Resources.

Frequently Asked Questions

Q: What is the difference between a BLDC motor and a standard brushed DC motor?

A: A BLDC (Brushless DC) motor uses electronic commutation via Hall sensors instead of physical brushes, resulting in significantly less wear, reduced maintenance requirements, improved efficiency, and a longer operational lifespan. This makes BLDC motors a preferred choice for precision motion control applications such as robotics, CNC machines, and automation systems.

Q: What controller do I need to run this BLDC servo motor?

A: This motor requires a 3-phase BLDC motor controller or servo drive that supports Hall sensor feedback and is compatible with a 1000 CPR ABZ TTL encoder. Ensure your driver supports the operating voltage range of 24V–48V DC and a 10W power output. FOC (Field-Oriented Control) drivers are recommended for optimal closed-loop performance.

Q: Can I use this motor in a robotics or DIY automation project?

A: Absolutely. This 10W brushless servo motor is well-suited for robotics joints, conveyor systems, small CNC axes, electric vehicle prototypes, and other DIY automation builds. The integrated Hall sensors and 1000 CPR encoder make it easy to implement accurate speed and position control in both open-loop and closed-loop configurations.

Q: What voltages does this motor support and how does voltage affect speed?

A: This motor supports 24V, 36V, and 48V DC inputs. Higher voltage directly increases the no-load speed: 2000 RPM at 24V, 3000 RPM at 36V, and 4000 RPM at 48V. Always ensure your power supply matches the rated voltage for safe and reliable operation.
