Biometric Fingerprint Time Attendance & Access Control – RFID TCP/IP

Asia-Teco Biometric Fingerprint Time Attendance & Access Control Machine

Streamline employee time tracking and secure your premises with the Asia-Teco F601-S/F601-T Biometric Fingerprint Access Control System. This all-in-one standalone device combines fingerprint recognition, 125KHz RFID card reading, and PIN keypad entry — giving you three flexible ways to manage door access and accurately log attendance for up to 1,000 users.

Whether you manage a busy office building, a residential complex, or a small business, this system delivers fast, accurate identification with a high-sensitivity optical filmless fingerprint sensor that works reliably on both wet and dry fingers. Made in Mainland China.

Key Features

• Three Unlock Methods: Fingerprint, 125KHz RFID EM card, or PIN keypad — use any combination for flexible access control.

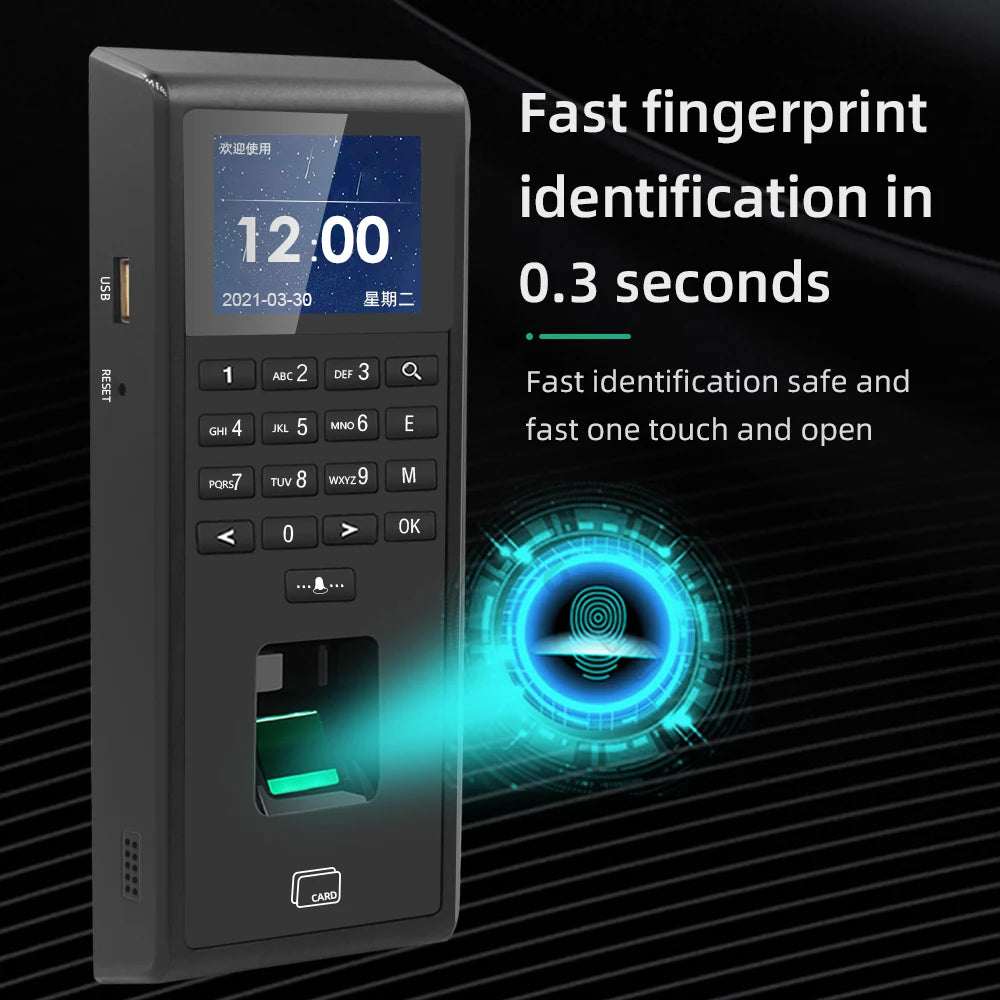

• High-Speed Fingerprint Recognition: Optical filmless sensor provides rapid, accurate identification, supporting wet and dry fingers with minimal false rejections.
• Large Storage Capacity: Stores up to 1,000 fingerprints, 1,000 RFID cards, 1,000 user records, and 10,000 attendance/access logs.
• Multiple Communication Interfaces: TCP/IP network port and USB port for seamless data transfer and software integration.
• Comprehensive I/O Connectivity: Includes Lock Control, Exit Button, Door Contact Input, Alarm Input, Alarm Output, and Wiegand interface for full system integration.

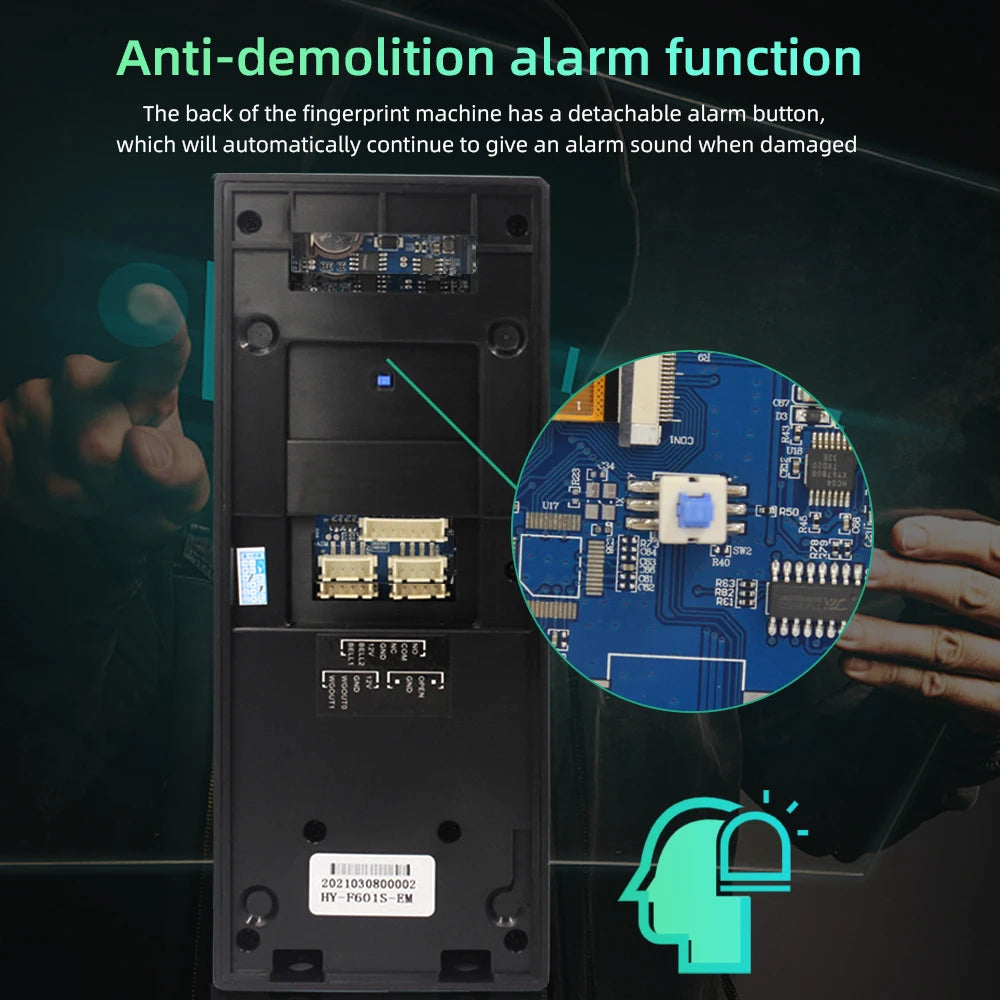

• Anti-Tamper Alarm: Built-in tamper detection triggers an alert if the device is forcibly removed or tampered with.
• Normally Open Mode: Configurable for environments requiring constant access or fail-safe scenarios.
• Compact 2.4" Display: Clear, easy-to-read screen for quick user interaction and status feedback.
• Wide Operating Temperature: Functions reliably from -10°C to 45°C, suitable for a variety of indoor environments.
• Low Power Consumption: Operates on DC 12V 1A — energy-efficient and easy to install.

Technical Specifications

• Model: F601-S / F601-T
• Biometric Recognition: Fingerprint (Optical Filmless Sensor)
• RFID Card Type: 125KHz EM Card
• User Capacity: 1,000
• Fingerprint Capacity: 1,000
• Card Capacity: 1,000
• Log Capacity: 10,000 records
• Screen Size: 2.4 inch

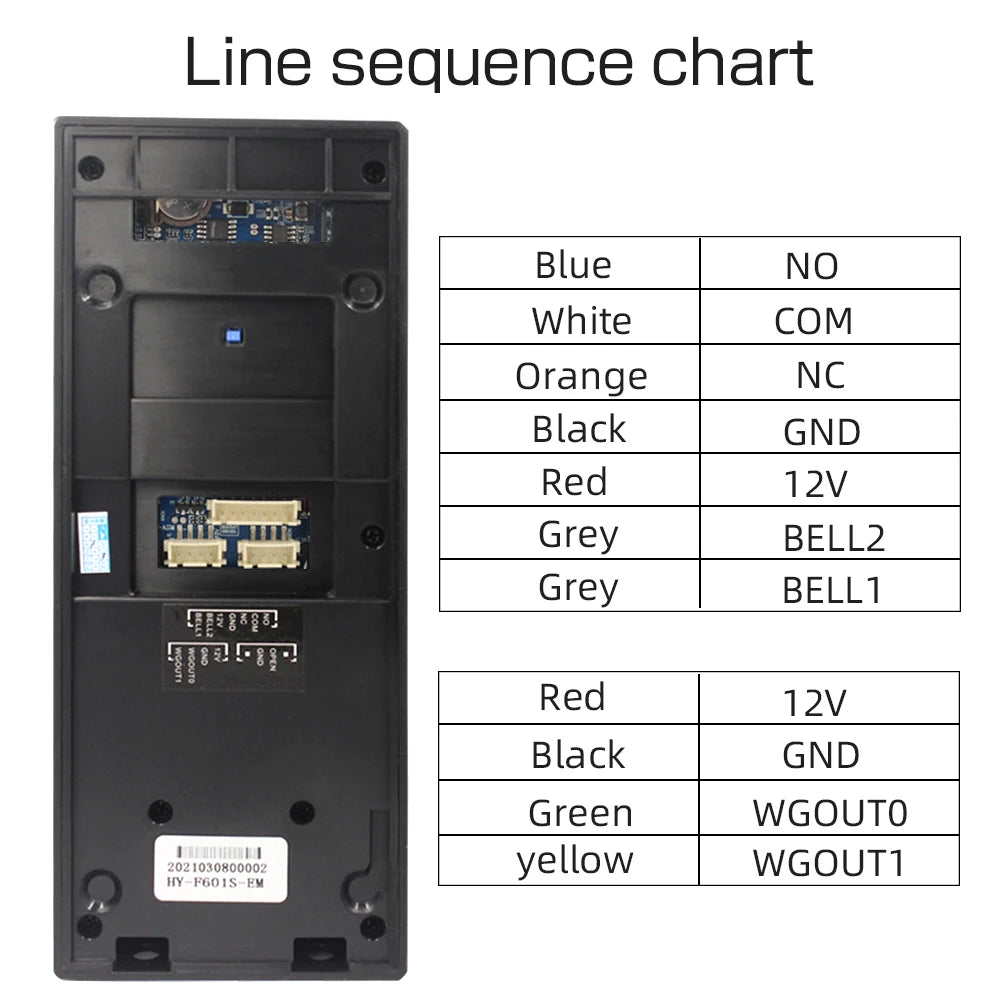

• Interfaces: TCP/IP, USB, Wiegand, Lock Control, Exit Button, Door Contact Input, Alarm Input/Output
• Power Supply: DC 12V 1A
• Working Temperature: -10°C to 45°C
• Country of Origin: Made in Mainland China

Ideal Applications

• Corporate offices and commercial buildings
• Residential entrances and apartment complexes
• Small businesses and retail stores
• Warehouses and manufacturing facilities
• Schools and educational institutions

Learn More About Access Control Standards

For guidance on physical security and access control best practices, visit the NIST Identity & Access Management Resource Center.

Frequently Asked Questions

Q: How many users can the Asia-Teco F601 biometric time attendance machine support?

A: The Asia-Teco F601-S/F601-T supports up to 1,000 users, storing 1,000 fingerprints, 1,000 RFID card credentials, and up to 10,000 attendance and access log entries — making it ideal for small to mid-sized businesses and residential buildings.

Q: What communication options does this fingerprint access control system offer?

A: The device features both a TCP/IP network interface and a USB port for data transfer, allowing you to connect it to your local network for real-time monitoring and software management, or use USB for offline data export and configuration.

Q: Can this device work as a standalone unit without a computer or server?

A: Yes. The F601 is a standalone access control system, meaning it can operate independently without a connected PC or server. Access decisions (fingerprint, RFID card, or PIN) are made locally on the device at all times.

Q: What type of RFID cards are compatible with this time attendance machine?

A: This system is compatible with standard 125KHz EM cards, which are widely available and commonly used in access control systems worldwide.

Q: Is the fingerprint sensor reliable for workers with rough or wet hands?

A: Absolutely. The optical filmless fingerprint sensor is specifically designed to achieve high recognition accuracy with both wet and dry fingers, making it well-suited for environments such as kitchens, labs, or outdoor-adjacent entry points.
