Biometric Fingerprint RFID Keypad Door Access Control System
Biometric Fingerprint RFID Keypad Door Access Control System
Asia-Teco Standalone Biometric Fingerprint & RFID Keypad Access Control System
Upgrade your property's entry security with the Asia-Teco Standalone Biometric Fingerprint & RFID EM Keypad Access Control System. Powered by a next-generation ARM 32-bit microprocessor, this versatile unit delivers fast, reliable, and keyless door access for offices, residential communities, villas, banks, and more. Choose your preferred entry method — fingerprint scan, RFID/EM card, or PIN keypad — and enjoy total control over who enters your space.
Made in Mainland China.
Why Choose This Access Control System?
- Multi-Mode Access: Supports relay toggle mode, pure reader mode, and standalone access control mode — flexible for virtually any installation scenario.
- High Capacity: Store up to 10,000 card users (E39EM-W model) or 2,000 users (EK05-EM-W model) for scalable security management.
- RFID EM Card Reading: Metal-embedded RFID reader with a 2–6 cm reading range — quick tap-and-go convenience with no fumbling for keys.
- Blue Backlit Keypad: Illuminated numeric keypad for easy PIN entry, even in low-light conditions.
- Wiegand 26/34 Compatible: Seamlessly integrates with existing access control infrastructure via Wiegand input/output.
- Data Backup Function: Protects your user database against accidental loss.
- Wide Operating Range: Functions in temperatures from -45°C to 60°C and humidity up to 95% RH — built for both indoor and outdoor use.
- CE & FCC Certified: Meets international safety and electromagnetic compliance standards.
- Tuya Smart Home Platform Compatible: Connects with Tuya for smart home integration.
- Adjustable Door Opening Time: Set unlock duration from 0–99 seconds to match your workflow.
- Alarm Output: Configurable alarm output time of 0–3 minutes for added security awareness.
Model Comparison
| Feature | E39EM-W | EK05-EM-W |
|---|---|---|
| User Capacity | 10,000 card users | 2,000 users |
| Card Type | EM | EM |
| Reading Range | 2–5 cm | 3–6 cm |
| Wiegand | WG26 input/output | WG26/WG34 adjustable |
| Keypad | No | Blue luminous digital keypad |
| Operating Voltage | DC 12V | DC 12V |
| Operating Temperature | -20°C ~ 60°C | -45°C ~ 60°C |
| Standby Current | ≤35mA | ≤30mA |
| Max Lock Output Current | ≤1A | ≤1A |
| Door Opening Time | 0–99s (Adjustable) | 0–99s (Adjustable) |
Technical Specifications (General)
- Operating Voltage: DC 12V
- Operation Current: ≤100mA
- Maximum Rated Current: ≤1A
- Operating Humidity: 0%–95%
- Alarm Output Time: 0–3 min
- Certification: CE, FCC
- Smart Home Platform: Tuya
- High-Concern Chemicals: None
Ideal Applications
- Office buildings and corporate facilities
- Residential communities and apartment complexes
- Private villas and homes
- Banks and financial institutions
- High-security facilities and controlled-access environments
For guidance on electronic access control best practices and standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What access methods does this biometric access control system support?
A: Depending on the model, this system supports RFID EM card access, fingerprint biometric identification, and PIN keypad entry. The E39EM-W focuses on card-only access with up to 10,000 users, while the EK05-EM-W adds a blue backlit keypad for PIN entry with up to 2,000 users.
Q: Is this access control system compatible with existing door lock hardware?
A: Yes. The system outputs a standard NO/NC/COM relay signal and supports Wiegand 26 (and WG34 on the EK05-EM-W model), making it compatible with most electric strikes, magnetic locks, and third-party access control panels already on the market.
Q: Can I use this system outdoors?
A: Yes. The system is designed to withstand a wide temperature range (down to -45°C on the EK05-EM-W and -20°C on the E39EM-W) and humidity levels up to 95% RH, making it suitable for both indoor and outdoor entry points.

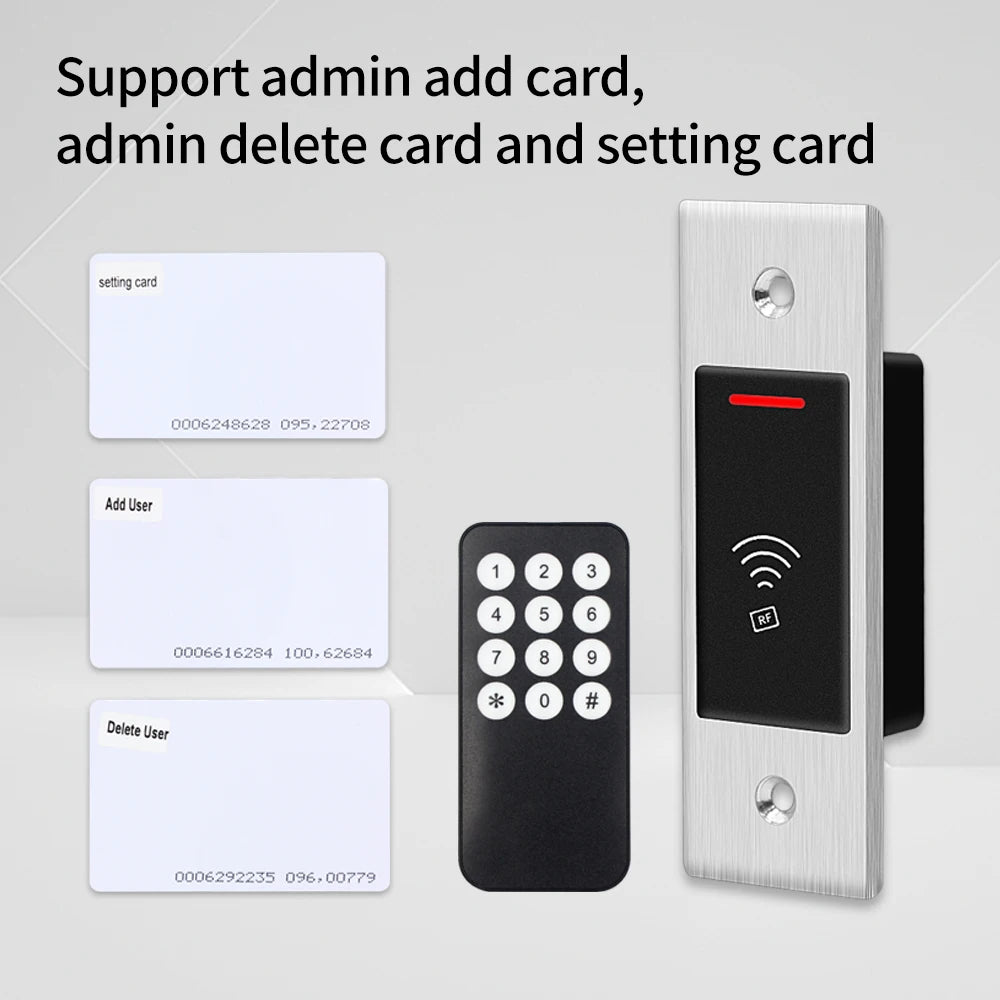

Q: How do I add or delete users on this access control system?
A: User management on the E39EM-W is handled conveniently via master card or remote control, with no PC required. The system also features a data backup function to protect your user list from accidental loss.
Q: Is this system compatible with smart home platforms?
A: Yes. The system is compatible with the Tuya smart home platform, allowing integration with a broader range of smart home devices and remote management capabilities.
