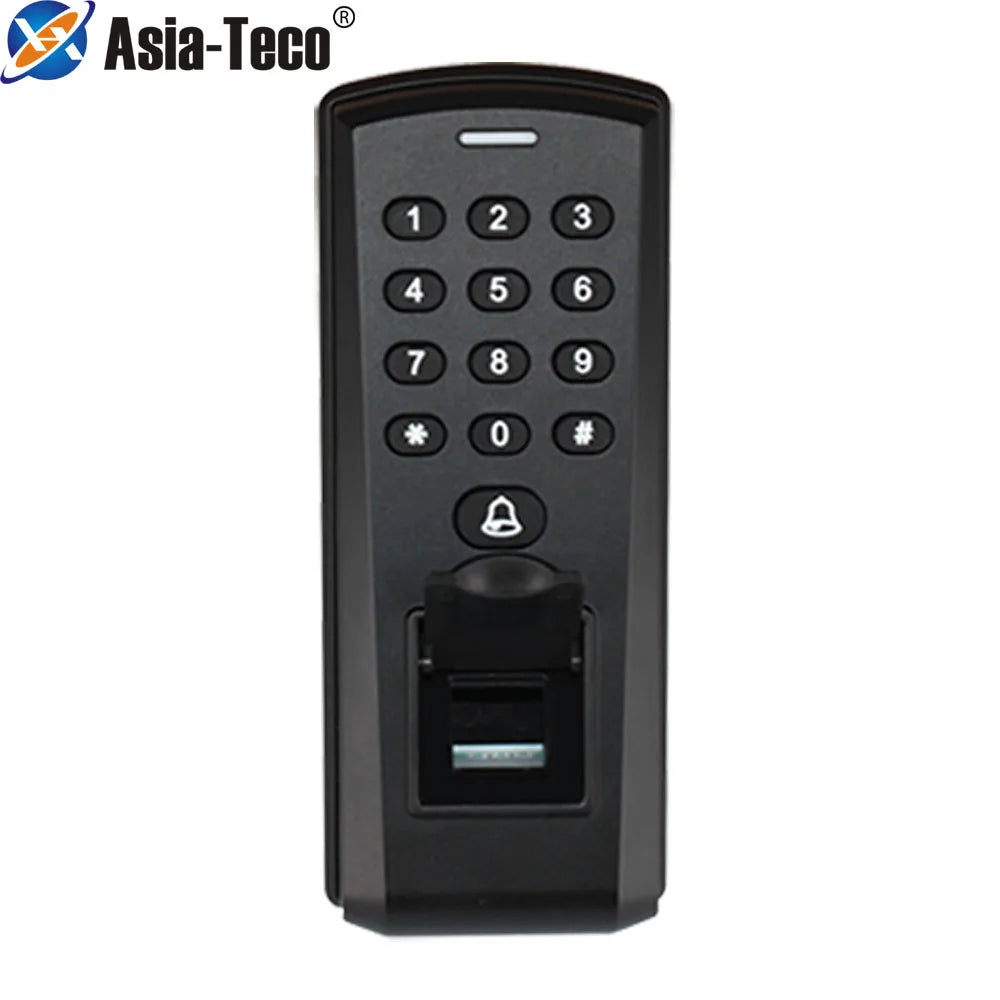

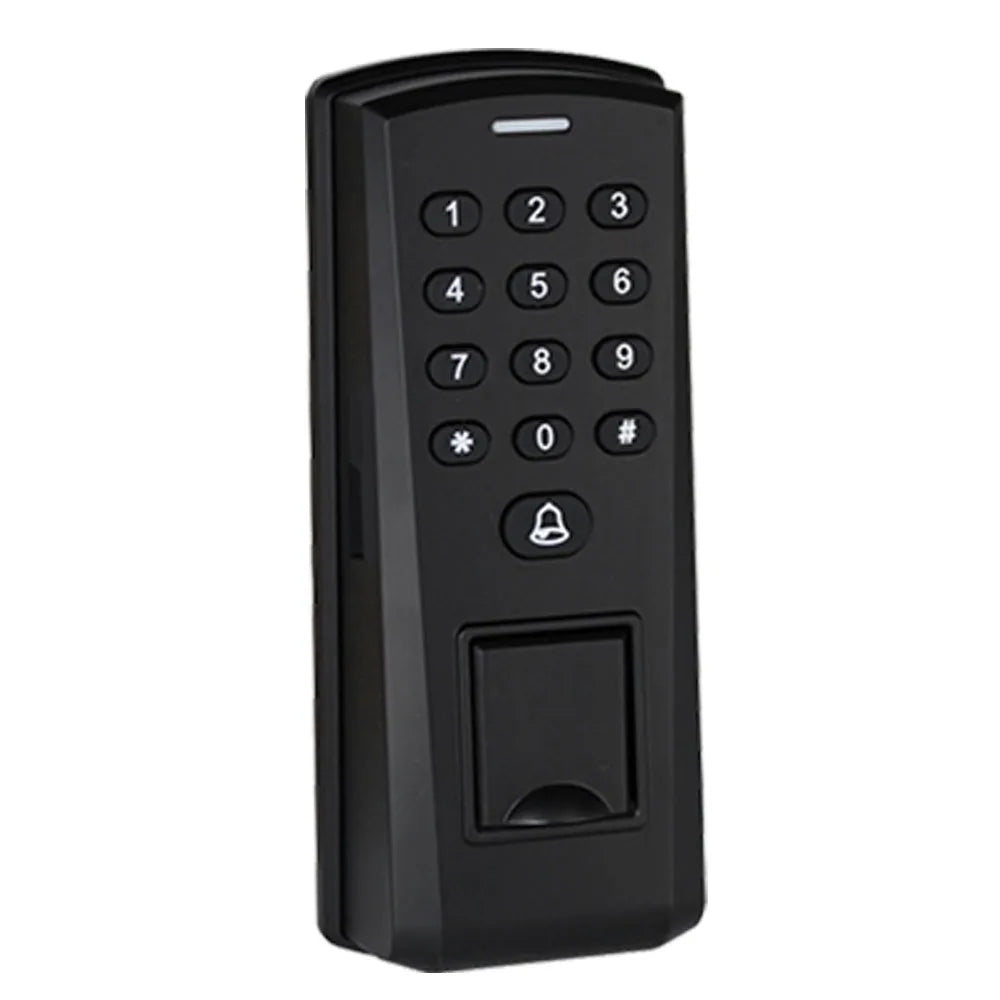

Asia-Teco CF7 Biometric Fingerprint & RFID Door Access Control System
Take control of who enters your space with the Asia-Teco CF7 Biometric Door Access Control System. Combining fingerprint recognition, 125KHz RFID card reading, and PIN keypad entry into one sleek, black unit, this advanced access controller delivers reliable, multi-modal security for homes, offices, and commercial properties.
Why Choose the CF7 Access Control System?
The CF7 stands out as one of the most innovative biometric fingerprint readers available for access control applications. Powered by an advanced matching algorithm, it offers exceptional reliability, precision, and fast identification speeds — giving you peace of mind every time someone enters your door.
- Triple Authentication Modes: Fingerprint, 125KHz proximity RFID card, or PIN keypad — use one or combine them for added security.
- Large User Capacity: Supports up to 2,000 fingerprints, 1,000 RFID cards, and 1,000 PIN codes — ideal for small to medium-sized businesses or multi-family residences.
- Optical Fingerprint Module: High-accuracy optical sensor ensures fast, dependable fingerprint identification even with everyday wear and environmental exposure.
- Industry Standard 26-Bit Wiegand: Compatible with a wide range of access control panels and third-party systems.
- Standalone Operation: No PC or network connection required. Manage users and settings directly from the built-in keypad — enroll users, delete users, and configure access parameters with ease.
- Third-Party Device Interface: Integrates seamlessly with electric locks, exit buttons, and doorbells for a complete door security setup.
- Fail-Safe Security Mode: Equipped with Fail Safe with Signal mode for reliable performance even in the event of a power interruption.
- 125KHz EM Card Support: Works with standard industry proximity EM cards with a read range of 1–5 cm.
Technical Specifications
| Model | CF7 |
| Brand | Asia-Teco |
| Operating Voltage | 12V DC |
| Fingerprint Capacity | 2,000 |
| Card Capacity | 1,000 |
| PIN Capacity | 1,000 |
| User Capacity | 1,000 |
| Fingerprint Reader | Optical Fingerprint Module |
| Radio Technology | 125KHz Industry Proximity EM Card |
| Proximity Card Standard | Industry Standard 26-Bit Wiegand |
| Read Range | 1 – 5 cm |
| Security Mode | Fail Safe with Signal |
| Color | Black |
| Country of Origin | Made in Mainland China |
Perfect For
- Office and commercial building entry points
- Home front doors and garages
- Server rooms and restricted access areas
- Apartment complexes and shared residential spaces
- Warehouses and storage facilities
Resources & Standards
For guidance on physical security standards and best practices for access control systems, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How many fingerprints can the Asia-Teco CF7 biometric access control system store?
A: The CF7 can store up to 2,000 fingerprints, making it well-suited for offices, apartment buildings, or any environment with a larger number of authorized users.
Q: Does the CF7 fingerprint door access control system require a computer or internet connection to operate?
A: No. The CF7 operates in standalone mode — all user enrollment, deletion, and access parameter configuration is handled directly through the built-in keypad. No PC or network connection is needed for day-to-day use.
Q: What types of RFID cards are compatible with this access control keypad?
A: The CF7 supports standard 125KHz Industry Proximity EM Cards using the Industry Standard 26-Bit Wiegand protocol, which is widely used and compatible with most existing access control card systems.
Q: Can I connect the CF7 to an electric door lock or exit button?
A: Yes. The CF7 includes interface connections for third-party electric locks, exit buttons, and doorbells, allowing you to build a complete, integrated door security system.
