Asia-Teco Biometric Fingerprint & RFID Keypad Access Control System

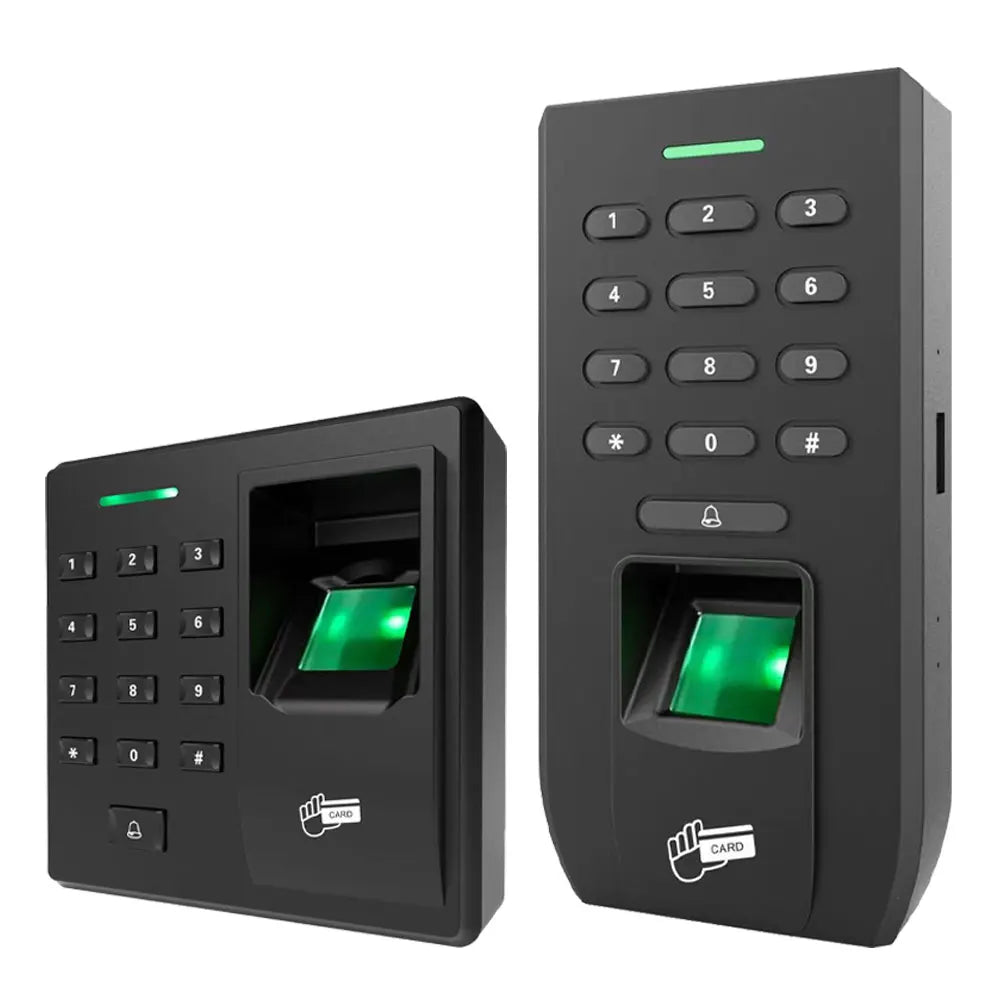

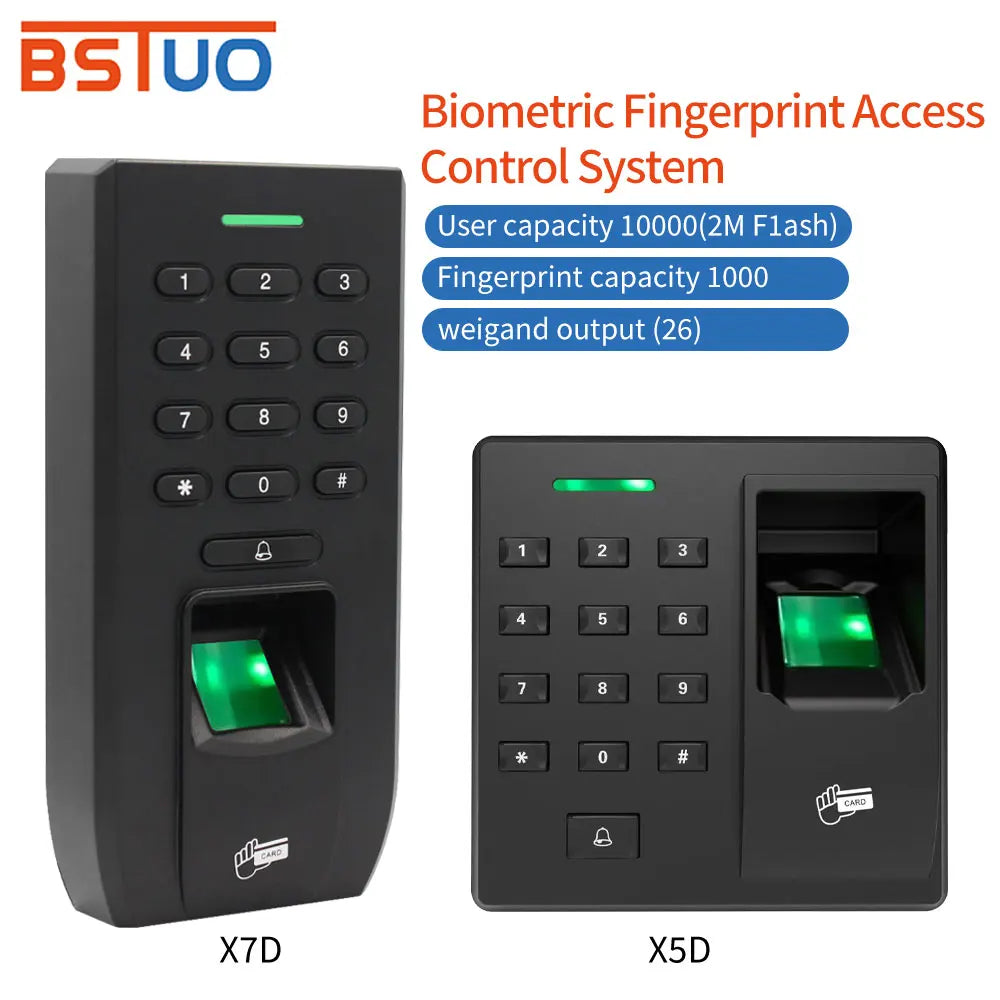

Upgrade your door security with the Asia-Teco Biometric Fingerprint Access Control Machine (Model X5D / X7D). This compact yet powerful unit combines three identification methods — fingerprint scan, 125KHz RFID card, and PIN password — into one sleek, wall-mounted device. Designed for homes, offices, warehouses, and commercial premises, it delivers fast, reliable identity verification with every use.
Key Features
- Triple Identification Modes: Verify entry via fingerprint, 125KHz ID card, or keypad password — choose the method that suits your needs.

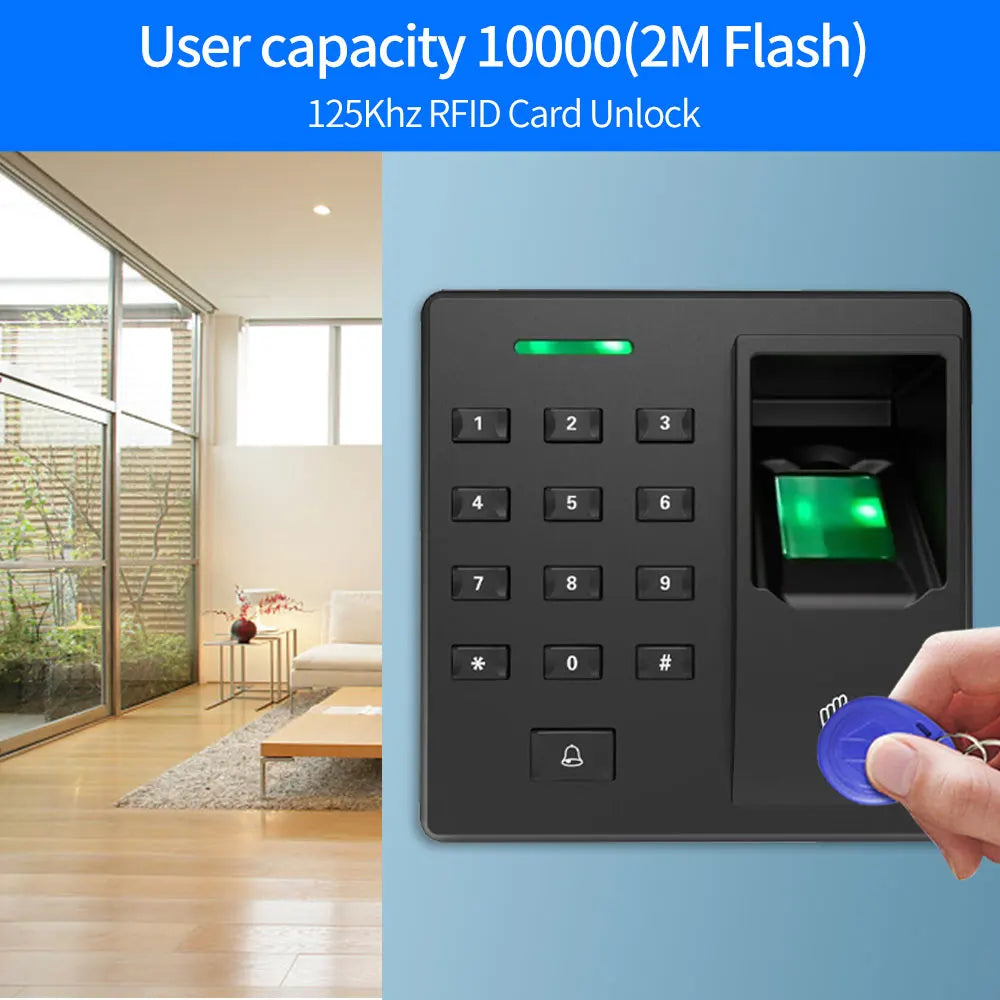

- High-Capacity Storage: Stores up to 10,000 users (2M Flash) and up to 1,000 fingerprint templates for large-scale deployments.

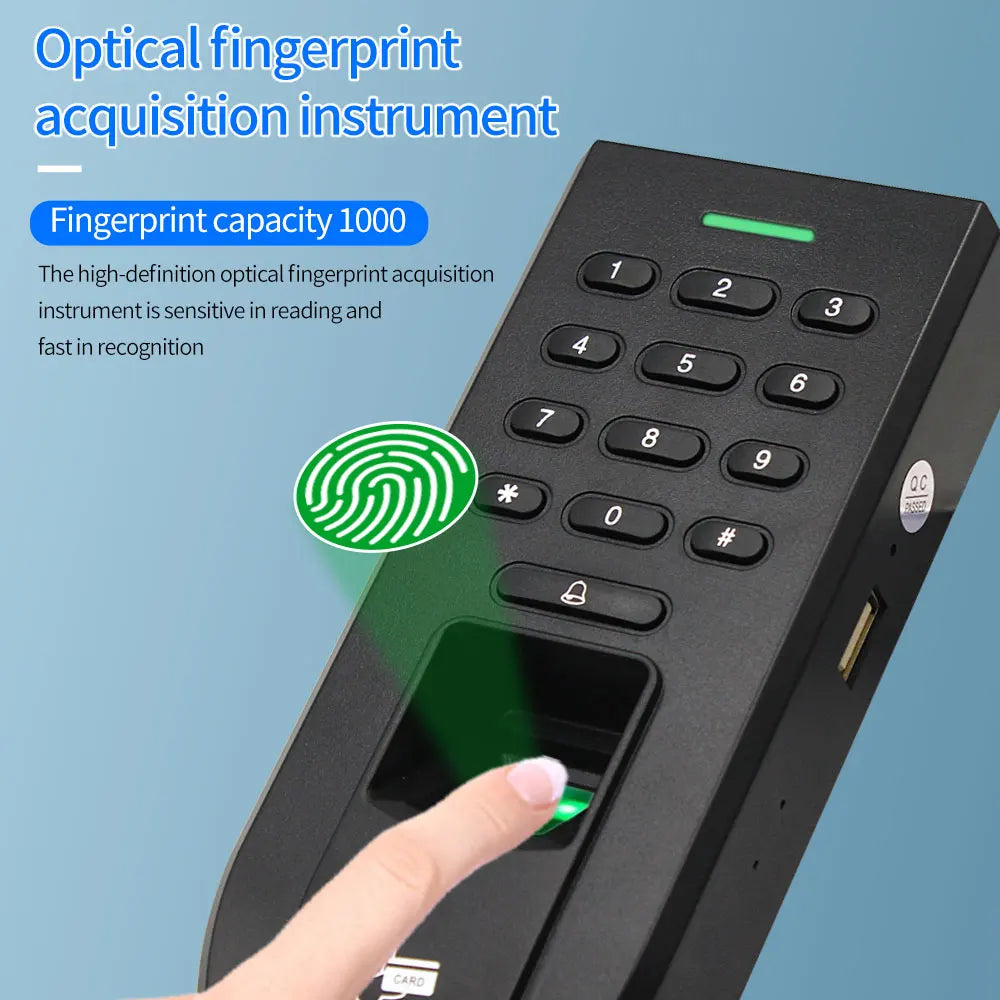

- Optical Fingerprint Sensor: Features an advanced 24-pin DEG930 optical sensor for accurate, quick fingerprint reads.
- 13-Key Keypad: Robust keypad layout for easy PIN entry, user enrollment, and system management.
- Wiegand 26 Output: Compatible with a wide range of access control panels and systems via standard Wiegand 26 communication protocol.
- Door Relay & Exit Button Support: Directly controls electronic door locks and supports dedicated exit button input for smooth egress.

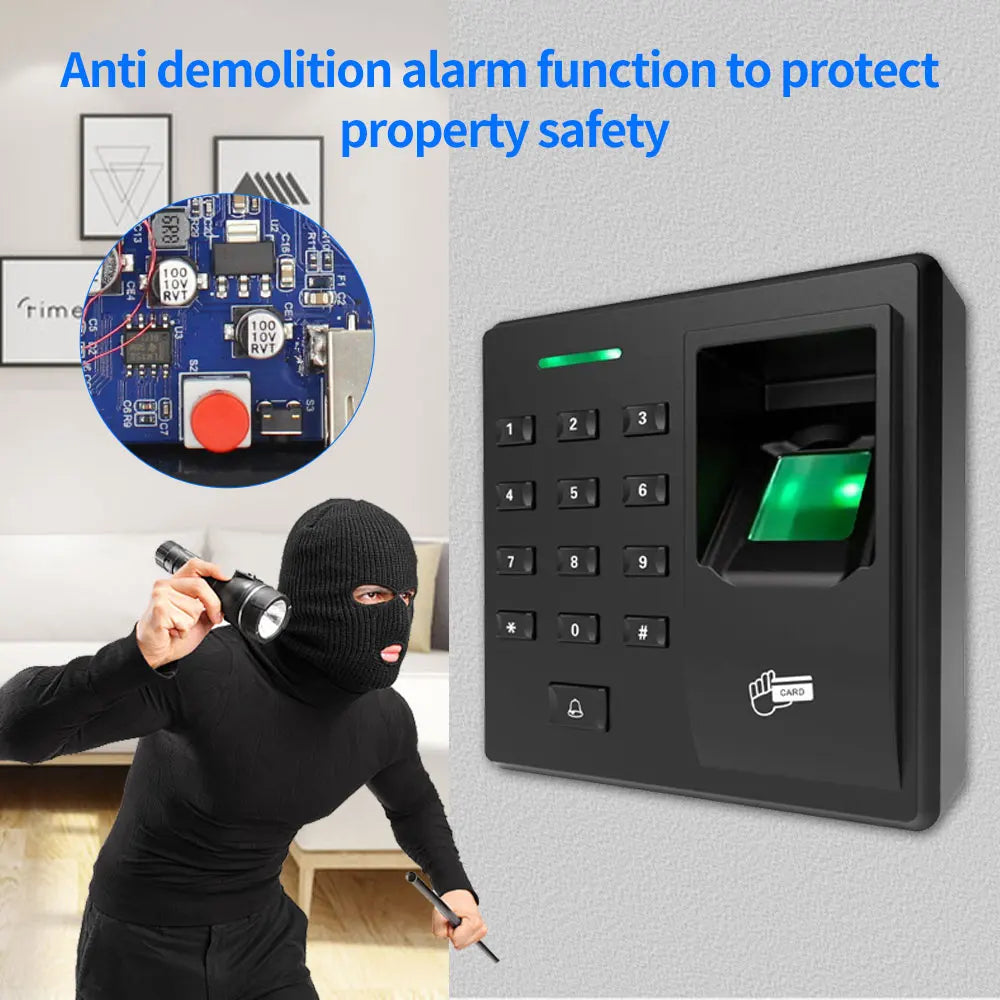

- Tamper Alert: Built-in tamper input triggers an alert if the device is tampered with or forcibly removed.
- Audible Buzzer: Provides clear audio feedback for granted or denied access events.

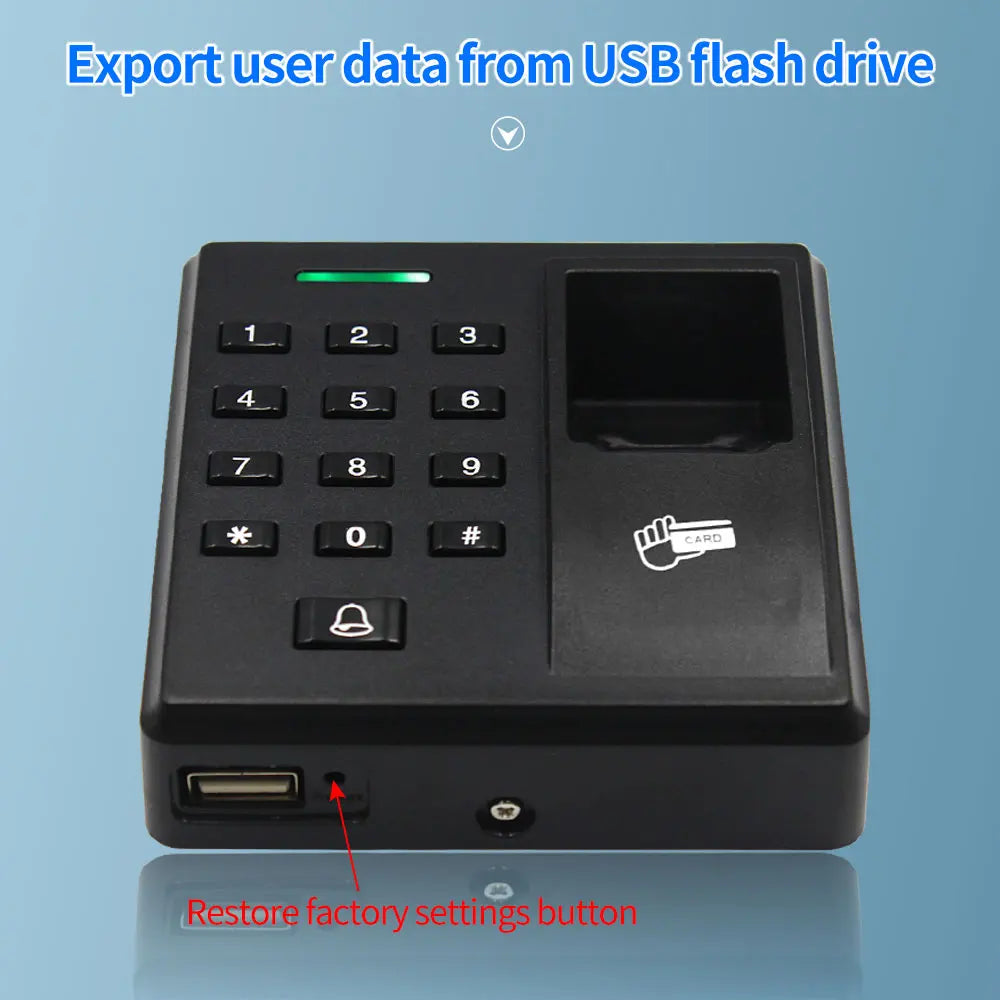

- USB Host Communication: Simplifies data transfer and firmware management.
- CE & FCC Certified: Meets rigorous international electrical safety and electromagnetic compatibility standards.
- Wide Operating Range: Functions reliably from -10°C to +60°C and 20%–80% relative humidity — suitable for indoor and sheltered outdoor installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | X5D / X7D |
| Fingerprint Sensor | Optical (24-pin, DEG930) |
| Card Type | 125KHz ID Card (RFID) |
| Keypad | 13 keys |
| Identification Modes | Fingerprint, Card, Password |
| User Capacity | 10,000 (2M Flash) |
| Fingerprint Capacity | 1,000 |
| Wiegand Output | Wiegand 26 |
| Communication | USB Host |
| Audio Output | Buzzer |
| Working Voltage | DC 9V–12V (below 1A) |
| Working Temperature | -10°C to +60°C |
| Working Humidity | 20%–80% RH |
| Certifications | CE, FCC |
| Country of Origin | Made in China |
Who Is This For?
This access control reader is ideal for:
- Small to medium-sized businesses needing reliable keycard and biometric entry
- Offices, warehouses, schools, gyms, and residential buildings
- IT administrators and security integrators upgrading legacy systems to biometric authentication
- Anyone looking to replace traditional key-based locks with a smarter, multi-modal solution
Learn More About Access Control Standards
For information on physical security and access control best practices, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety guidelines relevant to electronic security devices.
Frequently Asked Questions
Q: How many fingerprints and users can this biometric access control reader store?
A: The Asia-Teco fingerprint access control system can store up to 10,000 users in total and supports up to 1,000 individual fingerprint templates, making it suitable for both small offices and larger facilities.
Q: What types of identification does this RFID keypad access control machine support?
A: This device supports three identification modes: fingerprint scan via the built-in optical sensor, 125KHz RFID ID card swipe, and PIN password entry via the 13-key keypad. You can use any single method or combine them for added security.
Q: Is this access control reader compatible with standard access control panels?
A: Yes. The unit features a standard Wiegand 26 output, which is compatible with the vast majority of access control panels and systems on the market today. It also supports door relay and exit button connections for complete door control integration.
Q: What power supply does this unit require?
A: The device operates on a DC 9V to 12V power supply with a current draw below 1A. A standard access control power supply or 12V DC adapter is sufficient to power this unit.
Q: Can this fingerprint access control reader be used outdoors?
A: While the unit operates across a wide temperature range (-10°C to +60°C) and humidity range (20%–80% RH), it is best installed in sheltered or indoor locations protected from direct rain and moisture exposure to ensure long-term reliability.
