Biometric Fingerprint RFID Door Access Control & Time Clock
Biometric Fingerprint RFID Door Access Control & Time Clock
Asia-Teco F22-ID Biometric Fingerprint & RFID Access Control System
Secure your facility with the Asia-Teco F22-ID Biometric Time Attendance & Door Access Controller — a compact, all-in-one solution that combines fingerprint recognition, 125KHz RFID card reading, and password entry into a single wall-mounted unit. Whether you're managing office entry, a small business, or a secure storage area, this system keeps accurate attendance records while controlling who gets through the door.
Made in Mainland China.
Key Features
- Triple Verification Methods: Fingerprint biometric, 125KHz proximity RFID card, or PIN password — use any one or combine for added security.
- Large Storage Capacity: Stores up to 1,000 fingerprints, 1,000 RFID cards, and 78,000 user event records for comprehensive attendance logging.
- Wiegand Interface (WG26/34): Seamlessly integrates with existing access control panels and systems via WG26 or WG34 (in/out) communication.
- Electric Lock Control: Supports NC-COM-NO lock configurations for flexible installation with strike locks, magnetic locks, and more.
- USB Flash Drive Support: Export attendance data and records directly via USB — no special software required for basic data retrieval.
- Fail Secure Mode: Keeps the door locked during power failure for enhanced safety.
- Built-in Functions: Wired doorbell input, mechanical buttons, sleep/power-saving mode, and ambient light tolerance up to 50,000 Lux.
- Multilingual Display: English and Simplified Chinese interface options.

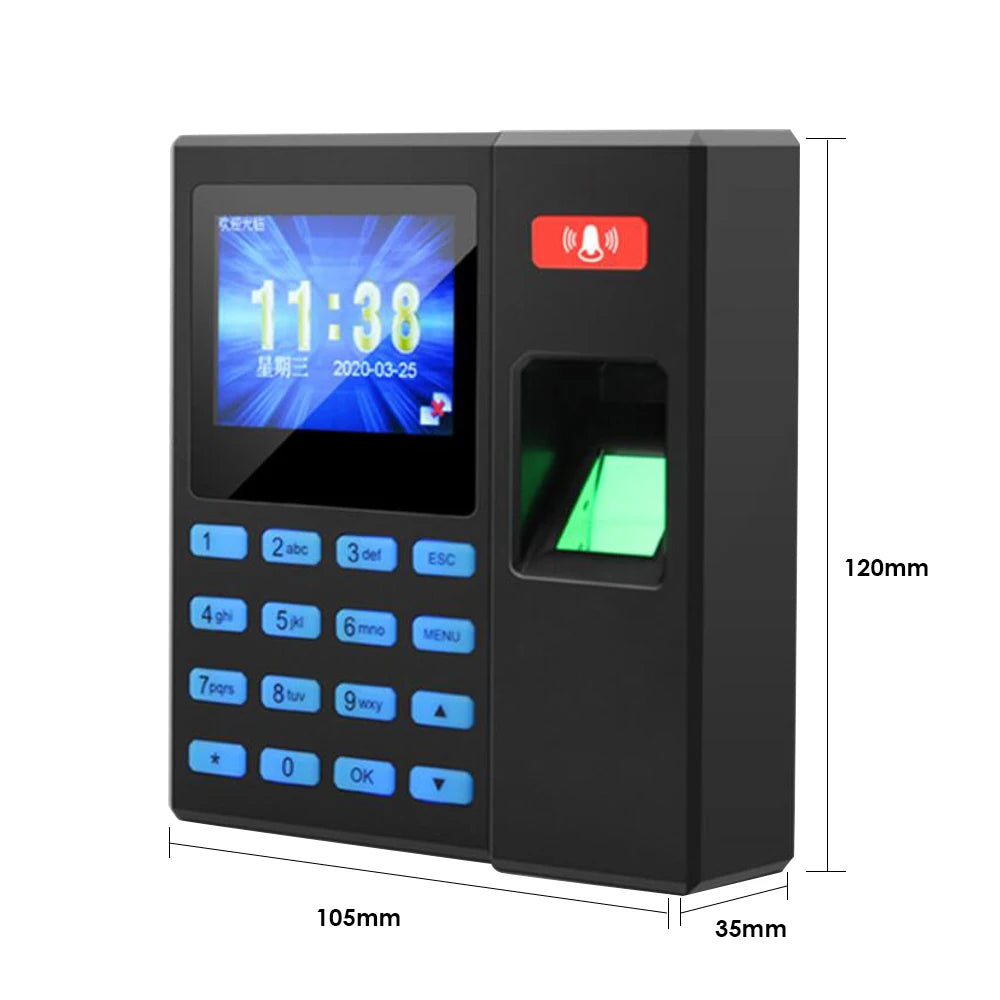

- Compact Design: Slim profile (105mm × 120mm × 35mm) fits standard door frames and entry points with ease.
Technical Specifications
| Model | F22-ID |
| Brand | Asia-Teco |
| Fingerprint Capacity | 1,000 |
| Card Capacity | 1,000 (125KHz RFID) |
| User Records | 78,000 |
| Verification Methods | Fingerprint, Password, Proximity Card |
| Working Voltage | DC 12V ±5% (1.0A) |
| Operating Temperature | 0°C – 55°C |
| Working Humidity | 20% – 80% |
| Ambient Light | 0 – 50,000 Lux |
| Electric Lock Control | NC-COM-NO |
| Wiegand Communication | WG26/34 (In/Out) |
| USB Interface | Supported |
| Security Mode | Fail Secure |
| Product Size | 105mm × 120mm × 35mm |
| Language | English / Simplified Chinese |
| Country of Origin | Mainland China |
Who Is This For?
The Asia-Teco F22-ID is ideal for small businesses, offices, warehouses, gyms, schools, and residential buildings that need a reliable and affordable access control and time-tracking solution without the complexity of enterprise systems.
Learn More About Access Control Standards
For guidance on workplace security and access control best practices, visit the OSHA Workplace Safety Resource Center. For consumer product safety information, refer to the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: What types of access methods does the Asia-Teco F22-ID support?
A: The F22-ID supports three verification methods: biometric fingerprint scanning, 125KHz RFID proximity card swiping, and PIN password entry. You can configure the system to require one or a combination of these for greater security.
Q: How many users and records can this access control system store?
A: The system can store up to 1,000 fingerprint templates, 1,000 RFID card entries, and a total of 78,000 time attendance and event records — making it well suited for small to mid-sized organizations.
Q: Is this system compatible with existing door locks and access control panels?
A: Yes. The F22-ID supports NC-COM-NO electric lock configurations, making it compatible with magnetic locks, electric strike locks, and more. The WG26/WG34 Wiegand interface allows integration with most third-party access control panels.
Q: How do I export attendance data from the device?
A: You can export attendance and user records directly to a USB flash drive using the built-in USB interface — no proprietary software is needed for basic data export.
Q: What happens if the power goes out?
A: The device operates in Fail Secure mode, meaning the connected door lock remains locked during a power failure, keeping your premises secured at all times.
