Biometric Fingerprint RFID Access Control & Time Attendance System

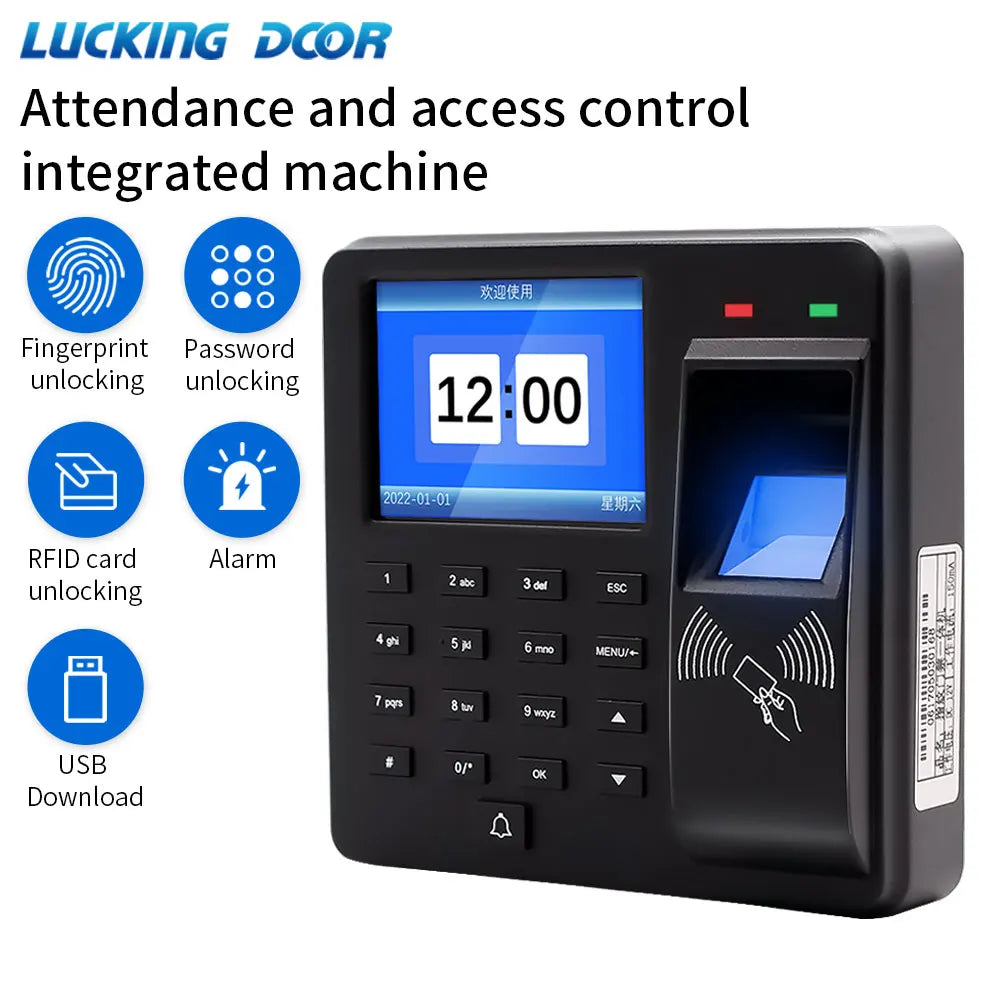

LUCKING DOOR M10H — Fingerprint Access Control & Time Attendance Terminal

Secure your workplace or property with the LUCKING DOOR M10H Biometric Fingerprint Access Control System. This all-in-one device combines fingerprint recognition, 125KHz RFID card reading, and PIN code entry into a single, intelligent terminal — perfect for offices, factories, warehouses, and residential buildings. Manage door access and employee attendance records with ease, all from a clear 2.4-inch TFT LCD display. Made in Mainland China.

Key Features

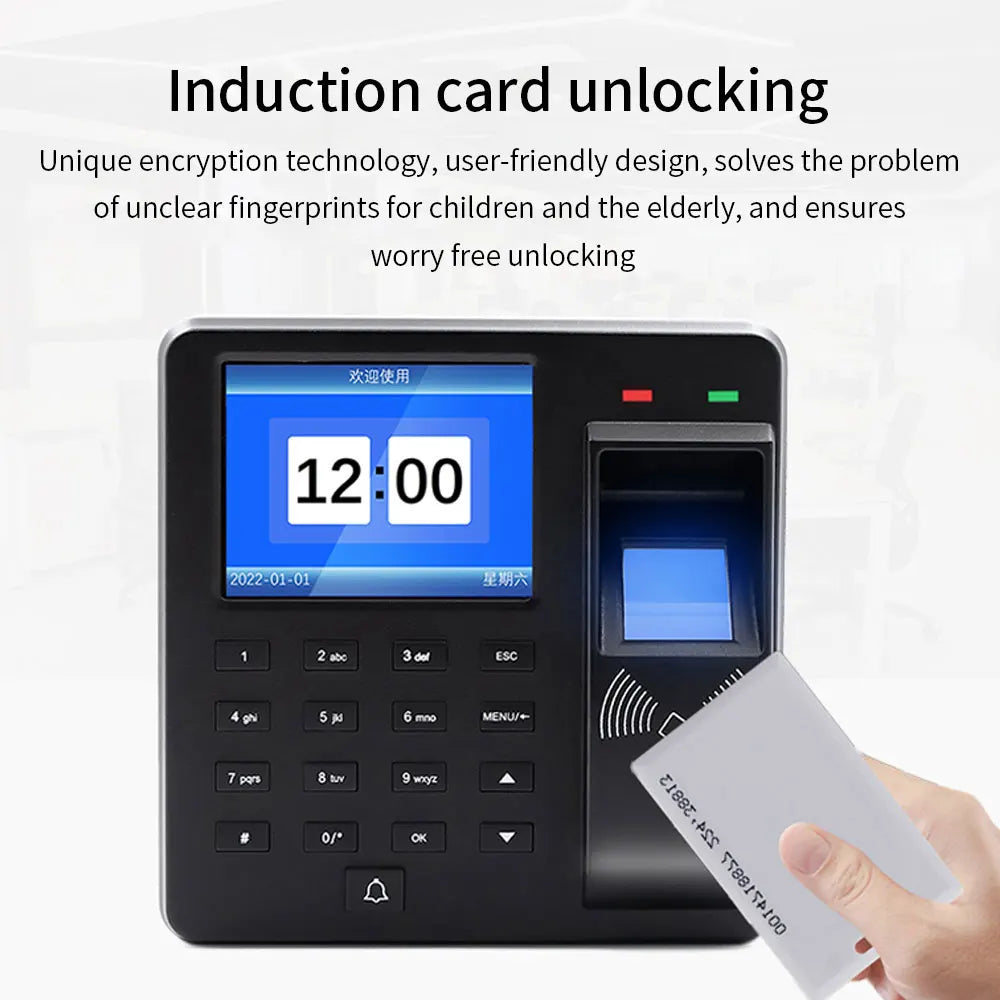

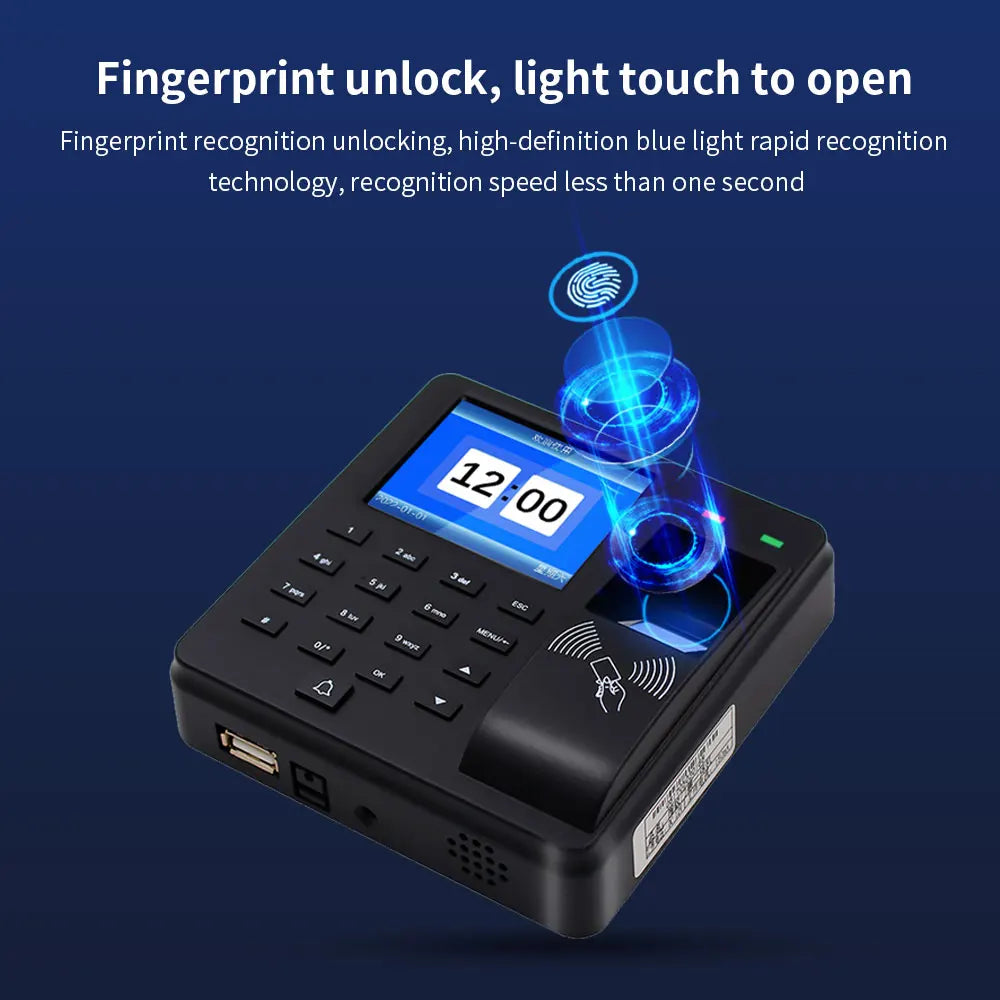

• Triple Identification Methods: Verify users by fingerprint, 125KHz RFID card/tag, or digital password — choose any method or combine them for enhanced security.
• Large Capacity: Stores up to 1,000 users and 100,000 attendance records, making it ideal for small to mid-sized organizations.
• 2.4" TFT LCD Display: Bright, intuitive color screen makes navigation and setup straightforward for any user.
• Multi-Language Support: Operates in English, Spanish, Portuguese, and more — adaptable to international teams and global workplaces.
• USB Data Export: Download attendance logs directly to a USB drive for fast report generation — no network connection required.
• Wiegand 26/34 Output: Flexible WG26/WG34 interface ensures seamless compatibility with existing access control infrastructure.
• Relay Output for Door Locks: Compatible with electric locks, magnetic locks, door strikes, and alarm devices in both normally open and normally closed configurations.
• Emergency Public Password: Set a shared override password so authorized personnel can gain quick entry when needed.
• Off-Network Operation: Runs completely standalone — no internet or LAN connection required for daily use.
• DC 12V Power Input: Standard, widely available power supply for easy installation.

Comprehensive Security

The M10H employs a multi-layer access strategy — combining biometric fingerprint scanning with RFID credentials and PIN codes. Flexible Wiegand 26/34-bit output ensures compatibility across a wide range of door hardware and existing security systems. The public password function adds a convenient emergency access layer without compromising overall system integrity.

Easy Setup & Intelligent Management

An intuitive main menu guides administrators through every configuration step: shift settings, department setup, attendance rules, and employee enrollment. The included detailed instruction manual walks you through hardware connections and first-time configuration clearly and quickly. Restoring default settings is simple, making troubleshooting fast and frustration-free.

Attendance Reporting Made Simple

Track employee entry and exit records automatically. Export complete attendance tables to a USB drive and import them into your preferred spreadsheet or HR software. The system supports detailed employee information management, helping organizations streamline internal record-keeping and compliance.

Technical Specifications

Ideal Applications

• Office buildings and co-working spaces
• Factories, warehouses, and industrial facilities
• Apartment buildings and gated residential communities
• Schools and educational institutions
• Small businesses requiring employee time tracking

For general guidance on workplace security and access control best practices, visit the OSHA Workplace Security Controls resource.

Frequently Asked Questions

Q: How many fingerprints and users can the LUCKING DOOR M10H store?

A: The M10H supports up to 1,000 users and can store up to 100,000 attendance records. Each user can be enrolled with a fingerprint, RFID card, or PIN — or a combination of all three for added security.

Q: Does this biometric access control system require an internet connection to operate?

A: No. The M10H operates in off-network (standalone) mode, meaning it functions completely without a Wi-Fi or LAN connection. Attendance data is exported via USB drive whenever you need to generate reports.

Q: What types of door locks are compatible with the M10H access control terminal?

A: The device uses a relay output that is compatible with electric locks, magnetic locks (maglocks), door strikes, and alarm systems in both normally open and normally closed wiring configurations. The Wiegand WG26/WG34 interface also allows integration with most third-party access control panels.

Q: Can I export employee attendance records from this fingerprint time attendance machine?

A: Yes. You can export all attendance logs directly to a USB drive (U Disk) and then import the data into spreadsheet software or HR management systems to generate detailed attendance reports.
