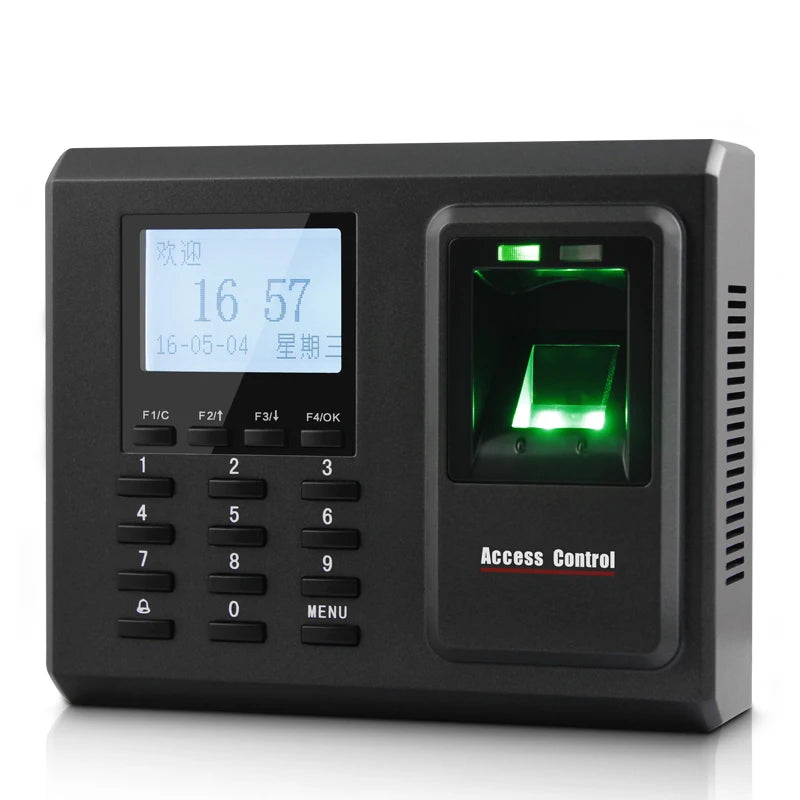

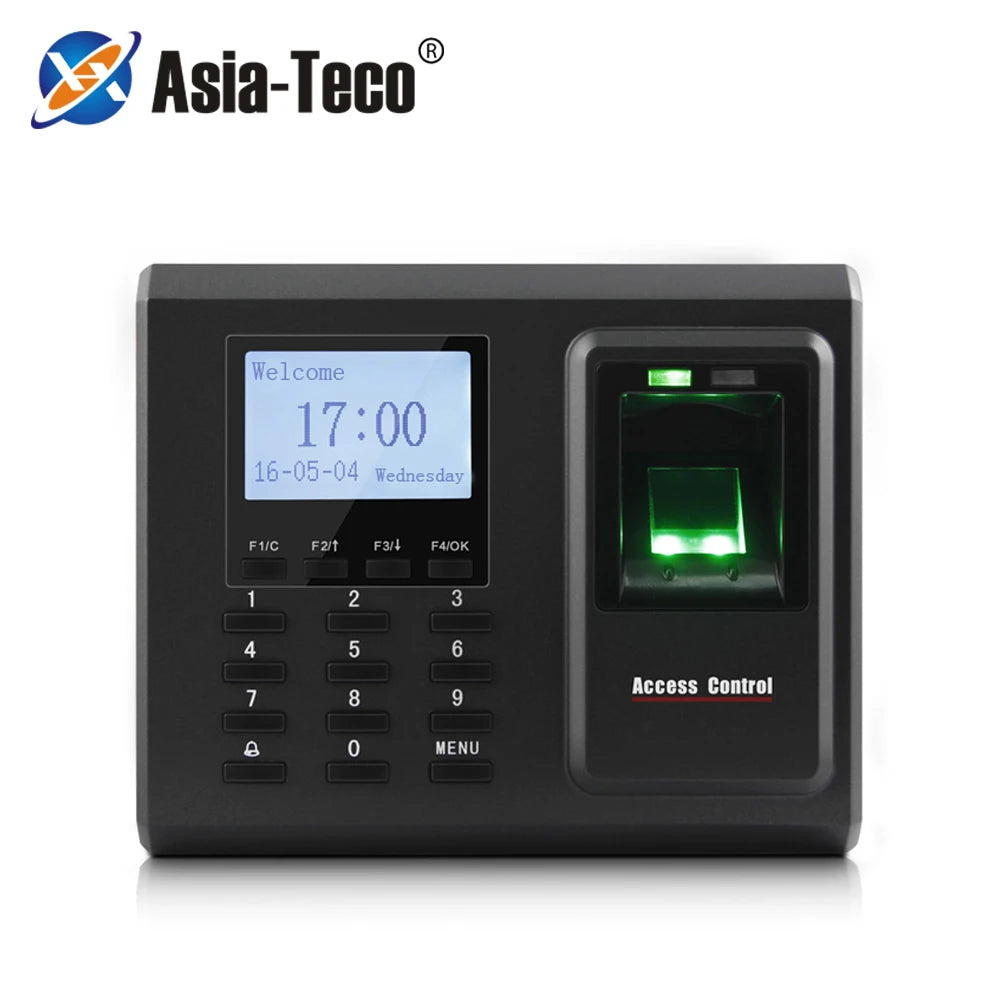

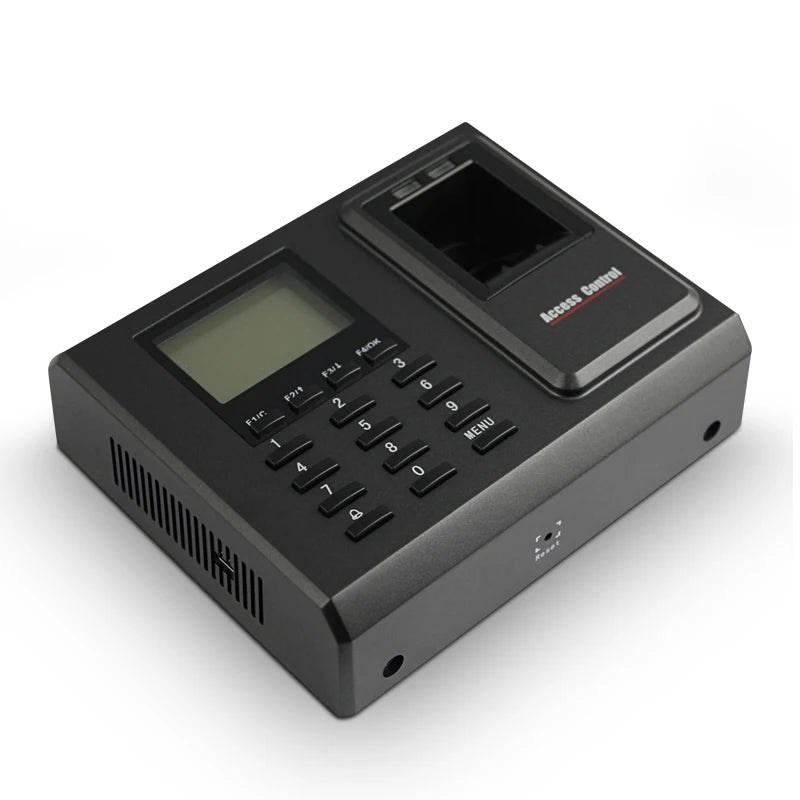

Asia-Teco F2 Biometric Fingerprint Access Control & Time Attendance System
Take command of your building's security with the Asia-Teco F2 Biometric Fingerprint Access Control and Time Attendance Machine. Designed for offices, factories, hotels, and schools, this all-in-one door controller combines fingerprint recognition, RFID card access, and time-tracking — all managed through free software included with your purchase.
Built with stable, high-quality components and rigorously tested before leaving the factory, the F2 features anti-jamming protection and over-voltage/over-circuit safeguards on all inputs and outputs. Its elegant, compact design makes installation straightforward, and its Linux-powered operating system ensures reliable, long-term performance.
Key Features
- Dual Authentication: Supports both biometric fingerprint scanning and RFID/MF card access for flexible entry control
- Large User Capacity: Stores up to 3,000 users and 5,000 transaction records
- Fast & Accurate Identification: Identifies users in ≤2 seconds with an extremely low False Acceptance Rate (FAR ≤ 0.0001%)
- Advanced Access Scheduling: 50 Time Zones, 5 User Groups, 10 Access Combinations, and Holiday Management
- Multi-Protocol Connectivity: Communicates via TCP/IP, RS232, or RS485 for seamless network integration
- Wiegand Interface: Supports Wiegand IN & OUT for compatibility with a wide range of door hardware
- LCD Display: Clear 80-character LCD screen with numeric keypad for easy on-device management
- Standalone Operation: Works independently without a PC connection — ideal for single-door deployments
- Free Software Included: Full-featured time attendance and access management software at no extra cost
Technical Specifications
| Operating System | Linux |
| User Capacity | 3,000 |
| Transaction Capacity | 5,000 |
| Algorithm Version | 2007 New Algorithm |
| Communication | TCP/IP, RS232, RS485 |
| Display | 80-character LCD + Numeric Keypad |
| Power Supply | 12V DC |
| Identification Speed | ≤2 Seconds |
| False Rejection Rate (FRR) | ≤1% |
| False Acceptance Rate (FAR) | ≤0.0001% |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20% – 80% |
| Security Mode | Fail Safe with Signal |
| Standard Interfaces | Wire Doorbell, Wiegand OUT, Wiegand IN |
| Optional | RFID Card / MF Card |
| Language | English |
| Model | F2 |
| Country of Origin | Made in China |
Ideal Applications
- Office buildings and corporate environments
- Factories and warehouses
- Hotels and hospitality venues
- Schools and educational facilities
- Any controlled entry or exit point requiring attendance tracking
For best practices on deploying access control systems in the workplace, refer to the OSHA Workplace Security Guidelines.
Frequently Asked Questions
Q: How many fingerprints can the Asia-Teco F2 access control machine store?
A: The F2 biometric fingerprint access control machine supports up to 3,000 users and stores up to 5,000 transaction records, making it well-suited for small to mid-sized businesses, offices, schools, and hotels.
Q: Does the fingerprint door controller work without a computer connected?
A: Yes. The Asia-Teco F2 supports standalone operation, meaning it can manage access control and time attendance entirely on its own without a constant PC connection. You can connect via TCP/IP, RS232, or RS485 to sync data with the included free management software whenever needed.
Q: What card types are compatible with the F2 access control system?
A: The F2 optionally supports standard RFID cards and MF (Mifare) cards, giving you the flexibility to use card-based access alongside or instead of fingerprint recognition — ideal for environments where multiple authentication methods are preferred.
Q: Is software included, and what does it manage?
A: Yes, free software is included with the F2. It allows administrators to manage user enrollment, configure time zones and access groups, set up holiday schedules, and generate time attendance reports — all from a connected computer via TCP/IP or serial connection.
