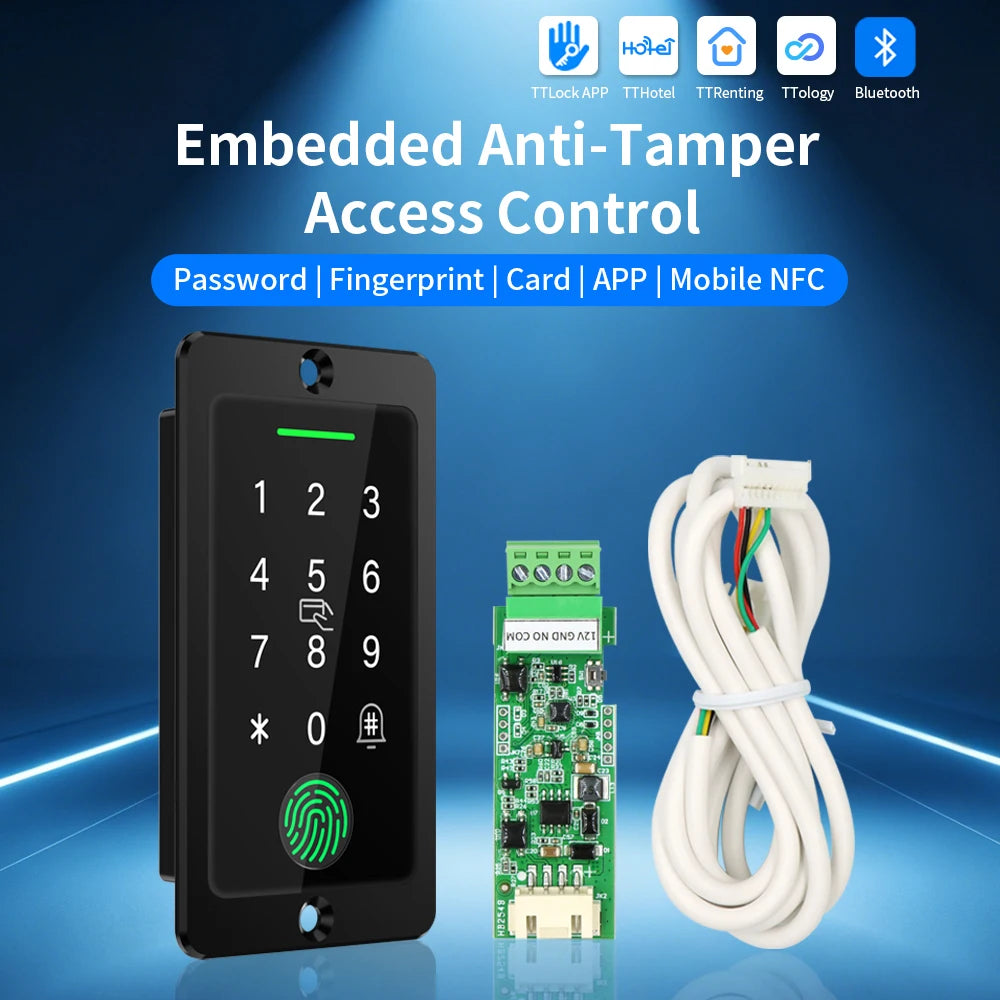

Asia-Teco Biometric Fingerprint Access Control System — Model SR1066-Kit
Upgrade your office or facility security with the Asia-Teco SR1066-Kit Biometric Fingerprint Access Control System. This professional-grade entry system combines fingerprint recognition, MIFARE card access, PIN code entry, and full smartphone control via the TTLock Smart App — all in a rugged zinc alloy housing rated IP67 weatherproof. Manage access remotely, set time schedules, and monitor entry logs from anywhere, directly from your Android or iOS device.
Key Features
- 4-in-1 Unlocking Methods: Fingerprint, MIFARE M1 card, PIN password, or TTLock smartphone app
- Bluetooth 5.0 BLE: Fast, stable wireless connectivity for seamless remote management
- High-Capacity Storage: Up to 500 fingerprints, 500 passwords, and 20,000 card credentials
- Ultra-Low False Recognition Rate (FAR): <0.001% with a semiconductor fingerprint sensor for precise identification
- IP67 Waterproof Rating: Reliable operation in harsh indoor and outdoor environments
- Wide Operating Temperature: Functions from -20°C to 70°C — suitable for virtually any climate
- TTLock Smart App: Compatible with Android 4.3+ and iOS 7.0+ for remote access, user management, and entry logs

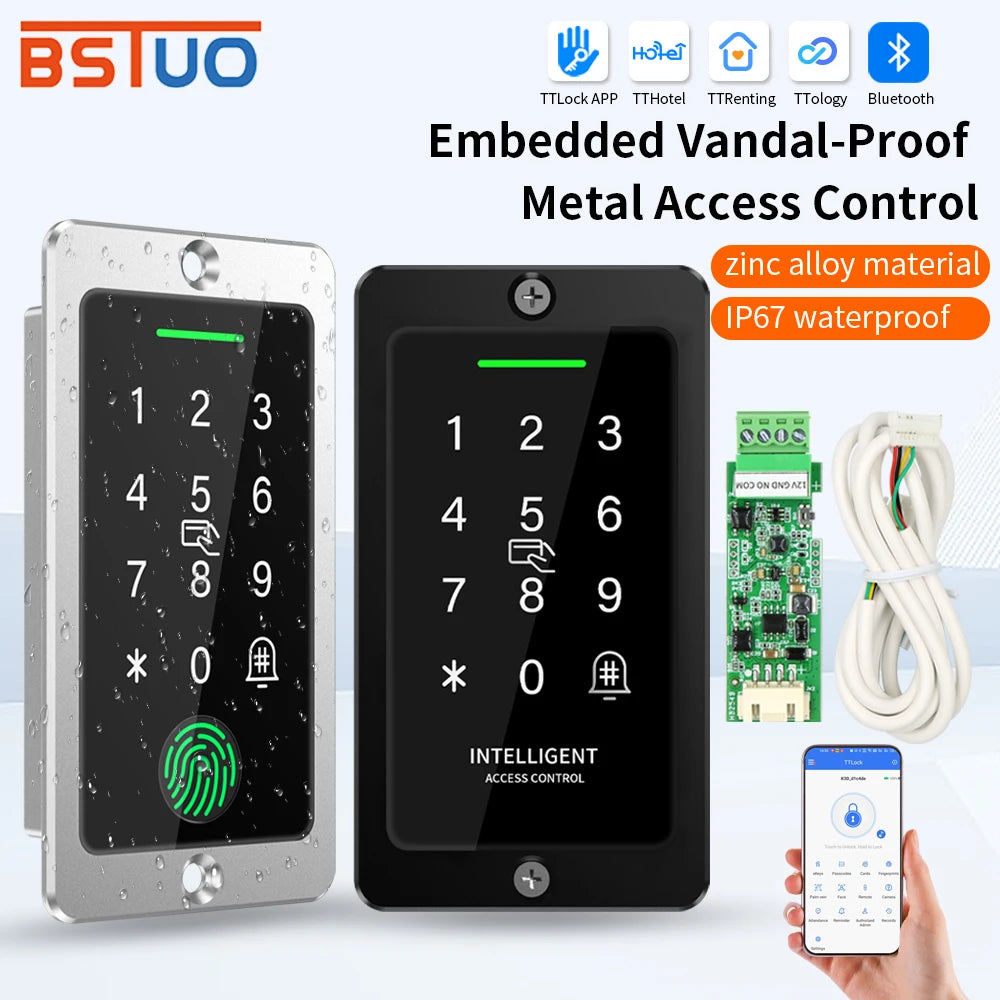

- Zinc Alloy Construction: Durable, tamper-resistant body for long-term use
- Touch Button Interface: Responsive, modern touch keypad for easy daily operation
- Low Power Draw: Standby current of only 7.4mA; operating current <200mA; voltage range DC 12V–24V
Technical Specifications
| Specification | Detail |
|---|---|
| Model | SR1066-Kit |
| Bluetooth Standard | Bluetooth 5.0 BLE |
| Card Type | MIFARE M1 |
| Fingerprint Capacity | 500 |
| Number of Cards | 20,000 |
| Number of Passwords | 500 |
| False Recognition Rate (FAR) | <0.001% |
| Rejection Rate (FRR) | <1.0% |
| Waterproof Rating | IP67 |
| Operating Temperature | -20°C to 70°C |
| Voltage Range | DC 12V–24V |
| Standby Current | 7.4mA |
| Operating Current | <200mA |
| Material | Zinc Alloy |
| Compatible OS | Android 4.3+ / iOS 7.0+ |
| Country of Origin | Made in Mainland China |
Who Is This For?
This access control system is ideal for offices, warehouses, server rooms, co-working spaces, gyms, rental properties, and any space where you need to manage multiple users, track entry times, and control access remotely. The TTLock app lets administrators add or revoke credentials instantly — no rekeying required.
Safety & Standards Reference
For best practices on physical access control and workplace security, refer to guidance from the U.S. Occupational Safety and Health Administration (OSHA), which outlines requirements for secured access in commercial and industrial environments.
Frequently Asked Questions
Q: How many users can the Asia-Teco SR1066-Kit fingerprint access control system support?
A: The system supports up to 500 fingerprints, 500 PIN passwords, and 20,000 MIFARE M1 cards, making it well-suited for small offices all the way up to large commercial facilities.
Q: Can I manage this fingerprint access control system remotely via smartphone?
A: Yes. Using the TTLock Smart App (compatible with Android 4.3+ and iOS 7.0+), you can grant or revoke access, set time-based permissions, and view entry logs from anywhere — no need to be physically present at the device.
Q: Is the SR1066-Kit suitable for outdoor installation?
A: Absolutely. With an IP67 waterproof rating and an operating temperature range of -20°C to 70°C, this unit is built to withstand outdoor weather conditions, including rain, dust, and temperature extremes.
Q: What voltage does this access control system require?
A: The system operates on DC 12V to 24V, making it compatible with standard commercial power supplies and access control power boxes commonly used in office and industrial installations.
