BGA Desoldering PTC Heating Plate – LED Bead & Chip Remover

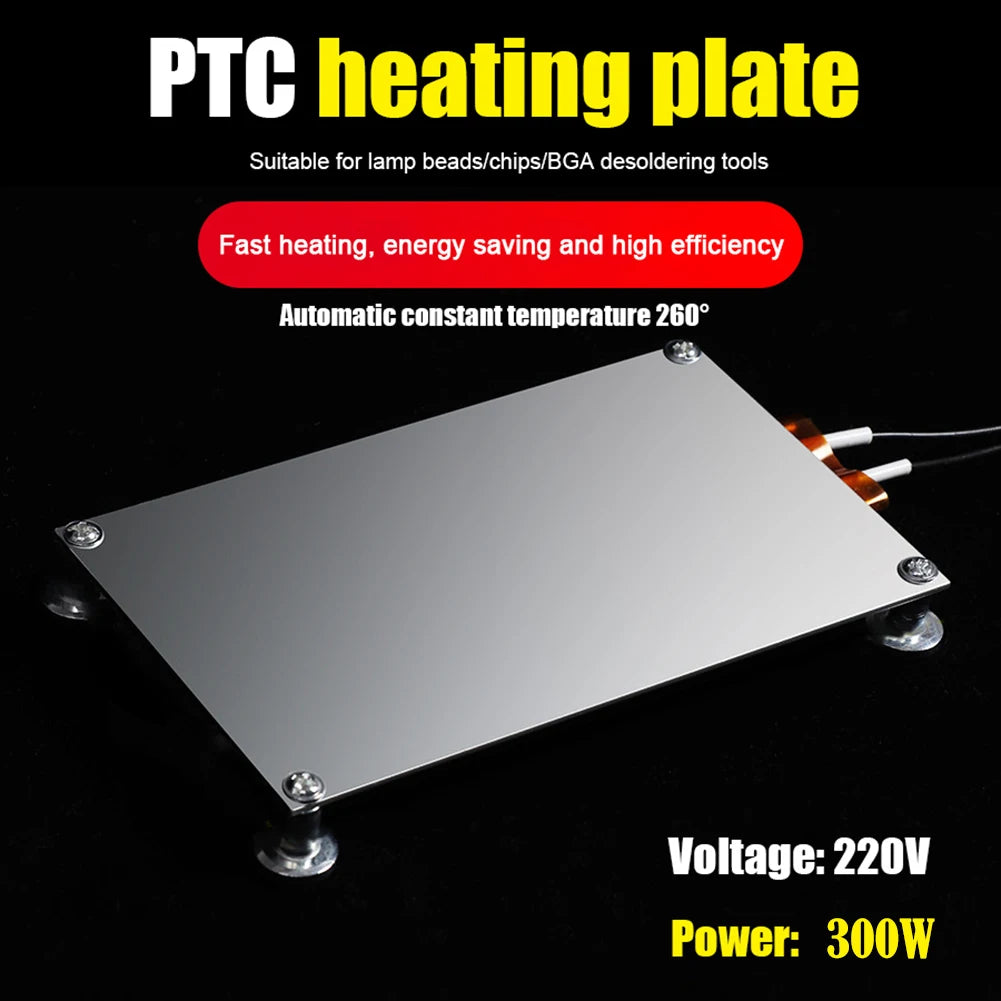

Take your electronics rework to the next level with this high-performance PTC Heating Plate. Engineered for precision desoldering of LED beads, FPC boards, and BGA solder balls, this compact station heats up fast and delivers consistent, reliable results for hobbyists and professionals alike.
Why Choose This PTC Heating Plate?

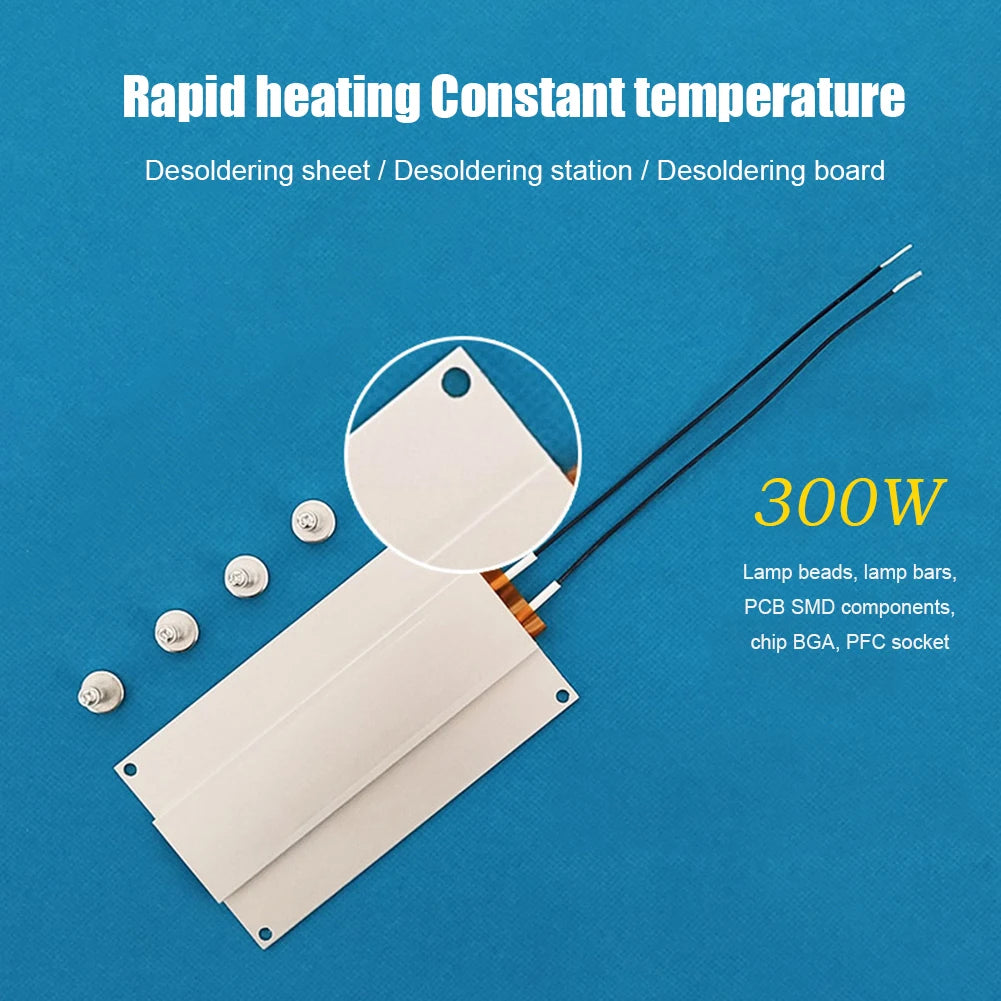

- Rapid Heat-Up: Reaches approximately 250°C (±10°C) in just 30 seconds — no thermostat required.
- Versatile Use: Ideal for removing LED beads, FPC flexible circuit boards, and BGA solder balls with ease.
- Premium Materials: Built with high-quality aluminum and PTC heating elements for excellent heat distribution and long-lasting performance.
- Heat Dissipation Design: Aluminum-copper alloy structure efficiently manages heat to protect surrounding components during rework.

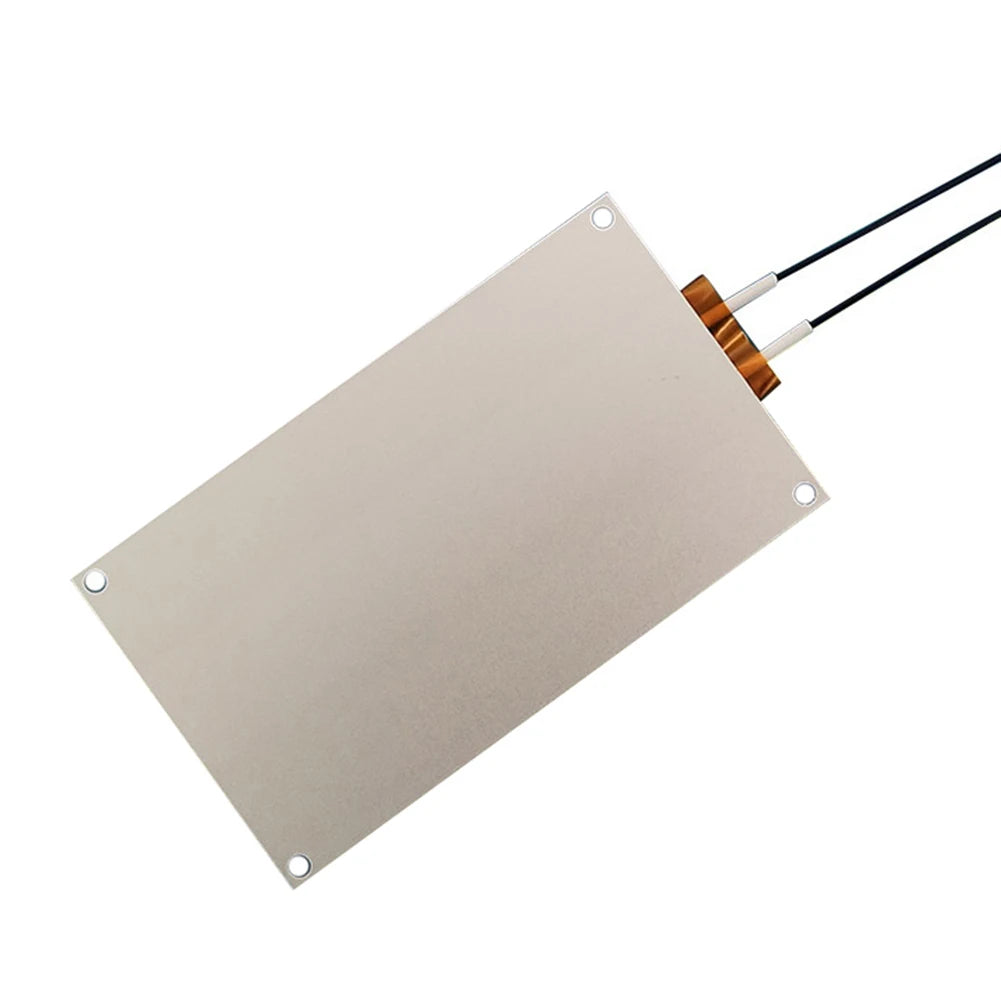

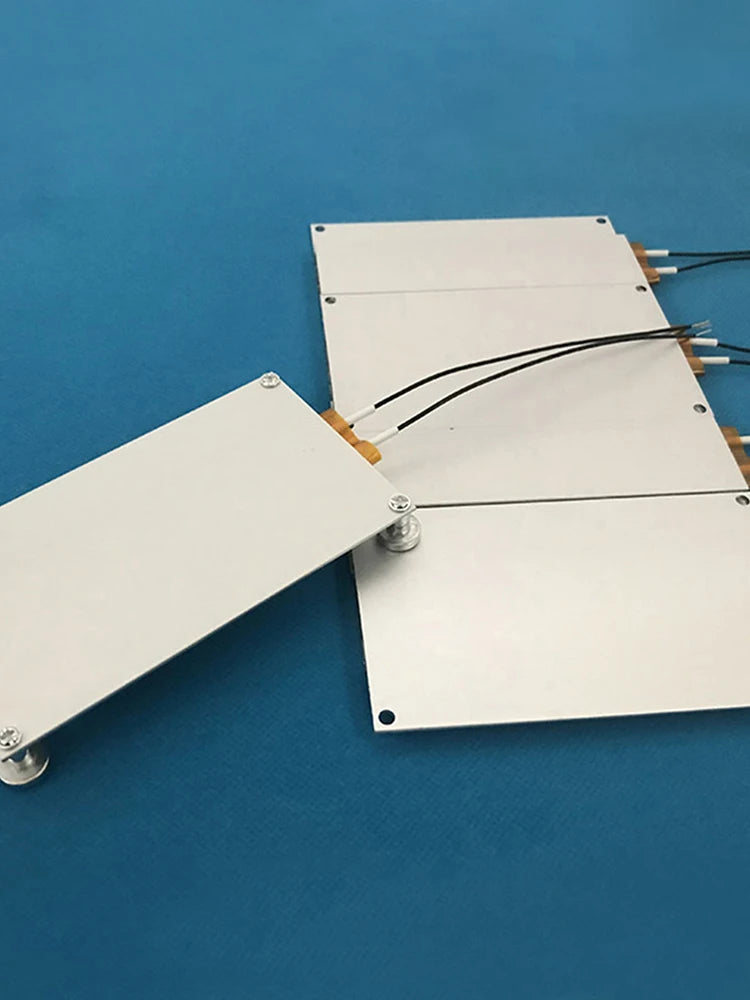

- Two Power Options: Available in 200W (7×7 cm) or 300W (9×7 cm) to suit your workspace and project needs.
- Compact & Portable: Small footprint makes it easy to use on a workbench or store away when not in use.
Product Specifications
| Attribute | Details |
|---|---|
| Type | PTC Heating Plate |
| Material | Aluminum + PTC Element (Aluminum-Copper Alloy Body) |
| Power Supply | 220V |
| Power Options | 200W / 300W (optional) |
| Size (200W) | 7 × 7 cm / 2.76 × 2.76 in |

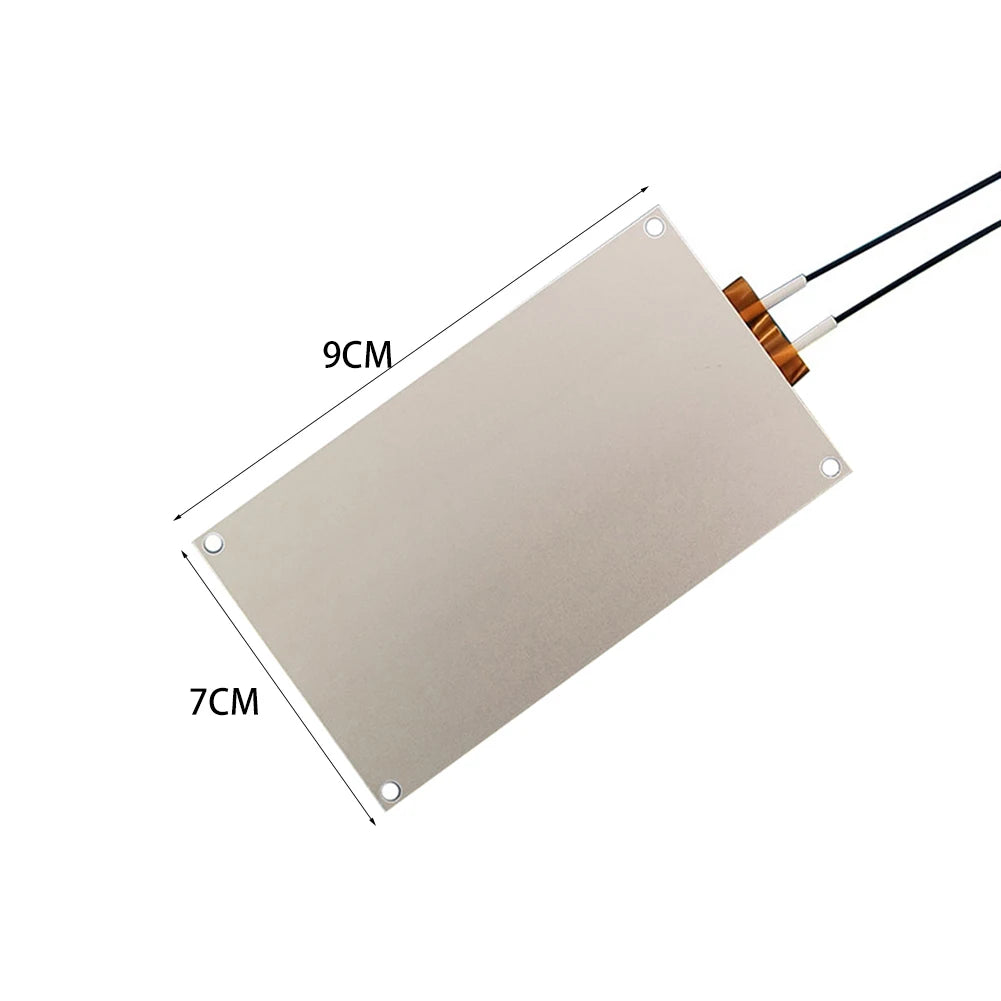

| Size (300W) | 9 × 7 cm / 3.54 × 2.76 in |
| Max Temperature | ~250°C (±10°C) |
| Heat-Up Time | ~30 seconds |
| Quantity | 1 × PTC Heating Plate Station |
| Country of Origin | Made in China |
What's in the Box?
- 1 × PTC Heating Plate / LED Bead Remover Station
Important Notes
- Colors may vary slightly due to different monitor settings and lighting conditions.
- Please allow ±1–2 cm measuring deviation due to manual measurement.
- This station operates on 220V — please verify your local voltage before use.
For general guidance on safe practices when working with soldering and electronics rework tools, visit the OSHA Soldering Safety Resource.
Frequently Asked Questions
Q: What can the BGA PTC Heating Plate be used to desolder?
A: This PTC heating plate is designed for removing LED beads, FPC (flexible printed circuit) boards, and BGA (Ball Grid Array) solder balls. It's an excellent tool for electronics rework, repair, and DIY projects involving circuit boards.
Q: How long does the PTC heating plate take to reach working temperature?
A: The plate reaches approximately 250°C (±10°C) in about 30 seconds, allowing you to start your desoldering work quickly without a lengthy warm-up period.
Q: What is the difference between the 200W and 300W versions?
A: The 200W version measures 7×7 cm and is suitable for smaller components, while the 300W version measures 9×7 cm and provides a larger working surface and more power — ideal for bigger boards or faster heat transfer on larger components.
Q: Is this heating plate compatible with 110V power supplies?
A: This unit is rated for 220V power supply. If your local voltage is 110V, you will need a step-up voltage converter to use it safely. Always verify your local power requirements before use.
Q: What material is the heating plate made from?
A: The plate body is constructed from an aluminum-copper alloy, which ensures excellent thermal conductivity and effective heat dissipation to protect the surrounding components during rework.
