BETAFPV LAVA 1102 14000KV Brushless Motor for FPV Drone
BETAFPV LAVA 1102 14000KV Brushless Motor for FPV Drone
BETAFPV LAVA 1102 14000KV Brushless Motor — Built for Micro FPV Performance
Upgrade your micro quadcopter with the BETAFPV LAVA Series 1102 14000KV Brushless Motor. Engineered specifically for the Pavo Femto, Bwhoop, and similar micro FPV builds, this motor delivers an outstanding power-to-weight ratio and high-efficiency operation that serious FPV pilots demand. Made in Mainland China.
Why Choose the LAVA 1102 14000KV?
- Optimized Magnetic Circuit: Advanced tile-shaped magnets create an optimized magnetic circuit for highly efficient power conversion on every flight.
- High Efficiency: Achieves 2.1g/W during stable flight and maintains 1.5g/W at peak thrust of 130g — maximizing your flight time.

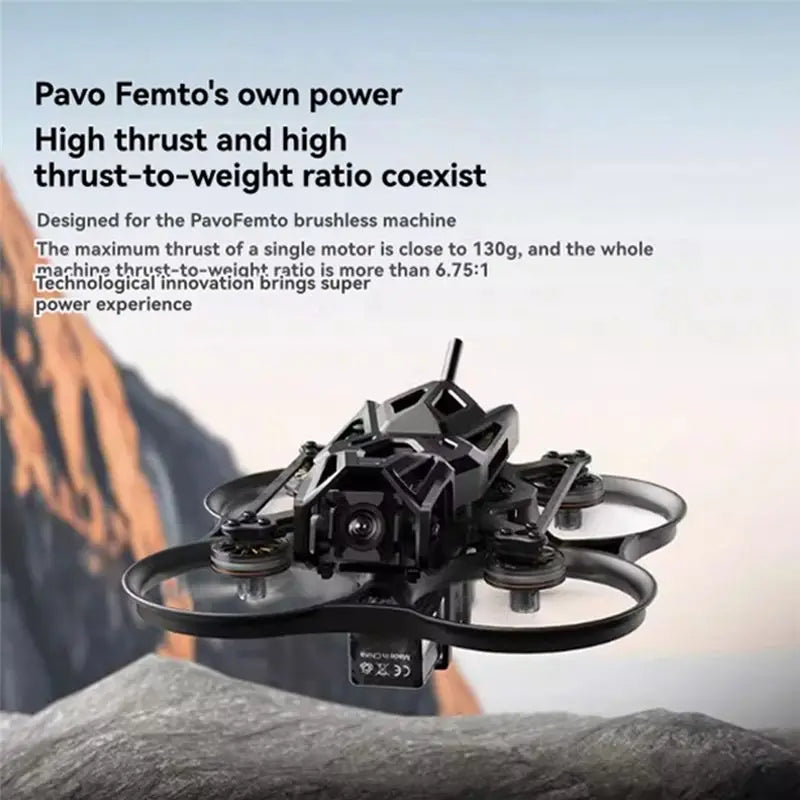

- Impressive Thrust-to-Weight Ratio: Delivers a remarkable 6.75:1 thrust-to-weight ratio, purpose-built for the Pavo Femto platform.
- Versatile Propeller Compatibility: Features 4× M2 propeller mounting holes, compatible with a wide range of micro propellers.
- Lightweight Metal Construction: Minimizes added payload so your drone stays nimble, fast, and agile in the air.
Technical Specifications
| Model | LAVA Series 1102 |
| KV Rating | 14000 KV |
| Maximum Power | 84.1 W |
| Maximum Current | 10.51 A |
| Rated Voltage | 2S |
| Shaft Diameter | ø1.5 mm |
| Shaft Length | 5 mm |
| Wire Gauge | 28 AWG |
| Wire Length | 44 mm |
| Connector | JST1.25-3Pin |
| Motor Mounting Holes | 3× M1.4 EQS ø6.6 |
| Propeller Mounting Holes | 4× M2 EQS ø5 |
| Material | Metal |
| Country of Origin | Mainland China |
Compatibility
Designed and optimized for:
- BETAFPV Pavo Femto
- Bwhoop micro quadcopter builds
- Other 1102-compatible micro FPV frames
Package Contents
- 1× BETAFPV LAVA 1102 14000KV Brushless Motor Kit
Note: Product appearance and printed labeling may vary slightly between production batches but does not affect performance. Color may vary slightly due to monitor settings. Measurement tolerance: ±1–3 mm.
Learn More About RC & FPV Safety
For guidelines on safe operation of unmanned aerial systems (UAS/drones), visit the FAA's UAS (Drone) Information page for regulations and best practices. You can also find general consumer product safety guidance at CPSC.gov.
Frequently Asked Questions
Q: Is the BETAFPV LAVA 1102 14000KV brushless motor compatible with the Pavo Femto quadcopter?
A: Yes! The LAVA 1102 14000KV brushless motor is designed specifically for the BETAFPV Pavo Femto and offers a 6.75:1 thrust-to-weight ratio, making it an ideal replacement or upgrade motor for this platform and similar Bwhoop micro builds.
Q: What voltage does the LAVA 1102 14000KV motor support?
A: The LAVA 1102 14000KV brushless motor is rated for 2S (two-cell LiPo) operation, with a maximum power output of 84.1W and a maximum current draw of 10.51A.
Q: What connector does this brushless motor use?
A: This motor uses a JST1.25-3Pin connector with a 28AWG, 44mm wire — a standard connector found on many micro FPV flight controllers, making installation straightforward.
Q: What propellers are compatible with this motor?
A: The LAVA 1102 features 4× M2 propeller mounting holes (EQS ø5), providing broad compatibility with a wide variety of micro FPV propellers commonly used on Bwhoop and Pavo Femto builds.
