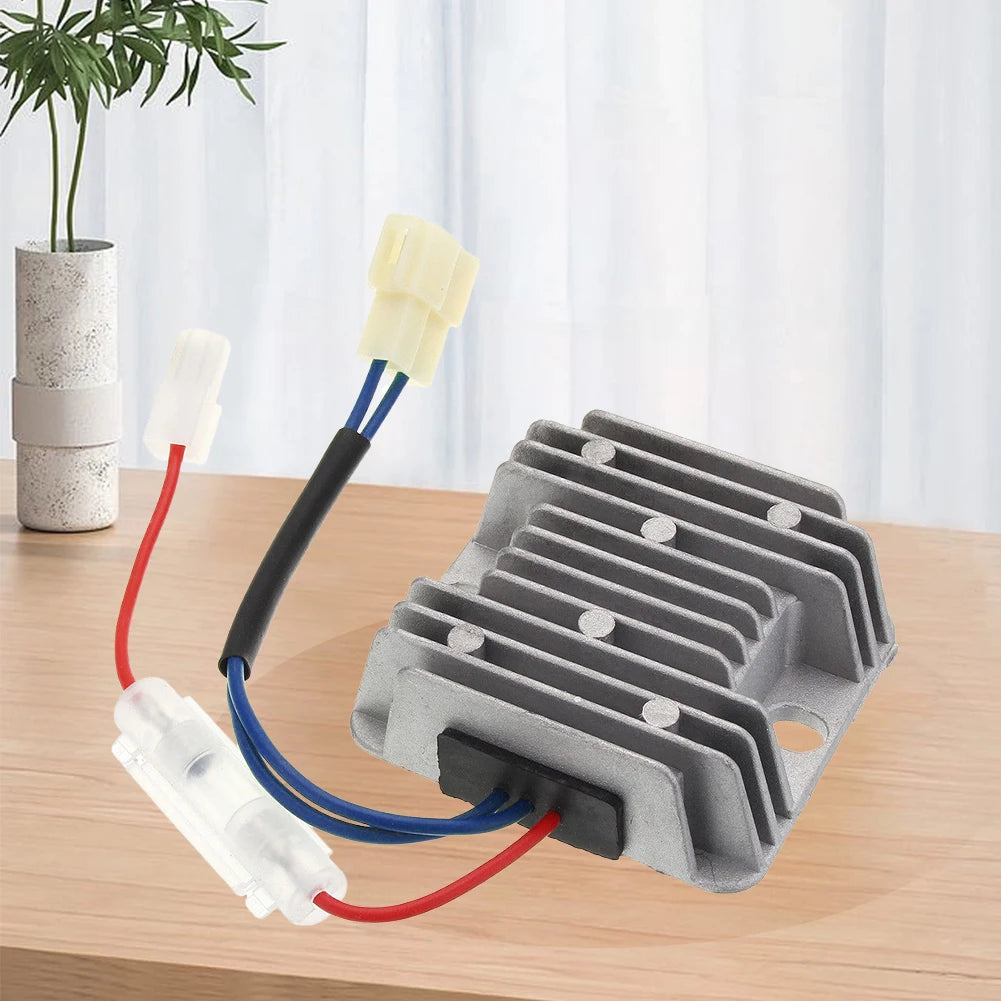

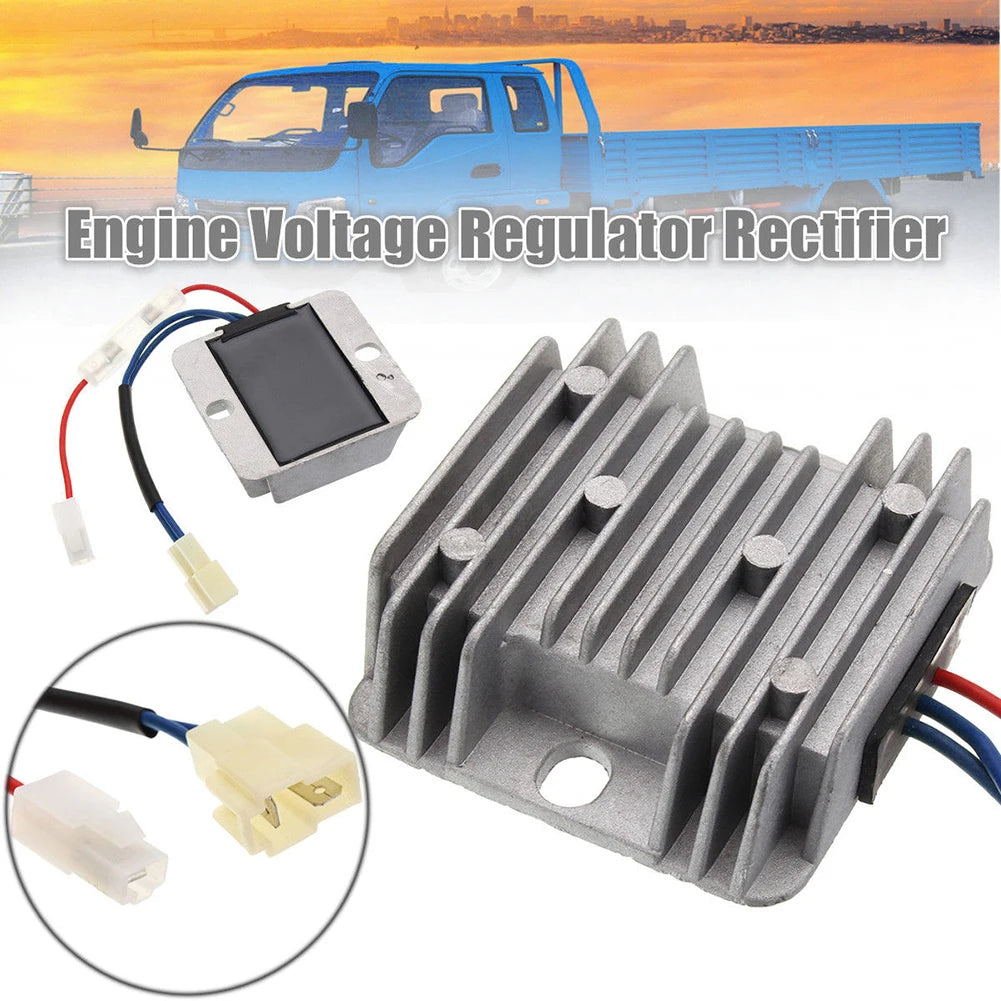

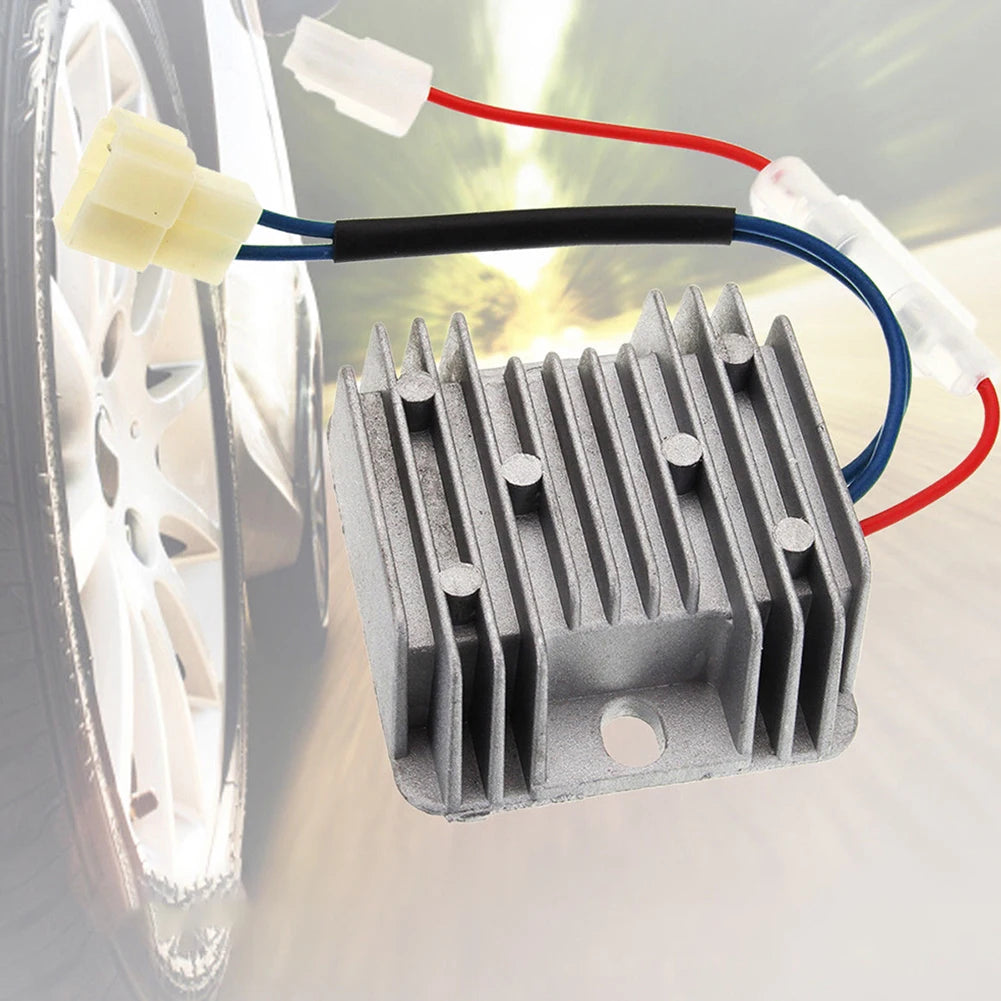

AVR Automatic Voltage Regulator for 178F Single Phase Generator

Automatic Voltage Regulator (AVR) for 178F Single Phase Generator

Keep your generator running at a steady, consistent output with this compact and reliable Automatic Voltage Regulator (AVR). Designed specifically for 178F single-phase generators, this AVR automatically stabilizes the output voltage, protecting your connected equipment from voltage fluctuations and irregular power supply. Whether you're using your generator on a job site, during a power outage, or in the field, this regulator ensures stable 13.8V output every time.

Key Features

• Stable Output Voltage: Maintains a steady 13.8V (±0.3V) output for consistent, reliable power delivery.
• Wide Input Range: Accepts input voltages from 15V to 55V, making it compatible with a broad range of single-phase generators.
• Simple 3-Wire Connection: Features a straightforward 3-wire, 2-connector design for fast and easy installation.
• Compatible with 178F Generators: Engineered specifically for 178F single-phase generator models.
• Compact & Lightweight: Weighs just 0.2 kg and measures 79 × 70 mm, making it easy to mount and fit into tight spaces.
• Durable Construction: Built to withstand the demands of regular generator use in various environments.

Specifications

• Weight: 0.2 kg
• Dimensions: 79 × 70 mm / 3.11 × 2.76 inches
• Input Voltage: 15V – 55V AC
• Output Voltage: 13.8V ± 0.3V
• Current Type: AC
• Mounting Hole Diameter: ~60 mm / 2.36 inches
• Wiring: 3 wires in 2 connectors

What's in the Box

• 1 × Generator AVR (Automatic Voltage Regulator)

Made in Mainland China.

For guidance on safe electrical installation and working with voltage regulators, refer to the OSHA Electrical Safety Guidelines.

Frequently Asked Questions

Q: What generator models is this Automatic Voltage Regulator compatible with?

A: This AVR is designed specifically for 178F single-phase generators. It features a 3-wire, 2-connector wiring configuration and accepts input voltages between 15V and 55V AC, making it suitable for a range of 178F single-phase generator units.

Q: What output voltage does this AVR provide?

A: This regulator delivers a stable output voltage of 13.8V ± 0.3V, ensuring your generator produces consistent power output for connected equipment and devices.

Q: Is this AVR easy to install?

A: Yes. The unit uses a simple 3-wire, 2-connector setup and has a mounting hole diameter of approximately 60 mm (2.36 inches), making installation straightforward. Always follow standard electrical safety practices and consult a qualified technician if you are unsure.

Q: What are the physical dimensions and weight of this voltage regulator?

A: The AVR measures 79 × 70 mm (3.11 × 2.76 inches) and weighs just 0.2 kg, making it compact and easy to mount within your generator housing.
