Automatic Swing Gate Opener Kit with Electronic Lock | CE Rated

Automatic Swing Gate Opener Kit with Safety Electronic Lock

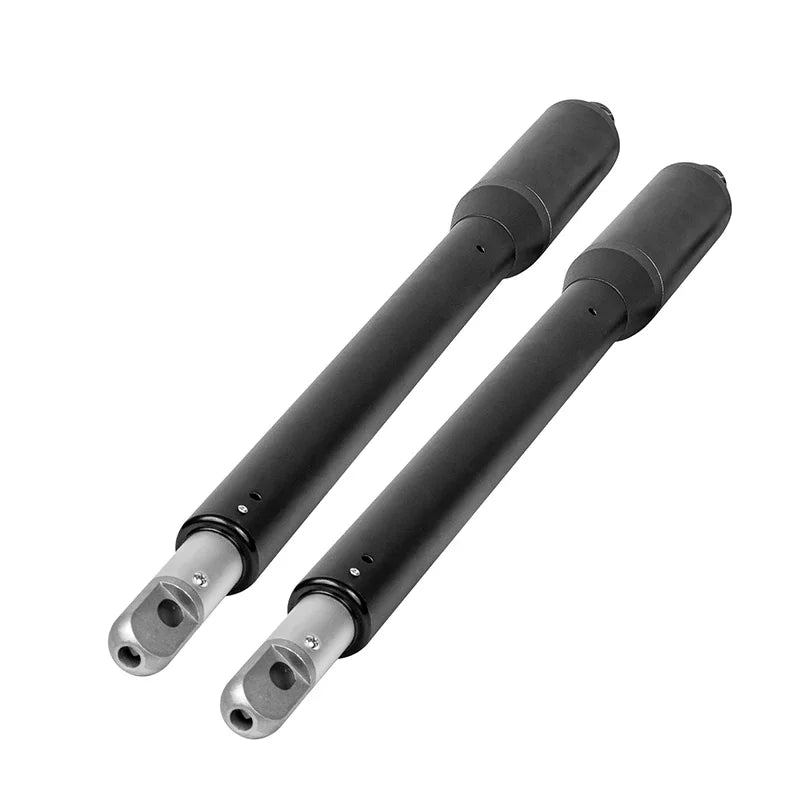

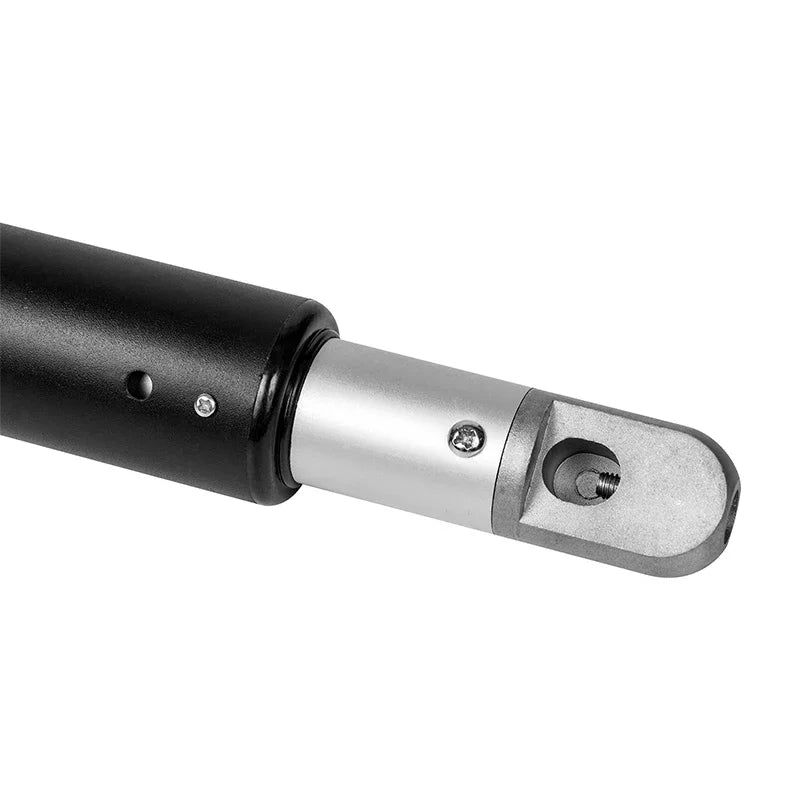

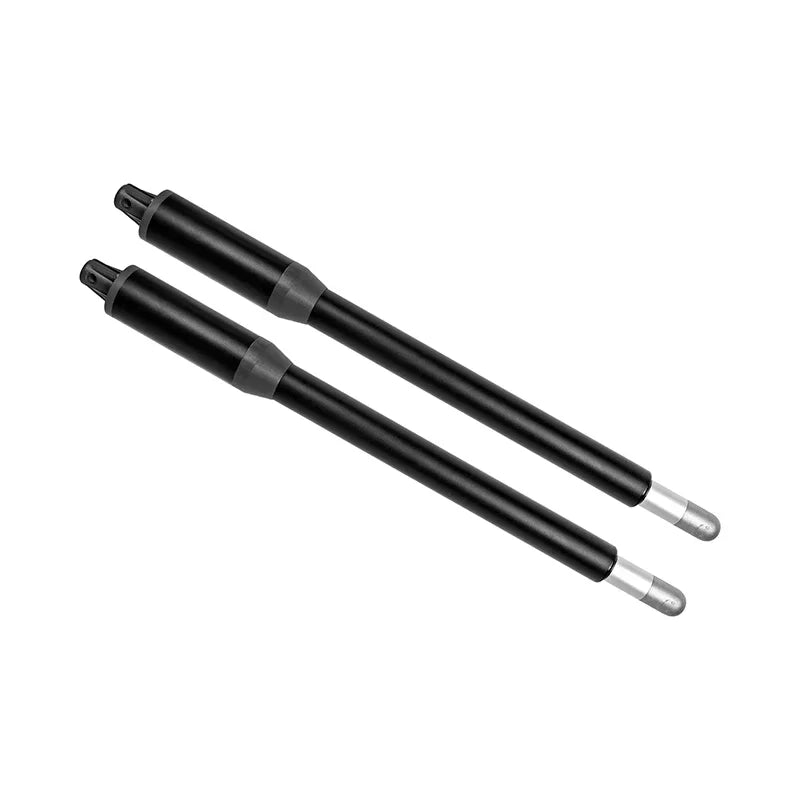

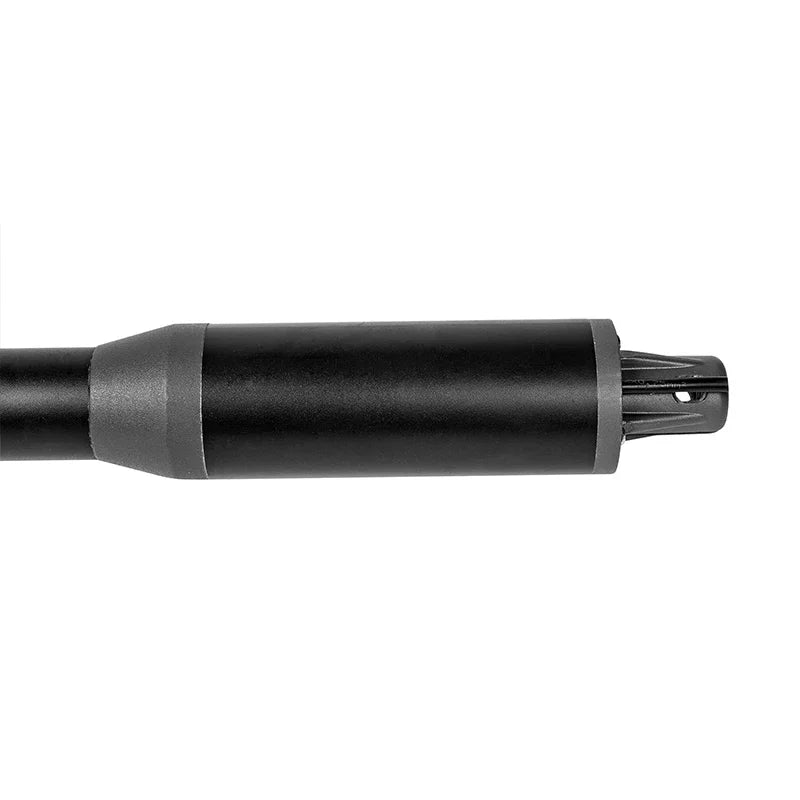

Take full control of your property's entrance with the KINGJOIN&GALO PKM-C05L Automatic Swing Gate Opener Kit. Engineered for residential driveways, commercial properties, and estates, this dual-arm gate automation system delivers smooth, reliable, and secure operation with minimal maintenance. Compatible with the Tuya Smart Home platform, it integrates seamlessly into your existing smart home ecosystem for convenient remote access and monitoring.

Made in Mainland China.

Why Choose This Swing Gate Opener?

• Heavy-Duty Performance: Handles single-leaf gates up to 150–200 kg and up to 2 meters in length, making it ideal for solid wood, steel, or iron gates.
• Wide Opening Angle: Opens up to 110 degrees for easy vehicle and pedestrian access.
• Safety Electronic Lock Included: The integrated electronic lock ensures your gate stays securely latched when closed, adding an extra layer of perimeter security.
• All-Weather Reliability: Rated IP55 for dust and water resistance, and engineered to operate in extreme temperatures from -45°C to +50°C — dependable in rain, snow, or summer heat.
• Smart Home Ready: Works with the Tuya platform for remote open/close control via smartphone app.
• Quiet 24V DC Motor: The 40W, 24V DC motor with a rotational speed of 200 RPM ensures smooth, quiet operation without disturbing your household or neighbors.
• CE Certified: Meets European conformity safety standards, giving you peace of mind about build quality and electrical safety.

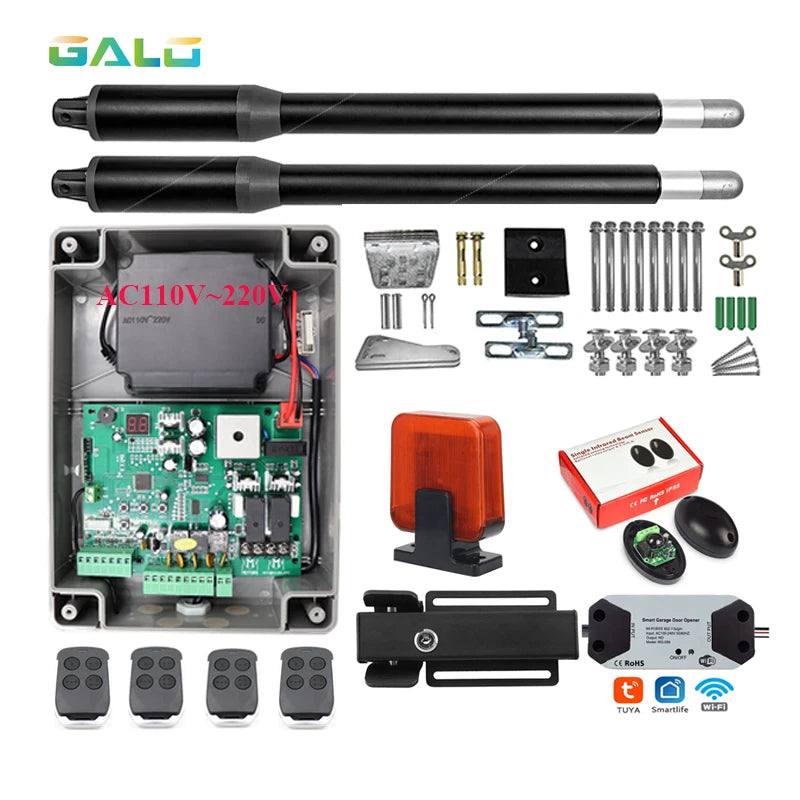

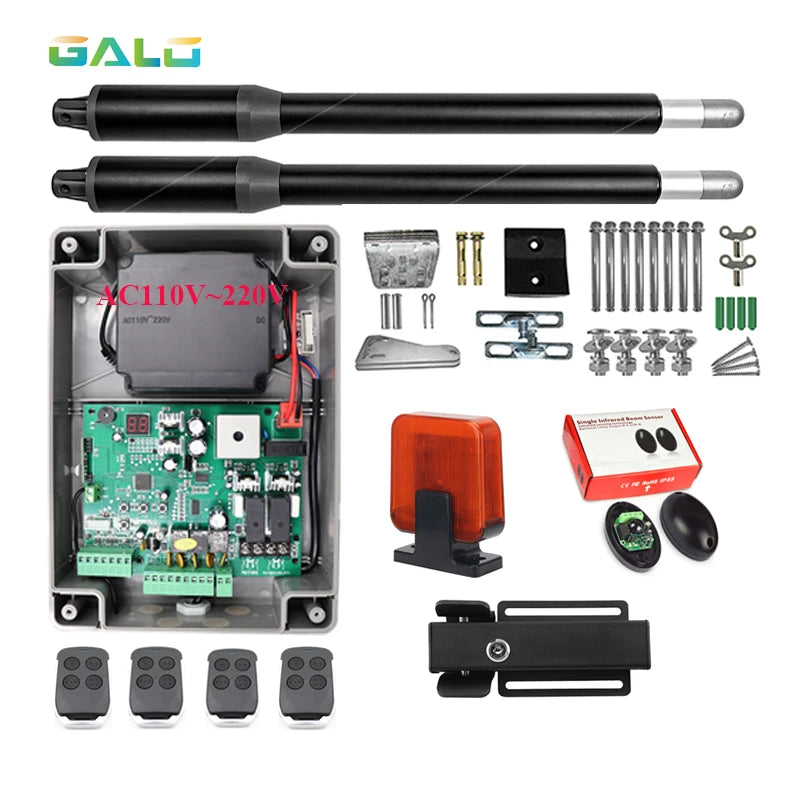

Complete Kit — Everything You Need

This is a complete dual swing gate opener set. The full kit (gross weight: 13 kg) includes all hardware, control unit, and safety electronic lock required for installation. Supports both 220VAC ±10% and 110VAC ±10% input power, making it suitable for installations worldwide.

Key Specifications

• Model: PKM-C05L
• Motor Voltage: 24V DC, 40W
• Input Power: 220VAC ±10% / 110VAC ±10%
• Arm Extended Speed: 1.6 cm/s
• Arm Max Travel: 300 mm
• Max Gate Open Angle: 110°
• Max Single-Leaf Weight: 150–200 kg
• Max Single-Leaf Length: 2 meters
• Continuous Running Time: 5 minutes
• Protection Class: IP55
• Operating Temperature: -45°C to +50°C
• Smart Platform: Tuya
• Certification: CE
• High-Concern Chemicals: None

Ideal Applications

• Residential driveway swing gates
• Estate and villa entrance gates
• Commercial property perimeter gates
• Agricultural and rural property access points

For general guidance on property security and gate safety standards, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant safety information on automated gate systems.

Frequently Asked Questions

Q: Is this swing gate opener kit compatible with both single and double swing gates?

A: Yes. The KINGJOIN&GALO PKM-C05L kit is designed as a dual swing gate opener set, making it suitable for both single-leaf and double-leaf swing gate installations. Each arm can handle gates up to 150–200 kg and 2 meters in length.

Q: Can I control the gate opener remotely via my smartphone?

A: Absolutely. This automatic swing gate opener is compatible with the Tuya smart home platform, allowing you to open, close, and monitor your gate remotely using the Tuya or SmartLife app on your smartphone.

Q: Is this gate opener weatherproof?

A: Yes. With an IP55 protection rating, the gate opener is protected against dust ingress and water jets from any direction. It is also rated to operate in temperatures ranging from -45°C to +50°C, making it suitable for a wide range of climates and outdoor environments.

Q: What input power supply does the swing gate opener require?

A: The unit supports both 220VAC ±10% and 110VAC ±10% input voltages, making it compatible with standard power supplies in most countries worldwide.

Q: Does the kit include an electronic lock?

A: Yes. The complete kit includes a safety electronic lock that automatically secures the gate when closed, ensuring enhanced perimeter security for your property.
