SucceBuy 50W Automatic Swing Door Opener Kit 120° Opening

SucceBuy Automatic Swing Door Opener Kit — Hands-Free Convenience for Hotels, Offices & More

Upgrade any commercial or residential entrance with the SucceBuy SW100 Automatic Swing Door Opener. Built from premium aluminum alloy, stainless steel, and cast iron, this CE-certified door operator delivers smooth, quiet, and hands-free access at the push of a button — or with no hands at all via its intelligent motion sensor. With a 120° maximum opening angle and support for doors up to 220 lbs (100 kg), it's the complete solution for hotels, offices, banks, fire doors, medical facilities, and more.

Key Features

• Intelligent Automatic Operation: DC 24V brushless motor with 50W power consumption opens and closes doors smoothly. Supports doors 26"–47.2" (66–120 cm) wide and up to 220 lbs (100 kg). Max opening angle: 120°.

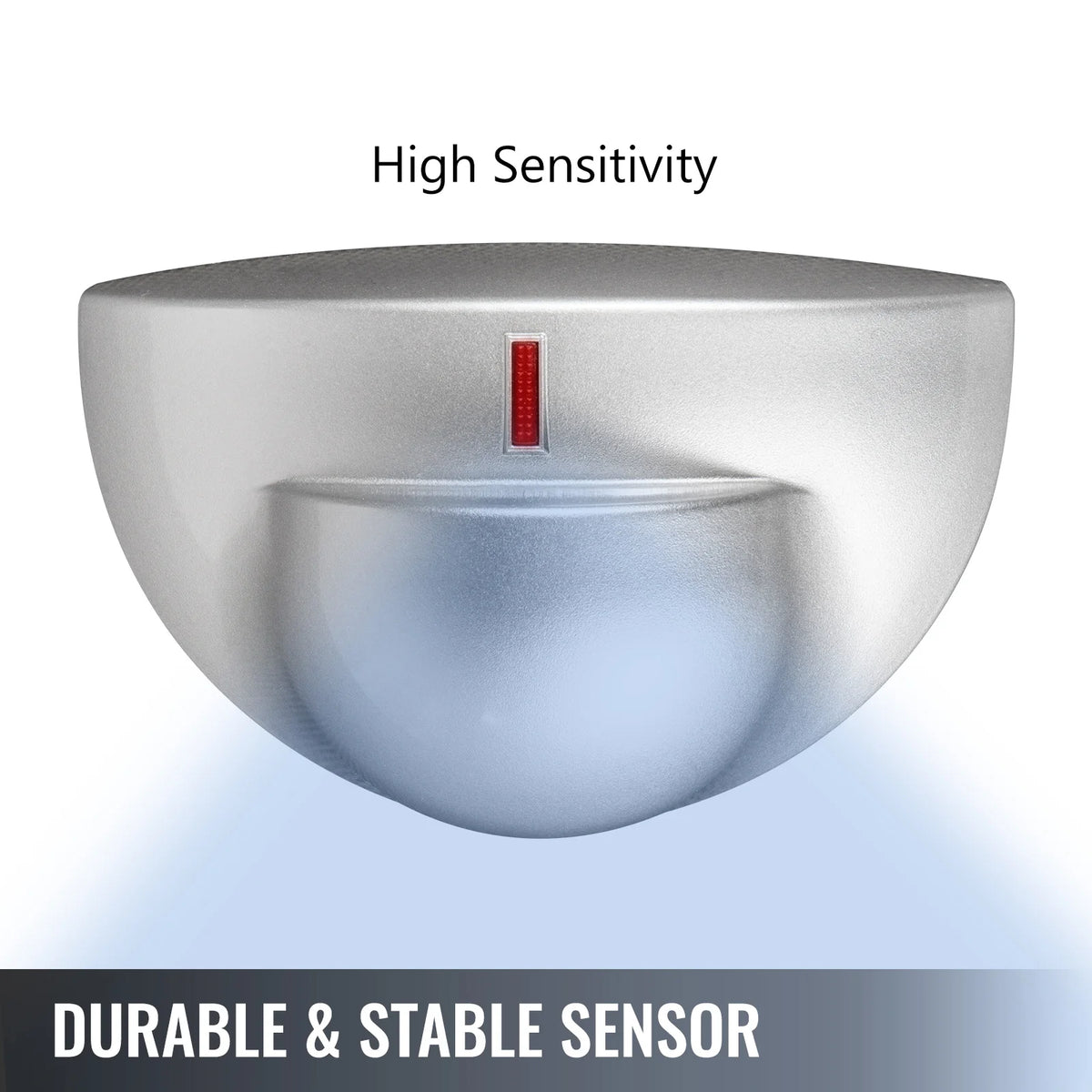

• Anti-Interference Motion Sensor: 24GHz optimized detection circuit provides high-sensitivity microwave induction within 3 m. Features anti-interference ability and an anti-pinch safety function — unaffected by temperature, altitude, or humidity changes.

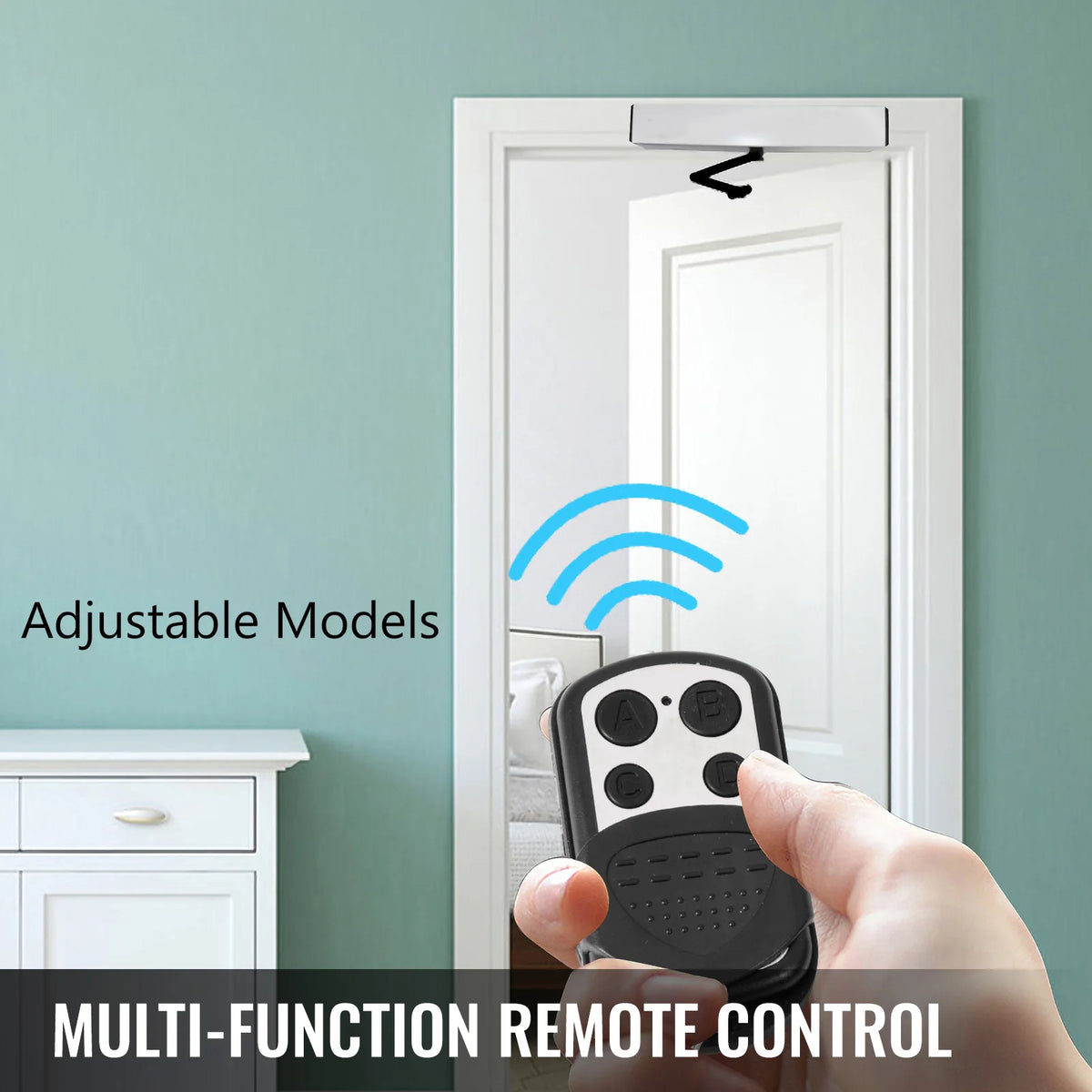

• Multi-Function Wireless Remote Controllers: Two 315 MHz remote controllers with A/B/C/D mode buttons allow remote operation up to 10 m away. Easily adjust door opening speed, closing strength, and hold-open time (1–30 seconds) right from the remote.
• Push Button & IC Card Access: Includes push-to-open buttons for long-distance triggering and an access controller compatible with the 5 included IC cards — perfect for controlled-entry environments.
• Durable, Rust-Proof Construction: Aluminum alloy and stainless steel shell with a cast iron and aluminum alloy bracket. Anti-corrosion, anti-rust, and scratch-proof for years of reliable use.
• Ultra-Quiet & Easy to Install: Operation noise under 55 dB. Choose a pull-to-open or push-to-open arm configuration. Open time: 3–7 seconds. Detailed instructions included.
• Wide Compatibility: Ideal for supermarkets, hotels, hospitals, offices, meeting rooms, laboratories, banks, fire doors, private villas, and unit building entrances.

Specifications

• Material: Aluminum Alloy & Stainless Steel & Cast Iron
• Power Voltage: 110–240 VAC (±10%)
• Motor: DC 24V Brushless Motor
• Power Consumption: 50W
• Product Dimensions: 20.5 × 3.7 × 3.2 in / 52.1 × 9.4 × 8.1 cm
• Door Width Range: 26"–47.2" (66–120 cm)
• Max. Opening Angle: 120°
• Item Weight: 22 lbs / 10 kg
• Certification: CE
• Country of Origin: Made in Mainland China

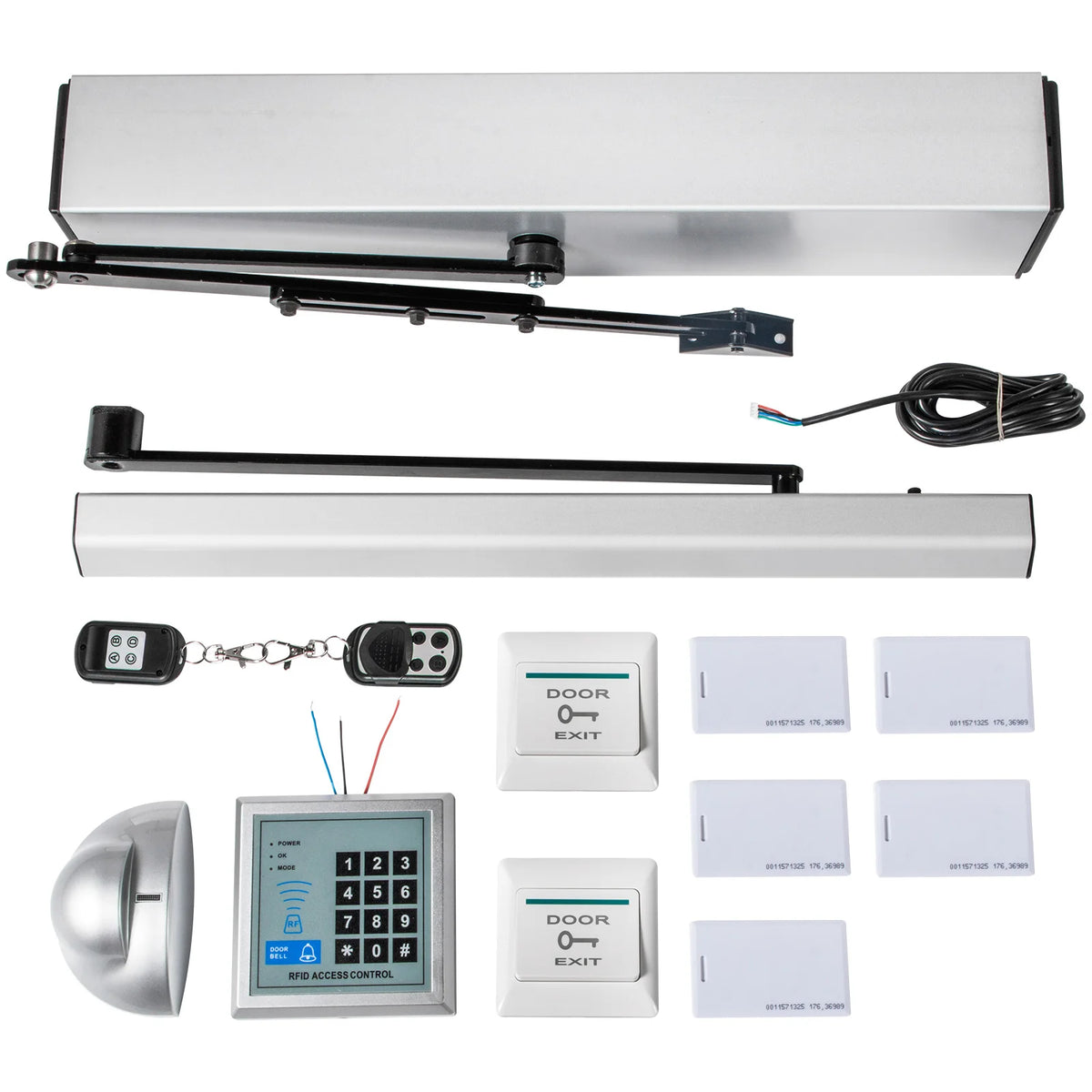

What's in the Box

• 1 × Automatic Door Opener Unit
• 2 × Remote Controllers
• 2 × Push Buttons
• 2 × Pull Arm / Push Arm
• 5 × IC Cards
• 1 × Access Controller & Sensor
• 1 × Screw Kit & Power Cord
• 1 × User Manual

About SucceBuy

SucceBuy is a globally trusted brand specializing in heavy-duty equipment and tools, serving 10 million+ members across 200+ countries and regions. Every product is built to demanding standards and backed by fast shipping, 30-day free returns, and 24/7 customer support.

For information on accessibility standards and automatic door operator guidelines, visit the U.S. Consumer Product Safety Commission (CPSC) for relevant safety guidance on powered door equipment.

Frequently Asked Questions

Q: What types of doors is this automatic swing door opener compatible with?

A: The SucceBuy SW100 automatic swing door opener works with single swing doors between 26" and 47.2" (66–120 cm) wide, supporting door weights up to 220 lbs (100 kg). It is widely used in hotels, offices, hospitals, supermarkets, banks, fire doors, laboratories, meeting rooms, and residential buildings.

Q: Can I control the door opening speed and how long it stays open?

A: Yes. The included multi-function wireless remote controller (315 MHz, up to 10 m range) lets you directly adjust the door opening speed, closing strength, and hold-open time, which is adjustable from 1 to 30 seconds. You can also control sensor activation and choose from four operating modes.

Q: Is this automatic door opener difficult to install?

A: No — the kit is designed for straightforward installation. Detailed step-by-step instructions are included, and you can choose either a pull-to-open or push-to-open arm depending on your door configuration. Operation noise is under 55 dB, and the open time ranges from 3 to 7 seconds once installed.

Q: Does the kit include everything I need to get started?

A: Yes. The comprehensive package includes the door opener unit, 2 remote controllers, 2 push buttons, pull and push arms, 5 IC cards, an access controller, a sensor, a screw kit, a power cord, and a user manual — everything required for a complete installation.
