ATV UTV Broadcast Spot Sprayer 60L 12V Pump Adjustable Boom

ATV/UTV Broadcast Spot Sprayer — 60L Tank, 12V Pump & Adjustable Boom

Take command of your land with this heavy-duty 60-litre (15.9-gallon) ATV/UTV broadcast sprayer. Engineered for farmers, ranchers, and serious home gardeners, it combines a powerful 12V electric pump, a fully adjustable spray boom, and a corrosion-resistant brass nozzle to deliver precise, wide-area coverage across farmland, grasslands, forests, and pastures. Made in Mainland China.

Key Features

• Large 60L TPE Water Tank — Volume calibration lines let you monitor liquid levels at a glance, while the wide-mouth opening and reinforced carry handle make filling and transporting simple.

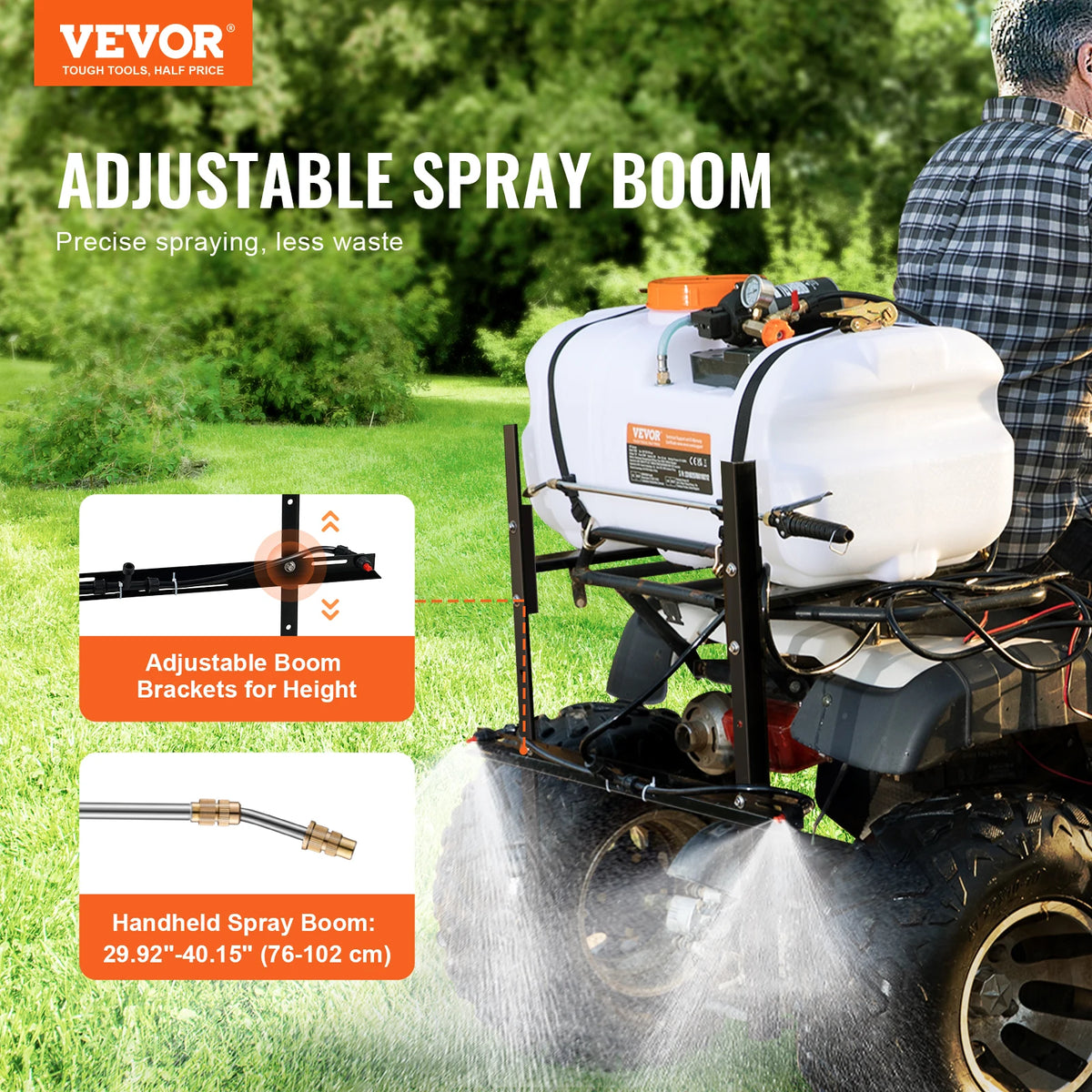

• Adjustable Iron Spray Boom — Customise spray height to suit your terrain; the boom delivers a horizontal reach of up to 21 ft and a vertical reach of up to 18 ft, covering a 13 ft / 4 m swath width with each pass.

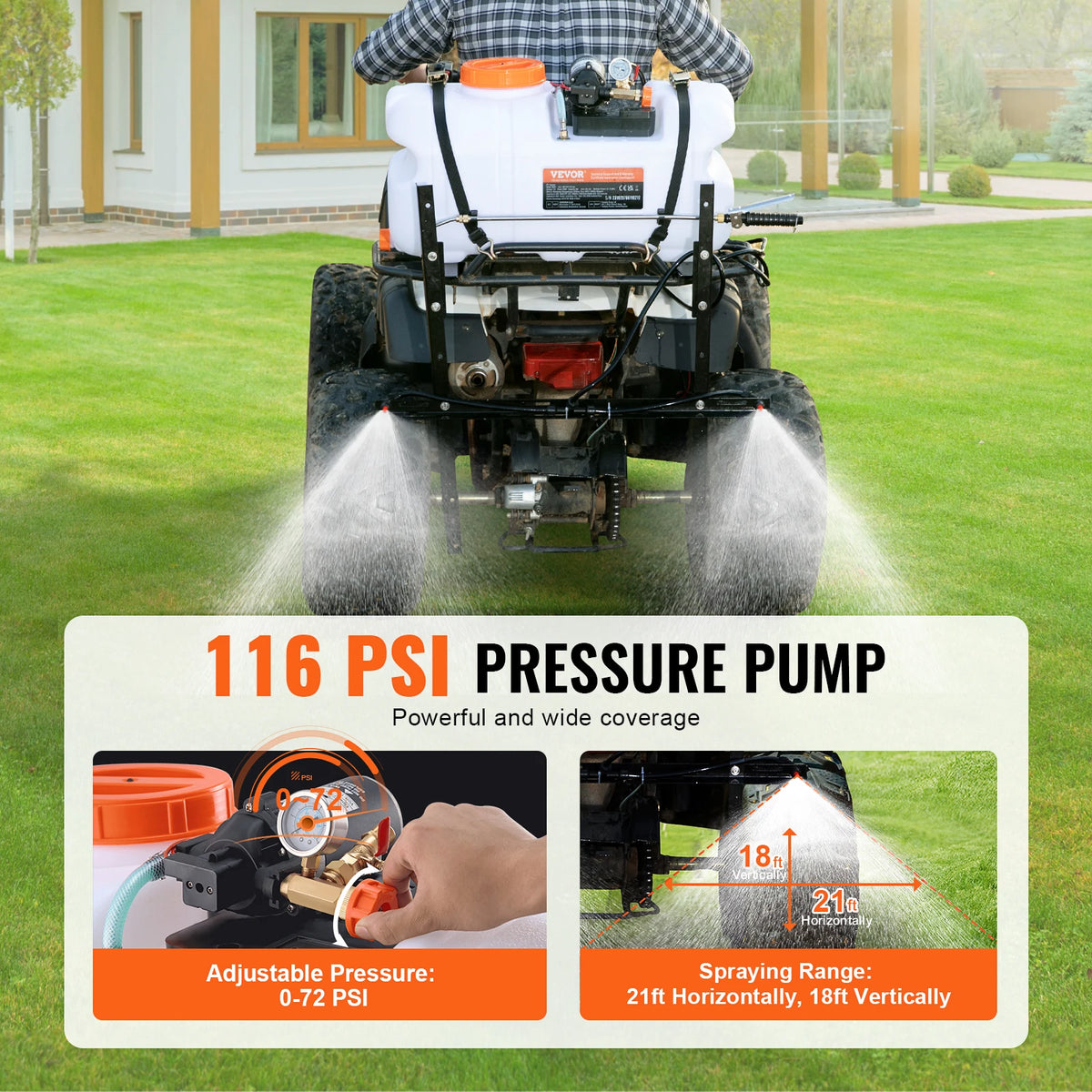

• Powerful 12V Electric Pump — Delivers a 1.9 GPM flow rate and a maximum pump pressure of 0.8 MPa (up to 116 PSI), ensuring a consistent, high-volume spray across every job.
• Precision Pressure Control (0–72 PSI) — A pressure regulator knob and 0–150 PSI gauge give you complete control over spray intensity, from gentle misting to a powerful directed stream.

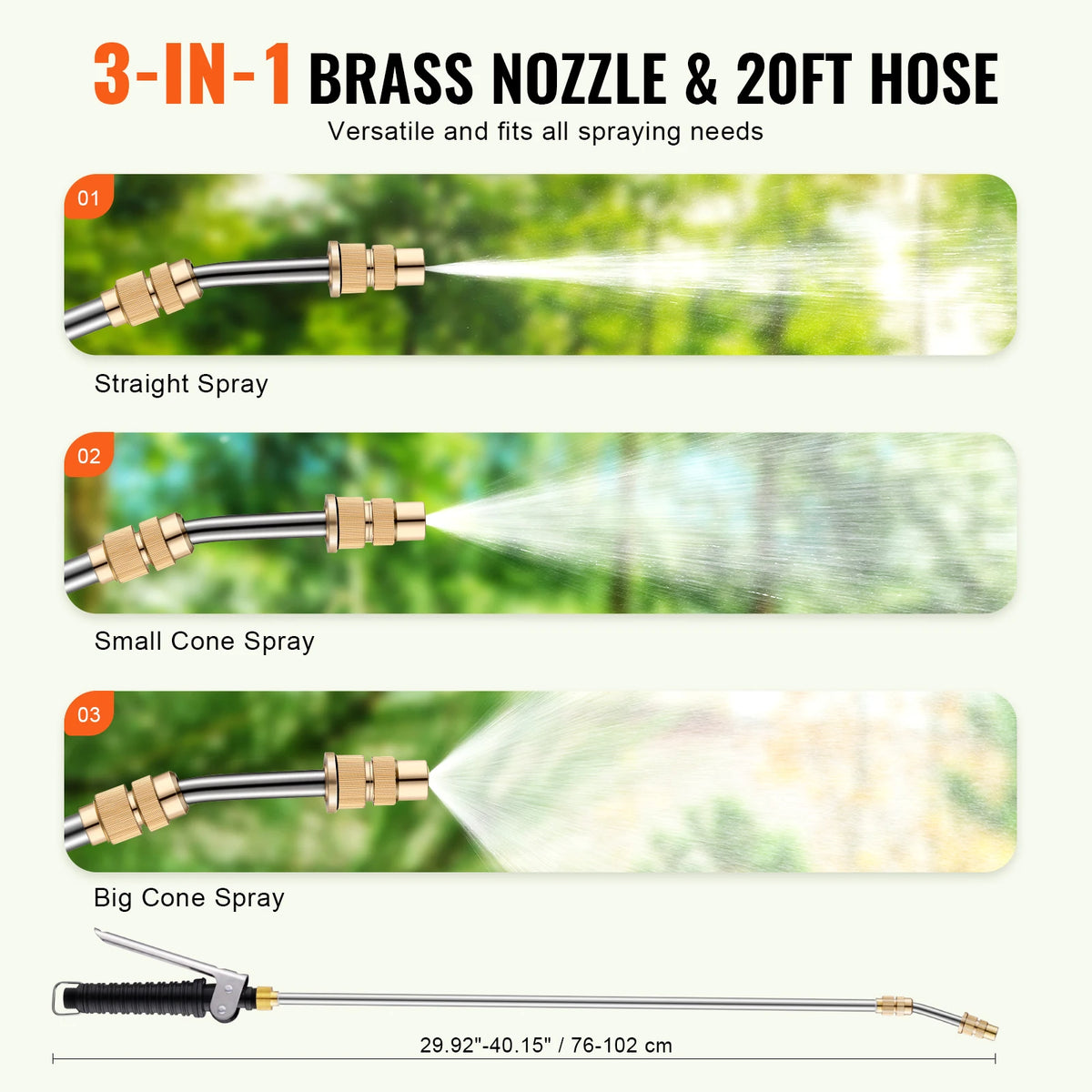

• Telescopic Stainless Steel Spray Rod & Brass Nozzle — Multiple spraying modes and corrosion resistance make this combo ready for a wide range of liquid applications, season after season.

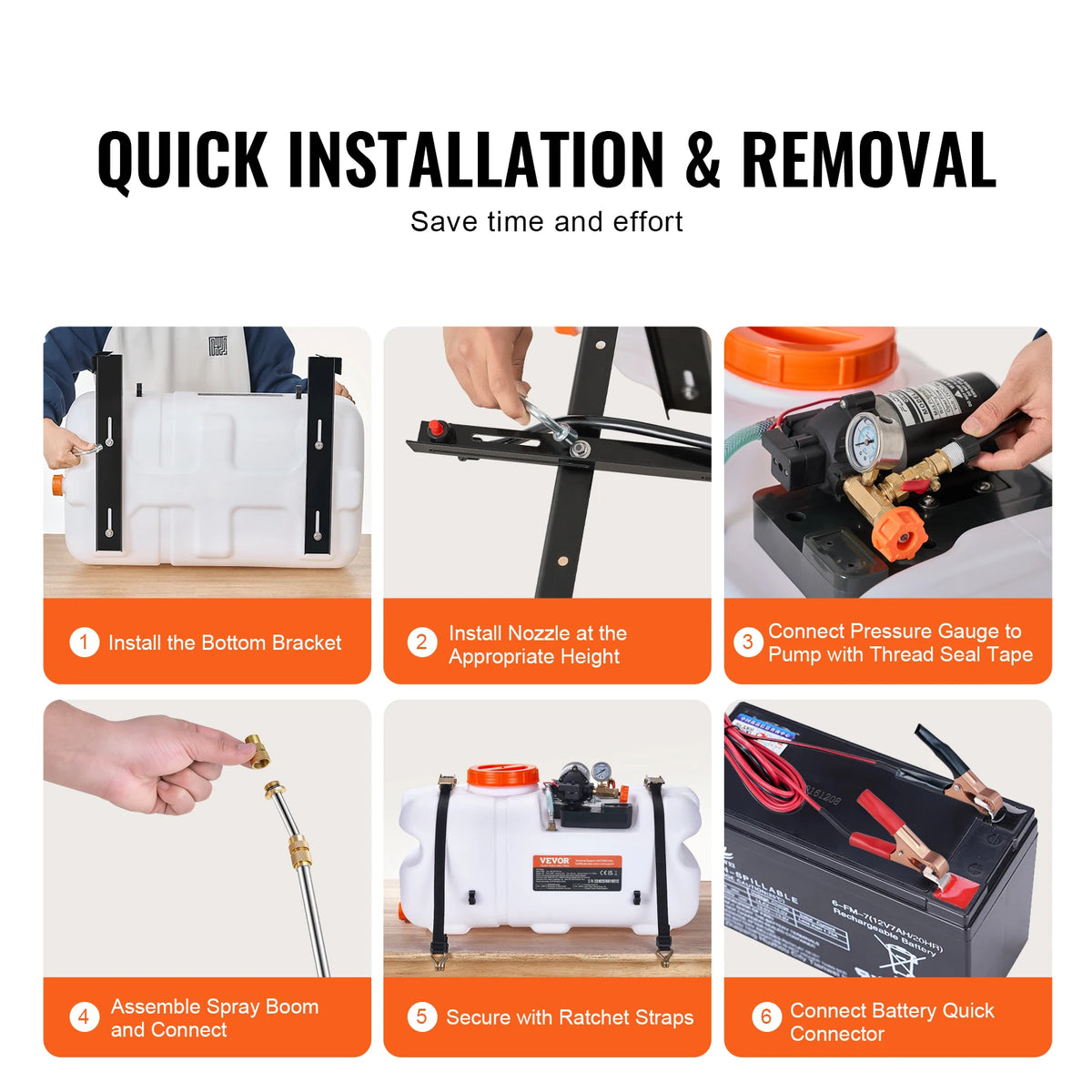

• Durable, User-Friendly Build — Ratchet straps secure the tank to your ATV/UTV; grooved handles ensure a confident grip; bottom drainage and an 8 ft quick-coupling line simplify maintenance and setup.
• Broad Vehicle Compatibility — Designed to mount on most ATV, UTV, and utility vehicle platforms, making it a versatile addition to any farm or property.

Specifications

• Tank Capacity: 60 L / 15.9 Gal
• Product Size (L × W × H): 700 × 370 × 415 mm / 27.5 × 14.5 × 16.3 in
• Pump Voltage: 12V DC
• Pump Flow Rate: 1.9 GPM
• Nozzle Flow Rate: ≤ 5 L/min
• Adjustable Pressure Range: 0–72 PSI
• Pressure Gauge Range: 0–150 PSI
• Max Pump Pressure: 0.8 MPa
• Operating Pump Pressure: 0.1–0.5 MPa
• Main Materials: TPE Water Tank, Iron Fixed Spray Boom, Stainless Steel Spray Rod, Brass Nozzle
• Model Number: BS60
• Country of Origin: Made in Mainland China

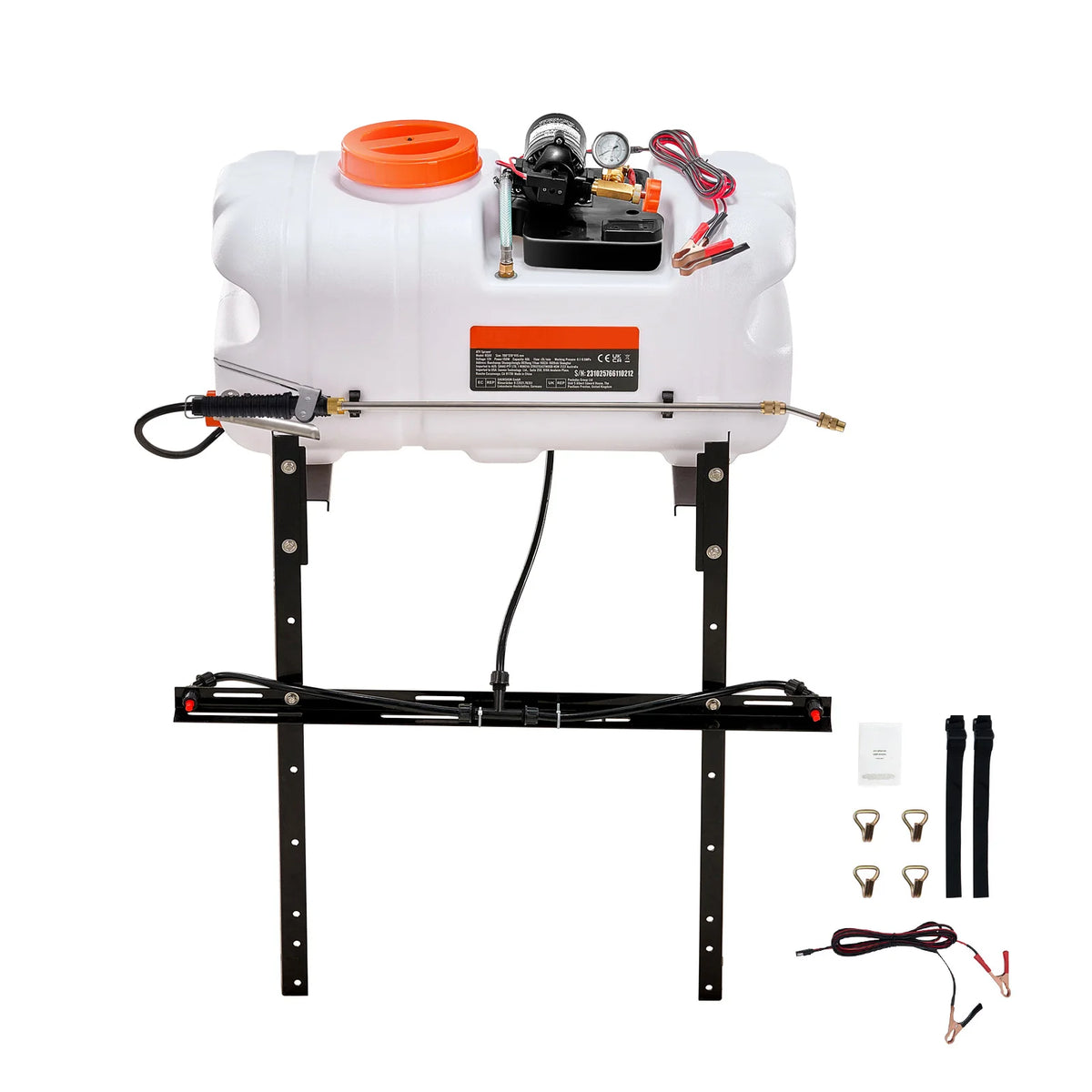

What's in the Box

• 1 × ATV Broadcast Sprayer (60L Tank)
• 1 × Spray Boom + Brass Nozzle
• 1 × Pressure Regulator Valve
• 1 × Control Switch
• 1 × 20 ft / 6.1 m Soft Hose
• 1 × 2.5 m Quick Coupling Line
• 1 × Pressure Gauge
• 2 × Ratchet Straps
• 1 × Set of Strap Adjusters
• 1 × User Manual

For guidance on the safe and responsible use of pesticides and spraying equipment, visit the U.S. EPA Pesticide Worker Safety resource.

Frequently Asked Questions

Q: What vehicles is this 60L ATV spot sprayer compatible with?

A: This broadcast sprayer is designed to mount on most standard ATV and UTV platforms using the included ratchet straps and strap adjusters. It is also suitable for other utility vehicles with a flat cargo rack. Always verify your vehicle's load rating before mounting.

Q: What power source does the 12V pump require?

A: The pump operates on 12V DC power, which can be connected directly to your ATV or UTV battery via the supplied quick coupling line. The 8 ft coupling line provides a convenient and secure connection for most standard vehicle setups.

Q: Can I adjust the spray pressure during operation?

A: Yes. The pressure regulator knob allows you to fine-tune the output from 0 to 72 PSI while spraying. The included 0–150 PSI pressure gauge gives you a real-time readout so you can dial in the precise pressure for any application — from low-volume targeted spraying to wide-area broadcast coverage.

Q: How do I clean and maintain the ATV sprayer after use?

A: Rinse the tank thoroughly with clean water after each use and drain completely via the bottom drainage outlet. Flush the hose and nozzle to remove any residue. The stainless steel spray rod and brass nozzle are corrosion resistant, but regular rinsing will maximise their service life. Store the sprayer in a cool, dry location when not in use.
