Asia-Teco AI801 Face Recognition Access Control Time Attendance
Asia-Teco AI801 Face Recognition Access Control Time Attendance
The Asia-Teco AI801 is a professional-grade dynamic facial recognition terminal combining access control and time attendance management into one sleek, 8-inch touchscreen device. Engineered for offices, warehouses, schools, and multi-door facilities, this all-in-one system supports up to 20,000 users and delivers fast, accurate identification at distances of 0.5–2 meters — all with a false acceptance rate below 0.1%.
Made in Mainland China.
Why Choose the Asia-Teco AI801?
- 8-Inch IPS HD Touchscreen — Crystal-clear 1024×600 mirror-finish display for an intuitive user experience.

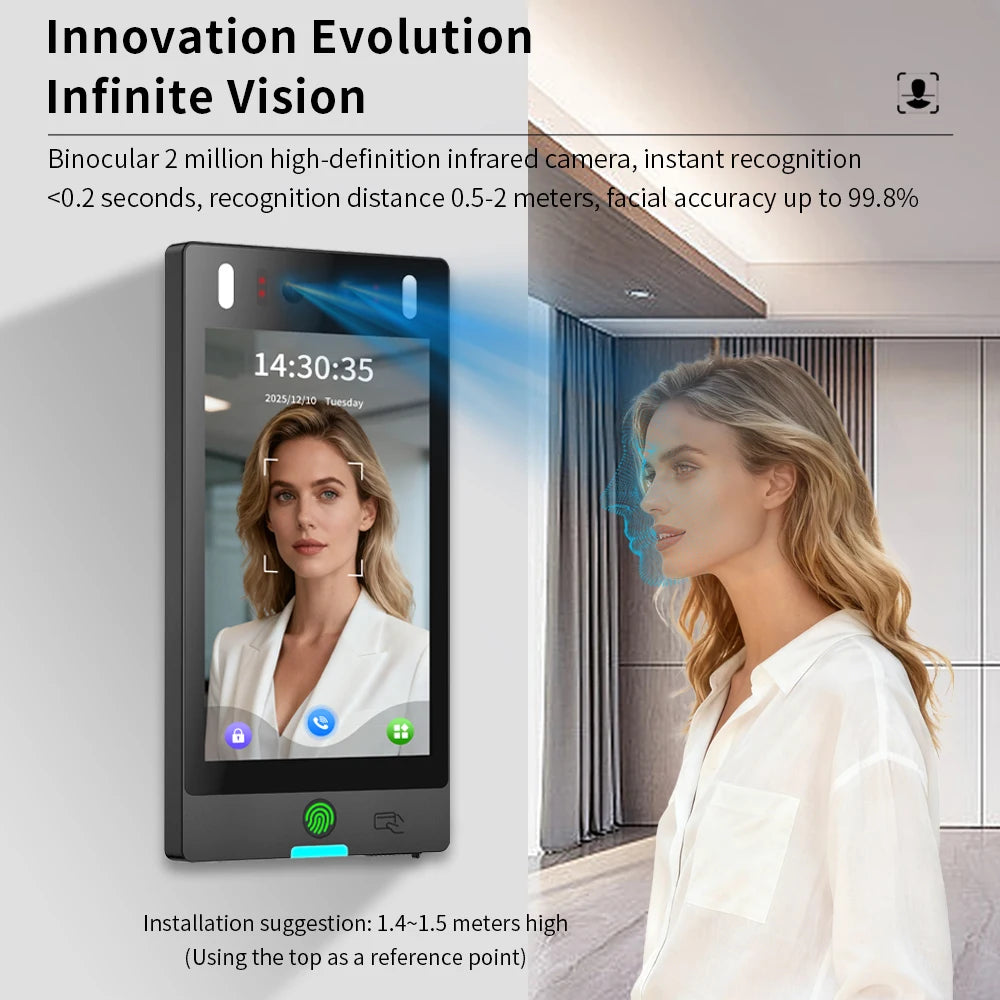

- Dynamic Binocular Camera — Dual 2-megapixel wide-dynamic cameras for accurate recognition even in bright outdoor environments.
- Up to 20,000 Users — Scalable capacity ideal for large organizations and enterprise deployments.
- Free Cloud API & Free LAN Software — No hidden subscription fees; connect via MQTT, HTTP, or cloud-to-cloud API integration.
- TCP/IP, RJ45 & WiFi Connectivity — Flexible dual-network support for virtually any installation scenario.

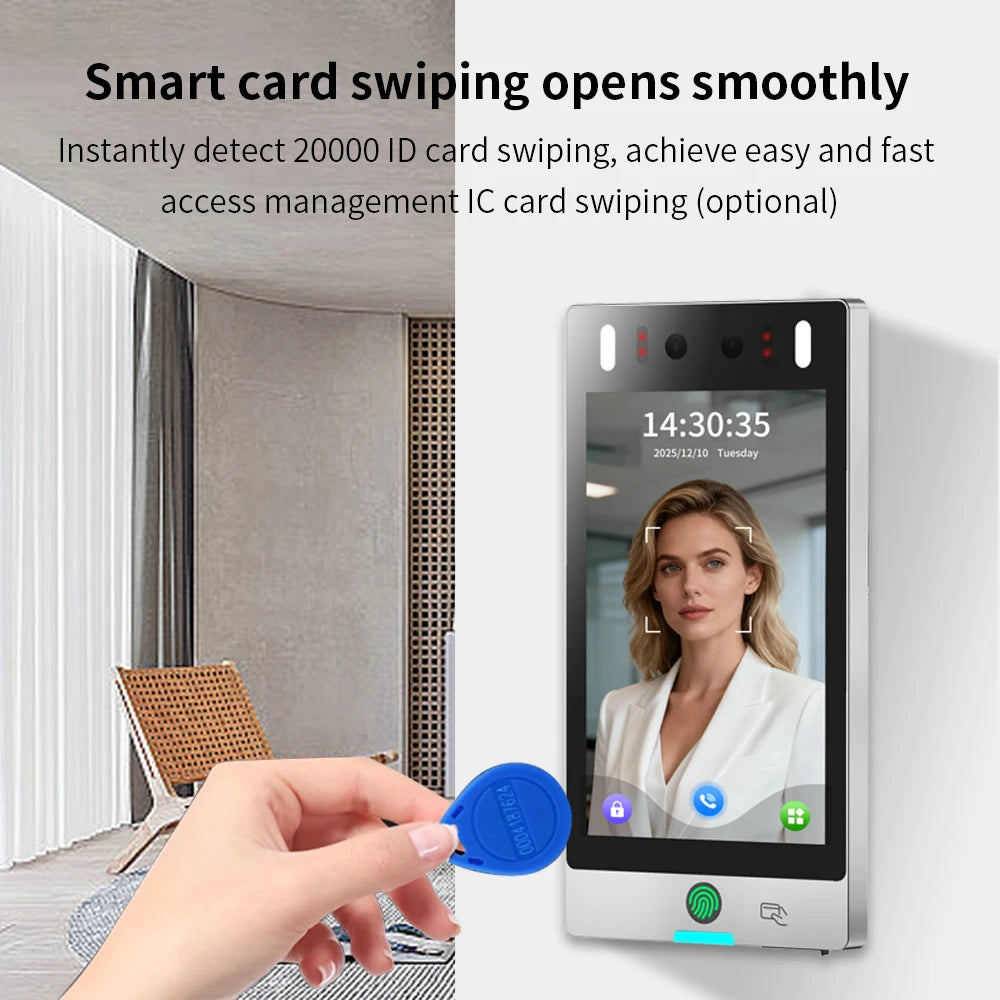

- RFID Card Support — Compatible with standard RFID cards for multi-mode verification.

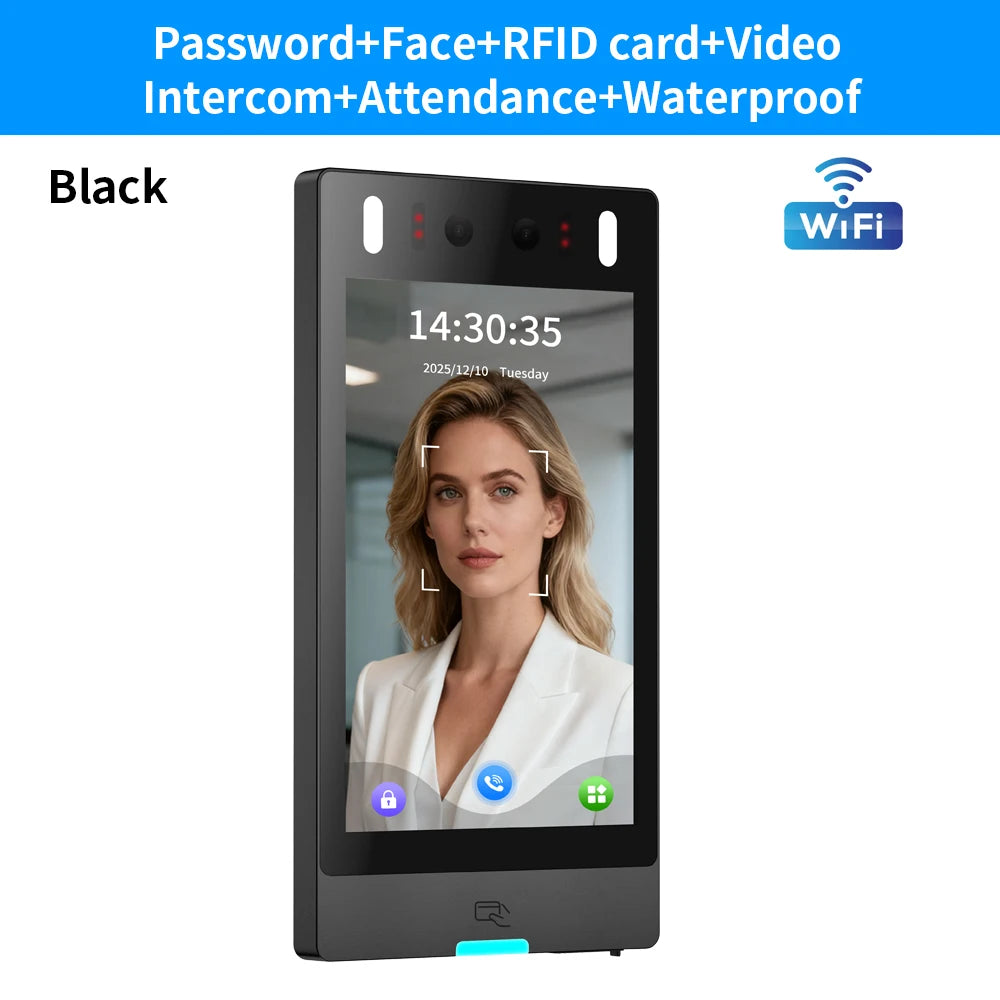

- Multiple Verification Modes — Face, RFID card, password, or combination verification for enhanced security.
- Multi-Person Unlock — Require multiple verified individuals to grant door access for high-security zones.
- Built-In Attendance Management — Local shift editing, timed bell scheduling, and automatic record logging.

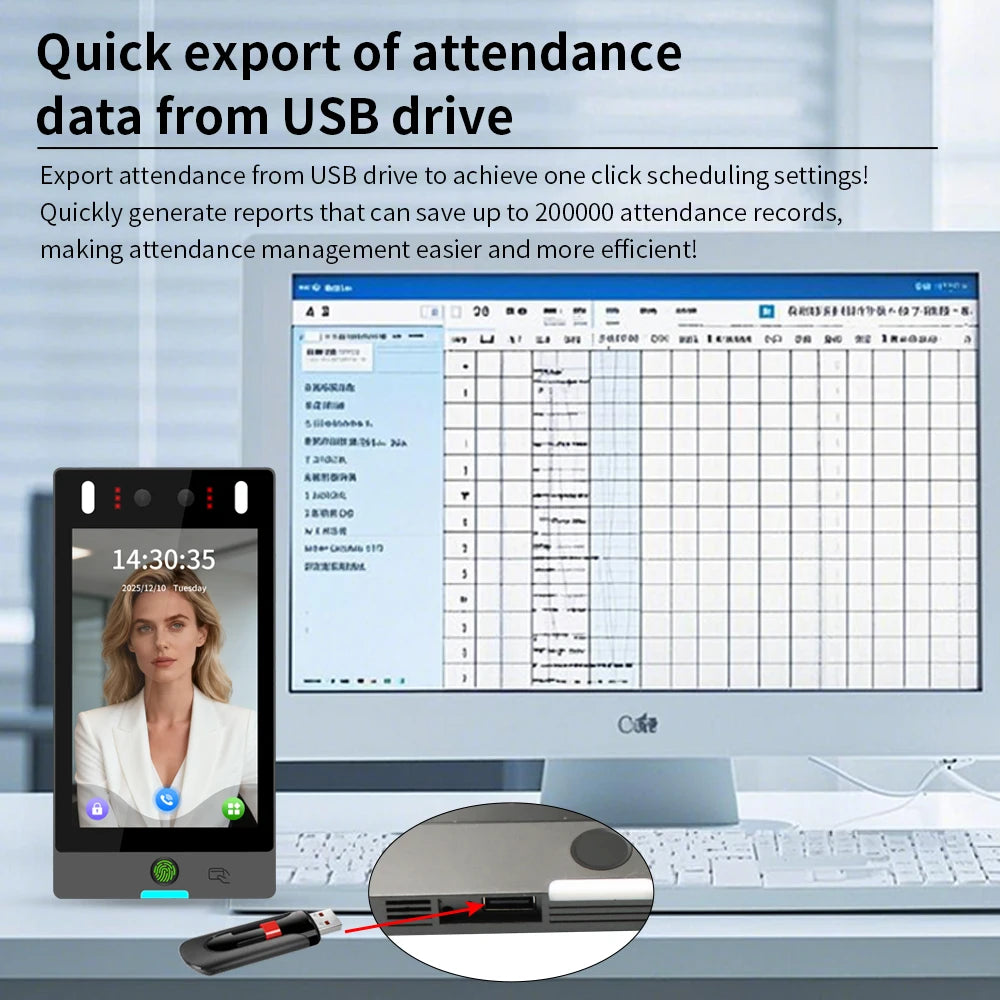

- USB Data Transfer — Upload/download personnel records and swap screensavers via USB flash drive.
- Mask Detection — Detects whether a face covering is present during identification.
- Admin & Master Card Authorization — Easily manage access permissions with dedicated admin cards.
- Wiegand Input/Output — Integrates seamlessly with existing access control infrastructure.
- External Fire Alarm Integration — Supports emergency signaling for safety compliance.
- Customizable Communication — Optional RS485, 4G, and Bluetooth modules available on request.
- Multi-Language Support — Choose from a range of interface languages; custom languages available upon request.
- Fail Secure Mode — Door remains locked during power failure for maximum security.
- Wide Operating Temperature — Performs reliably from -20°C to 60°C, suitable for indoor and outdoor installations.
- Durable Aluminum Alloy Body — CE & FCC certified; built to last in demanding environments.
Technical Specifications
| Model | AI801 |
| Display | 8-inch IPS, 1024×600 resolution |
| Camera | Dual 2-megapixel binocular |
| User Capacity | Up to 20,000 users |
| Recognition Distance | 0.5 – 2 meters |
| False Acceptance Rate | <0.1% |
| Operating System | Linux Intelligent OS |
| Connectivity | TCP/IP, RJ45, WiFi, USB |
| Access Control Interface | Wiegand in/out, switch signal relay |
| Power Supply | 12V DC, 2A |
| Material | Aluminum alloy |
| Operating Temperature | -20°C to 60°C |
| Security Mode | Fail Secure |
| Certifications | CE, FCC |
| Country of Origin | Mainland China |
Connectivity & Integration
The AI801 supports MQTT and HTTP protocol for direct hardware platform docking, plus free Cloud API for cloud-to-cloud integration. IT teams and developers can leverage the open API to build custom workflows, automate attendance reports, and integrate with HR or ERP systems — all at no additional cost.
For guidance on physical security best practices and workplace access control standards, visit the OSHA Workplace Safety resource.
Ideal Applications
- Corporate offices & HR departments
- Schools, universities & government buildings
- Warehouses, factories & industrial facilities
- Hotels, apartment complexes & co-working spaces
- Retail stores & multi-branch enterprises
Frequently Asked Questions
Q: How many users can the Asia-Teco AI801 facial recognition terminal store?
A: The AI801 supports up to 20,000 user profiles, making it suitable for large organizations, enterprises, schools, and multi-site deployments that need a high-capacity access control and time attendance solution.
Q: Does the AI801 require a paid software subscription for cloud or LAN access?
A: No. The Asia-Teco AI801 comes with free cloud API access and free LAN software. There are no ongoing subscription fees for the core platform. It also supports open API integration via MQTT and HTTP protocols for custom development.
Q: What connectivity options does the AI801 face recognition terminal support?
A: The AI801 supports TCP/IP via RJ45 Ethernet, WiFi, and USB connections. Optional RS485, 4G cellular, and Bluetooth communication modules can be customized upon request, making it adaptable to virtually any installation environment.
Q: Can the AI801 work with existing access control systems?
A: Yes. The AI801 features Wiegand input/output signals and standard switch relay output, allowing seamless integration with most existing access control panels, electric locks, and third-party security systems.
Q: Is the AI801 suitable for outdoor use?
A: The AI801's wide-dynamic binocular camera is designed to handle bright outdoor lighting conditions, and it operates across a broad temperature range of -20°C to 60°C. While the unit itself is built for durability, we recommend installing it in a sheltered or covered location to protect it from direct rain exposure.
