ANENG A3009 Pen Multimeter – Voice Broadcast, NCV, 6000 Count
ANENG A3009 Pen Multimeter – Voice Broadcast, NCV, 6000 Count

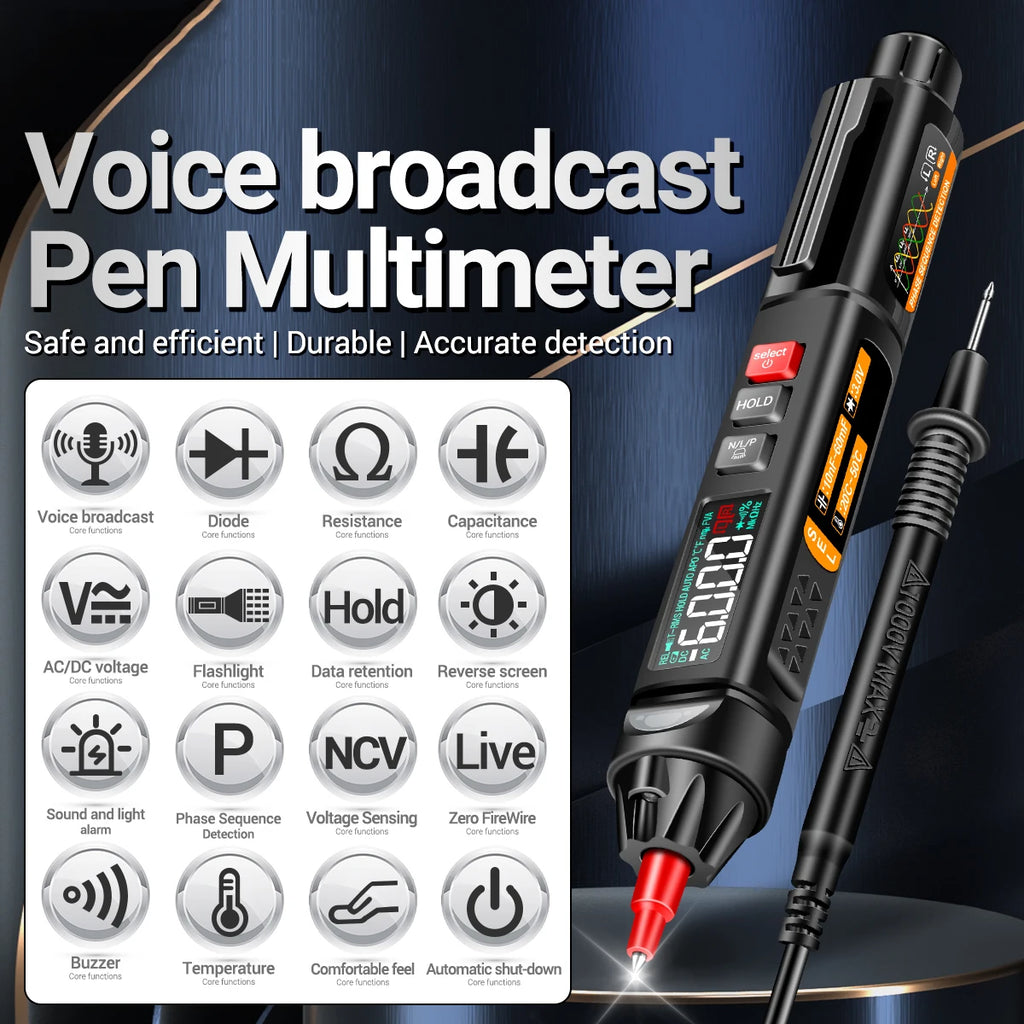

ANENG A3009 Mini Pen Multimeter with Voice Broadcast & NCV Detection
Meet the ANENG A3009 Mini Pen Multimeter — a compact, feature-packed digital testing tool built for electricians, hobbyists, home DIYers, and lab professionals. With 6000-count resolution, intelligent voice broadcast, a built-in flashlight, and non-contact voltage (NCV) sensing, this pen-style multimeter packs serious capability into a pocket-sized form factor.
Made in Mainland China.
Key Features
- Multifunctional Measurement: Measures AC/DC voltage, resistance, capacitance, temperature, diode continuity, on/off, phase sequence, and live/neutral wire detection — all in one slim pen tool.
- Intelligent Voice Broadcast: Automatically announces measured values aloud, so you can keep your eyes on your work while staying informed of readings.
- NCV Non-Contact Voltage Sensing: Hold the pen near an AC conductor — it flashes red and sounds an audible alarm when live voltage is detected, enhancing worksite awareness.
- Phase Sequence Detection: Touch the pen tip to phase lines A, B, and C in sequence; the display instantly shows the phase order result.
- Built-in Flashlight: Illuminate dark panels, junction boxes, and tight workspaces without reaching for a separate torch.
- VA Color Reverse LCD Display: High-contrast display with data hold function — easy to read in bright or dim conditions.
- Auto Range: Automatically selects the correct measurement range — no manual dial adjustment needed.
- Detachable Nickel-Plated Tip: Simply unscrew the metal nib with pliers and swap in different measurement tips for versatile test point access.
- Auto Shut-Down: Powers off automatically after 5 minutes of inactivity to conserve battery life.
- Low Power Consumption: Runs on a single AAA battery (1.5V), making it economical and easy to maintain.
Technical Specifications
| AC Voltage Range | 0.8 – 1000V |
| DC Voltage Range | 0.8 – 700V |
| Resistance | 0.1Ω – 600MΩ |
| Capacitance | 10nF – 60mF |
| Temperature | -20°C to 50°C / 0°F to 122°F |
| Display | VA Color Reverse LCD, 6000 Count Max |
| Operating Mode | Auto Range |
| Voice Broadcast | Yes |
| Phase Sequence Detection | Yes |
| NCV Induction | Yes |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Flashlight | Yes |
| Auto Shut-Down | 5 minutes |
| Power Supply | 1 × 1.5V AAA Battery (NOT included) |
| Body Material | ABS Plastic |
| Dimensions | 170 × 25 × 22 mm / 6.69 × 0.98 × 0.86 in |
| Weight | 40g / 1.41oz |
What's in the Box
Option 1 – With Test Lead:
- 1 × ANENG A3009 Multimeter
- 1 × Test Lead
- 1 × English User Manual
Option 2 – With Combination Accessories:
- 1 × ANENG A3009 Multimeter
- 1 × Test Lead
- 1 × Banana Tip
- 1 × Nickel-Plated Copper Needle
- 1 × Conical Needle
- 1 × Extended Nickel-Plated Copper Needle
- 1 × U-Shaped Insert
- 1 × Alligator Clip
- 2 × Gold Plated Tips
- 1 × English User Manual
Who Is This For?
The ANENG A3009 is ideal for electricians, HVAC technicians, electronics hobbyists, factory workers, lab technicians, and confident home DIYers who need a reliable, portable, multi-function tester. Its voice broadcast feature is particularly useful for hands-busy situations or low-visibility environments.
Electrical Safety Resource
For guidance on safe electrical testing practices in the workplace, visit the OSHA Electrical Safety page.
Frequently Asked Questions
Q: Does the ANENG A3009 pen multimeter come with a battery?
A: No — the multimeter requires one 1.5V AAA battery, which is not included in the package. Standard AAA batteries are widely available and easy to source.
Q: What does the voice broadcast feature do on the A3009 multimeter?
A: The intelligent voice broadcast function reads the measured value aloud each time a measurement is taken. This is especially handy when you need to keep your eyes on test points and wiring rather than the display screen.
Q: Can I use this pen multimeter to detect live wires without touching them?
A: Yes — the built-in NCV (Non-Contact Voltage) sensor allows you to hold the pen near a conductor. If AC voltage is present, the device flashes red and sounds an alarm, alerting you to a live wire without requiring direct probe contact.
Q: What measurement functions does the ANENG A3009 support?
A: It supports AC/DC voltage, resistance, capacitance, temperature, diode testing, continuity (on/off with buzzer), phase sequence detection, and live/neutral wire identification — making it one of the most versatile pen-style testers in its class.
Q: Is the pen tip replaceable on the A3009?
A: Yes. The nickel-plated metal nib at the tip is detachable — simply unscrew it with pliers and replace it with one of the compatible interchangeable tips (available in the Combination Accessories package option).
