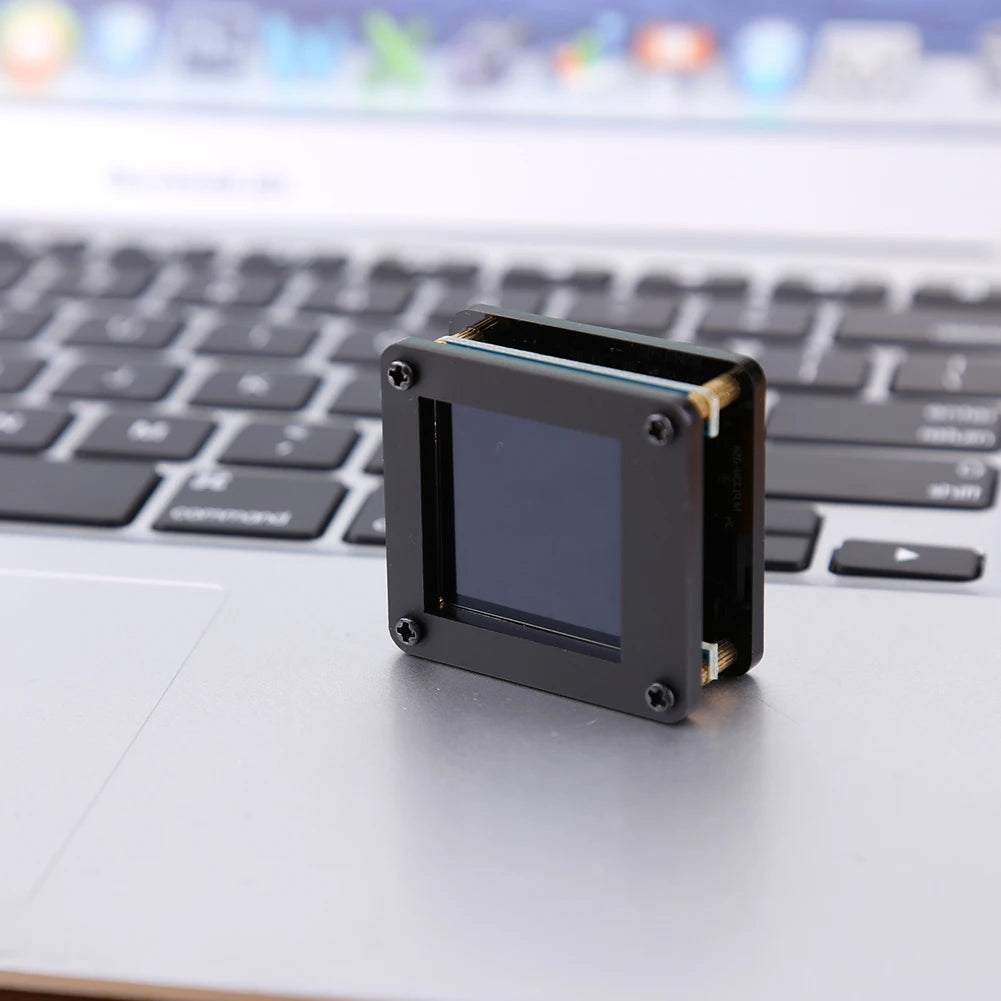

AMG8833 Infrared Thermal Imaging Camera – Portable LCD Temperature Detector
Capture real-time thermal data with this compact, professional-grade AMG8833 Infrared Thermal Imager. Designed for industrial inspection, electrical diagnostics, HVAC evaluation, and a wide range of non-contact temperature measurement tasks, this handheld device delivers accurate thermal imaging in a lightweight, portable form factor.
Key Features
- AMG8833 Infrared Thermal Sensor: Industry-trusted sensor offering stable, high-precision performance for consistent temperature readings.
- USB 5V Powered: Conveniently powered via USB — no proprietary charger needed. Simply plug in and start scanning.
- 64-Pixel (8×8 Matrix) Thermal Array: Detects heat signatures across a 60° viewing angle with a maximum human detection distance of approximately 7 m (23 ft).
- Wide Temperature Range: Measures from -20°C to 300°C (-4°F to 572°F), making it suitable for both cold-environment checks and high-heat industrial applications.
- High Temperature Accuracy: High-performance, high-gain mode: typical ±2.5°C (±4.5°F); high-performance, low-gain mode: typical ±3.0°C (±5.4°F).
- Low Noise Equivalent Temperature Difference (NETD): Typical 0.05°C at 1 Hz; 0.16°C at 10 Hz — outstanding sensitivity for detecting subtle heat variations.
- Fast Frame Rate: Up to 10 frames per second for near real-time thermal monitoring.
- Ultra-Low Power Consumption: Normal mode 4.5 mA, standby mode 0.8 mA, sleep mode 0.2 mA — ideal for extended field use.

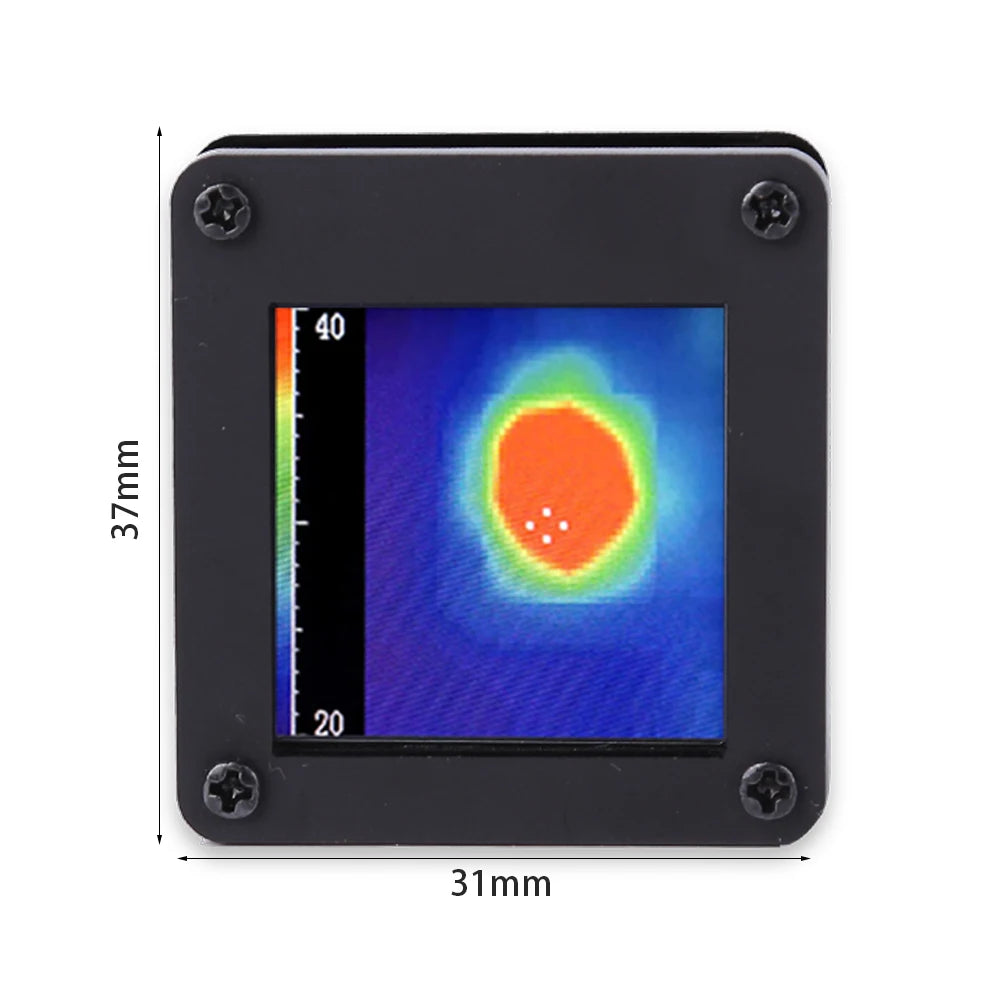

- Compact & Portable: Small, lightweight PCB construction makes this imager easy to carry to any job site or workspace.
- Durable Construction: Built on a high-quality printed circuit board for maximum durability in demanding environments.
Specifications
| Sensor | AMG8833 |
| Pixel Array | 64 pixels (8×8 matrix) |
| Viewing Angle | 60° |
| Temperature Range | -20°C to 300°C (-4°F to 572°F) |
| Temperature Resolution | 0.25°C (32.45°F) |
| Max Detection Distance | ~7 m / 23 ft |
| Power Supply | USB 5V |
| Frame Rate | 1 fps or 10 fps |
| Thermistor Output Range | -20°C to 80°C (4°F to 176°F) |
| Material | Printed Circuit Board (PCB) |
| Battery Included | No |
| Country of Origin | Made in China |
What's in the Box
- 1 × AMG8833 Infrared Thermal Imager Camera
Important Notes
- New and legacy model variants may be shipped; unit appearance may vary slightly.
- Actual color may differ slightly from product images due to monitor and lighting conditions.
- Please allow ±1–2 cm measuring deviation due to manual measurement.
For general safety and best practices when using electrical and thermal measurement tools in industrial environments, refer to guidance from the U.S. Occupational Safety and Health Administration (OSHA) — Electrical Safety.
Frequently Asked Questions
Q: What is the AMG8833 infrared thermal imager used for?

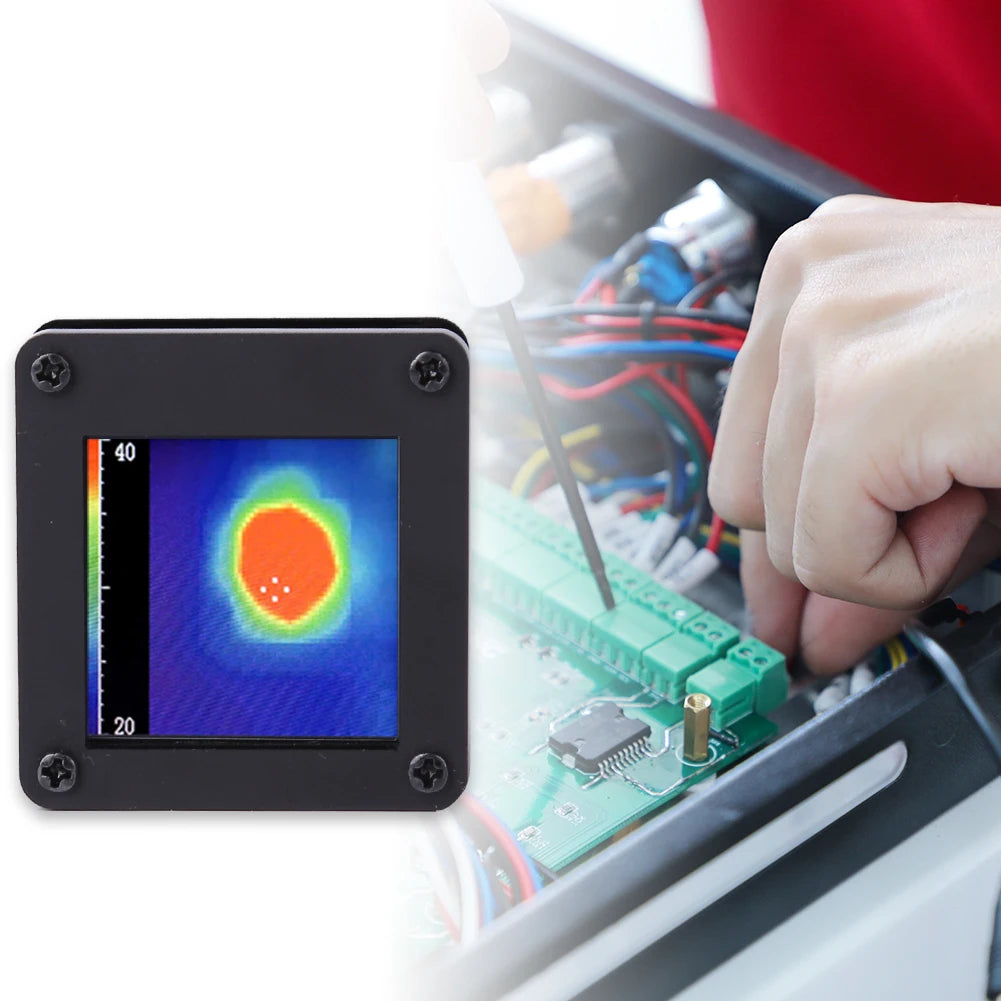

A: The AMG8833 thermal imager is a versatile non-contact temperature measurement tool. It is widely used for electrical panel inspection, HVAC diagnostics, industrial equipment monitoring, PCB thermal analysis, and general temperature mapping in hard-to-reach areas.
Q: Does the AMG8833 thermal imaging camera require batteries?
A: No. This thermal imager is powered via a standard USB 5V connection — no batteries are included or required. Simply connect it to a USB power source such as a power bank, laptop, or USB wall adapter to operate.
Q: What is the maximum temperature this infrared thermal camera can detect?
A: This thermal imager can measure temperatures up to 300°C (572°F), making it suitable for a broad range of industrial and professional applications where high-heat detection is required.
Q: What does the thermal pixel resolution of 8×8 (64 pixels) mean?

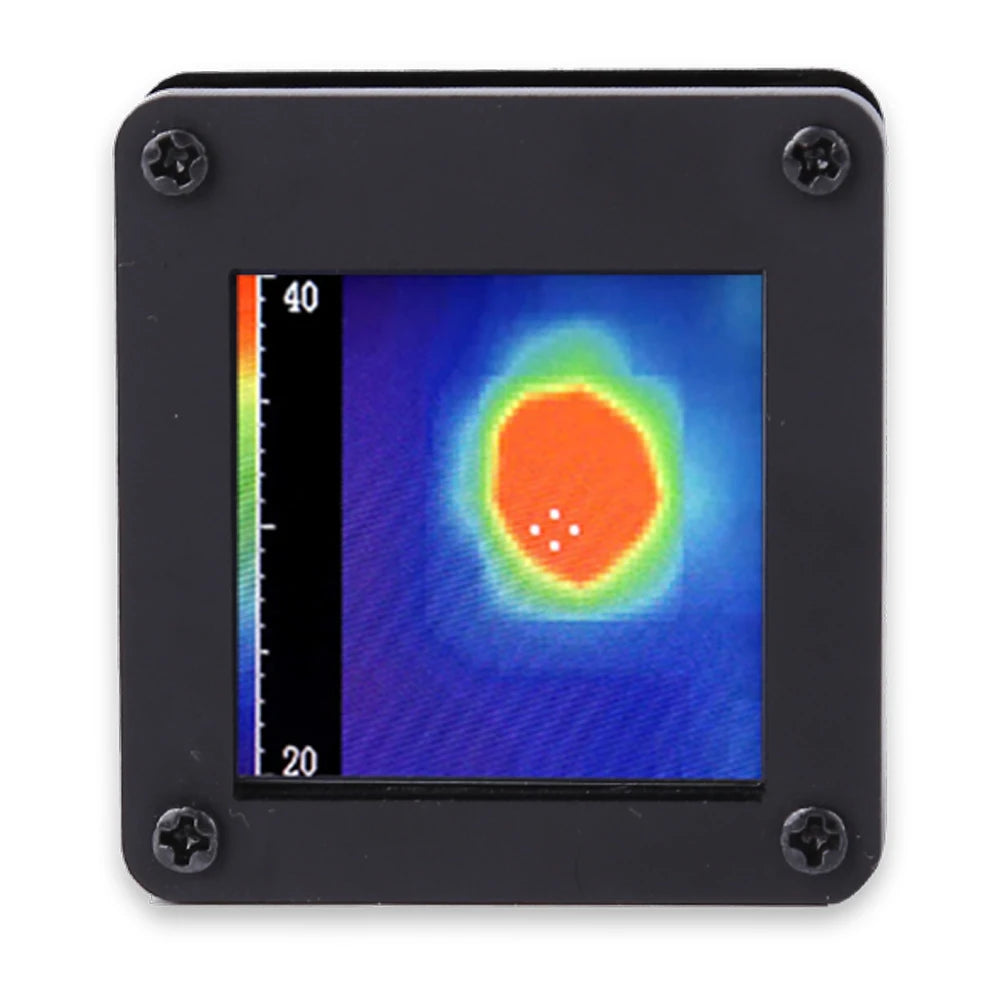

A: The 8×8 pixel array means the sensor captures a grid of 64 individual temperature data points simultaneously. This allows the device to generate a basic thermal image showing temperature distribution across the field of view, ideal for quick thermal assessments and heat-source identification.
