SucceBuy 4FT Aluminum Heat Transfer Plates for PEX Radiant Floor Heating Systems
Upgrade your radiant floor heating system with these premium SucceBuy aluminum U-shaped heat transfer plates. Engineered for even heat distribution across your floors, walls, and ceilings, these 4FT cuttable aluminum plates work seamlessly with 1/2" PEX tubing to maximize thermal efficiency and help reduce required water supply temperatures by 30–40% — a smart, energy-saving solution for homes, apartments, and hotels. Made in Mainland China.
Why Choose SucceBuy Heat Transfer Plates?

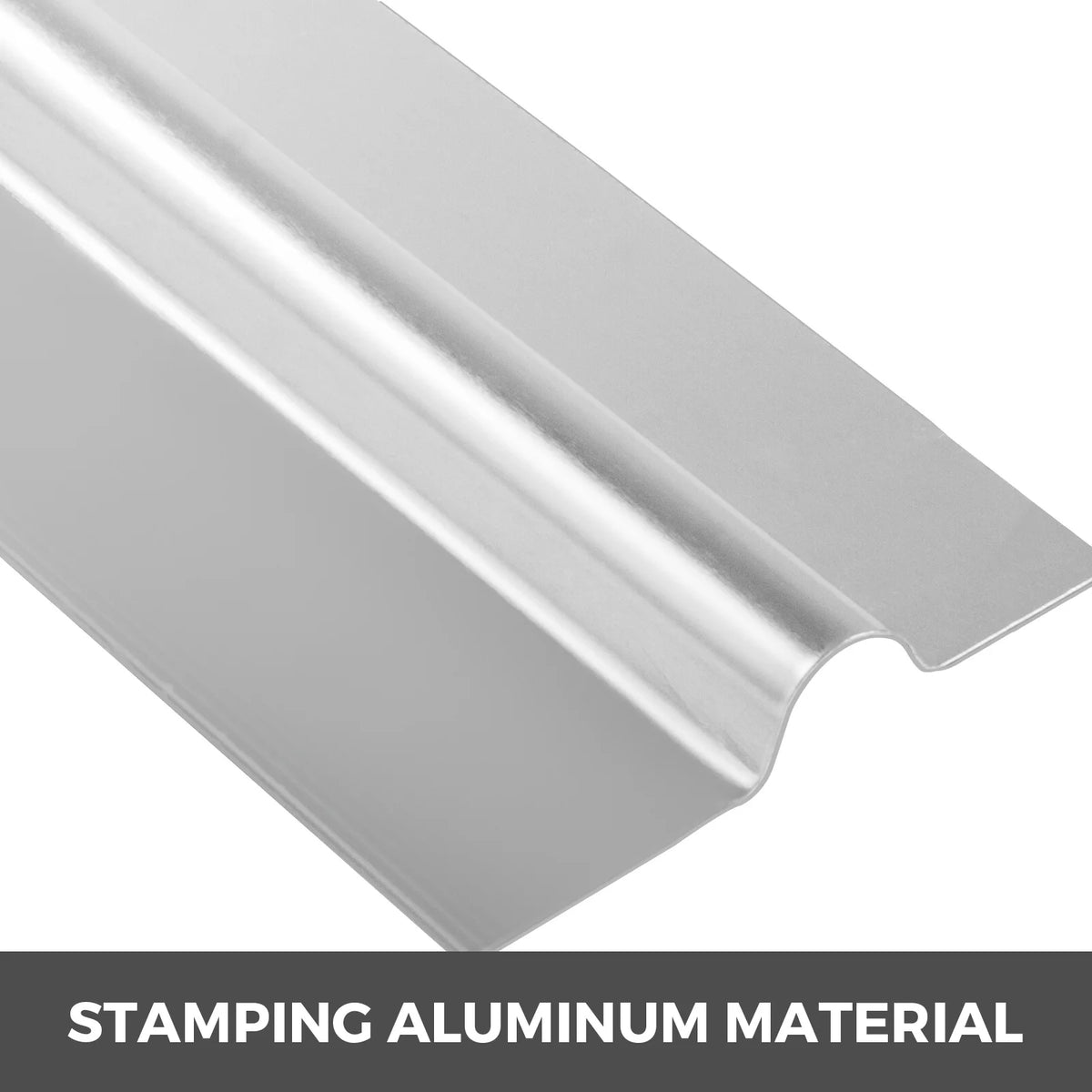

- Premium Stamped Aluminum Construction: Built from durable stamped aluminum for a long service life and consistent, efficient heat transfer throughout your radiant system.

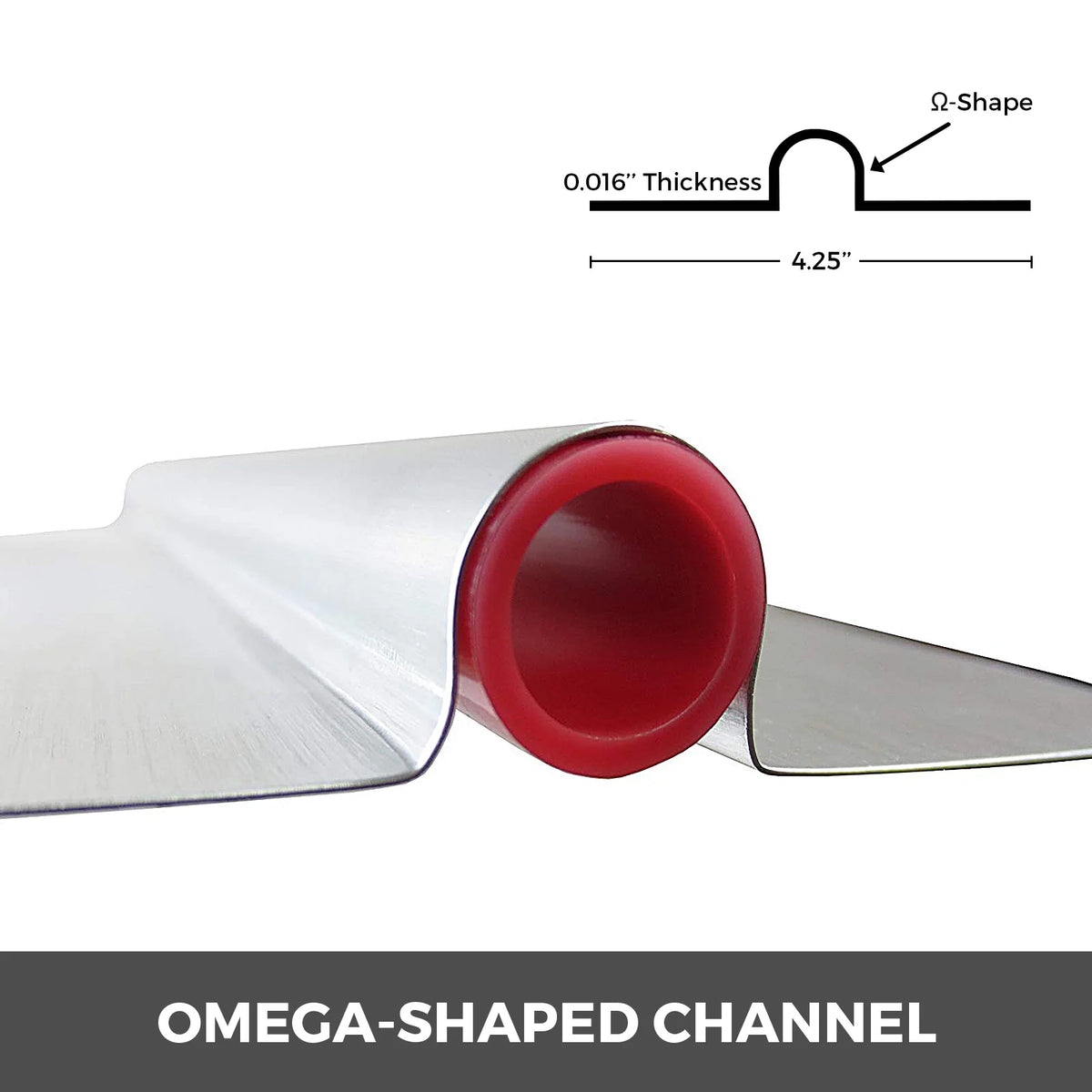

- U-Shaped Channel Design: The precision-engineered U-channel snaps 1/2" PEX tube (5/8" OD) firmly in place, eliminating thermal voids caused by gaps between plates and tubes for maximum contact and conductivity.
- Cuttable & Customizable: Easily trim plates to your exact length using tin snips. Use pliers to widen channel mouths as needed — no special tools required. Fits your layout perfectly every time.

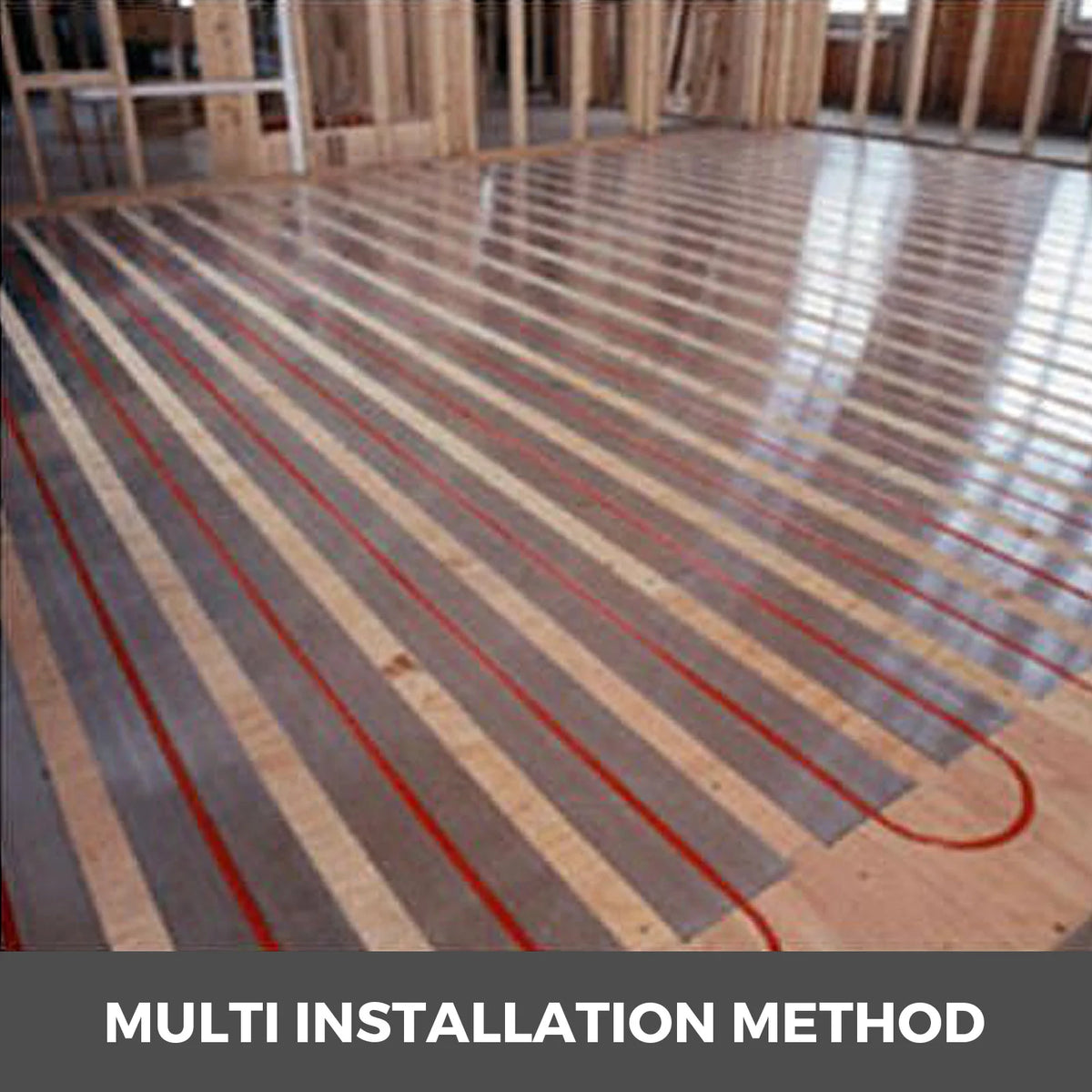

- Versatile Installation: Compatible with under-floor (between joist), sandwich-type, above sub-floor (sleeper), radiant wall, and ceiling heating configurations.
- Wide Compatibility: Works with most 1/2" PEX, PEX-AL-PEX, and EVOH-coated Oxygen Barrier pipes from virtually all major brands.
- Energy-Efficient: Promotes even heat distribution that lowers the water supply temperature needed, reducing energy consumption and heating costs.
- Easy Stapling: 0.016" standard thickness allows effortless stapling by hand or with a stapler during installation.
- CE Certified: Meets CE certification standards for quality and safety assurance.
- 2-Year Warranty: Every set is backed by a 2-year manufacturer warranty.
Specifications
| Material | Stamped Aluminum |
| Plate Length | 4 FT (48") |
| Plate Width | 4.25" |
| Plate Thickness | 0.016" |
| Compatible Tube Size | 1/2" PEX (5/8" OD) |
| Available Quantities | 50 / 100 / 200 / 300 pcs |
| Certification | CE |
| Suitable For | Home, Apartment, Hotel, Ceiling, Wall |
| Warranty | 2 Years |
| Origin | Made in Mainland China |
How Many Plates Do You Need?
Use this simple formula to estimate the number of plates required for your project:
Number of Plates = Square Footage × 1.30 ÷ Length of Plates
Example: For a 1,000 sq ft area: 1,000 × 1.30 = 1,300 ft of plates needed → 325 plates of the 4FT version
Installation Tip: Leave 1–2" spacing between plates when assembling for optimal performance.
Ideal Applications
- Residential homes & apartments
- Hotels & commercial properties
- Radiant wall & ceiling heating systems
- New construction & retrofit installations
What's in the Box?
50 / 100 / 200 / 300 × SucceBuy 4FT Aluminum U-Channel Heat Transfer Plates (select your quantity at checkout)
For more information on energy-efficient heating systems, visit the U.S. Department of Energy — Radiant Heating Guide.
Learn more: Underfloor heating
Frequently Asked Questions
Q: What PEX tube size are these aluminum heat transfer plates compatible with?
A: These 4FT heat transfer plates are designed to work with standard 1/2" PEX tubing (5/8" OD). They are compatible with most brands of PEX, PEX-AL-PEX, and EVOH-coated Oxygen Barrier pipes, making them a versatile choice for a wide range of radiant floor heating systems.
Q: Can I cut these heat transfer plates to a custom length?
A: Yes! The cuttable plate design allows you to trim each 4FT aluminum plate to any desired length using standard tin snips. You can also use pliers to widen the U-channel mouth as needed, making it easy to customize your installation to fit any room layout or joist spacing.
Q: How do I calculate how many plates I need for my radiant floor heating project?
A: Use this formula: Number of Plates = Square Footage × 1.30 ÷ 4 (plate length in feet). For example, a 1,000 sq ft area requires approximately 325 plates of the 4FT version. Always leave 1–2 inches of spacing between plates during installation for best results.
Q: What installation methods are supported by these heat transfer plates?
A: SucceBuy 4FT heat transfer plates support multiple installation methods, including under-floor (between joist), sandwich-type, above sub-floor (sleeper) systems, as well as radiant wall and ceiling heating applications — making them suitable for nearly any residential or commercial project.
Q: How do these plates improve energy efficiency in a radiant heating system?
A: The stamped aluminum construction ensures even heat distribution across the floor surface, which allows the system to operate at a lower water supply temperature — reducing it by approximately 30–40% compared to systems without heat transfer plates. This translates to lower energy consumption and reduced heating costs over time.
