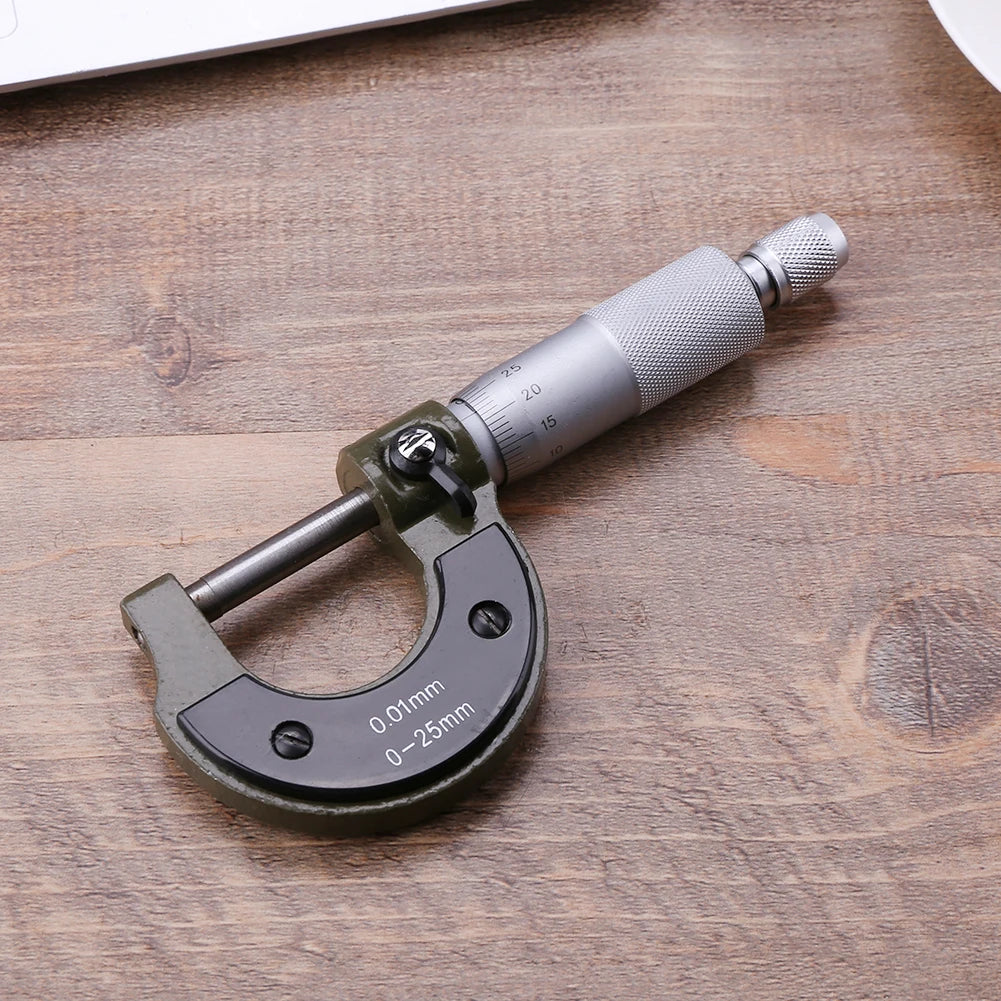

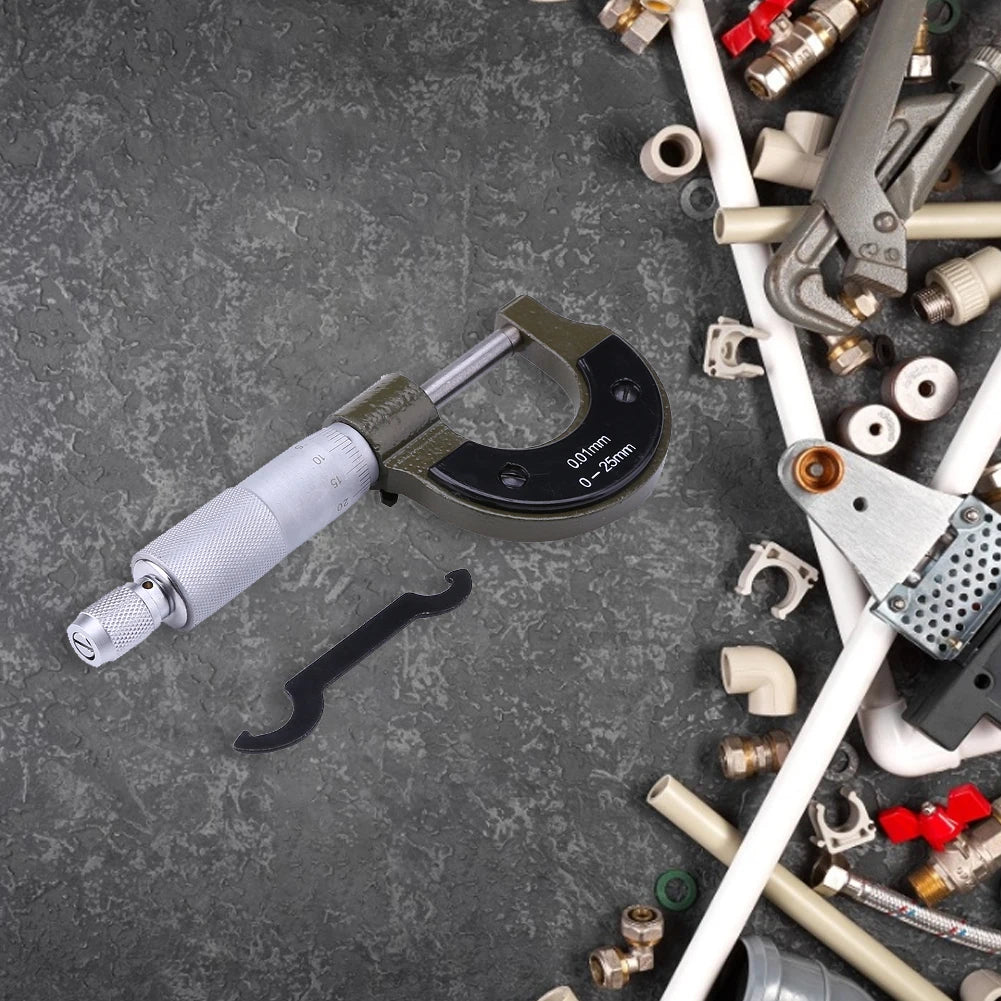

ALLOET Metric Outside Micrometer — 0–25mm | 0.001mm Resolution
Achieve workshop-grade accuracy with the ALLOET Carbon Steel Outside Micrometer. Engineered for machinists, woodworkers, engineers, and DIY enthusiasts, this precision gauge delivers reliable external-dimension measurements to 0.001mm resolution — giving you the confidence to work to exact tolerances every time.
Key Specifications
- Material: Durable carbon steel construction
- Measuring Range: 0–25mm
- Resolution: 0.001mm
- Dividing Value: 0.01mm
- Type: Outside / Outer Diameter Micrometer Head
- Application: External dimension measurement of shafts, rods, pins, and other workpieces
How It Works
This outside micrometer uses the precision helix (screw thread) principle to measure the distance between two measuring faces on a square frame. The result is an exceptionally accurate reading of any external dimension up to 25mm — perfect for machined parts, woodworking stock verification, metalworking, and quality control inspections.
Standout Features
- High-Resolution Scale: 0.001mm resolution ensures fine, accurate readings for professional and hobbyist use alike.
- Carbon Steel Body: Robust and wear-resistant for long-term workshop durability.
- Heat Shield: Built-in heat shield prevents body warmth from transferring to the frame and affecting measurement accuracy.
- Locking Device: Passive micro-screw lock keeps your reading frozen for easy notation — loosen right, lock left.
- Zero-Adjustment Wrench Included: Easily correct zero alignment without specialist tools.
- Force-Measuring Device (Ratchet Stop): Issues a subtle click when optimal measuring pressure is reached, preventing over-tightening and protecting workpiece finish.
Instructions for Use
- Before measuring: Clean all measuring surfaces and verify zero alignment. For the 0–25mm range, align directly to zero; for larger ranges use a bar gauge.
- Zero correction: If the baseline is not aligned with the 0 line, loosen the fixing screw slightly with a screwdriver, use the wrench to adjust the baseline, align with the 0 line, then retighten.
- Measuring: Hold the micrometer perpendicular to the workpiece. Rotate the force-measuring device gently until you hear a soft "click" — this indicates the true dimension of the workpiece.
- Locking a reading: Engage the locking device (turn left) to hold the reading while you remove and note the measurement.
- Heat management: Always hold the heat shield with your left hand to keep body temperature from being conducted to the frame, which can cause measurement error.
Care & Maintenance Tips
- Handle gently — this is a precision instrument.
- After use, apply a light coat of anti-rust oil to exposed metal surfaces.

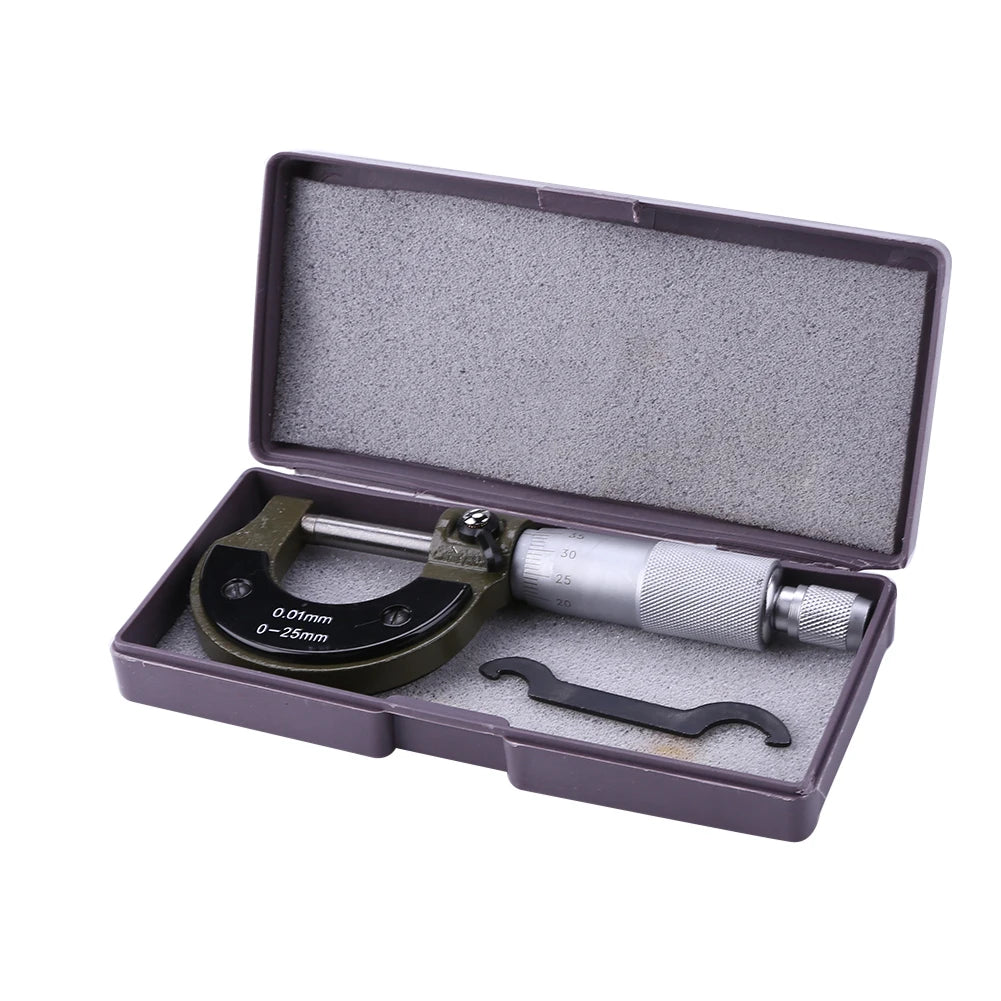

- Store in the supplied protective case in a dry, well-ventilated location.
- Never force the thimble rotation, as this may reduce measuring accuracy over time.

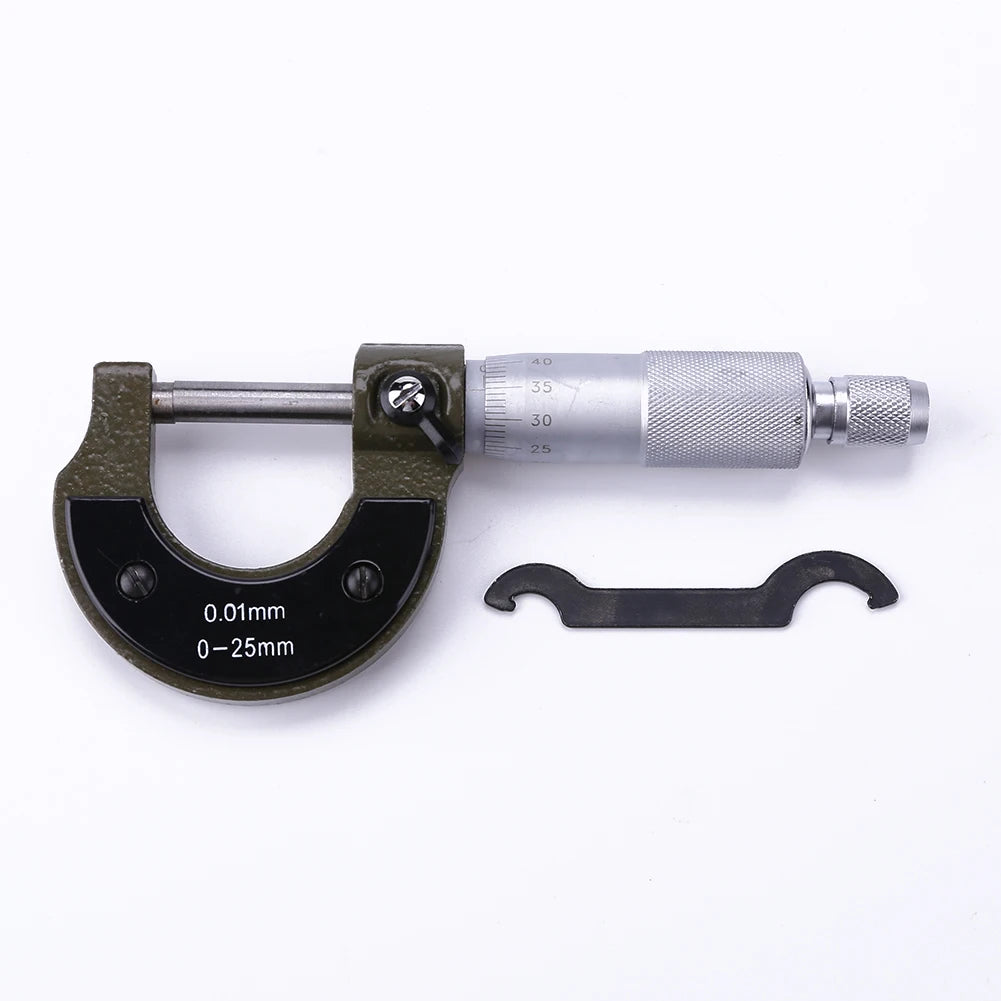

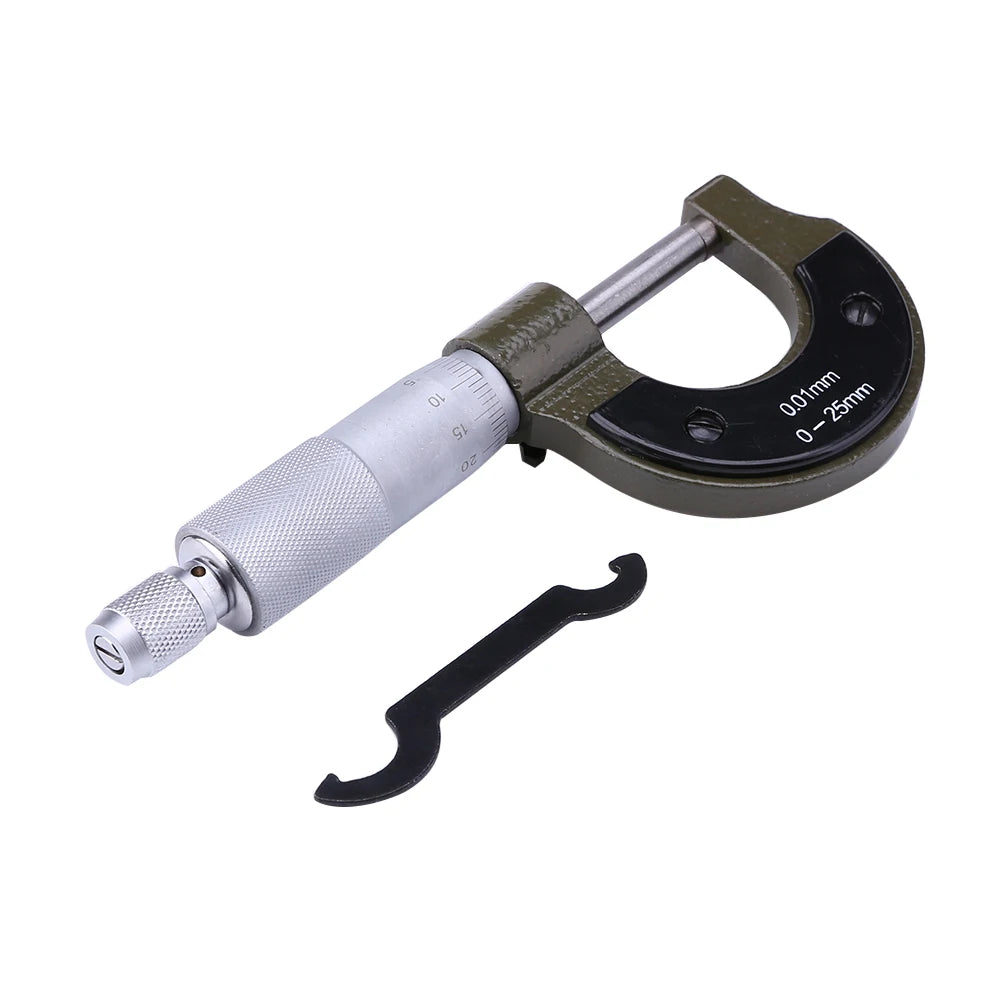

What's in the Box
- 1 × Outside Micrometer (0–25mm)
- 1 × Accessory / Wrench
Made in Mainland China.
For further guidance on precision measurement tools and workshop safety best practices, visit NIST's Calibration & Measurement Resources and OSHA's Hand & Power Tools Safety Guidelines.
Frequently Asked Questions
Q: What is the measuring range of this outside micrometer?
A: This ALLOET micrometer covers a measuring range of 0–25mm with a resolution of 0.001mm and a dividing value of 0.01mm, making it ideal for precise external-dimension measurements of small parts and workpieces.
Q: How do I correct the zero position on this micrometer gauge?
A: If the baseline is not aligned with the 0 line, slightly loosen the fixing screw using a screwdriver, then use the included wrench to rotate the sleeve until the baseline aligns with the 0 graduation line. Retighten the screw to secure the adjustment.
Q: What material is the micrometer made from, and how should I store it?
A: The micrometer is constructed from durable carbon steel. After each use, wipe the measuring surfaces clean, apply a light coat of anti-rust oil to all exposed metal parts, and store it in its protective case in a dry, ventilated area to maintain long-term accuracy.
Q: Is this micrometer suitable for woodworking and metalworking applications?
A: Yes — the ALLOET outside micrometer is listed for DIY woodworking and general machining or metalworking use. It's well-suited for measuring shafts, pins, rods, and other workpieces where precise external dimensions are required.
