Multi-Wavelength Adjustable Laser Diode Module – Stainless Steel

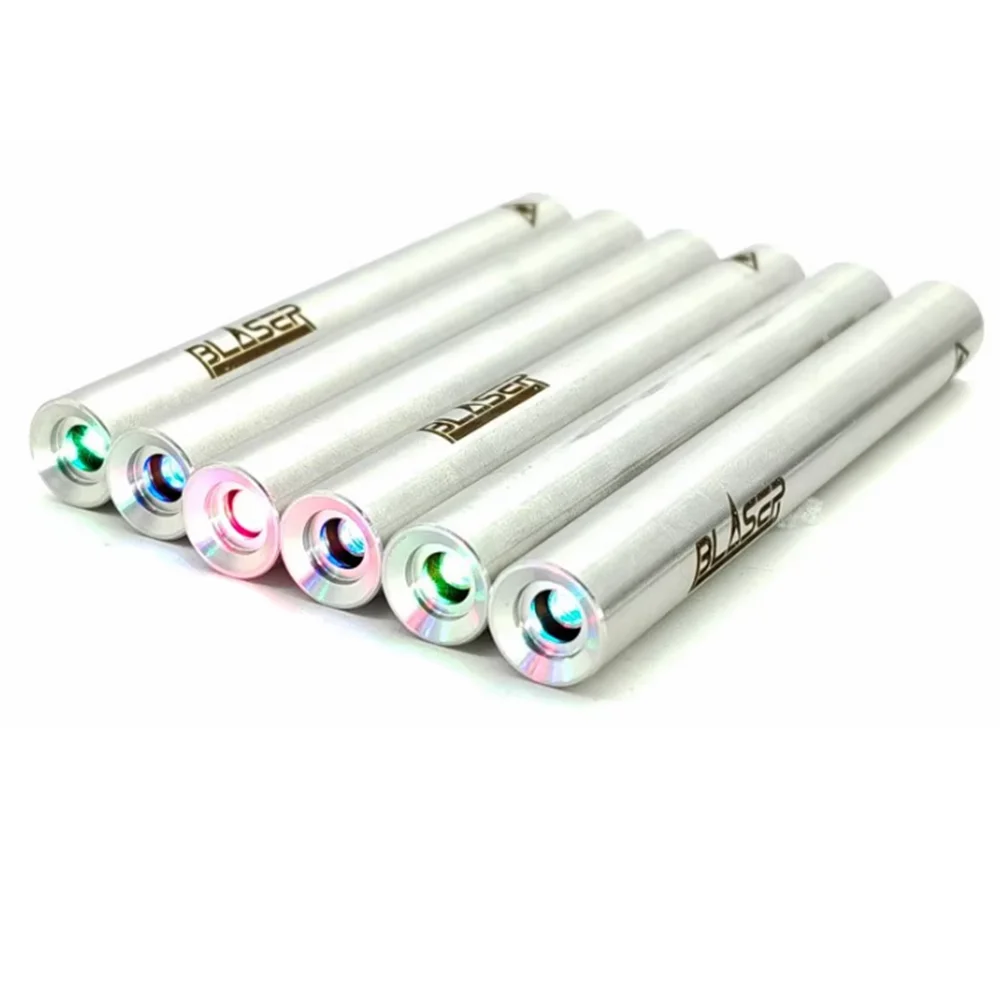

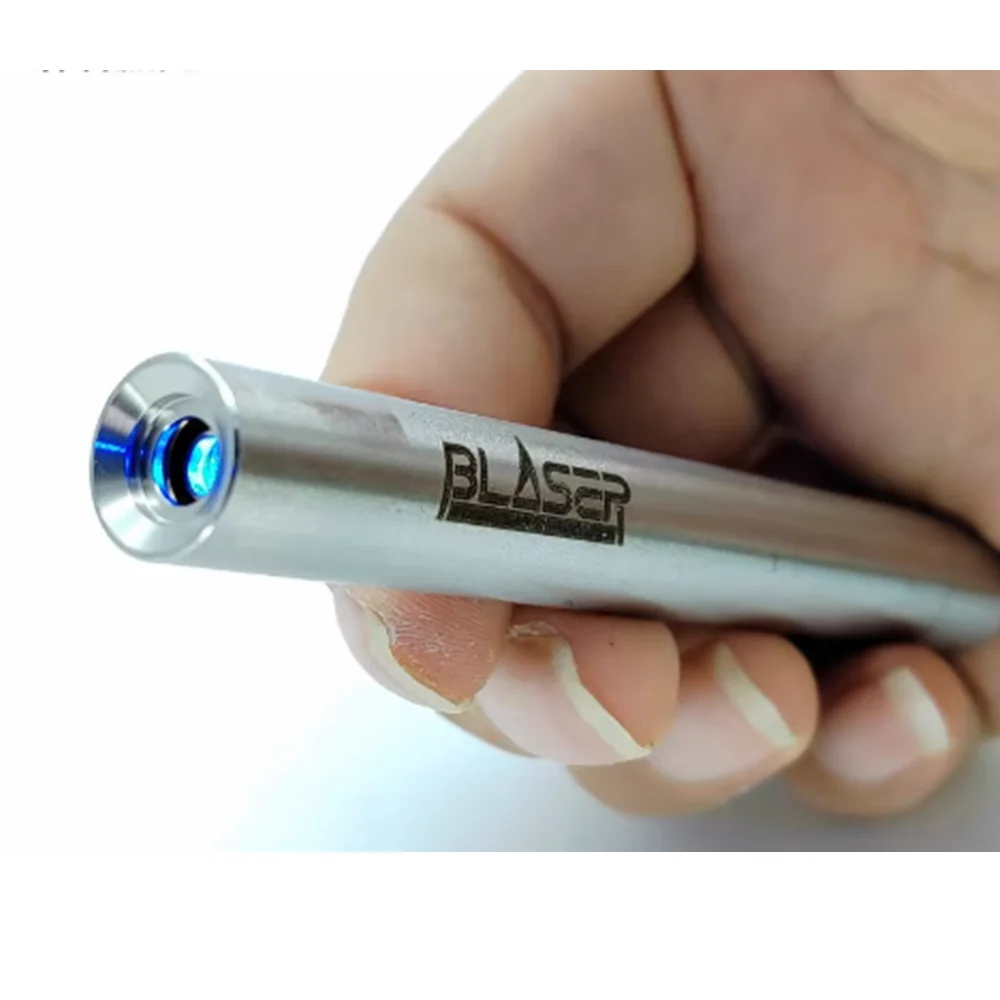

Adjustable Multi-Wavelength Laser Diode Module – Stainless Steel Pen Design

Discover precision and versatility with this professional-grade Adjustable LD Laser Diode Module. Engineered in a sleek stainless steel pen-style housing, this coaxial adjustable module supports a wide range of wavelengths — from violet and blue to green and red — making it an excellent choice for optical research, lab experiments, alignment tasks, educational demonstrations, and professional stage or DJ setups.

Key Features

• Wide Wavelength Selection: Available in 405 / 450 / 475 / 480 / 488 nm (violet–blue), 505 / 510 / 520 nm (green), and 635 / 650 / 658 / 660 nm (red) to suit a variety of optical applications.
• Adjustable Optical Coaxiality: Concentric pen coaxial design allows precise beam alignment and output tuning.
• Fixed Focus Mode: Delivers a consistent, sharp dot beam output for reliable targeting and alignment.

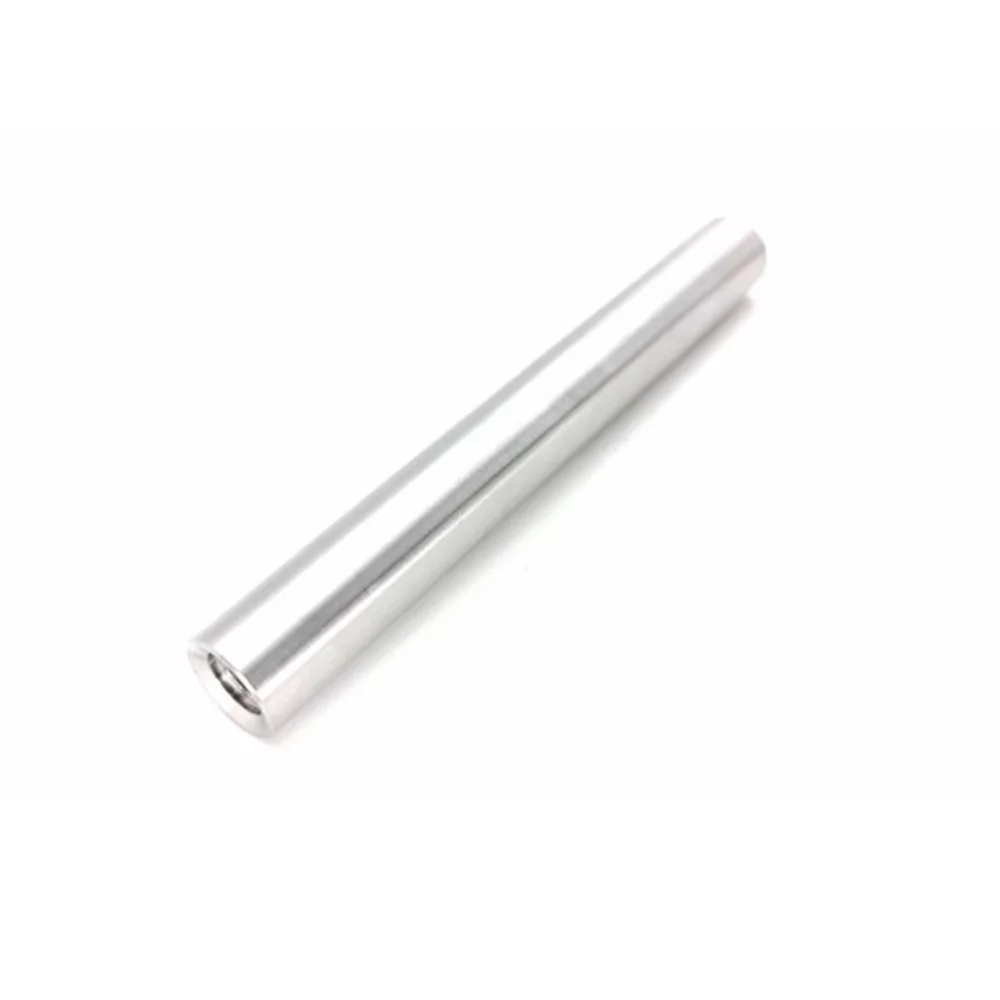

• Compact & Durable Build: Housed in a robust stainless steel shell (13 × 105 mm) with a copper laser tube holder for longevity and thermal stability.

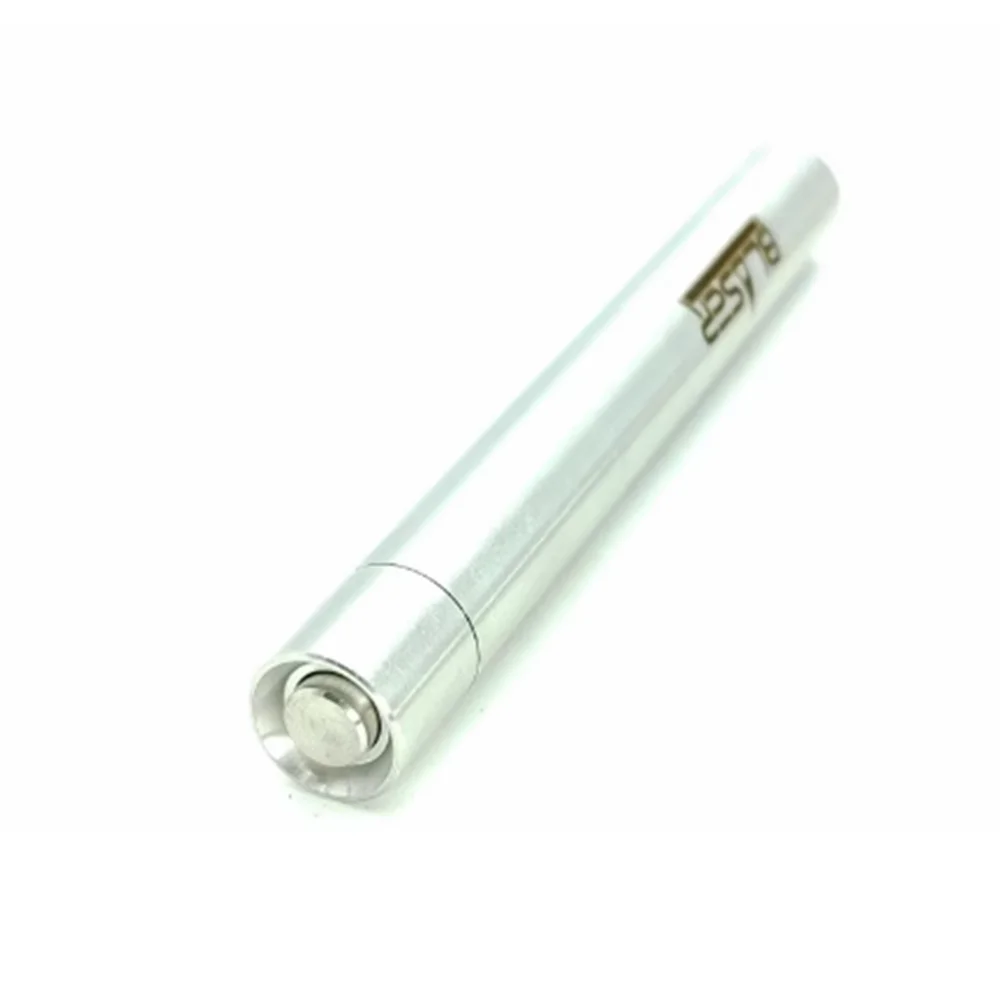

• Simple Operation: Rear press-button switch for easy one-handed use.
• Flexible Power: Operates on a 10440 lithium battery (350 mAh) at 3.7V DC; charger included. Battery not included.
• Output Power Range: 20 mW – 100 mW depending on selected wavelength/model.
• Drive Mode: ACC (Automatic Current Control) for stable, consistent laser output.

Specifications

Applications

• Optical alignment and calibration
• Physics and photonics laboratory research
• Educational and classroom demonstrations
• Professional stage lighting and DJ effects
• DIY electronics and laser projects

Made in Mainland China.

⚠️ Laser Safety Notice: This module emits visible laser radiation. Always follow proper laser safety guidelines. Never direct the beam at eyes or skin. For safety standards and guidance on laser products, refer to the U.S. Consumer Product Safety Commission – Laser Pointer Safety.

Frequently Asked Questions

Q: What wavelengths does this adjustable laser diode module support?

A: This LD module is available in a wide range of wavelengths: violet-to-blue (405 / 450 / 475 / 480 / 488 nm), green (505 / 510 / 520 nm), and red (635 / 650 / 658 / 660 nm). Select the wavelength that best fits your optical or research application at time of purchase.

Q: Does this laser module come with a battery?

A: No, the 10440 lithium battery (350 mAh, 3.7V DC) is NOT included due to customs clearance restrictions. However, a charger is included in the package so you can power up as soon as your battery arrives.

Q: What does "adjustable optical coaxiality" mean?

A: The concentric pen coaxial design allows you to fine-tune the alignment between the laser diode and the optical axis of the module. This ensures a precise, centered beam output — critical for optical experiments, alignment tasks, and any application requiring high pointing accuracy.

Q: What is ACC drive mode and why does it matter?

A: ACC stands for Automatic Current Control. This drive mode regulates the electrical current delivered to the laser diode automatically, ensuring stable and consistent laser output regardless of minor voltage fluctuations — extending the life of the diode and maintaining reliable performance.

Q: Is this module suitable for professional stage or DJ use?

A: Yes. The compact stainless steel pen form factor and precise dot beam make this module well-suited for professional stage setups, DJ lighting rigs, and other performance environments that require a focused, high-quality laser point source.
