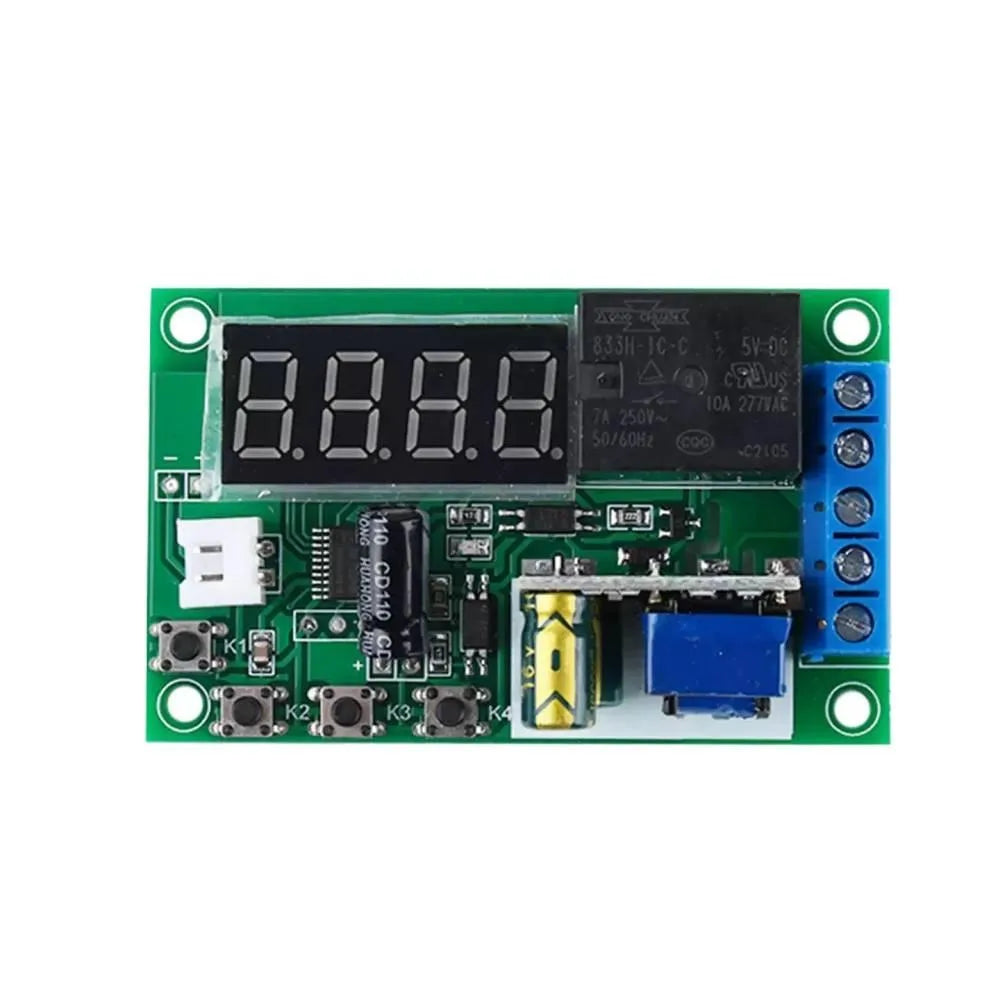

AC 220V Time Delay Relay Module – 10A Cycle & Trigger Timing Switch Board

Take precise control of your electrical circuits with this versatile AC 220V Time Delay Relay Module. Whether you're automating a water pump, motor, LED light strip, or solenoid valve, this compact relay board delivers highly configurable timing, triggering, and cycling functions — all adjustable from a fraction of a second up to 999 minutes.

Key Specifications

  • Input Voltage: AC 55V – 270V (wide-range compatible)
  • Output Capacity: Up to 10A (controls DC or AC loads)
  • Time Range: 0.01 seconds to 999 minutes (fully adjustable)
  • Compatible Loads: Motors, water pumps, LED strips, solenoid valves (C-4 type), and more
  • Relay Interfaces: NO (Normally Open), NC (Normally Closed), COM (Common)
  • Signal Input: IN terminal (triggered by negative pole)

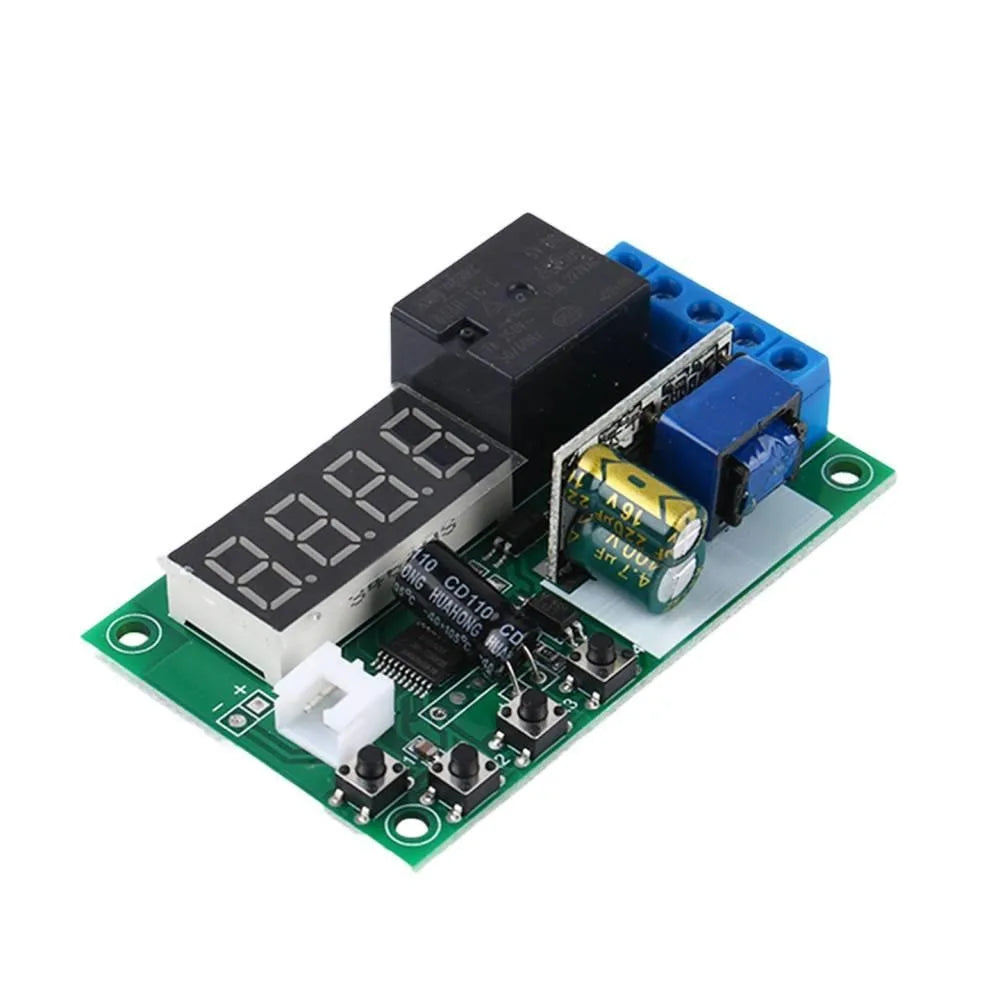

Wiring Port Overview

  • AC: Alternating current input power supply
  • IN: Signal input terminal (negative-pole triggered)
  • NO: Normally open interface — suspended before engagement, short-circuited to COM after engagement
  • COM: Common relay interface
  • NC: Normally closed interface — short-circuited with COM before engagement, open after engagement

Operating Modes (P-11 through P-35)

This module offers 18 programmable operating modes to suit virtually any automation scenario:

  • P-11: Point operation — relay engages with signal, stops when signal disappears
  • P-12: Self-locking — one signal to engage, another to stop
  • P-13: Timed engage — relay auto-stops after set duration; re-trigger during delay is ignored
  • P-14: Timed engage with re-trigger — re-trigger during delay resets the timer
  • P-15: Timed engage with stacked timing — re-trigger adds time to the running delay
  • P-16: Timed engage with reset — re-trigger during delay resets output
  • P-17: Signal-on timing — relay engages on signal; times out after set duration; re-signal during delay maintains output
  • P-18: Power-on immediate engage — relay engages on power-up, de-energizes after set delay
  • P-21: Signal-off delay engage — relay engages after set delay once signal disconnects
  • P-22: Delayed engage — relay engages after set delay; stops when signal disappears
  • P-23: Signal-absence engage — relay engages after signal absent for set duration; stops on signal return
  • P-24: Dual-threshold — relay engages when signal present longer than set time; stops when absent longer than set time
  • P-25: Extended signal engage/stop — both engage and stop triggered by signal exceeding set duration
  • P-26: Alternating timed output — relay runs for set time on signal, then on signal disappearance
  • P-27: Pulse-detect mode — relay engages while pulse detected; stops after set delay when pulse absent
  • P-28: Power-on delayed engage — relay engages after set delay on power-up; runs until power-off
  • P-31: Infinite cycle — relay runs ON for A seconds, OFF for B seconds, repeating; stops on power-off
  • P-32: Signal-controlled P-31 cycle — loop starts on signal, stops when signal disappears
  • P-33: Toggle-controlled P-31 cycle — one signal starts the loop, another stops it
  • P-34: Delayed cycle — relay engages after A-second delay, then stops after B seconds
  • P-35: Signal-triggered delay cycle — signal starts an A-second delay, then relay runs for B seconds

What's in the Box

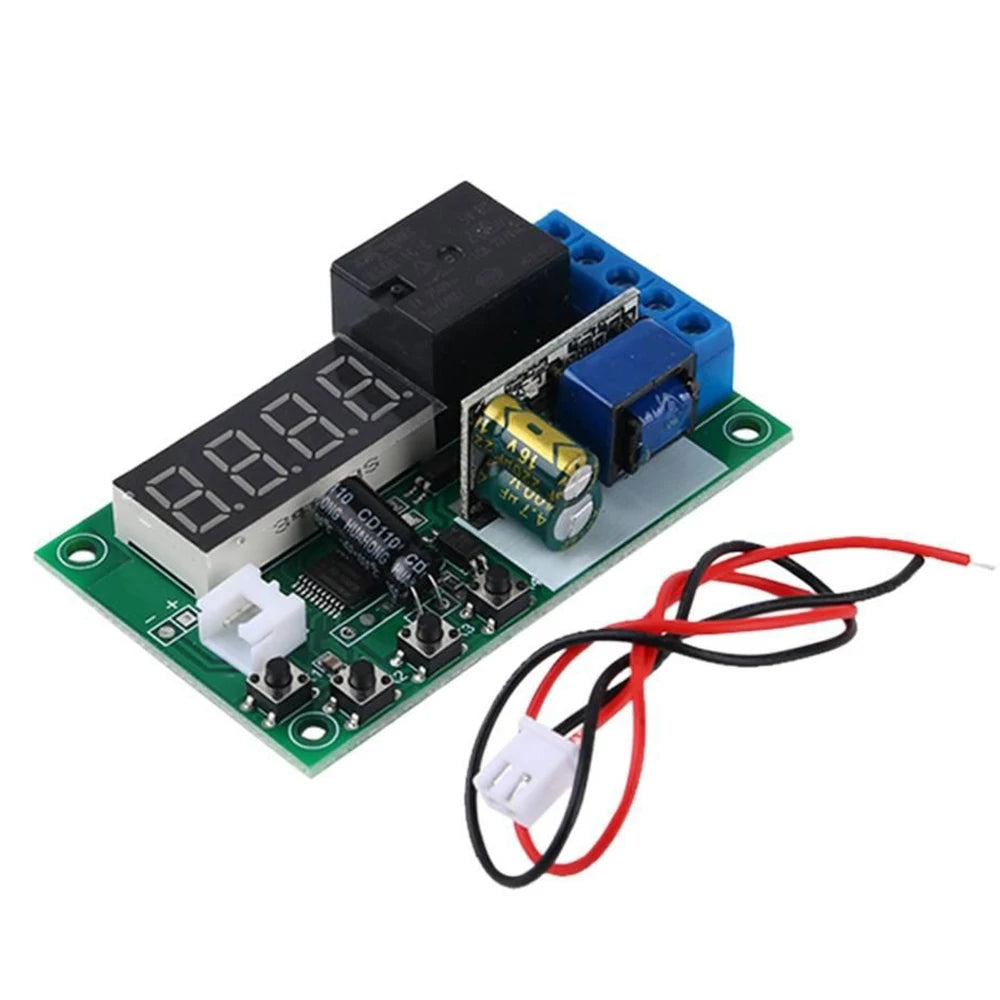

  • 1× Time Delay Relay Module Board
  • 1× Cable

Important Notes

  • Color may vary slightly due to monitor settings and lighting conditions.
  • Please allow ±1–10mm tolerance due to manual measurement.
  • Made in Mainland China.

For guidance on electrical safety when working with relay modules and AC circuits, refer to the OSHA Electrical Safety Standards.

Frequently Asked Questions

Q: What devices can this AC 220V time delay relay module control?

A: This relay board is compatible with a wide range of AC and DC loads up to 10A, including water pumps, motors, LED light strips, and C-4 solenoid valves. Its broad input voltage range (AC 55V–270V) makes it suitable for most standard electrical systems.

Q: How do I set the time delay on this relay module?

A: The time delay is fully adjustable from 0.01 seconds to 999 minutes, giving you extremely fine or extended control. The module includes programmable operating modes (P-11 through P-35) to configure exactly when and how the relay engages and disengages based on your application.

Q: Is this relay module suitable for DIY automation projects?

A: Yes — with 18+ operating modes covering point operation, self-locking, cycling, pulse detection, and more, this module is ideal for electronics enthusiasts, DIY home automation, workshop projects, irrigation control, and small industrial applications. Always ensure wiring is performed safely and in accordance with local electrical codes.
