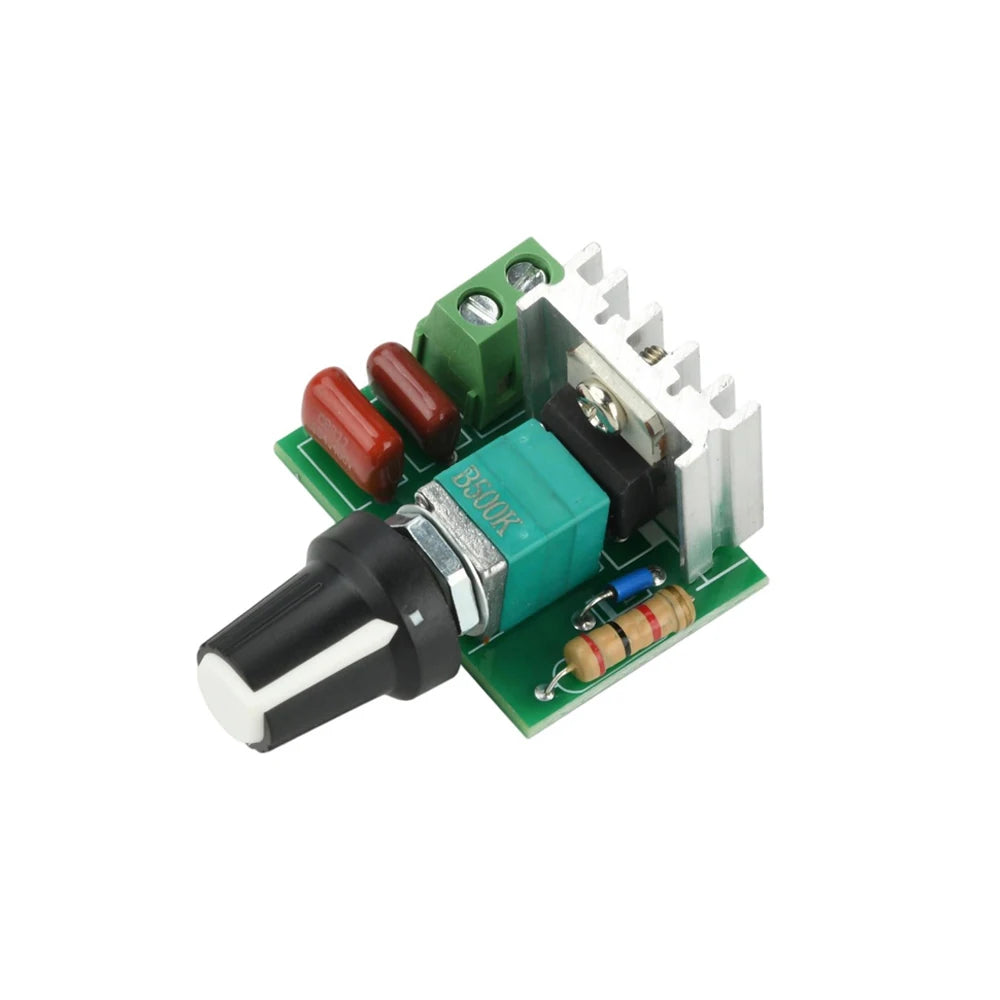

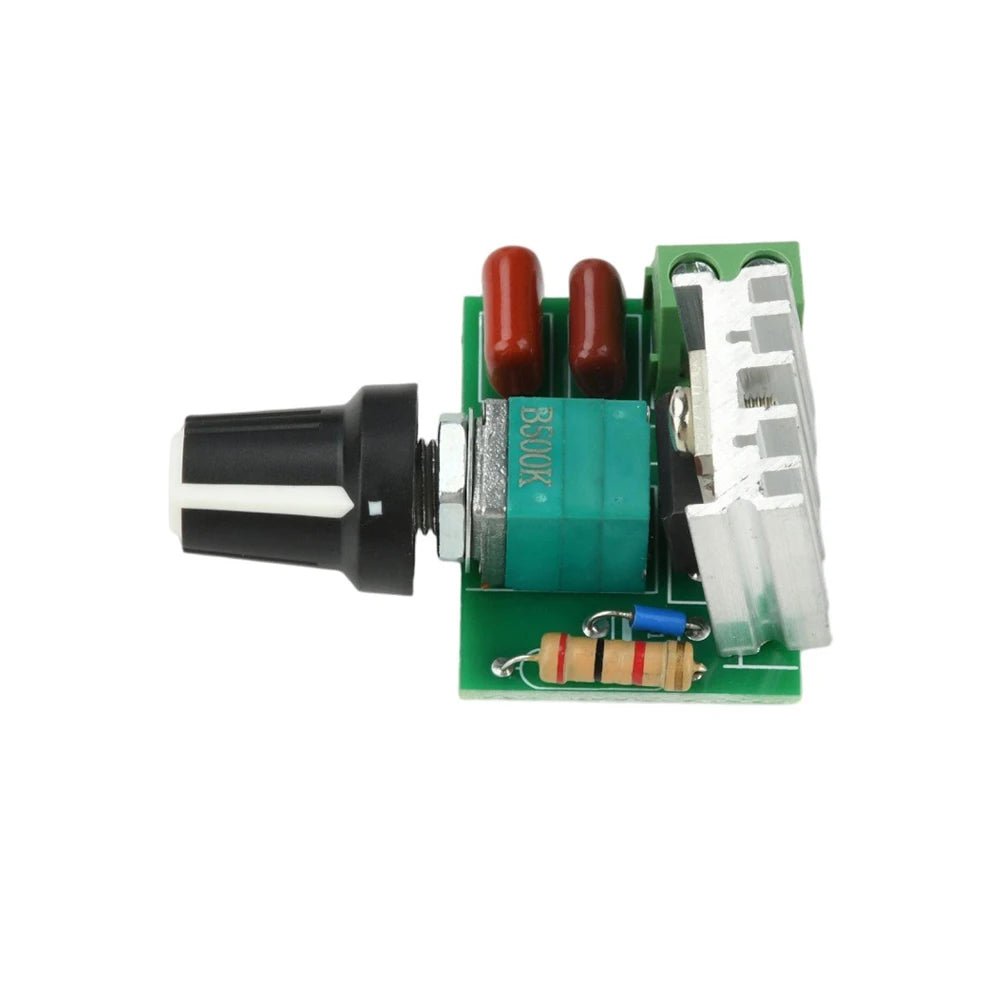

AC220V 500W Stepless Dimmer Speed Controller Voltage Regulator
AC220V 500W Stepless Dimmer Speed Controller Voltage Regulator
AC220V 500W Stepless Dimmer Speed Controller & Voltage Regulator
Take full control of your electrical devices with this versatile AC220V 500W Stepless Dimmer Speed Controller. Whether you need to adjust fan speed, fine-tune lighting brightness, or regulate temperature-control equipment, this compact voltage regulator delivers smooth, precise, and continuously variable output — all from a single, easy-to-wire unit.
Key Features
- High-Power AC220V / 500W Capacity: Handles up to 500W (max 4A) making it compatible with a wide range of equal-load household and industrial devices.
- Stepless (Continuous) Adjustment: Rotate the dial to dial in your exact setting — no fixed steps, no guesswork. Enjoy smooth, precise control every time.
- Built-In Aluminum Heat Sink: An integrated heat-dissipation aluminum sheet keeps the unit running cool during extended operation, promoting long service life and stable performance.
- Terminal-Style Wiring Design: Single input / single output terminal connections make installation straightforward and safe, minimizing the risk of accidental contact.
- Wide Application Range: Ideal for motor speed regulation, lighting dimming, and temperature-control applications — suitable for fans, lamps, heating elements, and more.
Specifications
| Input Voltage | AC 220V |
| Maximum Power | 500W |
| Maximum Current | 4A |
| Control Type | Stepless (Continuously Adjustable) |
| Wiring | Terminal-style, Single Input / Single Output |
| Country of Origin | Made in Mainland China |
What's in the Box?
- 1× AC220V 500W Dimmer Speed Controller / Voltage Regulator
Important Notes
- Colors may appear slightly different due to monitor/screen settings.
- Please allow 1–10 mm variance due to manual measurement.
- For use with equal-load (resistive/inductive) devices rated at AC220V up to 500W. Always ensure safe electrical installation and follow local wiring codes.
For guidance on safe electrical wiring practices, visit the OSHA Electrical Safety resource page.
Frequently Asked Questions
Q: What types of devices can I control with this AC220V 500W voltage regulator?
A: This stepless dimmer speed controller is compatible with a wide variety of AC220V equal-load devices up to 500W, including electric fans (for motor speed regulation), incandescent and halogen light bulbs (for brightness dimming), and heating/temperature-control equipment. Note: it is NOT recommended for use with LED drivers, switching power supplies, or electronic ballasts.
Q: How do I wire and install this voltage regulator?
A: The unit uses a simple terminal-style connection — there is one input terminal and one output terminal. Connect your AC220V live wire through the controller in series with your load device. The terminal design prevents accidental contact and makes installation clean and secure. Always switch off power before wiring and follow local electrical safety regulations.
Q: Will the controller overheat during extended use?
A: The built-in aluminum heat-dissipation sheet efficiently draws heat away from internal components, allowing the controller to operate stably over long periods without excessive heat buildup. For best results, ensure adequate airflow around the unit during use.
Q: Is this controller suitable for LED lights?
A: This dimmer is designed for resistive and inductive loads such as incandescent bulbs, halogen lamps, motor-driven fans, and resistive heating elements. It is generally NOT compatible with LED lights, CFL bulbs, or any device with an internal switching power supply. Always check your device's specifications before connecting.
