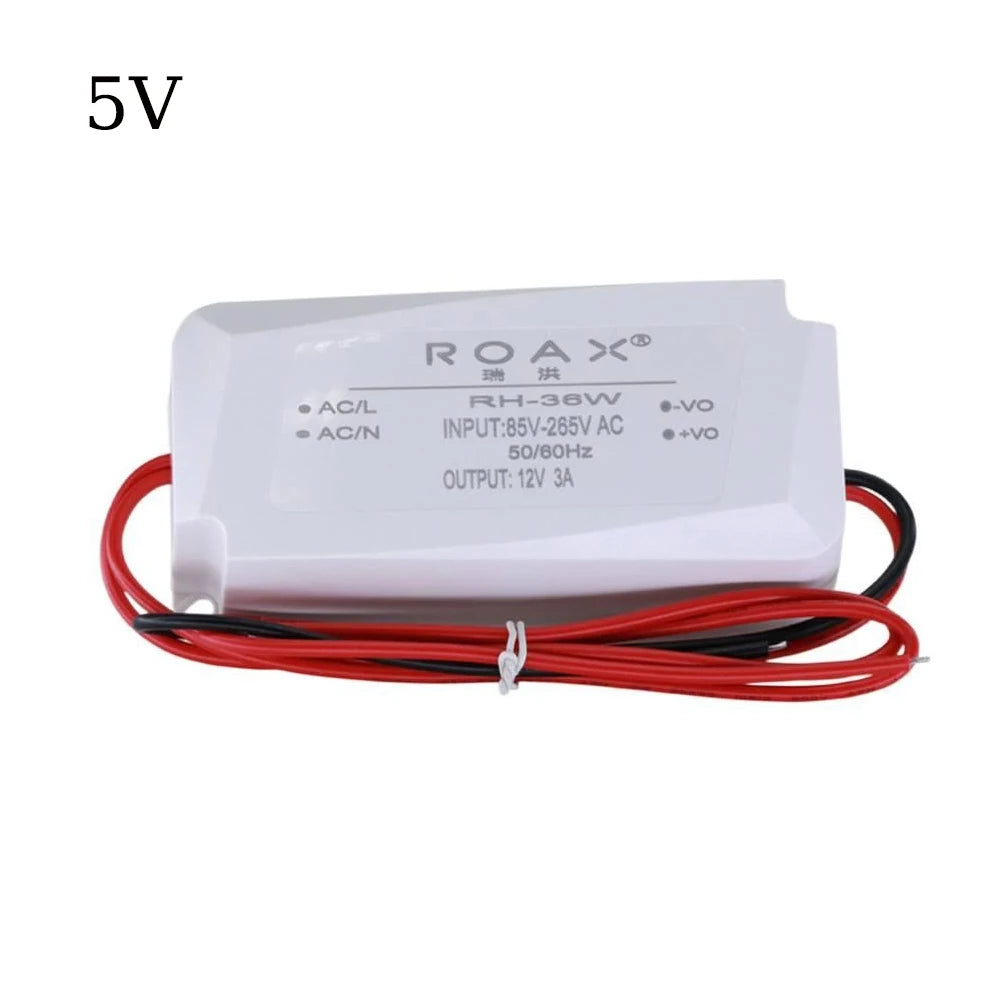

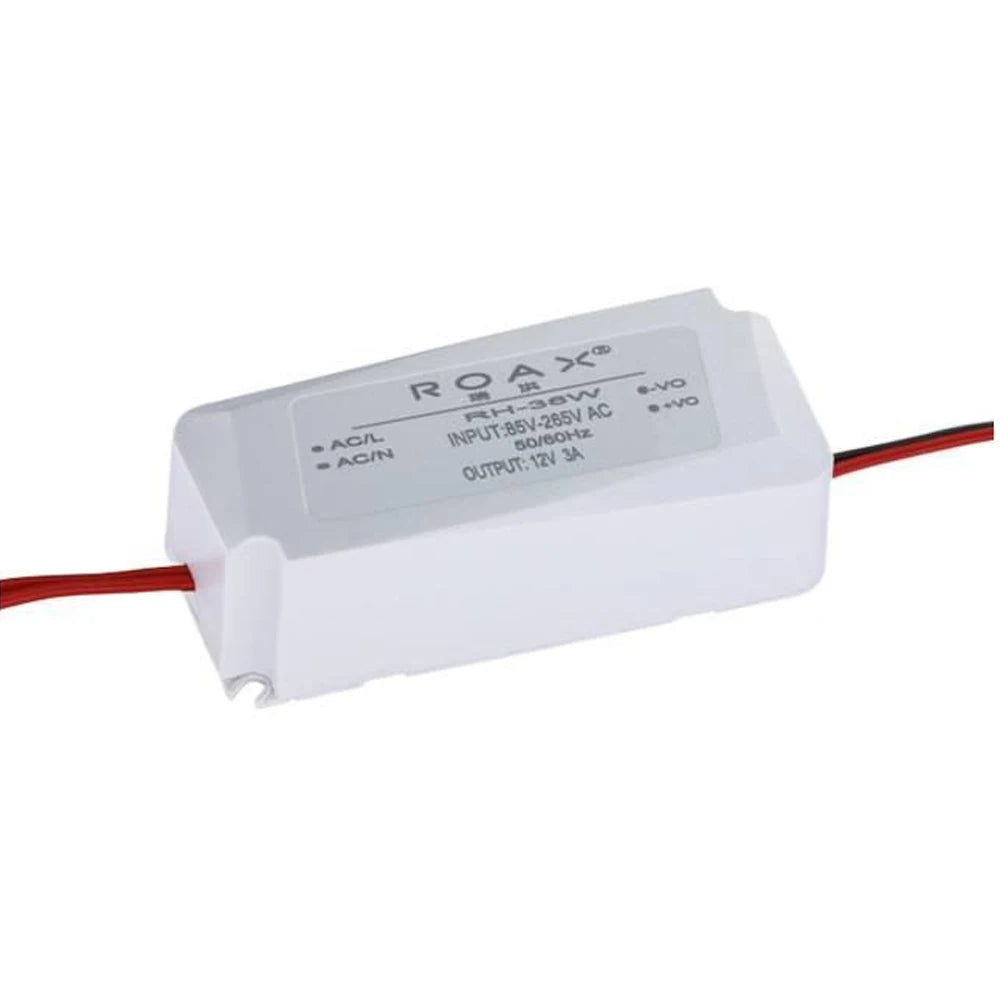

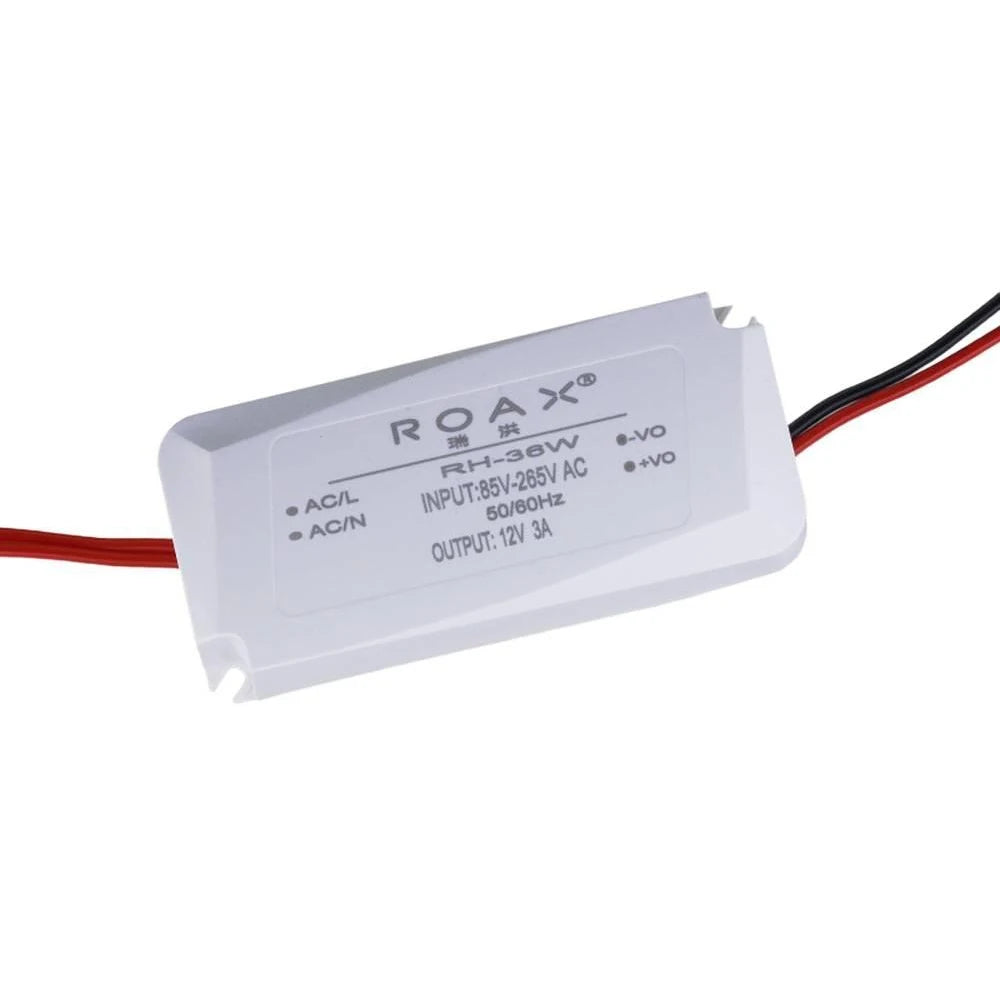

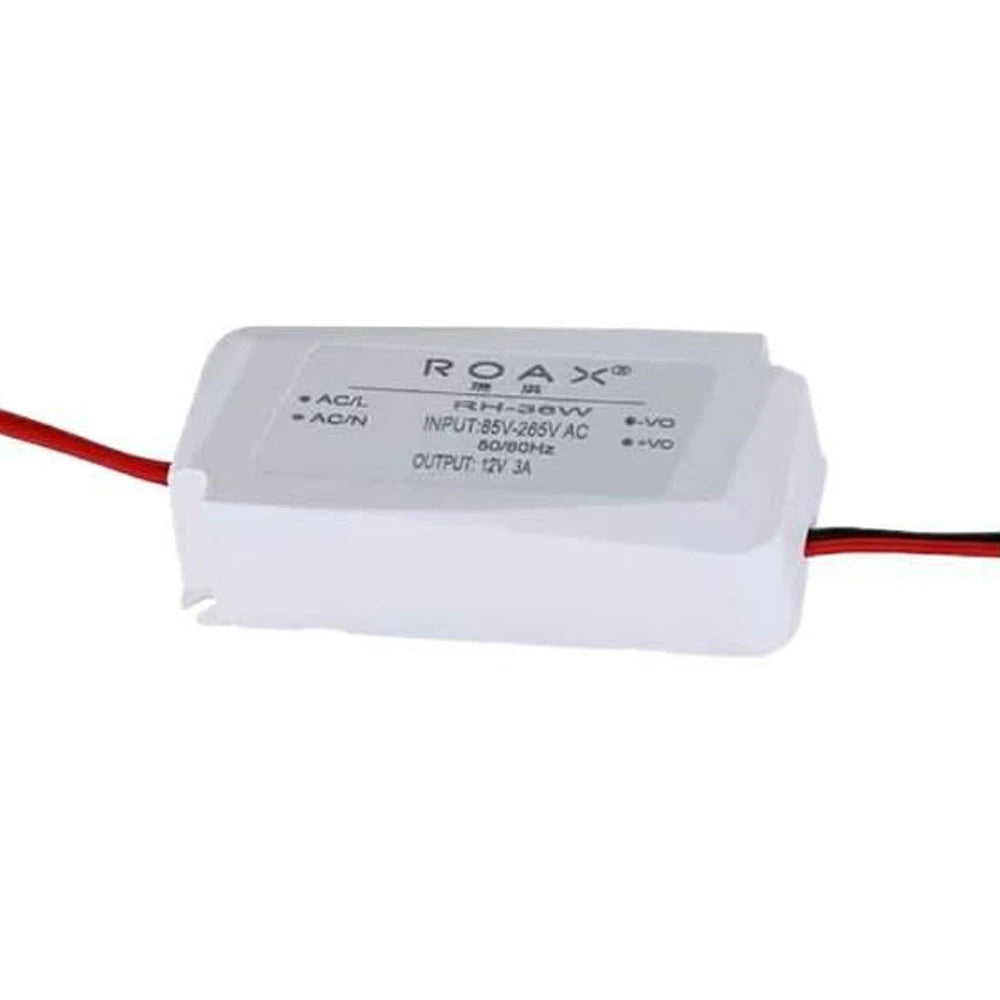

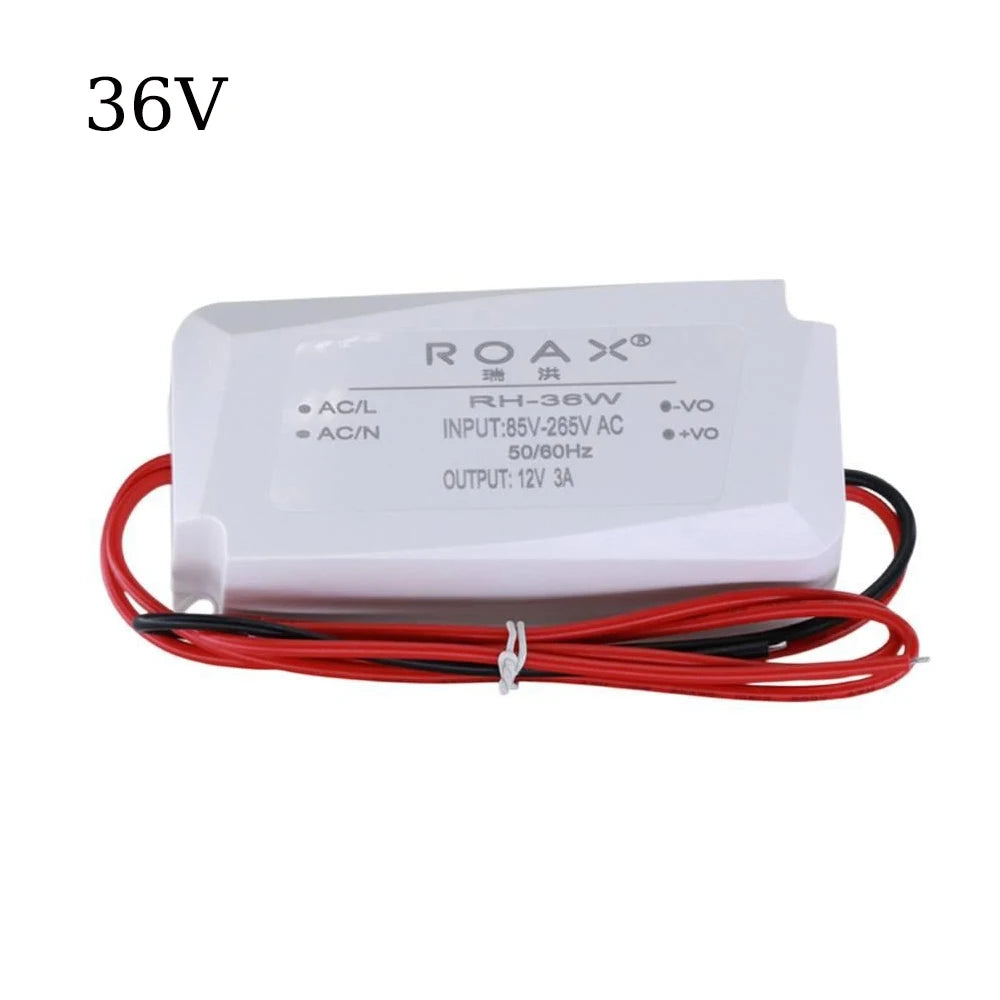

AC to DC Isolated Switching Power Supply Module — Multi-Voltage Output
Convert standard AC mains voltage (85–265VAC) to a clean, regulated DC output with this compact isolation switching power supply module. Available in 5V, 9V, 12V, 15V, 24V, and 36V output variants, this module is ideal for electronics projects, industrial automation, DIY builds, embedded systems, and OEM equipment where a reliable, galvanically isolated DC power source is required.
Made in Mainland China.
Key Features
- Wide AC Input Range: Accepts 85–265VAC (or 100–300VDC), making it compatible with both 110V and 220V mains worldwide.
- Galvanic Isolation: Input-to-output isolation protects downstream circuits and improves safety.
- Tight Output Accuracy: ±1% output voltage accuracy ensures stable operation of sensitive electronics.
- Multiple Output Options: Choose the voltage that matches your application — 5V, 9V, 12V, 15V, 24V, or 36V.
- Low Standby Consumption: ≤150mW standby power at 230VAC for energy-efficient designs.
- Built-In Protections: Short-circuit (hiccup mode with auto-recovery), overvoltage (>50%), and overload protection (110%–170% of rated power).
- Compact Footprint: 106 × 47 × 31 mm — easy to integrate into enclosures and custom builds.
- Wide Operating Temperature: -20°C to +70°C, suitable for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| AC Input Voltage | 85–265VAC |
| DC Input Voltage | 100–300VDC |
| Frequency Range | 47–63 Hz |
| Inrush Current (Cold Start) | 10A / 220VAC |
| Leakage Current | <2mA / 220VAC |
| Standby Power Consumption | ≤150mW / 230VAC |
| Output Accuracy | ±1% |
| Line Regulation | ±1% |
| Load Regulation | ±1% |
| Output Ripple | ≤150mV |
| Power On/Off Overshoot | 10% |
| Short-Circuit Protection | Hiccup mode, auto-recovery |
| Overvoltage Protection | >50% |
| Overload Protection | 110%–170% rated output power |
| Operating Temp. & Humidity | -20°C to +70°C, 20%–90% RH non-condensing |
| Storage Temp. & Humidity | -40°C to +85°C, 10%–95% RH |
| Dimensions (L×W×H) | 106 × 47 × 31 mm |
| Rated Capacity | <40VA |
Output Voltage Options
| Output Voltage | Rated Current | Current Range | Rated Power | Efficiency |
|---|---|---|---|---|
| 5V DC | 4A | 0–4000mA | 20W | 78% |
| 9V DC | 4A | 0–4000mA | 36W | 79% |
| 12V DC | 3A | 0–3000mA | 36W | 82% |
| 15V DC | 2.4A | 0–2400mA | 36W | 85% |
| 24V DC | 1.5A | 0–1500mA | 36W | 87% |
| 36V DC | 1A | 0–1000mA | 36W | 87% |
What's in the Box
- 1× AC to DC Isolation Switching Power Supply Module
Please Note: Colors may vary slightly due to screen differences. Allow ±1–10mm dimensional tolerance due to manual measurement.
For general electrical safety guidance and best practices when working with mains voltage electronics, refer to resources from the U.S. Consumer Product Safety Commission (CPSC) — Electrical Safety.
Frequently Asked Questions
Q: Is this switching power supply module compatible with both 110V and 220V mains systems?
A: Yes. The module accepts a wide AC input range of 85–265VAC (and 100–300VDC), making it fully compatible with both North American 110V and European/international 220–240V mains supplies without any manual switching required.
Q: What does "isolation" mean on this power supply module, and why does it matter?
A: Galvanic isolation means there is no direct electrical connection between the AC input and the DC output. This provides an important safety barrier, protects your downstream circuits from mains-level faults, and reduces noise — critical for sensitive electronics and microcontroller-based projects.
Q: Does the module recover automatically from a short circuit?
A: Yes. Short-circuit protection operates in hiccup mode — the module automatically reduces output during a fault and restores normal operation once the fault is cleared, protecting both the module and connected devices without manual intervention.
Q: What output voltage variants are available?
A: This module is available in six output voltages: 5V (20W), 9V (36W), 12V (36W), 15V (36W), 24V (36W), and 36V (36W). Select the variant that matches your application's DC voltage requirement at checkout.
Q: Can this module be used in industrial or outdoor enclosures?
A: The module operates from -20°C to +70°C with up to 90% non-condensing humidity, making it suitable for integration into industrial control panels, custom enclosures, and moderately demanding environments. It is not itself waterproof, so install it within a suitably rated enclosure for outdoor use.
