AC-DC Buck Power Supply Module 12V 5.3A 63W | 100–240V Input
AC-DC Buck Power Supply Module 12V 5.3A 63W | 100–240V Input

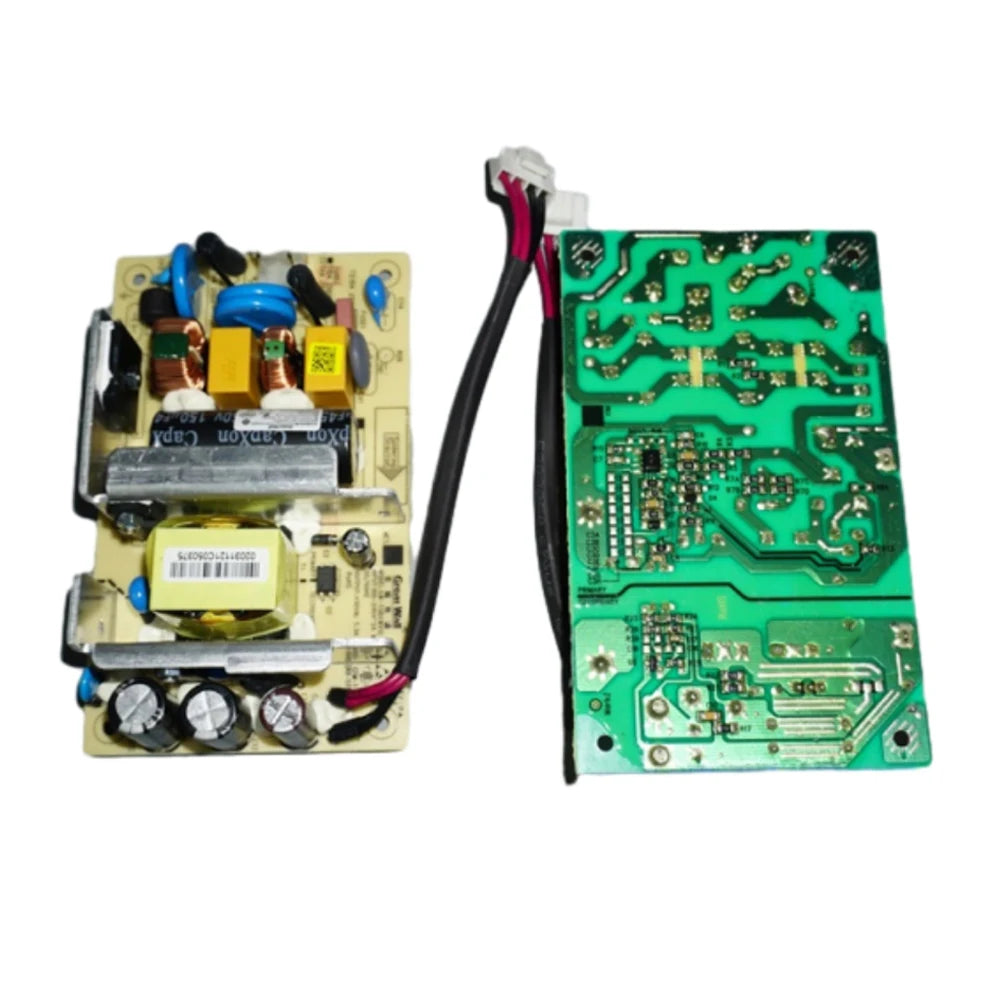

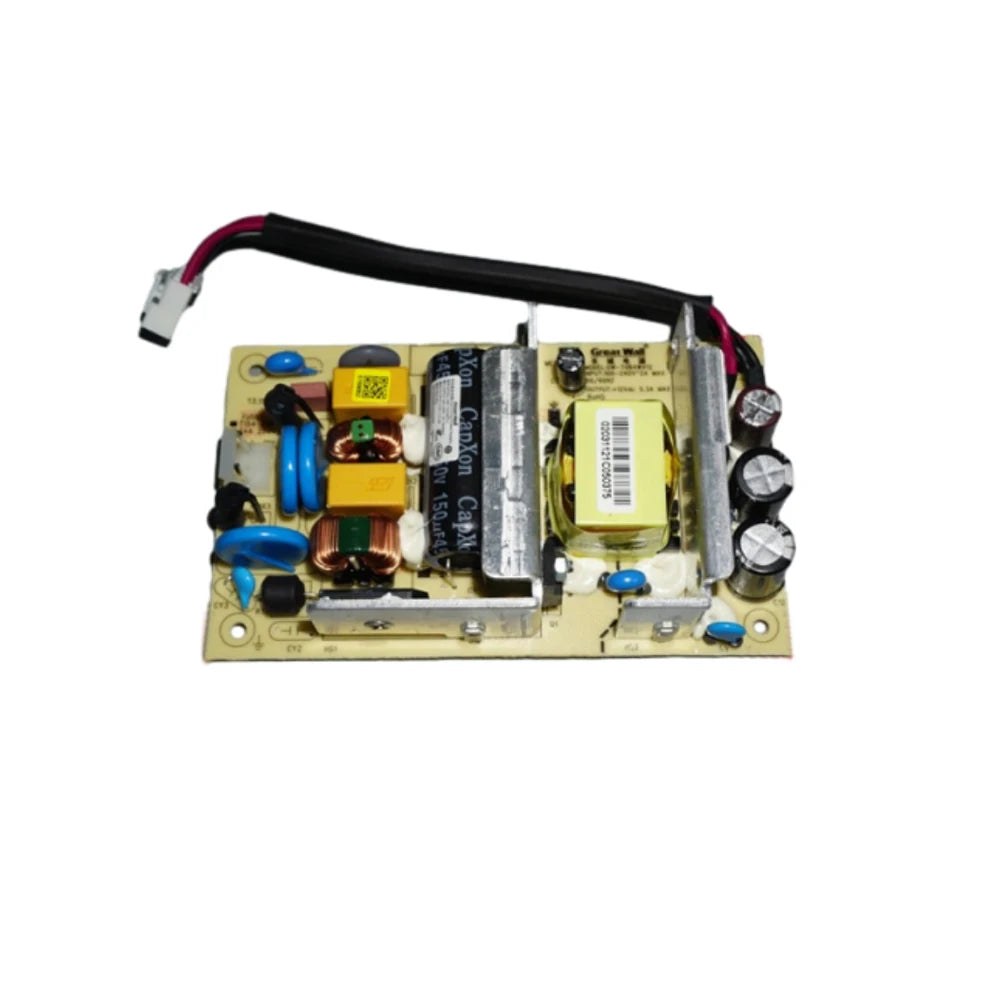

AC-DC Step-Down Buck Power Supply Module — 100–240V AC to 12V DC, 5.3A / 63W
This compact yet capable AC-DC switching power supply board converts universal AC mains input (100V–240V) into a stable DC 12V / 5.3A output, delivering up to ~63 watts of regulated power. Ideal for embedded projects, LED drivers, DIY electronics, automation systems, and custom enclosures that require a reliable, board-level power solution.
Key Features
- Wide AC Input Range: AC 100V–240V — compatible with global mains voltages
- Stable DC Output: 12V / 5.3A (≈63W rated capacity)

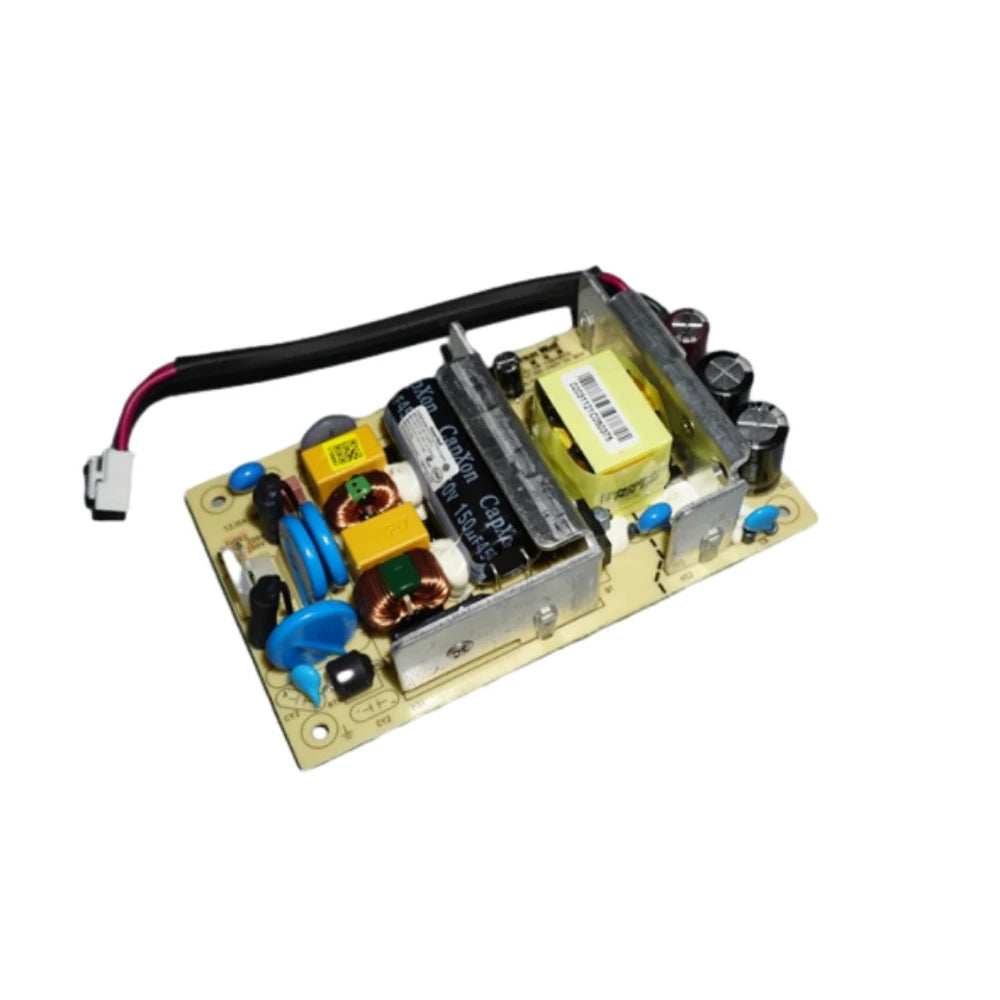

- Dual Cooling Aluminum Plates for efficient thermal management during continuous operation
- 3.96mm Pitch Terminal Connectors on both input and output — or solder wires directly to the board without using terminals

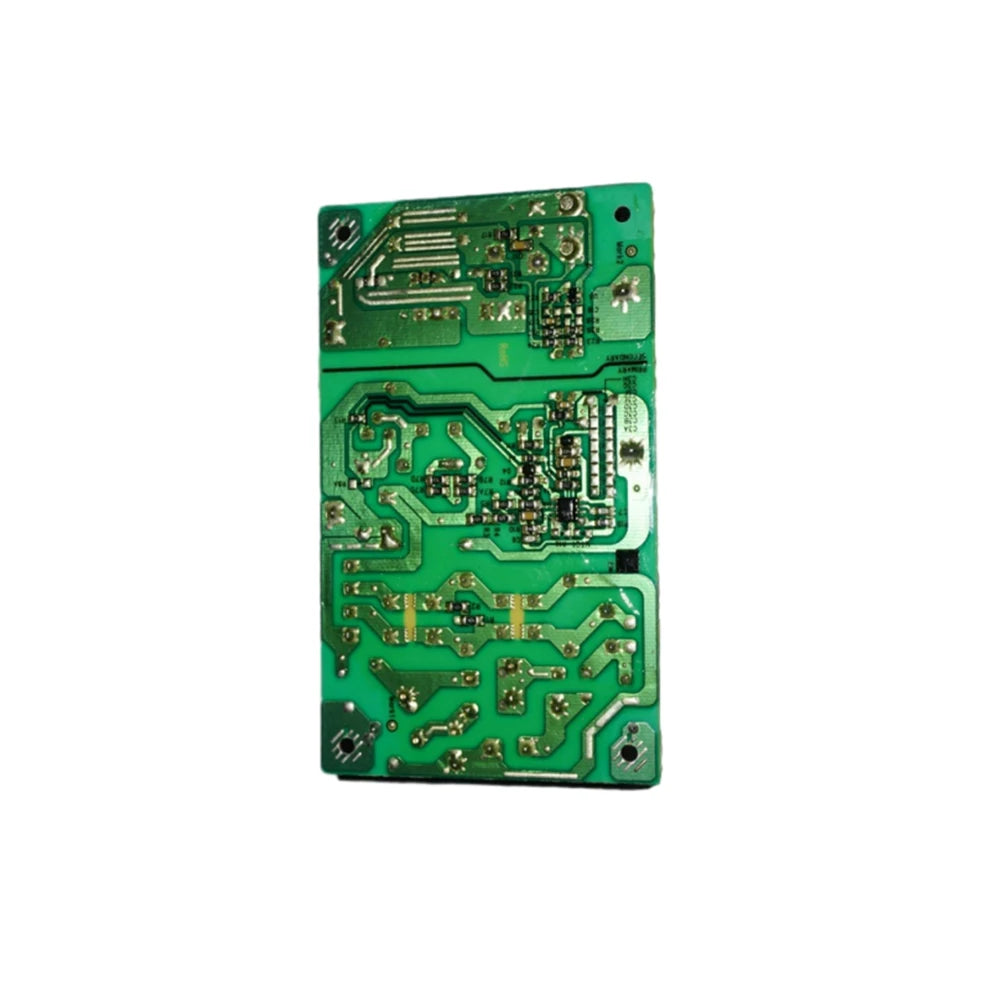

- Dust-Proof & Moisture-Resistant Coating: protective conformal glue sprayed on the bottom side of the PCB for enhanced durability
- Compact & Lightweight: weighs approximately 220 grams — easy to integrate into enclosures and project builds
- Rated Capacity: <40VA (switching design for high efficiency)
- Low-Voltage Output: Below 50V AC / 75V DC on the output side (EU LVD compliant output)
Technical Specifications
| AC Input Voltage | AC 100V – 240V |
| DC Output Voltage | 12V |
| Output Current | 5.3A |
| Output Power | ~63W |
| Cooling | 2 x Aluminum Cooling Plates |
| Terminal Pitch | 3.96mm |
| Board Weight | ~220g |
| PCB Protection | Dust-proof & moisture-resistant conformal coating (back side) |
| Country of Origin | Made in China |
⚠️ Important Safety Notice
This power supply board accepts high-voltage AC mains input. It must be installed inside a grounded, insulated enclosure at all times. Never touch any components on the board while it is energized. Always follow local electrical codes and have qualified personnel perform installations. For guidance on electrical safety practices, refer to OSHA's Electrical Safety Standards.
What's in the Box
- 1 × AC-DC Buck Power Supply Module (12V 5.3A)
Note: Due to lighting conditions and screen calibration, the product color may vary slightly from images. Please allow 1mm–1cm measurement tolerance.
Frequently Asked Questions
Q: What devices can this AC-DC 12V 5.3A power supply module power?
A: This switching power supply module is well-suited for powering 12V LED strips, CCTV cameras, routers, small motors, Arduino/Raspberry Pi setups with 12V peripherals, automation controllers, and other electronics requiring a stable 12V DC supply up to 5.3A (≈63W total).
Q: Can I solder wires directly to the board instead of using terminal connectors?
A: Yes. Both the input and output use 3.96mm pitch terminal pads that accept direct wire soldering, so you can skip plug-in terminals entirely and hard-wire connections for a cleaner installation.
Q: Does this power supply module work with both 110V and 220V mains?
A: Absolutely. The module accepts a wide AC input range of 100V–240V, making it compatible with both North American (110V/120V) and European/Asian (220V/240V) mains voltages without any manual switching required.
Q: Is the board protected against dust and moisture?
A: The back (bottom) side of the PCB is coated with a dust-proof and moisture-resistant conformal glue, providing an added layer of protection for the circuit. However, the board should still be housed in a suitable enclosure during use.
