AC 220V Wireless Remote Control Switch 2000W | One-Way
AC 220V Wireless Remote Control Switch 2000W | One-Way
AC 220V Wireless One-Way Remote Control Switch – 2000W High Power
Take full control of your home appliances, lighting, gates, and more with this compact and reliable AC 220V Wireless Remote Control Switch. Designed for easy installation and versatile use, this 2000W-capable switch lets you operate connected devices from up to 40 meters away — no smart hub or Wi-Fi required.
Key Features
- High Power Capacity: Supports loads up to 2000W (10A relay), suitable for a wide range of home and industrial appliances.
- Flexible Remote Control: One remote can control multiple switches, and multiple remotes can control a single switch — giving you true flexibility.
- Wide Application: Ideal for lamps, electric doors, windows, lifting equipment, gates, hoists, and general industrial control systems.
- Three Working Modes: Switch between Point Action, Self-Locking, and Interlocking modes to suit your specific application needs.
- Dual Frequency Support: Operates at 315 MHz or 433 MHz (default: 315 MHz) for broad compatibility.
- Lightweight & Portable: Compact ABS plastic housing (approx. 100×45×30 mm) and a featherlight remote (approx. 21g) make setup and repositioning effortless.
- Easy Code Learning: Simple 3-second button press to enter learning mode; supports fixed and learning codes with up to 16 different encodings.
Specifications
| Operating Voltage | AC 220V |
| Maximum Load | 2000W |
| Relay | 10A |
| Operating Frequency | 315 / 433 MHz (default 315 MHz) |
| Remote Control Range | 20–40 m (65.6–131.2 ft) |
| Operating Temperature | -10°C to 60°C |
| Standby Current | 10 mA |
| Receiver Size | Approx. 100×45×30 mm / 3.93×1.77×1.18 in |
| Remote Size | Approx. 50×40×12 mm / 1.96×1.57×0.47 in |
| Material | ABS Plastic |
| Working Modes | Point Action, Self-Locking, Interlocking |
| Country of Origin | Made in China |
What's in the Box

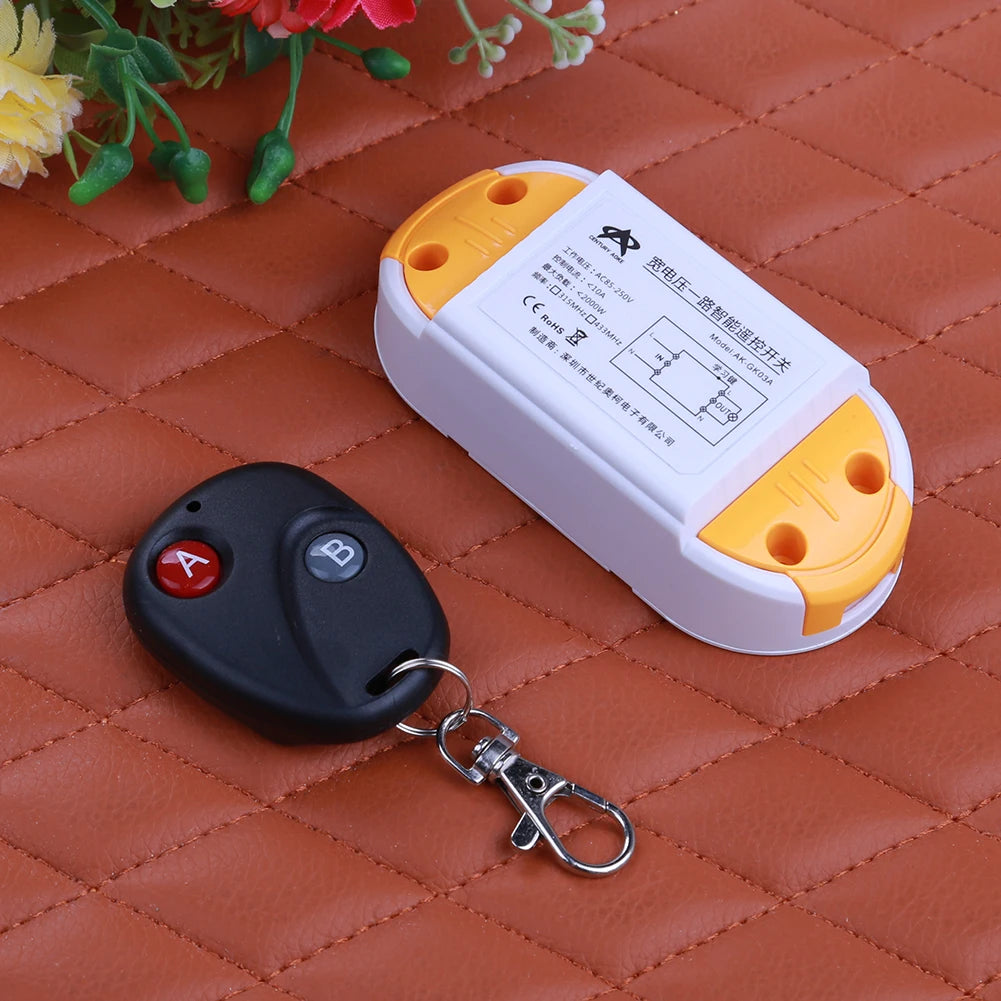

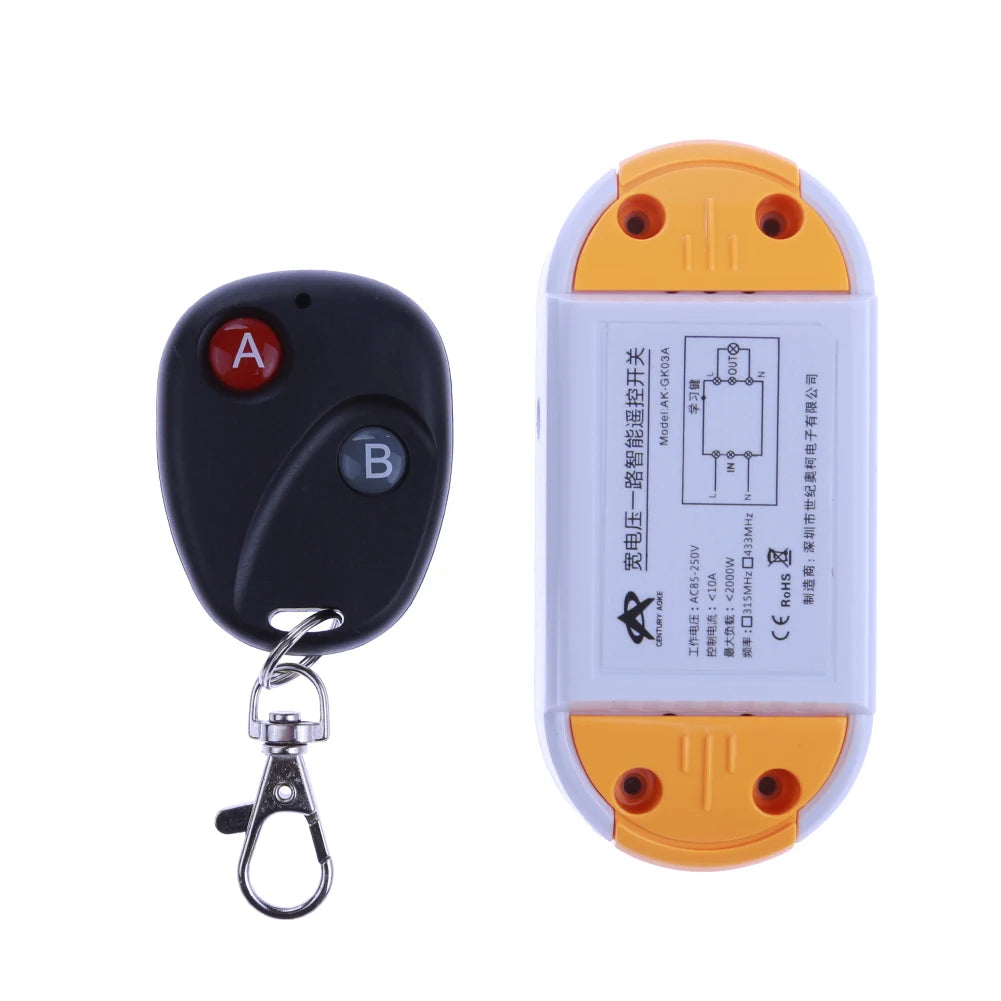

- 1× One-Way Remote Control Receiver Switch

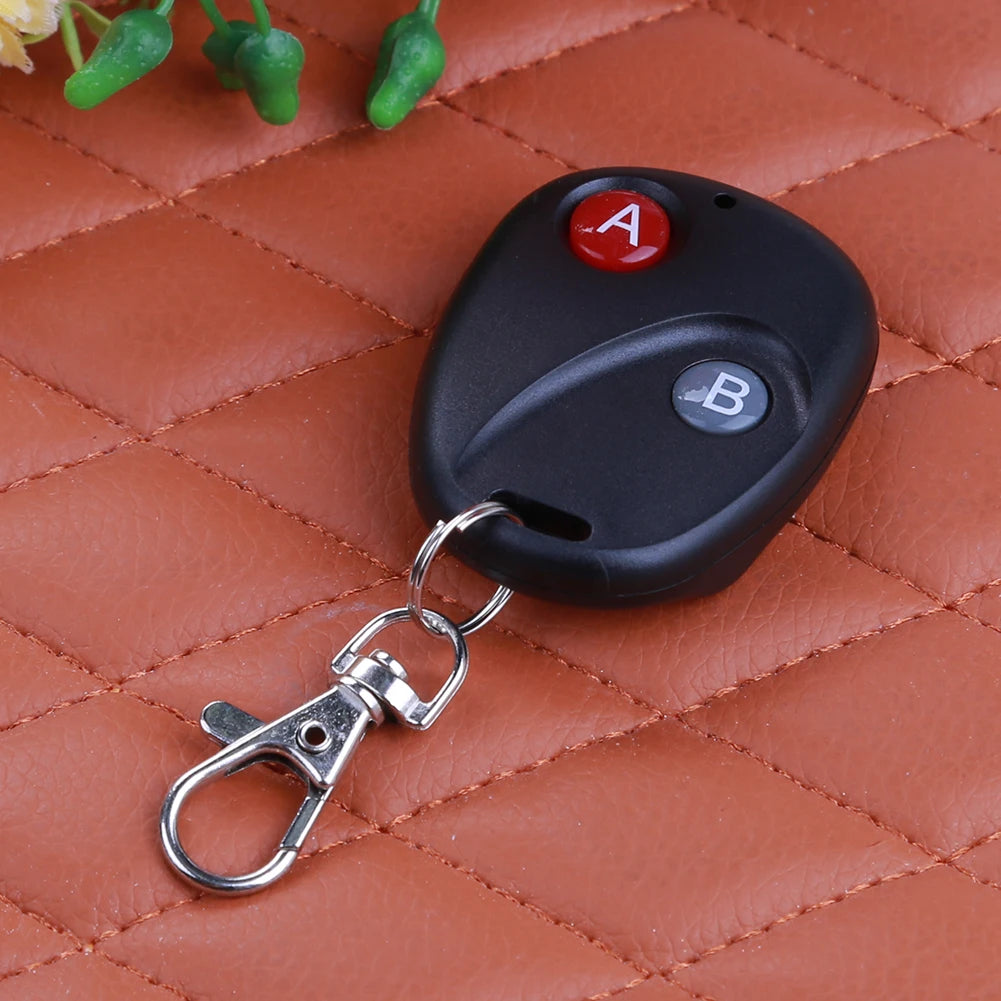

- 1× Double Button Remote Control
How to Set Up
- Learning Mode: Hold the learn button for 3 seconds until the indicator light goes out. Release, then press any key on the remote. The light will flash 4 times to confirm pairing.
- Clearing Codes: Hold the learn button for approximately 8 seconds until the indicator light signals success.
- Mode Switching: Use the short circuit pins (1, 2, or 3) to switch between Point Action (open), Self-Locking (pins 1–2), and Interlocking (pins 2–3) modes.
For guidance on safe electrical installation practices, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: What appliances can I control with this wireless remote switch?
A: This AC 220V wireless remote control switch is compatible with a wide range of devices including lamps, electric doors, windows, gates, hoists, lifting equipment, and other home or industrial appliances up to 2000W (10A relay).
Q: What is the difference between the three working modes?
A: The switch supports three modes: Point Action (momentary — the switch is active only while the button is held), Self-Locking (toggle — the switch stays ON until pressed again), and Interlocking (designed for two-channel use where activating one turns off the other). You can switch between modes using the short circuit pins on the receiver module.
Q: How many remotes can I pair to one receiver switch?
A: The receiver can learn up to 16 different remote control encodings, so multiple remotes can control a single switch. Conversely, one remote can also be programmed to control multiple receiver switches.
Q: What is the wireless range of this remote control switch?
A: The remote control operates at 315 MHz (or 433 MHz) and has an effective range of 20–40 meters (approximately 65–131 feet) in open environments. Walls and obstructions may reduce this range.
Q: Does this switch require a Wi-Fi connection or smart hub?
A: No. This is a standalone RF (radio frequency) wireless switch. It does not require Wi-Fi, Bluetooth, or any smart home hub to function, making it simple to install and use anywhere with an AC 220V supply.
