80A AM32 Single ESC 3-8S LiPo DShot 600 Speed Controller
80A AM32 Single ESC 3-8S LiPo DShot 600 Speed Controller
80A AM32 Single ESC — Precision Speed Control for FPV & Racing Drones
Take your drone builds to the next level with this high-performance 80A AM32 Single Electronic Speed Controller (ESC). Engineered for demanding 3S to 8S LiPo setups, it delivers rock-solid power delivery, ultra-fast digital signal support, and open-source AM32 firmware for maximum tunability. Whether you're building a high-powered freestyle rig, a long-range cruiser, or a racing quad, this ESC has the headroom and features to match your ambitions.

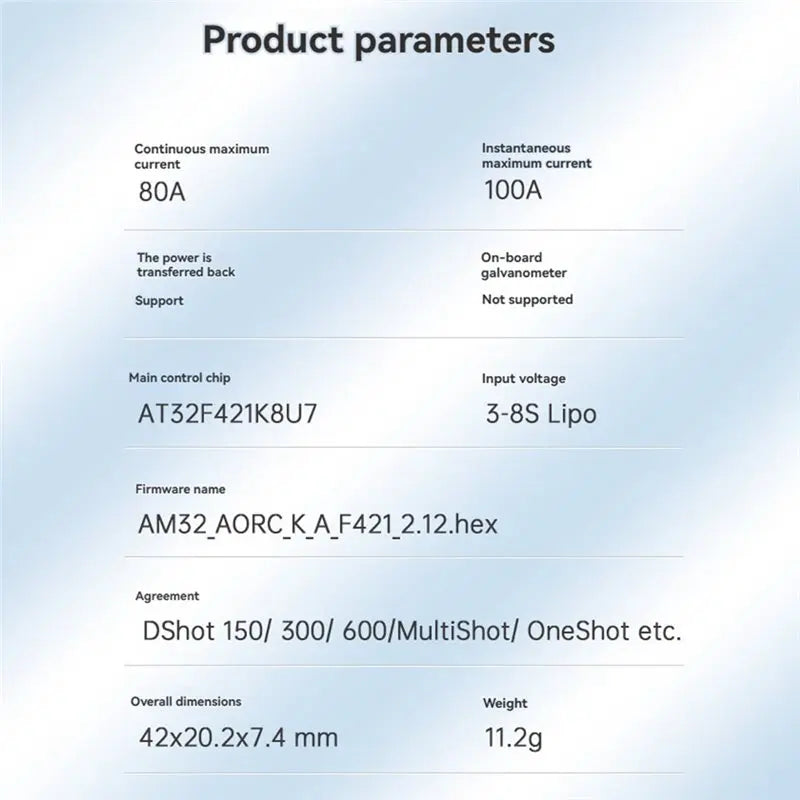

Key Specifications
- Continuous Current: 80A
- Instantaneous Peak Current: 100A
- Input Voltage: 3–8S LiPo
- Main Control Chip: AT32F421K8U7
- Firmware: AM32 AORC K A F421 2.12
- Supported Protocols: DShot 150, DShot 300, DShot 600, MultiShot, OneShot, and more
- ESC Telemetry: Supported
- Onboard Ammeter: Not included
- Material: PCB
- Color: Black
Why Choose the AM32 Platform?
- Open-Source Firmware: AM32 is a community-driven, actively maintained firmware platform — flash updates, configure parameters, and benefit from ongoing improvements.
- Wide Voltage Range: 3S to 8S LiPo compatibility gives you the flexibility to run light freestyle builds or heavy-lifting rigs from a single ESC model.
- DShot Digital Protocol Support: DShot 150/300/600 eliminates analog noise and signal timing issues, ensuring crisp throttle response and precise motor control.
- Telemetry Ready: Monitor real-time ESC data including RPM, temperature, and current draw directly through your flight controller.
- High Peak Current Handling: The 100A instantaneous burst rating means it can handle aggressive throttle punches without triggering shutdowns.

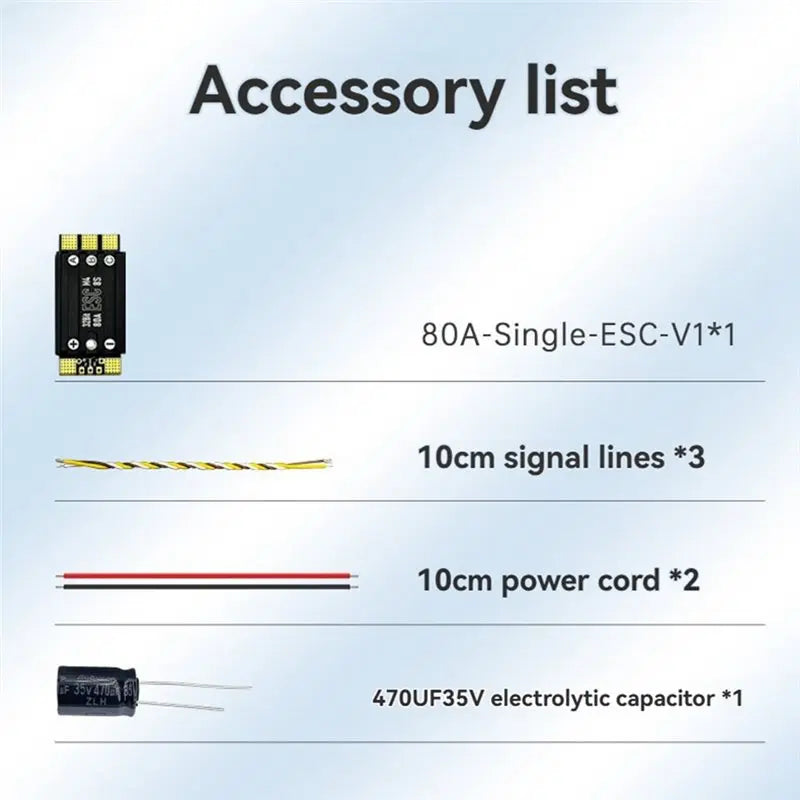

What's in the Box
- 1× ESC Kit (80A AM32 Single ESC)
Made in Mainland China.
For general guidance on safe operation of electronic components in hobby applications, visit the U.S. Consumer Product Safety Commission (CPSC) for product safety information.
Frequently Asked Questions
Q: What voltage batteries are compatible with this 80A AM32 ESC?
A: This ESC supports 3S to 8S LiPo batteries, making it suitable for a wide range of drone builds — from lightweight 3S freestyle quads to powerful 6S or 8S long-range and heavy-lift platforms.
Q: Which digital protocols does this ESC support?
A: It supports DShot 150, DShot 300, and DShot 600 digital protocols, as well as MultiShot and OneShot analog protocols. DShot protocols provide noise-free, latency-reduced motor control, which is ideal for FPV racing and freestyle flying.
Q: Can I update or configure the AM32 firmware on this ESC?
A: Yes. The AM32 firmware is open-source and fully configurable. You can flash the latest firmware and adjust motor timing, direction, and other parameters using the AM32 Configurator tool via a compatible flight controller or dedicated programmer.
Q: Does this ESC support ESC telemetry?
A: Yes, ESC telemetry is supported. You can pipe real-time data such as RPM, temperature, voltage, and current to your flight controller for in-flight monitoring or logging via your OSD or ground station.
