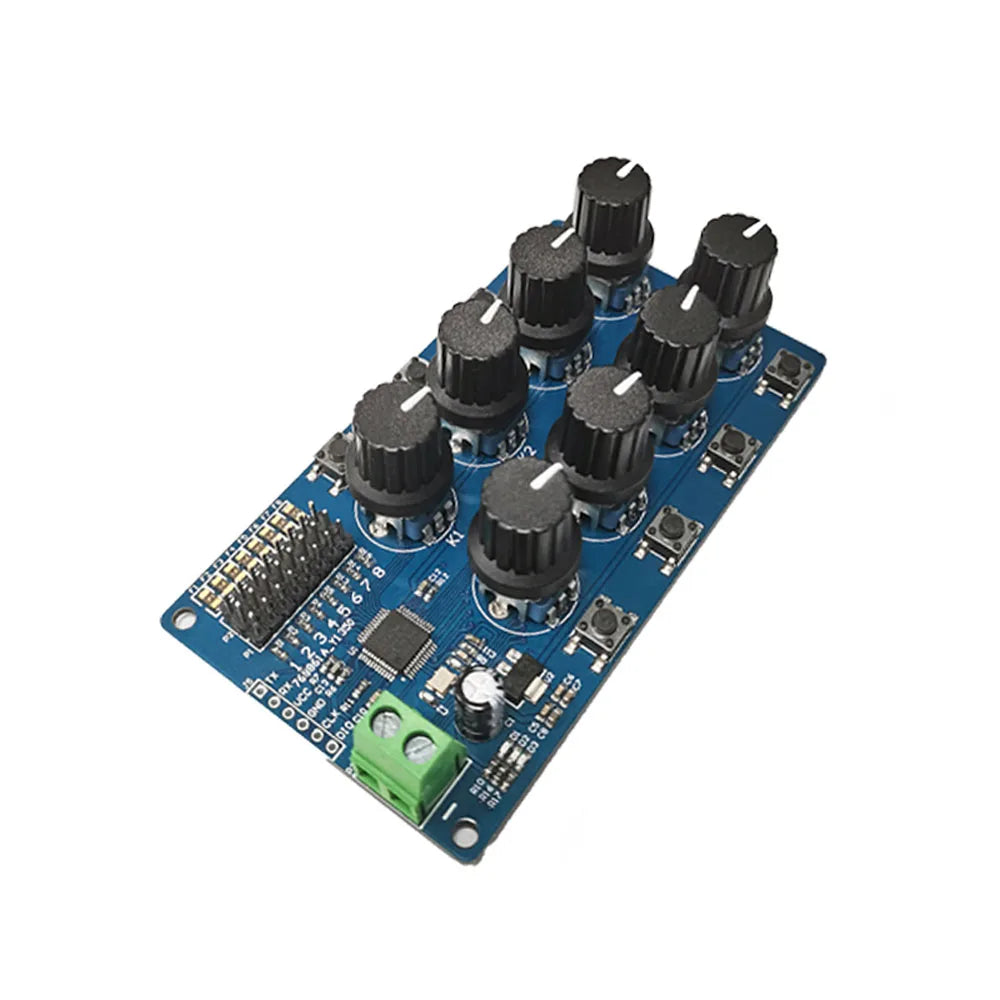

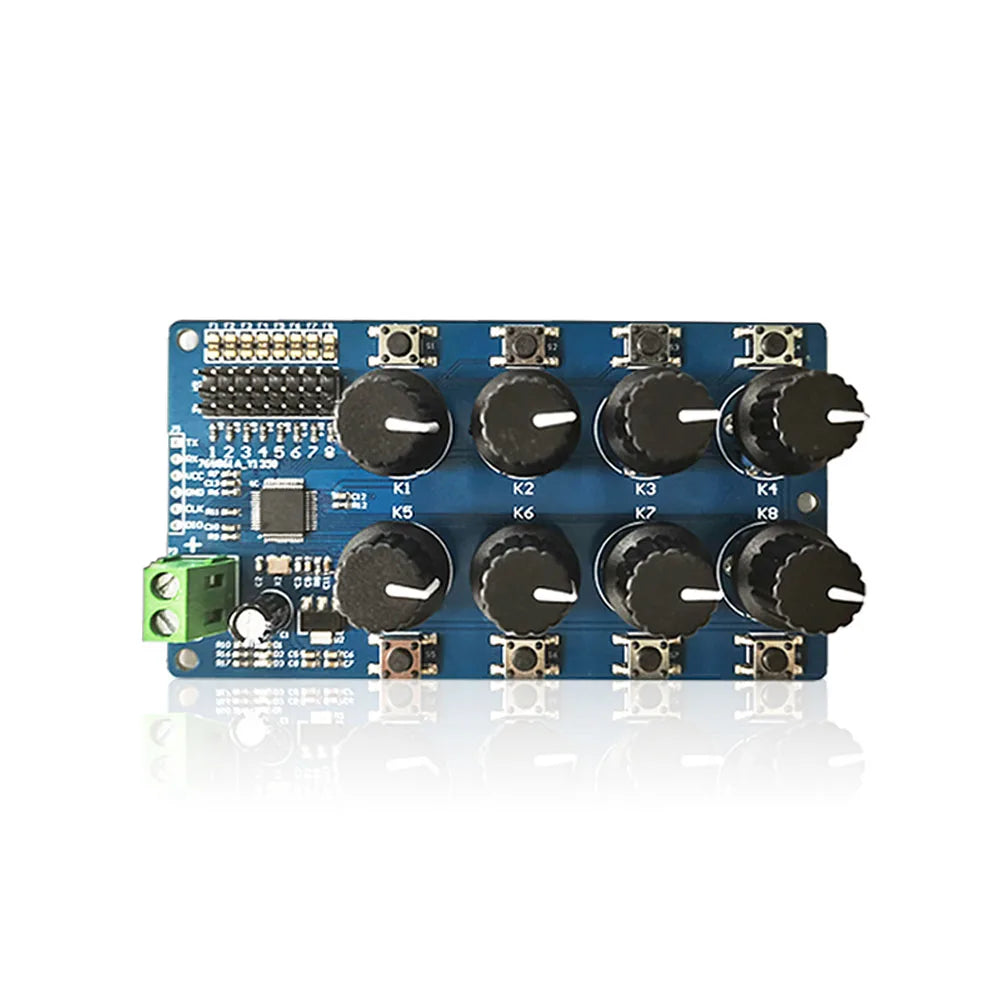

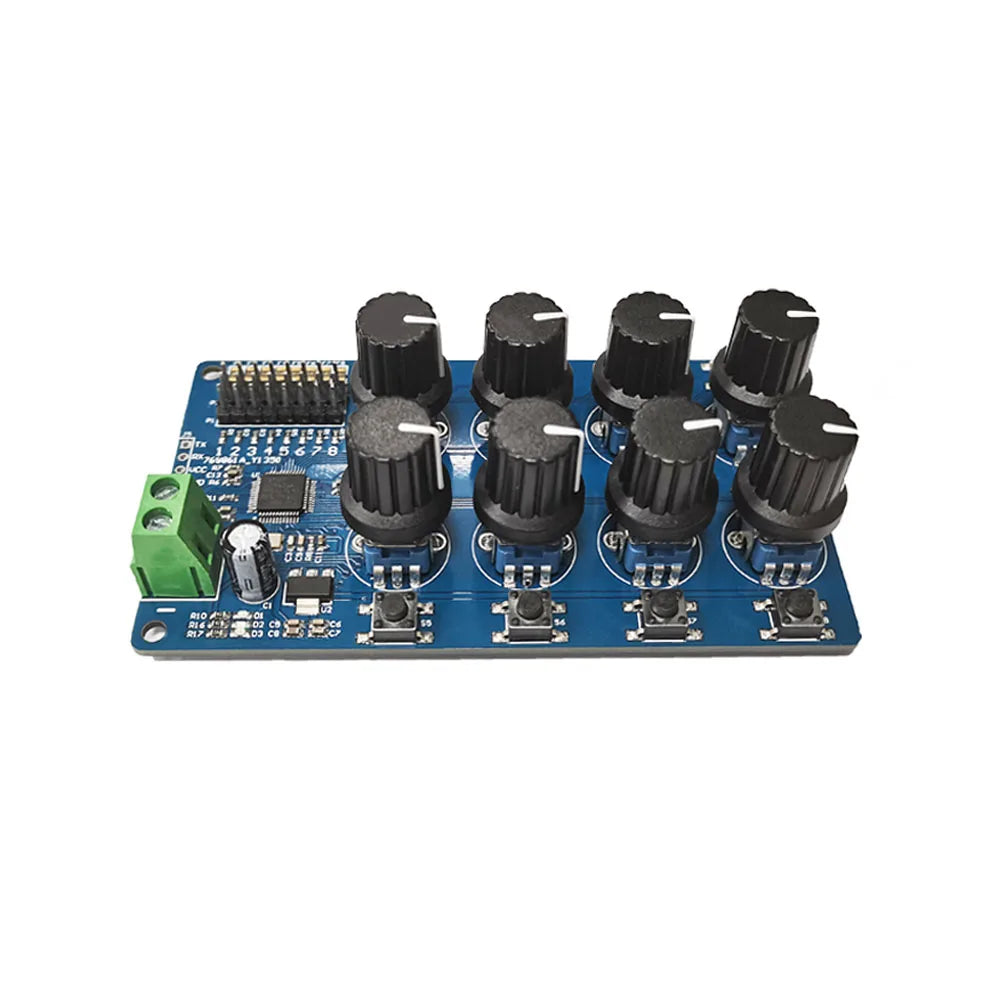

8-Channel PWM Servo Control Board – STM32-Powered Debugging Module
Take full command of up to 8 servos simultaneously with this precision-engineered 8-Channel PWM Servo Control Board. Powered by an onboard STM32 microcontroller, this versatile debugging module generates high-resolution PWM signals for rock-solid, accurate servo positioning — perfect for robotics, RC projects, animatronics, and DIY automation builds.
Key Features
- STM32 Onboard Processor: Generates high-resolution PWM signals for precise, repeatable servo control down to 0.09° accuracy (1µs minimum PWM step).
- 8 Independent Control Channels: Drive up to 8 servos (compatible with MG995, MG996, SG90, Futaba, Huisheng, and similar standard servos) from a single board.
- Dual Operating Modes: Switch seamlessly between Manual Mode (adjustable knob control) and Back Mode via a dedicated button, with a clear mode indicator LED.
- Wide Voltage Input (5–9V): Compatible with 2S LiPo battery packs or standard DC supplies — simply match the voltage to your servo's requirements.
- Standard PWM Protocol: Supports a 20ms control cycle with pulse widths ranging from 0.5ms to 2.5ms, ensuring broad compatibility with popular servo brands.
- Built-In Self-Restoring Fuses: Every servo interface is individually protected by a self-restoring fuse to safeguard your servos from overcurrent damage.
- Serial Control Support: Enables serial communication for programmatic or automated control in more advanced project setups.
Specifications
| Number of Channels | 8 |
| Microcontroller | STM32 |
| Control Accuracy | 0.09° (1µs minimum PWM change) |
| Control Cycle | 20ms |
| Pulse Width Range | 0.5ms – 2.5ms |
| Input Voltage | 5V – 9V DC |
| Compatible Servos | MG995, MG996, SG90, Futaba, Huisheng & standard PWM servos |
| Protection | Per-channel self-restoring fuse |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× 8-Channel Servo Control & Debugging Board
Important Notes
- Due to monitor calibration differences, actual product color may vary slightly from images.

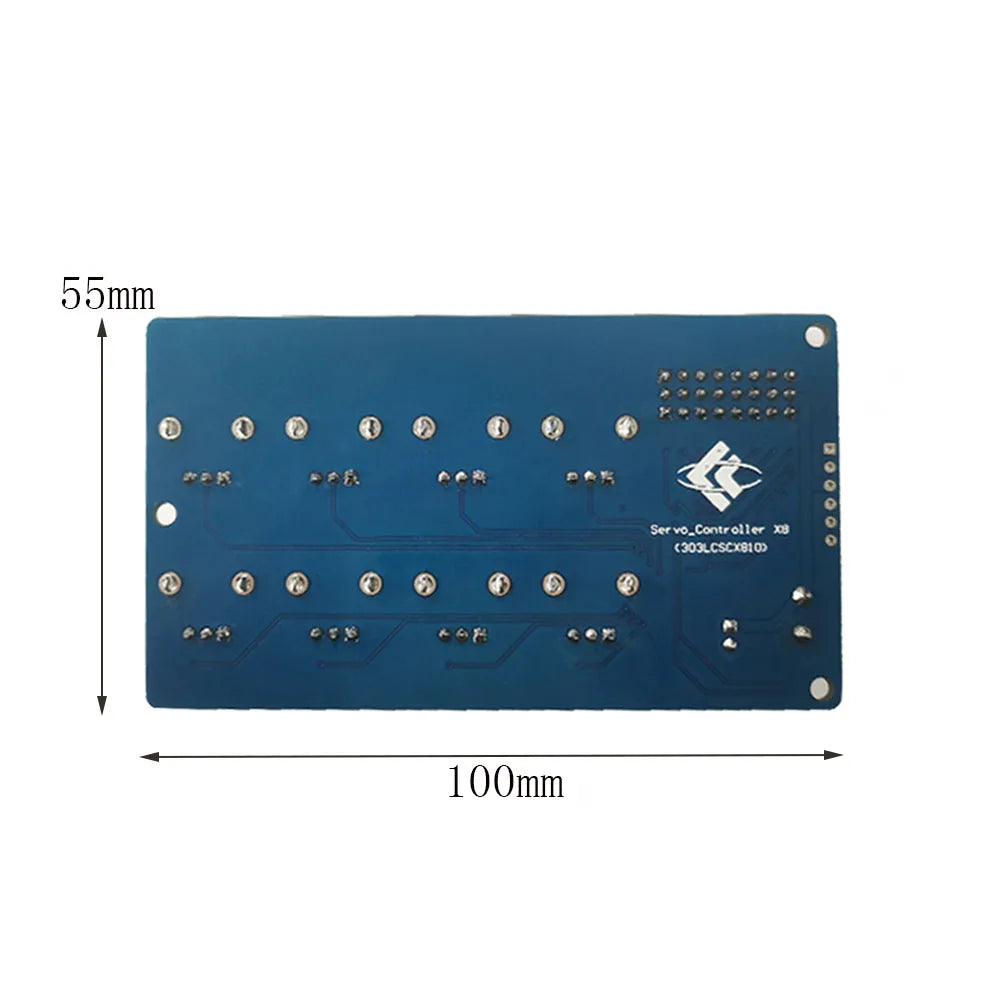

- Please allow ±1–3cm tolerance due to manual measurement.
Learn More About PWM & Electronics Standards
For technical guidance on electronics safety and standards for DIY projects, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Which servo models are compatible with this 8-channel PWM servo control board?
A: This board is compatible with a wide range of standard PWM servos including the MG995, MG996, SG90, as well as servos from Futaba, Huisheng, and any other brand that operates on a 20ms control cycle with 0.5–2.5ms pulse widths. Always verify that your servo's operating voltage matches the board's 5–9V input range.
Q: What is the difference between Manual Mode and Back Mode on this board?
A: In Manual Mode, you control each servo channel directly using the onboard adjustable knobs, making it ideal for hands-on debugging and positioning. Back Mode allows the board to return servos to a preset or default position, useful for testing return-to-center behavior. You can switch between modes at any time using the dedicated button, and the mode indicator LED lets you know which mode is currently active.
Q: Can I power this servo control board with a LiPo battery?
A: Yes! The board accepts a 5–9V power input, making it directly compatible with a standard 2S LiPo battery charging head. This makes it convenient for field debugging and portable robotics or RC applications without needing a bench power supply.
Q: How does the self-restoring fuse protect my servos?
A: Each of the 8 servo interface channels features an individual self-restoring (polyfuse) fuse. If a servo draws too much current — due to a stall or mechanical obstruction — the fuse trips and cuts power to that channel, preventing damage. Once the fault is cleared and the board cools, the fuse automatically resets, so you don't need to replace any components.
