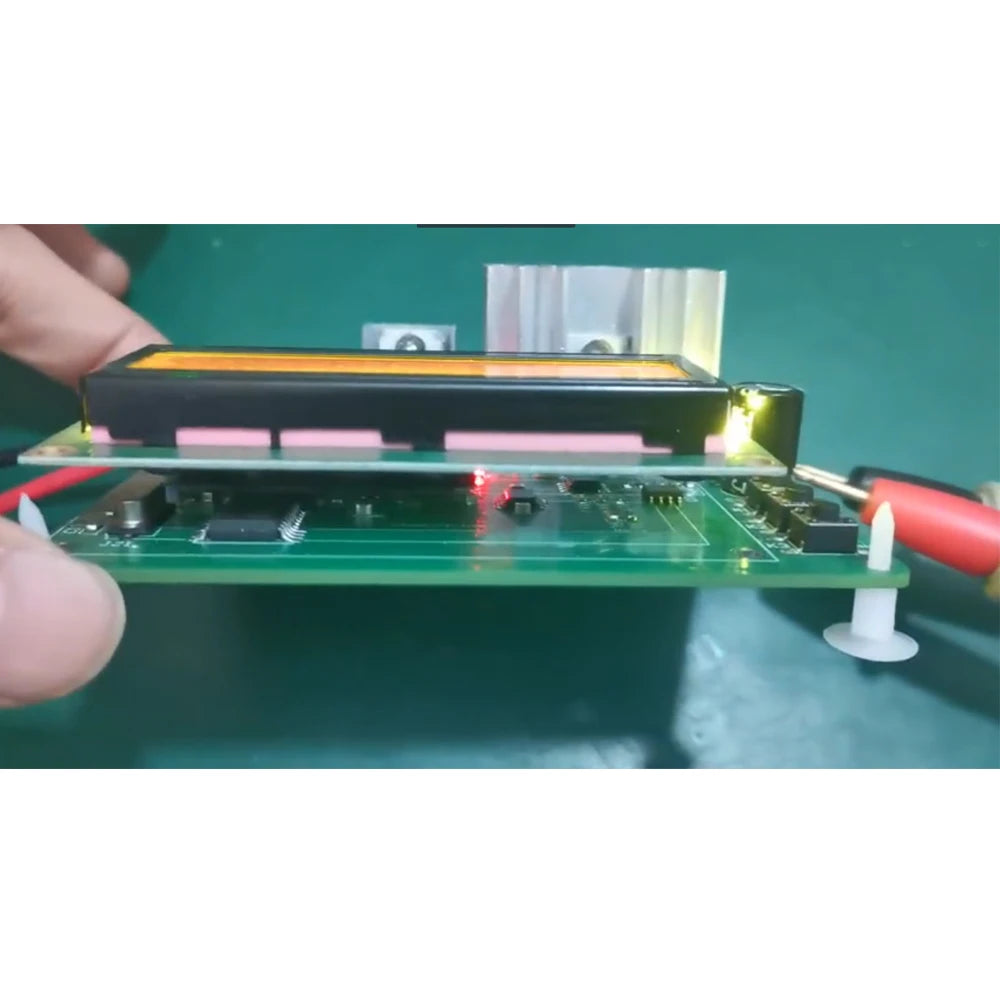

72W Digital Linear Regulated Power Supply Board with LCD1602 Display
Take full control of your electronics projects with this precision-engineered 72W Digital Linear Regulated Power Supply Board. Powered by the enhanced STC12C5204AD 51 MCU microcontroller and featuring a clear LCD1602 display, this module delivers stable, adjustable DC output with real-time monitoring — ideal for makers, engineers, electronics hobbyists, and lab bench setups.
Key Features
- Main Controller: STC12C5204AD Enhanced 51 MCU for reliable digital control
- Linear Voltage Regulation: Op-amp-driven MOS tube for smooth, low-noise output

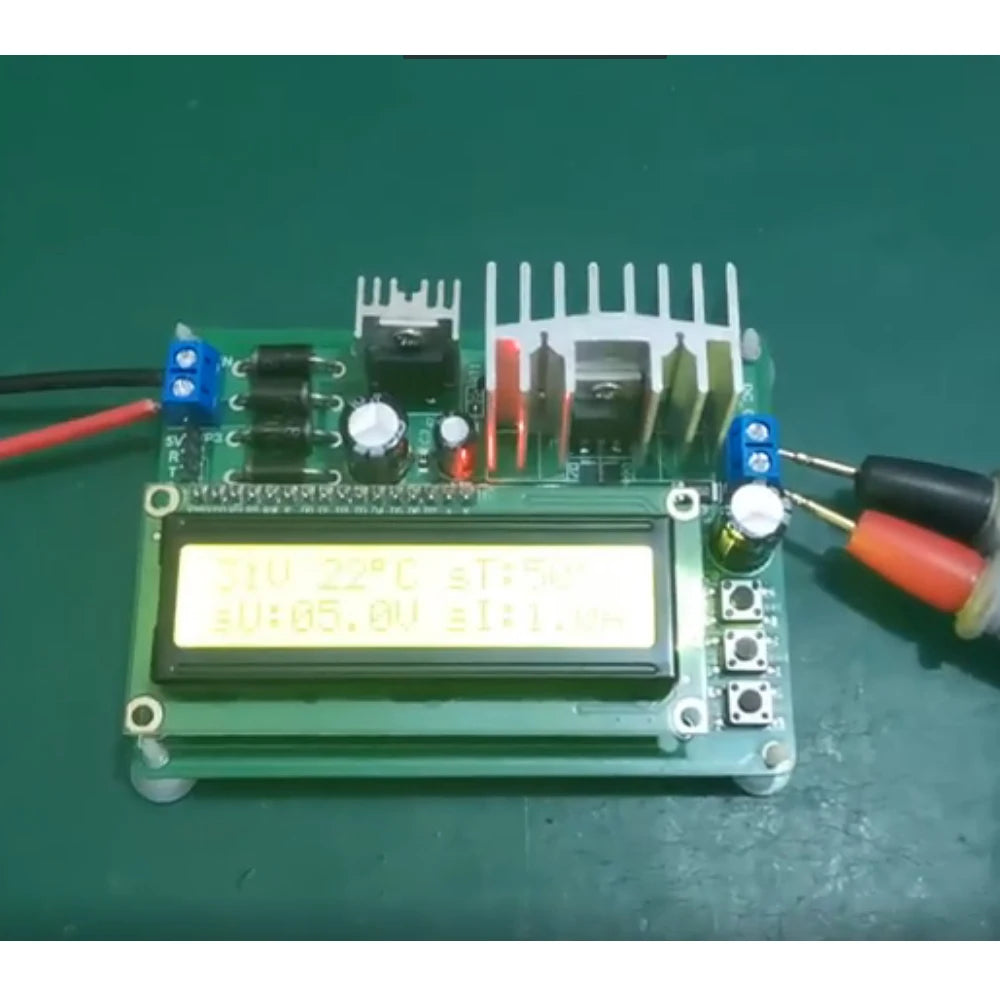

- LCD1602 Display: Shows input voltage, preset output voltage, real-time temperature, alarm temperature, and current limit value at a glance
- Wide Input Range: DC 8–35V or AC 6–24V — works with most bench power adapters and transformers
- Adjustable Output Voltage: Up to 24V in precise 0.1V increments via onboard keys (output reaches 24V when DC input exceeds 29V)
- Maximum Output Power: 72W — capable of handling demanding load requirements
- Onboard Potentiometer: Fine-tune and calibrate output voltage with ease
- Thermal Protection: Power tube protection temperature is user-adjustable from 10°C to 99°C; output cuts off on overtemperature and automatically restores when temp drops 10°C below threshold
- Voltage Regulation Rate: ≤1% under 12–30V DC input with a fixed 5Ω load and 5V output
- Load Regulation Rate: ≤1% with 12V fixed input, 5V output, and current range 0.01A–1A
Technical Specifications
| Microcontroller | STC12C5204AD Enhanced 51 MCU |
| Regulation Type | Linear (op-amp + MOS tube) |
| Input Voltage | DC 8–35V / AC 6–24V |
| Output Voltage | Up to 24V (adjustable, 0.1V step) |
| Max Output Power | 72W |
| Display | LCD1602 |
| Voltage Regulation Rate | ≤1% |
| Load Regulation Rate | ≤1% |
| Thermal Cutoff Range | 10°C – 99°C (user-adjustable) |
| EU LVD Voltage | Low voltage: Below 50Vac or 75Vdc |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1× Digital Linear Regulated Power Supply Board
Notes
- Due to screen and lighting differences, actual color may vary slightly from images.
- Please allow a 1mm–1cm measurement tolerance due to manual measurement.
For more guidance on electronics safety and low-voltage equipment standards, visit the U.S. Consumer Product Safety Commission – Electrical Safety.
Frequently Asked Questions
Q: What input voltage does this digital linear regulated power supply board support?
A: The board accepts a wide input range of DC 8–35V or AC 6–24V, making it compatible with most standard bench power adapters, transformers, and lab power sources.
Q: How do I adjust the output voltage on the LCD1602 power supply board?
A: Output voltage is adjusted using the onboard keys in precise 0.1V increments, up to a maximum of 24V. An onboard potentiometer also allows fine calibration of the output voltage for accurate readings.
Q: What happens if the board overheats during operation?
A: The board features built-in thermal protection. You can set a cutoff temperature between 10°C and 99°C. If the power tube temperature exceeds your set threshold, output is automatically cut off and restored once the temperature drops 10°C below the alarm threshold.
Q: What information does the LCD1602 display show?
A: The LCD1602 screen displays real-time input voltage, preset output voltage, current temperature, alarm temperature setting, and the current limit value — giving you full visibility of the module's operating status at all times.
