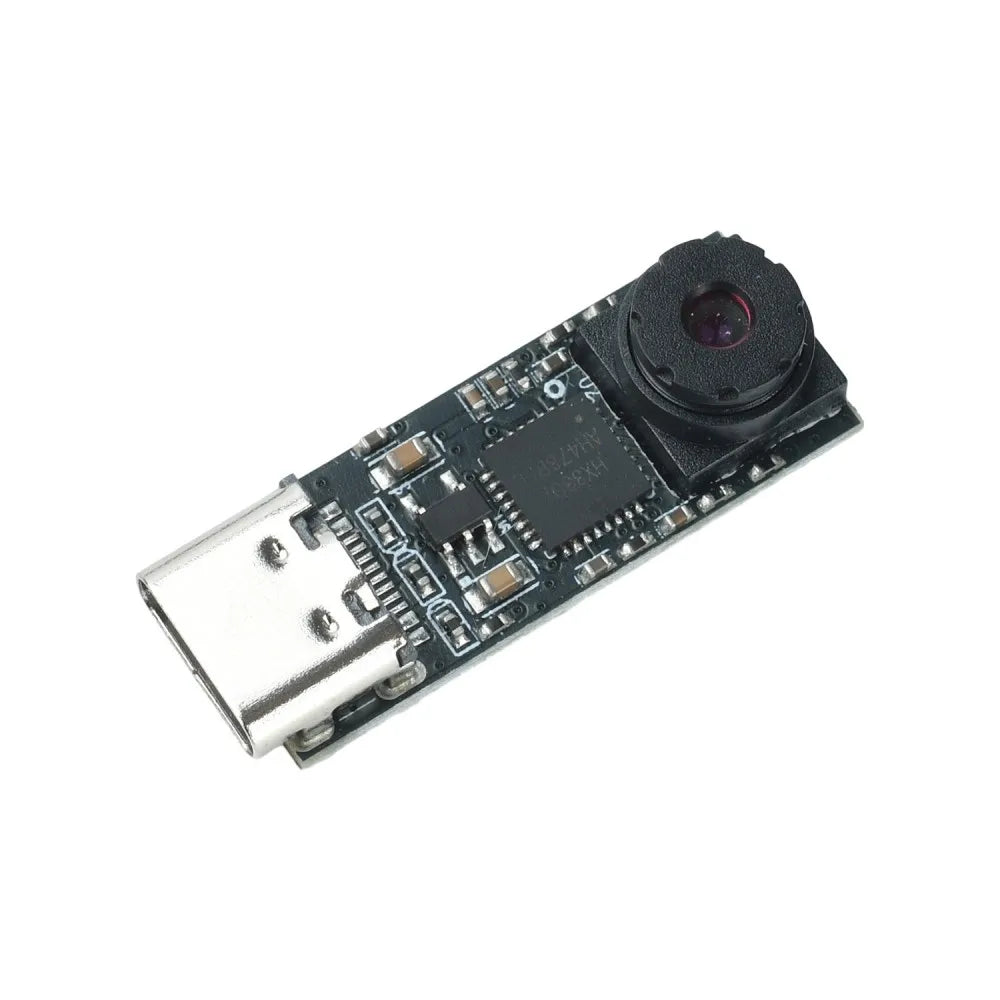

720P 1MP Type-C UVC Camera Module — Plug-and-Play Embedded Vision
Take your embedded vision projects to the next level with this compact 720P 1MP Type-C UVC Camera Module. Designed for developers, makers, and engineers, this plug-and-play camera module connects instantly via USB Type-C — no drivers, no complicated configuration. Whether you're building a Raspberry Pi project, a custom Linux device, or a Windows-based vision system, this module integrates seamlessly right out of the box.
Made in Mainland China.
Why Choose This Camera Module?
- True Plug-and-Play: Compliant with the standard UVC protocol — simply connect it and your system recognizes it immediately. No driver development or extra software required.
- 720P HD Resolution: Supports 1280×720 and 480×320 resolutions with RGB color output in YUV/MJPEG format for crisp, clear imagery.
- 65° Wide Field of View: The 1MP high-sensitivity image sensor paired with a 65° FOV and low-distortion lens (<5%) ensures sharp, edge-to-edge clarity with minimal optical distortion.
- Compact USB Type-C Interface: The slim Type-C connector saves valuable PCB real estate, making it ideal for space-constrained enclosures, wearable prototypes, and compact embedded devices.
- Broad Platform Compatibility: Works with Linux, Windows, and other mainstream platforms supporting USB 1.1 and USB 2.0 — perfect for Raspberry Pi, Jetson Nano, and similar single-board computers.
- Optimized for Embedded Development: Lowers the barrier to entry for embedded vision development, letting you focus on your application rather than hardware configuration.
Full Specifications
| Lens | M5-CSP |
| Focal Length | 2.07 ± 5% mm |
| Aperture | f/2.4 ± 5% |
| Field of View | 65° |
| Distortion | < 5% |
| Mount Base | 8 × 8 mm |
| Object Distance | 5 cm – 20 cm |
| Resolution | 1280×720 / 480×320 |
| Color Format | RGB |
| Interface | USB 1.1 / USB 2.0 |
| Output Format | YUV / MJPEG |
| Operating Voltage | DC 5V |
| Protocol | UVC (USB Video Class) |

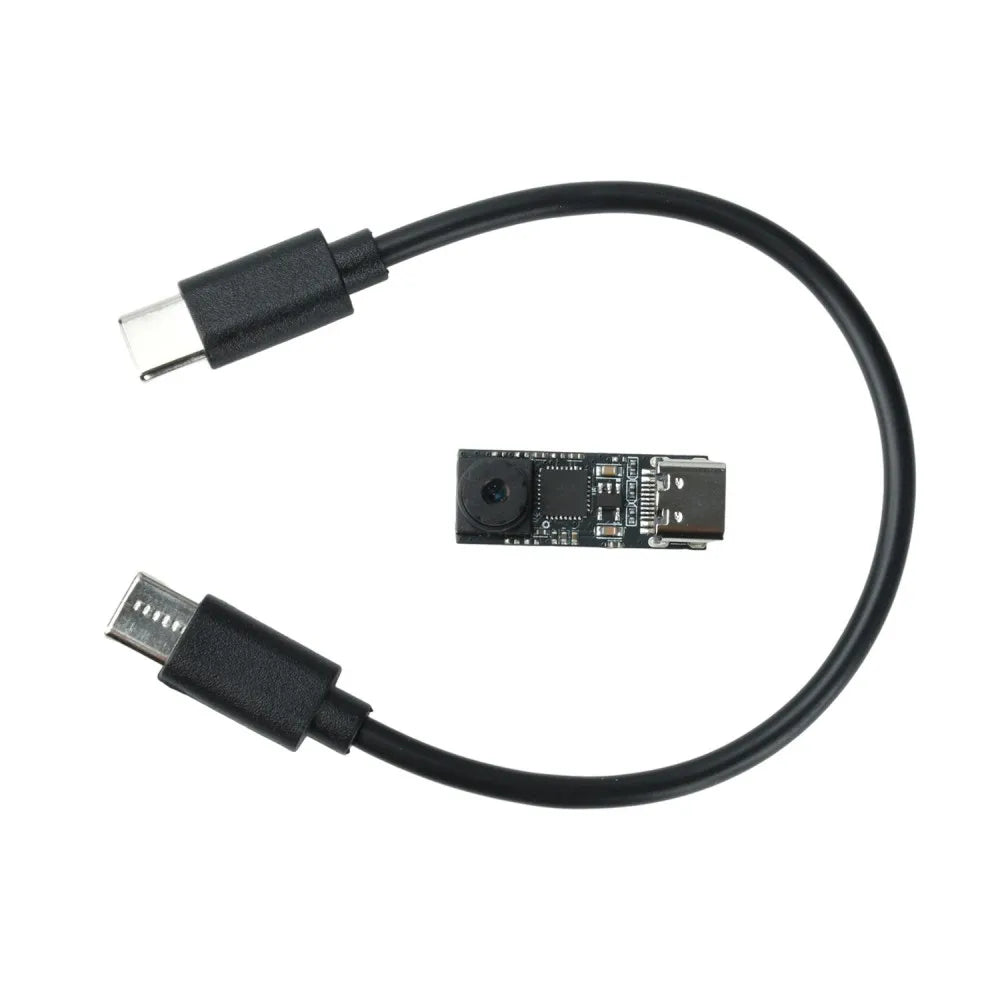

What's in the Box?
- 1× Camera Module
- 1× Cable (depending on bundle selected)
Please Note
- Due to monitor and lighting variations, actual product color may differ slightly from images shown.
- Please allow a 1 mm – 1 cm variance due to manual measurement.
Learn More About USB Video Standards
For background on USB connectivity standards and device interoperability, visit the NIST Electronics Resources for authoritative technical reference material.
Frequently Asked Questions
Q: Is this UVC camera module compatible with Raspberry Pi and Linux systems?
A: Yes! This 720P UVC camera module is fully compatible with Linux-based platforms including Raspberry Pi, Jetson Nano, and similar single-board computers, as well as Windows systems. Because it follows the standard UVC protocol, no custom drivers are needed — just plug it in via USB and start capturing.
Q: What output formats does this embedded vision camera support?
A: The camera module supports both YUV and MJPEG output formats at resolutions of 1280×720 (720P) and 480×320, giving you flexibility depending on your bandwidth and processing requirements.
Q: Why is a USB Type-C interface better for embedded projects?
A: The compact USB Type-C connector has a smaller footprint than standard USB-A or micro-USB ports, which saves critical PCB space in tight enclosures, wearable prototypes, and compact embedded device builds — making it an excellent choice for space-constrained projects.
Q: What is the object distance range for this camera module?
A: This camera module is optimized for object distances between 5 cm and 20 cm, making it well-suited for close-range embedded vision tasks such as barcode scanning, inspection systems, and small-scale robotics vision applications.
