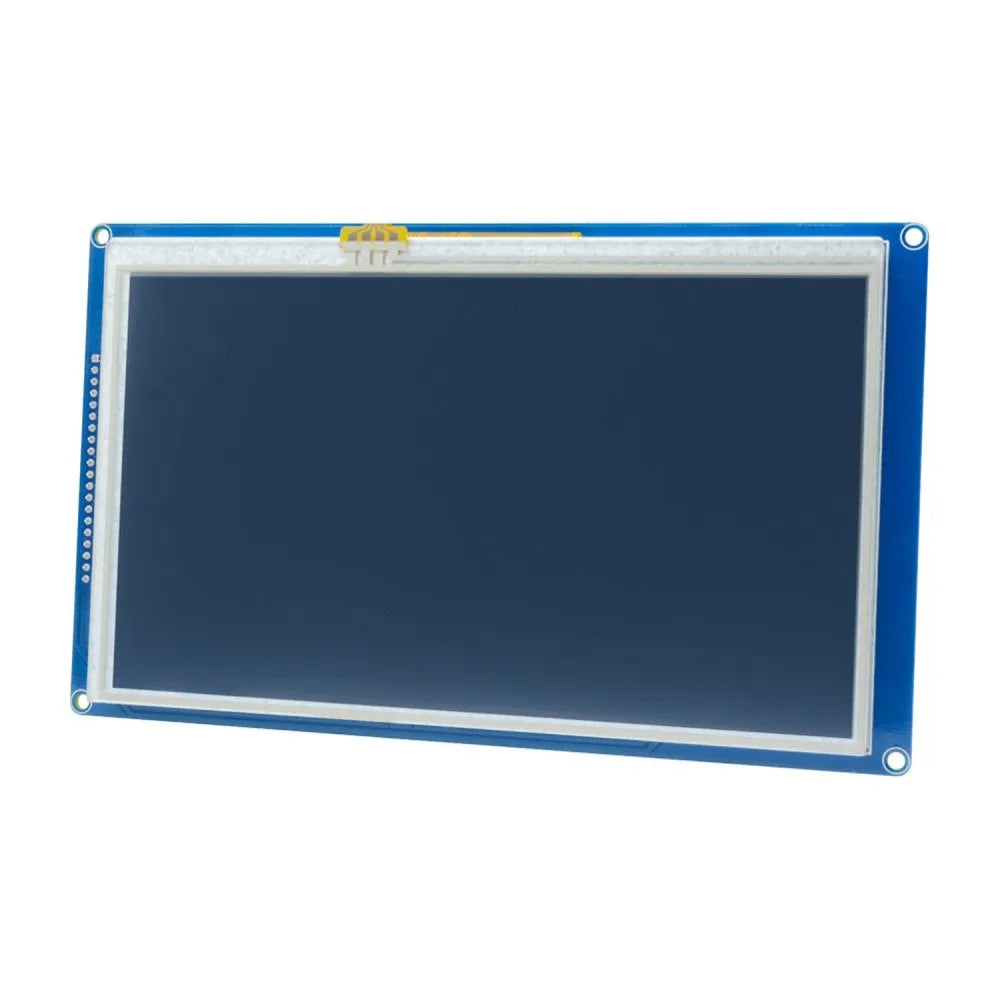

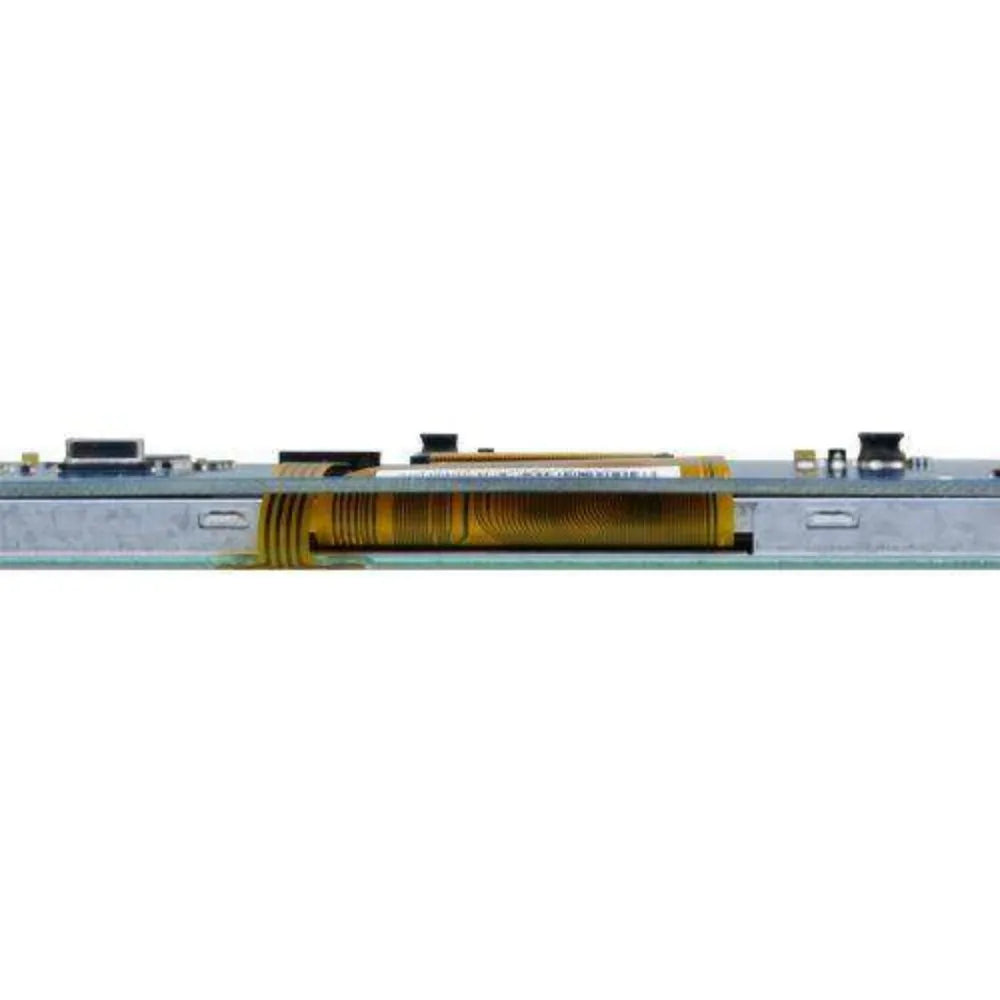

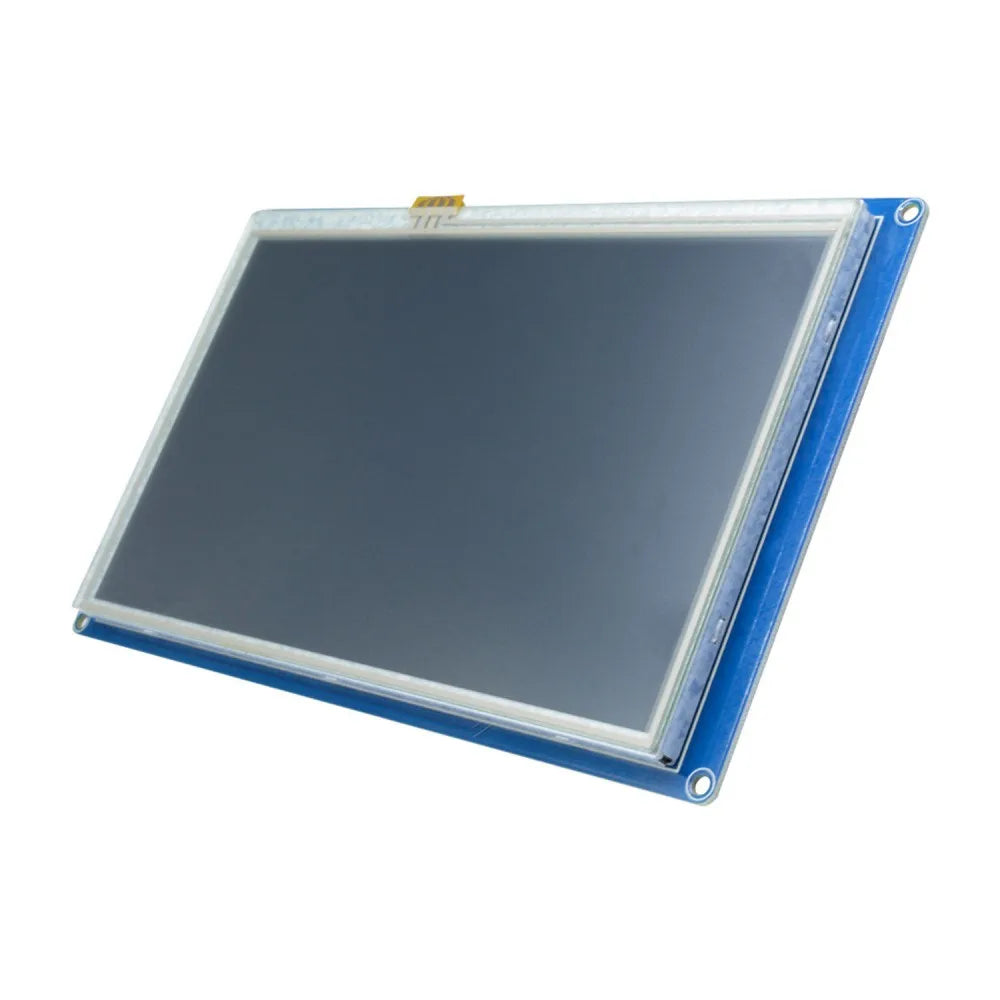

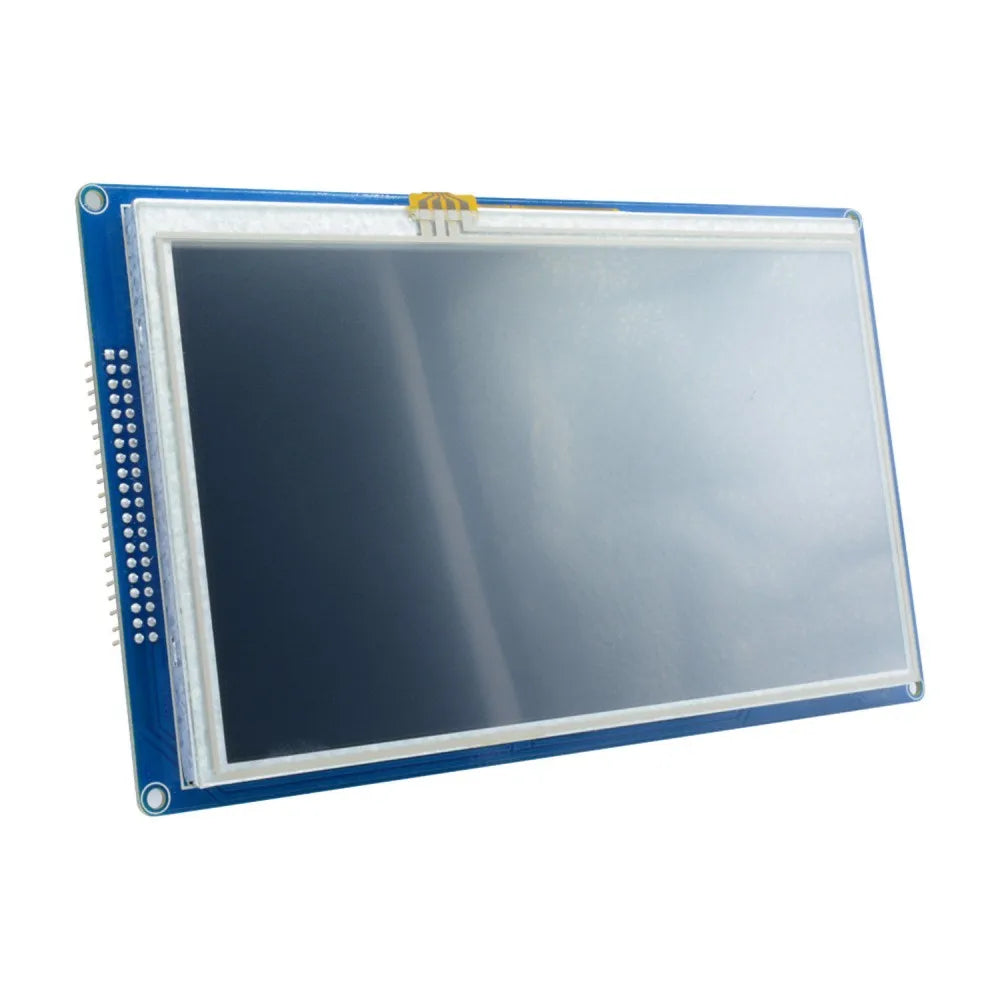

7" TFT Resistive LCD Touch Screen SSD1963 800x480 MCU Module

7-Inch TFT Resistive LCD Touch Screen Module – SSD1963 | 800×480 | 16-Bit Bus

Upgrade your microcontroller project with this high-quality 7-inch TFT resistive LCD touch screen module. Powered by the reliable SSD1963 driver chip and featuring an 800×480 pixel resolution, this display module delivers crisp, vibrant visuals for embedded systems, custom HMI panels, DIY electronics, and prototyping applications. The 16-bit parallel bus interface ensures fast data transfer for smooth display performance with your MCU.

Whether you're building an industrial control panel, a custom media display, or a home automation interface, this module provides an easy-to-integrate solution compatible with a wide range of microcontrollers including Arduino, STM32, and other MCU platforms.

Made in Mainland China.

Key Specifications

• Display Size: 7 inches
• Resolution: 800 × 480 pixels
• Touch Type: Resistive touch screen
• Driver/Control Chip: SSD1963
• Bus Interface: 16-bit parallel bus
• Voltage: Low voltage – below 50V AC or 75V DC
• High-Concern Chemicals: None

Key Features

• 📺 Large 7" TFT panel – bright, clear display for detailed UI elements and graphics
• ⚡ SSD1963 driver chip – industry-standard controller with proven MCU compatibility
• 🖱️ Resistive touch input – responsive touch interaction, works with stylus or gloved hands
• 🔌 16-bit parallel bus interface – high-speed data transfer for smooth rendering
• 🔧 Broad MCU compatibility – works with STM32, Arduino MEGA, and similar platforms
• 🛠️ Compact, module-ready design – easy to integrate into enclosures and project builds

What's in the Box

• 1× 7-Inch TFT Resistive LCD Touch Screen Module (SSD1963)

Important Notes

• Due to lighting conditions and screen calibration differences, the item's color may appear slightly different from product images.
• Please allow a 1mm–1cm variance due to manual measurement.

Resources & Further Reading

For guidance on safe handling of low-voltage electronics and embedded display modules, refer to the U.S. Consumer Product Safety Commission (CPSC) and OSHA's Electrical Safety guidelines for best practices when working with electronic components.

Frequently Asked Questions

Q: Is this 7-inch TFT LCD touch screen module compatible with Arduino?

A: Yes, the SSD1963-driven module is compatible with Arduino MEGA and other MCUs that support a 16-bit parallel bus interface. You will need an appropriate adapter shield or wiring harness to connect the module to your Arduino board.

Q: What type of touch technology does this display use?

A: This module uses resistive touch screen technology, which responds to physical pressure on the screen surface. It is compatible with a stylus, fingernail, or gloved hands, making it ideal for industrial and DIY embedded applications.

Q: What is the resolution of this TFT LCD module?

A: The display offers an 800×480 pixel resolution, providing clear and detailed graphics suitable for user interface panels, dashboards, media displays, and custom MCU-based projects.

Q: Does the module include any cables or mounting hardware?

A: The package includes 1× Touch Screen Module only. Cables, mounting hardware, and MCU boards are not included and must be sourced separately based on your project requirements.
