7" Digital Microscope 1200X Zoom 12MP HD | Hayve DM9

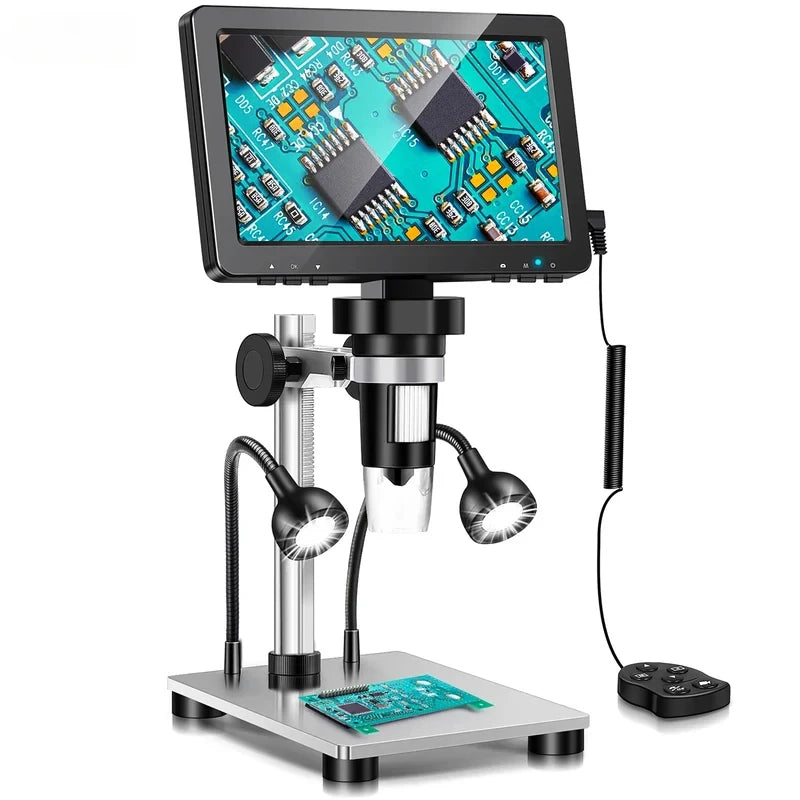

Hayve DM9 — 7-Inch LCD Digital Microscope with 1200X Magnification & 12MP HD Camera

Take your inspection, soldering, and repair work to the next level with the Hayve DM9 Digital Microscope. Featuring a large 7-inch LCD display, 12MP high-definition camera, and up to 1200X continuous magnification, this versatile tool delivers crystal-clear detail for electronics repair, coin inspection, PCB analysis, and much more. Made in Mainland China from durable aluminium alloy, it's built to handle demanding workshop environments.

Key Features

• 7-Inch Large LCD Screen: Wide, angle-adjustable display gives you an immediate, full-view image — no squinting at a tiny eyepiece. The 12MP camera feeds crisp, detailed imagery straight to the screen.
• 10–1200X Continuous Digital Magnification: Dial in the perfect zoom level to examine error coins, burned PCB components, fine soldering joints, circuit traces, and other miniature details with remarkable clarity.
• 1080 Full-HD Photo & Video Capture: Capture 12MP (4032×3024) still images in JPG format, or record smooth 1080FHD (1920×1080 @ 30fps) video in AVI format — directly to the device. A wired remote is included to minimise camera shake for sharper results.

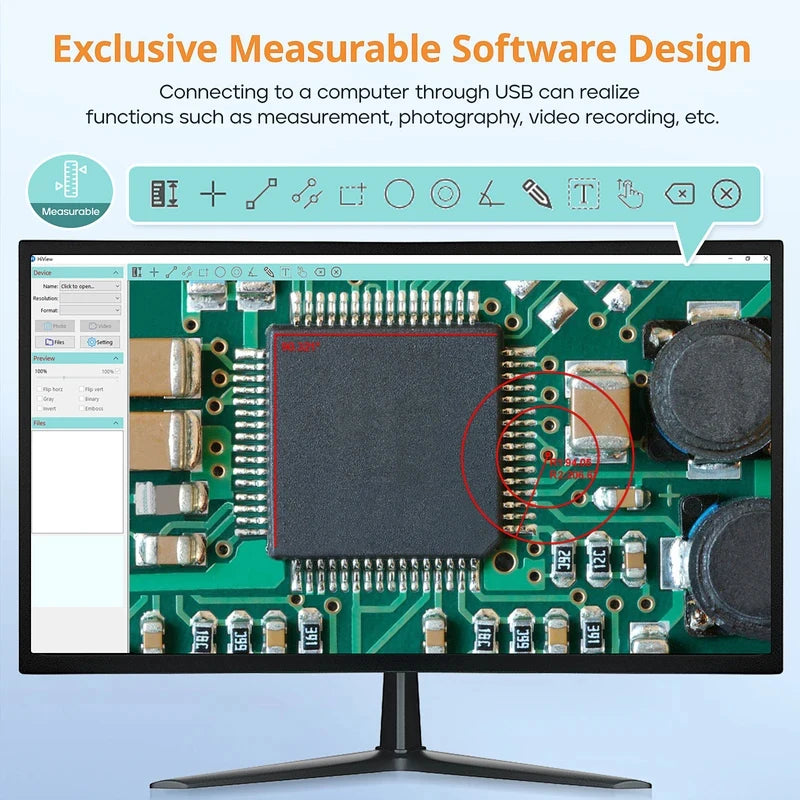

• PC Compatible — Plug & Play: Connect via Micro-USB to any Windows (XP, 7, 8.1, 10) or Mac OS X (10.5+) computer. No extra software needed — uses the built-in "Windows Camera" or "Photo Booth" apps for instant live viewing and data sharing.
• 2 Extra Flexible Metal Goose-Neck LED Lights: Two independently powered auxiliary lights (Type-C rechargeable) bend to illuminate from any angle, achieving up to 90% illumination coverage. The 8 built-in adjustable LEDs provide additional consistent lighting.
• Manual Focus with Wide Focusing Range: Focuses from 10–40mm, with the ability to view more distant subjects as well. Automatic white balance and exposure ensure accurate colour and brightness every time.
• Durable Aluminium Alloy Build: Lightweight yet sturdy construction (Model: DM9) with an aluminium base and holder for stable, vibration-free inspection sessions.
• Certifications: CE, FCC, RoHS, WEEE — meets major international safety and environmental standards.

Technical Specifications

• Model: DM9
• Screen Size: 7 inches LCD
• Camera Resolution: 12MP (also supports 10M, 8M, 5M, 3M)
• Video Resolution: 1080FHD / 1080P / 720P
• PC Output: 1280×720 @ 30fps
• Magnification: 10–1200X (digital zoom supported)
• Lens Optic Size: 1/4"
• Lens Construction: 2G+IR | Aperture: F4.5 | Lens Angle: 16°
• Focus Mode: Manual | Focusing Range: 10–40mm
• Illumination: 8 adjustable LEDs + 2 independent goose-neck LED lights
• Interface: Micro-USB 1.1
• Supported Languages: 12
• Operating Temperature: -20°C to +60°C
• Operating Humidity: 30%–85% RH
• Material: Aluminium alloy
• Origin: Made in Mainland China
• Certifications: CE, FCC, RoHS, WEEE

What's in the Box?

1. Hayve LCD Digital Microscope (DM9) × 1
2. Aluminium Base × 1
3. Aluminium Holder × 1
4. Wired Remote × 1
5. USB Cable × 1
6. User Manual × 1
7. Straightedge × 1
8. Light Barrier × 1

Who Is This For?

The Hayve DM9 is ideal for electronics technicians, hobbyist repair enthusiasts, coin and stamp collectors, jewellers, students, educators, and anyone who needs reliable, high-magnification visual inspection without the complexity of traditional optical microscopes.

For general guidance on optical and digital microscopy standards and safe equipment use in workplaces, visit OSHA's Laboratory Safety Resources.

Frequently Asked Questions

Q: Can I use the Hayve DM9 digital microscope without a computer?

A: Yes! The DM9 has a built-in 7-inch LCD screen, so you can view, capture photos, and record video completely independently without connecting to a PC. Simply power it on and use the on-device controls or the included wired remote.

Q: Does the 7-inch digital microscope work with Mac computers?

A: Absolutely. The DM9 is plug-and-play compatible with both Windows (XP, 7, 8.1, 10) and Mac OS X 10.5 or higher. On Mac, use the built-in "Photo Booth" app — no additional drivers or software downloads are required.

Q: What is the maximum magnification of this digital microscope?

A: The Hayve DM9 offers up to 1200X continuous digital magnification, with a focusing range of 10–40mm. This makes it suitable for inspecting fine soldering joints, circuit board components, coins, stamps, fibres, and other small-scale objects.

Q: How does the video and photo capture work on the DM9?

A: You can capture 12MP still photos in JPG format and record 1080FHD video (1920×1080 at 30fps) in AVI format. Photos and videos can be taken using the button on the microscope body or with the included wired remote control — the remote is recommended for steadier, shake-free results.

Q: What are the two extra goose-neck lights for?

A: The two flexible metal goose-neck LED lights are independently powered (rechargeable via Type-C cable) and can be positioned at any angle to illuminate your specimen from multiple directions. They can illuminate up to 90% of the target area, which is especially useful when working with reflective surfaces like PCB boards or metallic coins.
