4-Pack 6x6 Post Base Brackets U-Shaped Steel for Concrete Pergola

4-Pack Heavy-Duty U-Shaped 6x6 Post Base Brackets for Concrete

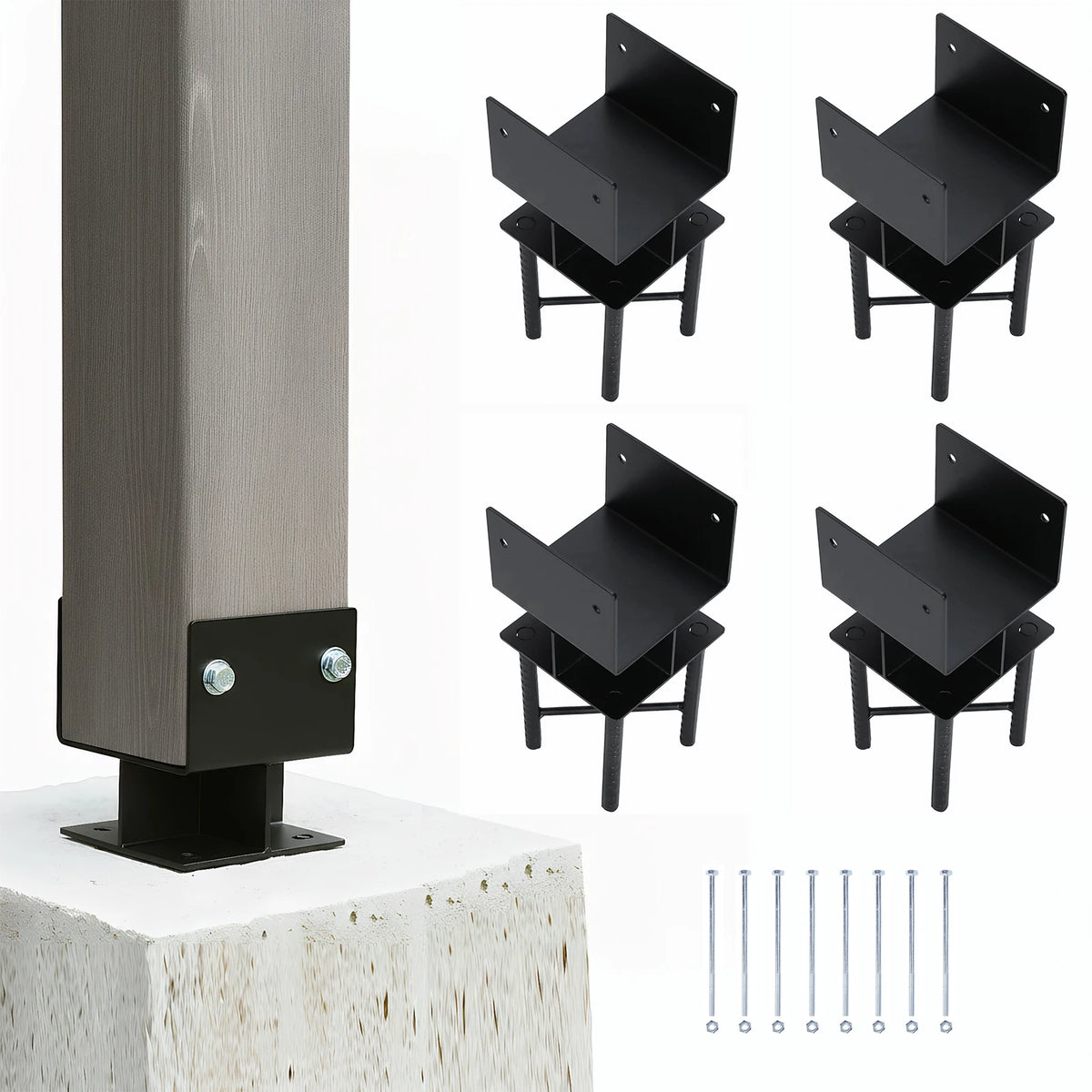

Secure your wood posts with confidence using these professional-grade U-shaped steel post base brackets. Designed for standard 6x6 lumber (actual 5.5" x 5.5"), this set of four provides everything you need to anchor pergolas, porch railings, mailbox supports, decks, fences, and more directly into wet concrete — quickly, cleanly, and durably.

Made in Mainland China.

Key Features

• Moisture-Barrier Elevated Design: Each bracket suspends wood posts approximately 2.4 inches above ground level, creating an air gap that significantly reduces moisture contact and helps prevent wood rot — extending the lifespan of your entire structure.

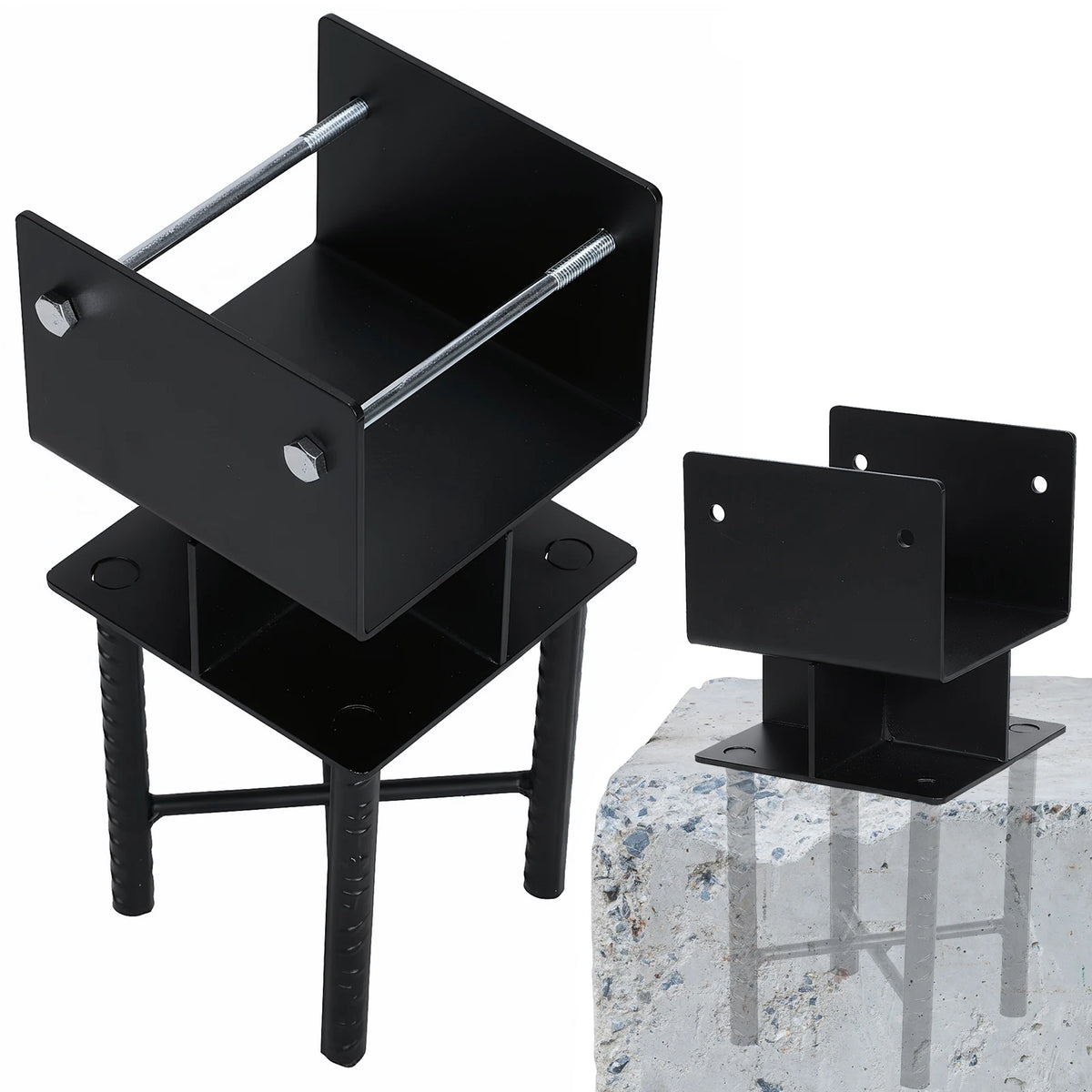

• Heavy-Duty Powder-Coated Steel: Built from sturdy steel with a baked powder-coat finish for corrosion resistance. Four seamlessly welded bars provide rock-solid anchoring strength once set in concrete.

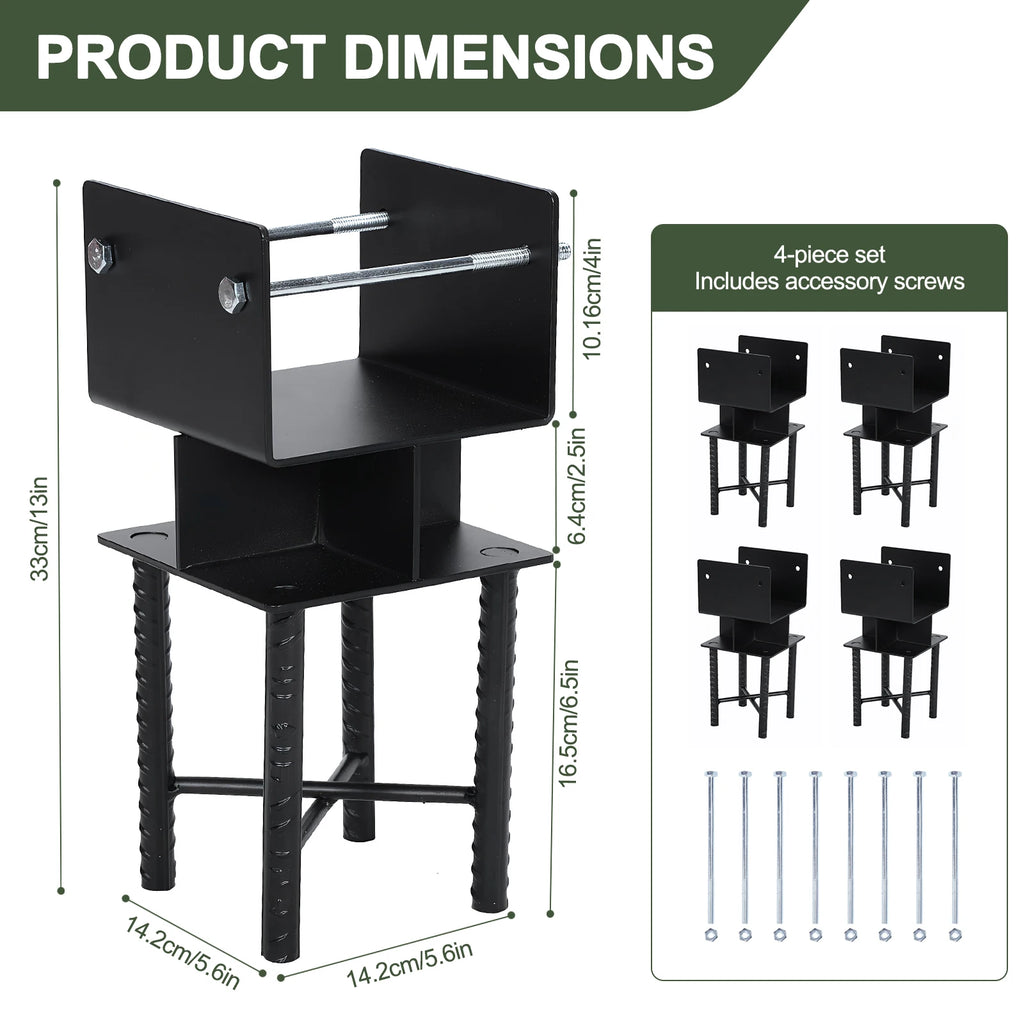

• Precise Sizing for 6x6 Posts: Inner dimensions of 5.5" x 5.5" perfectly accommodate standard nominal 6x6 lumber. Bracket dimensions: approx. 5.6"L x 5.6"W x 13"H (14.2 x 14.2 x 33 cm).
• Integrated Locking Screws: Included hardware creates a tight, interlocking fit that resists loosening from humidity fluctuations or temperature swings — no extra trips to the hardware store required.
• Simple DIY Installation: Insert the anchor spike into uncured (wet) concrete, let it set, drill holes in your wood post, and fasten with the included bolts and nuts. All necessary accessories are included in the box.
• Versatile Applications: Ideal for pergolas, porch railings, deck posts, privacy fences, mailbox posts, garden structures, and more.

Specifications

What's in the Box

• 4 × U-Shaped Steel Post Base Brackets (6×6)
• Mounting hardware (bolts, nuts & screws included)

Installation Tips

1. Pour or prepare your concrete in the post location.
2. Insert the anchor spike into the wet, uncured concrete and ensure it is plumb and level.
3. Allow the concrete to fully cure before loading the bracket.

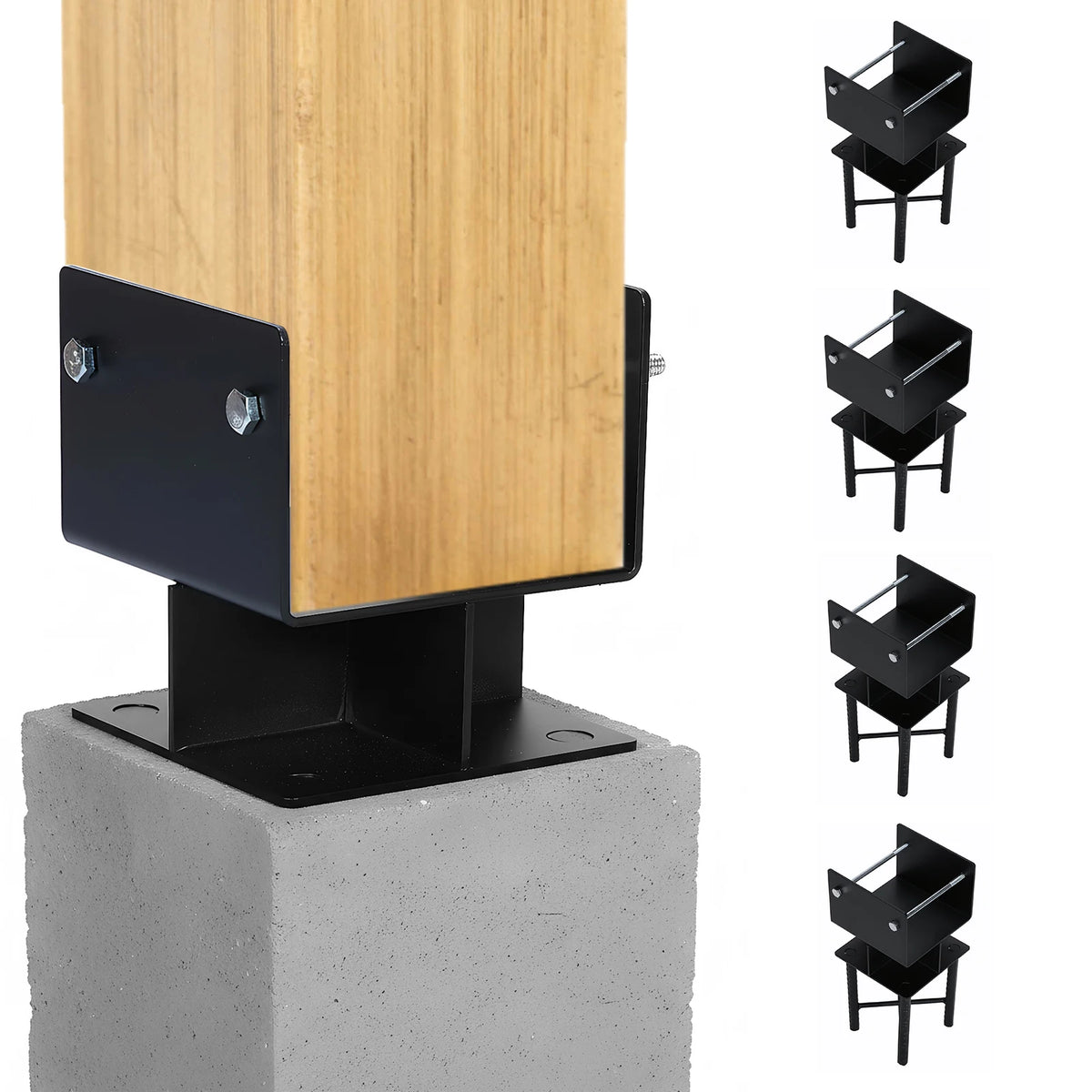

4. Slide your 6×6 wood post into the bracket, drill through the pre-positioned holes, and secure with the included bolts and nuts.

For general guidance on safe and durable outdoor structure construction, visit the U.S. Consumer Product Safety Commission (CPSC) for safety standards and best practices.

Frequently Asked Questions

Q: What size wood post fits these 6x6 post base brackets?

A: These brackets are designed for standard nominal 6x6 lumber, which has an actual dimension of 5.5 inches × 5.5 inches — matching the inner bracket opening exactly. They will not fit 4x4 or 4x6 posts without adapters.

Q: Can I install these post base brackets in existing cured concrete?

A: These anchors are specifically designed to be embedded in wet, uncured concrete. For already-cured concrete slabs, you would need to use a hammer drill with anchor bolts (not included) to retrofit a surface-mount bracket. Always follow local building codes for structural post installations.

Q: Are these post brackets suitable for outdoor use?

A: Yes. The powder-coated (baked paint) steel finish provides a layer of corrosion resistance for outdoor environments. The elevated design also keeps wood posts lifted off the ground, reducing moisture exposure and helping prevent premature wood decay — making them well-suited for pergolas, decks, porch railings, and fence posts.

Q: How many brackets come in a set, and is all hardware included?

A: Each order includes a set of 4 U-shaped post base brackets along with all necessary mounting hardware (bolts, nuts, and screws), so you can begin installation right away without purchasing additional fasteners.
