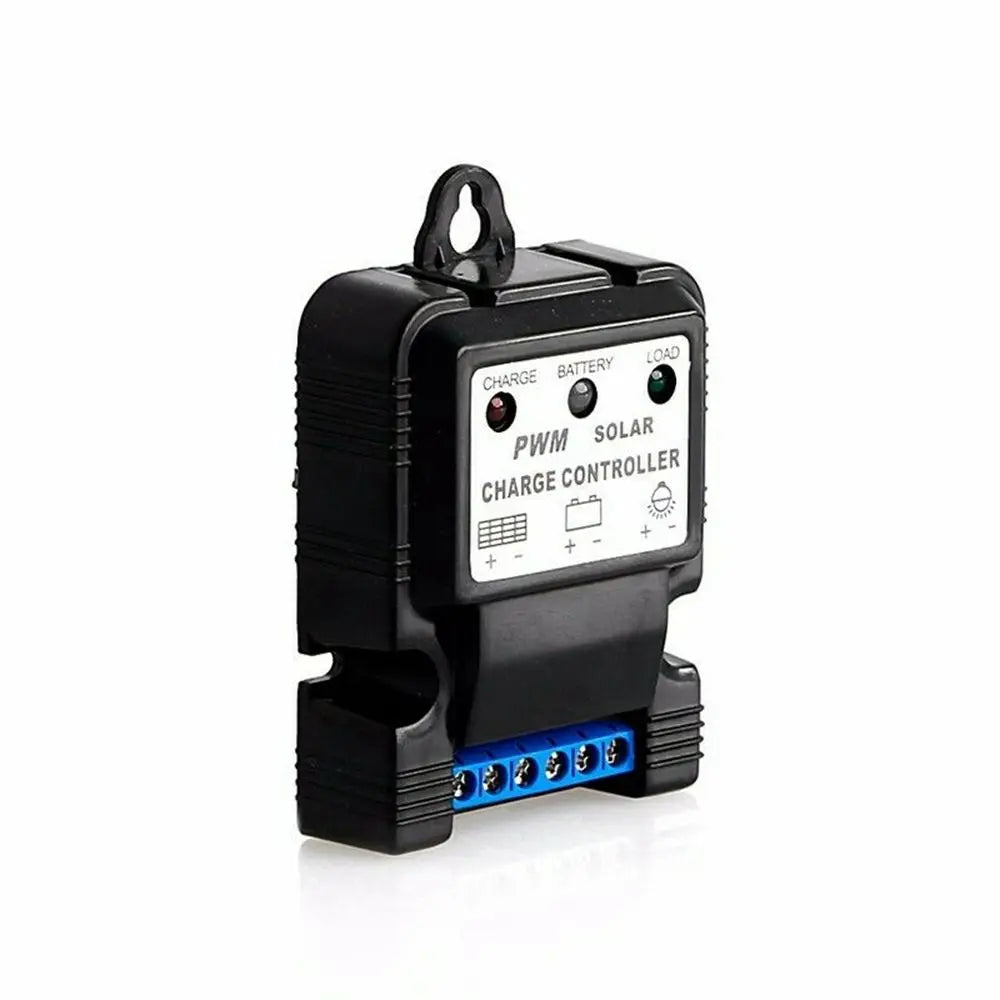

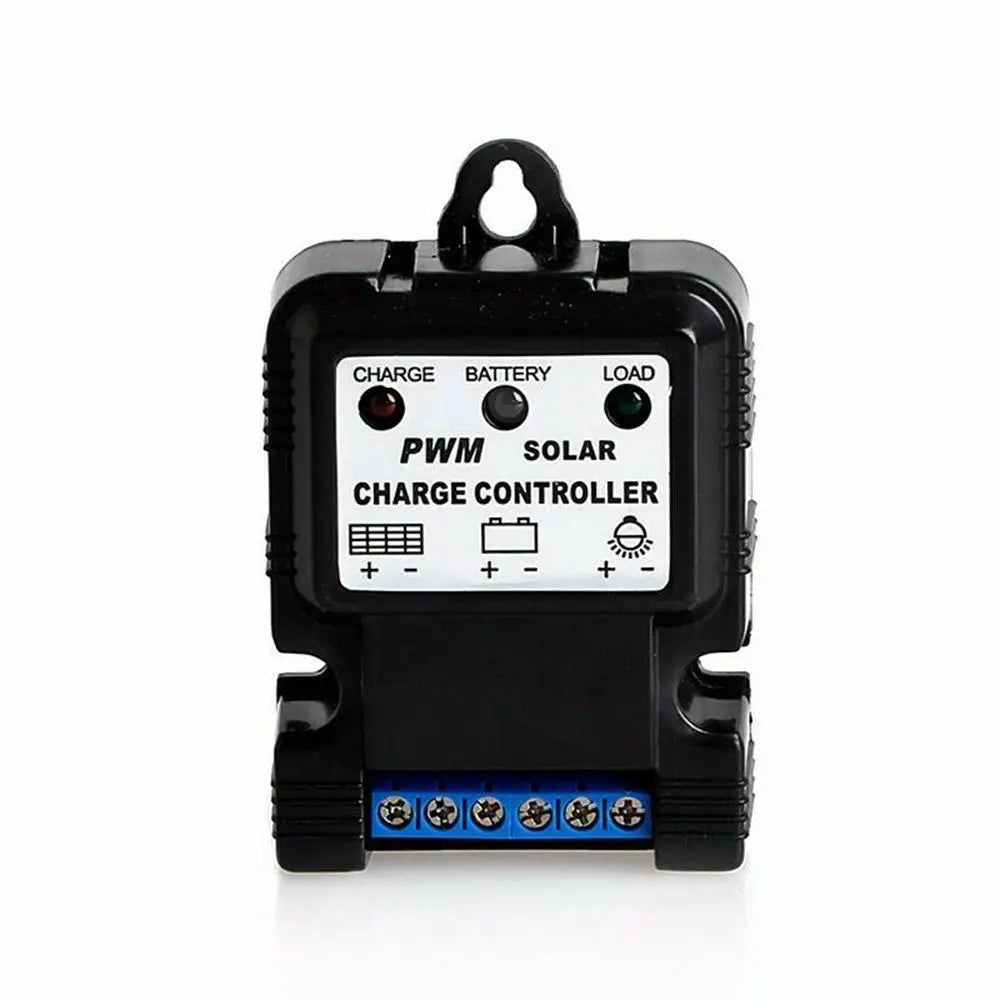

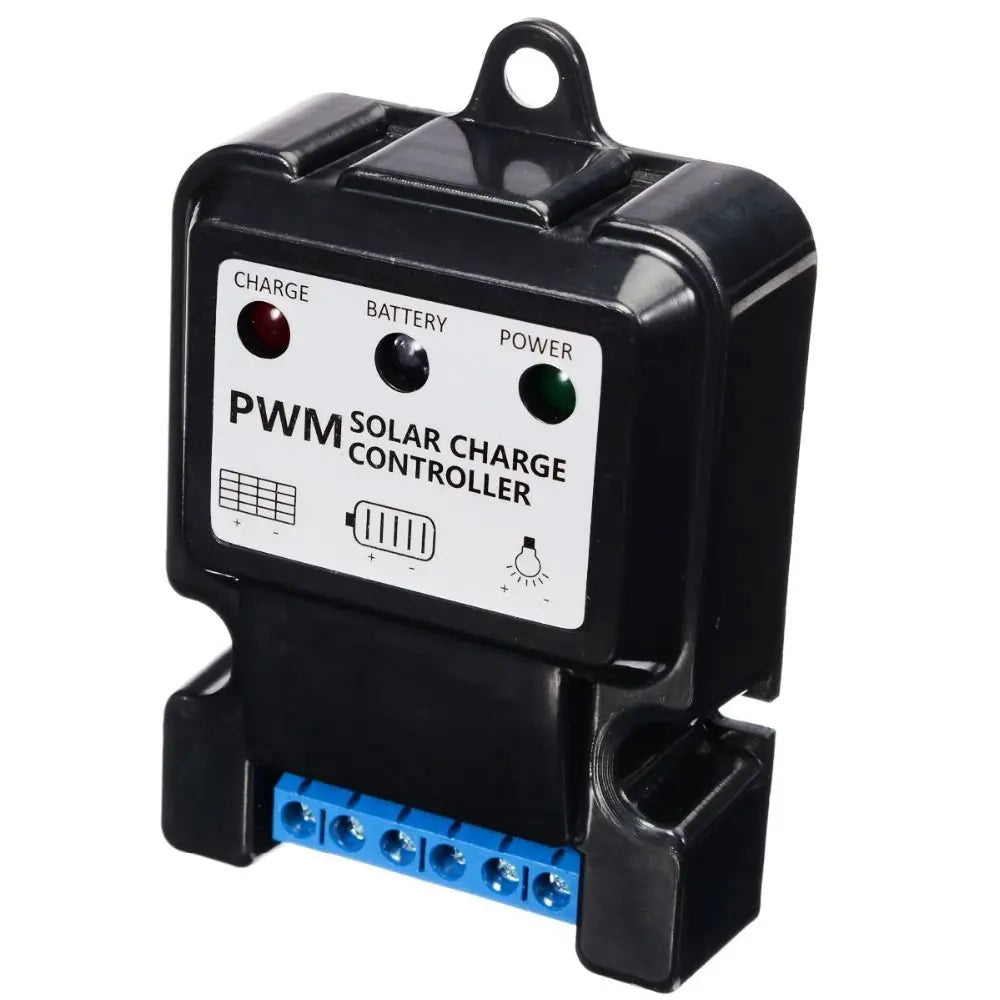

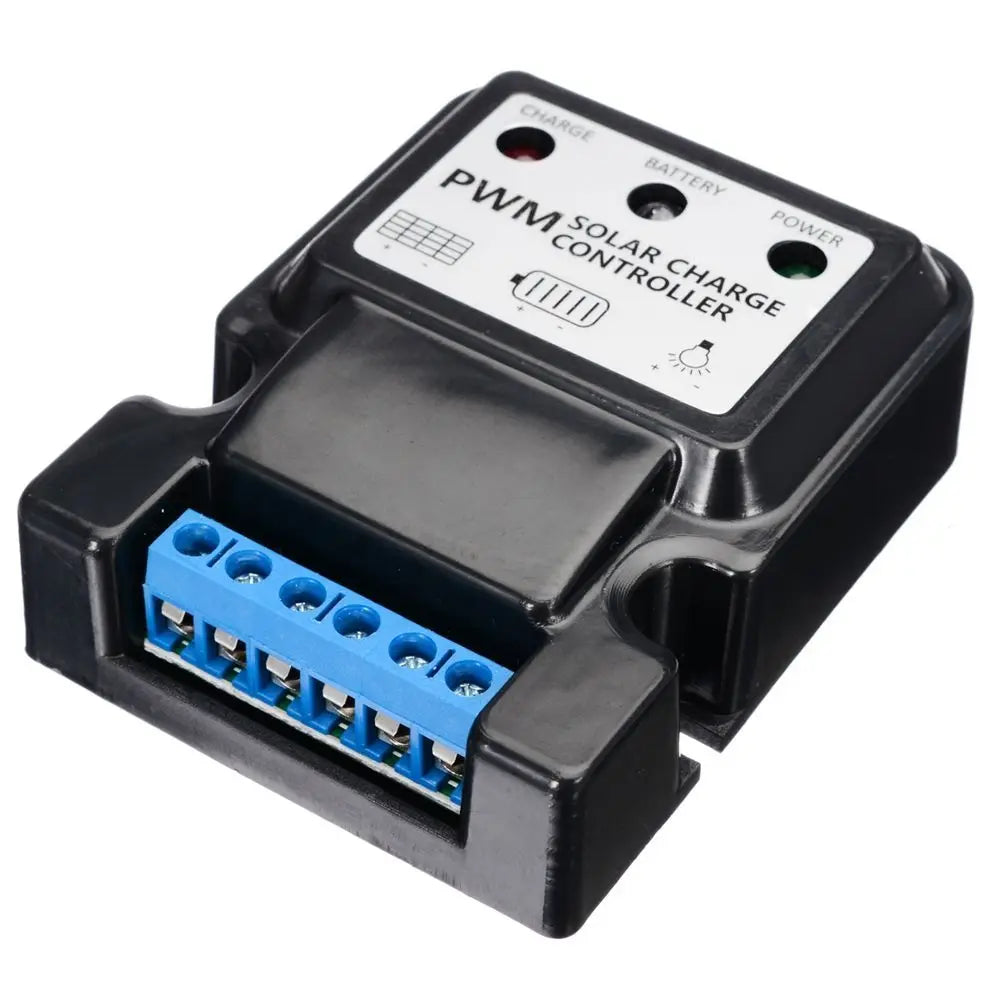

Auto 6V/12V 10A Solar Panel Charge Controller
Keep your solar energy system running efficiently with this compact and reliable 6V/12V 10A Solar Panel Charge Controller. Designed for small-to-medium solar setups, this automatic regulator intelligently manages the charging and discharging of your battery, helping extend battery life and protect your entire system from common electrical faults.
Key Features
- Dual Voltage Compatibility: Automatically supports 6V and 12V systems — no manual switching required.
- 10A Output Current: Handles up to 60W (6V) or 120W (12V) of solar panel power with ease.
- Overload & Short-Circuit Protection: Built-in safeguards help protect your battery and connected load from electrical faults.
- Multiple Discharge Modes: Factory-default is normally open mode; easily configure pure light control or light control + timing mode via the onboard DIP switch.
- Low No-Load Loss: Only 5mA standby draw, maximizing the energy stored in your battery.
- IP30 Protection Rating: Suitable for sheltered installation with basic dust protection.
- Wide Operating Temperature: Functions reliably from -40°C to +55°C, making it adaptable to a wide range of climates.
- LED Indicators: Clearly shows battery status and charge activity at a glance.
Technical Specifications
- Model Number: LCDB1A02
- System Voltage: 6V / 12V (Auto)
- Output Current: 10A
- Power Range: 60W (6V) | 120W (12V)
- No-Load Loss: 5mA
- Charge Loop Drop: 0.2V
- Discharge Loop Drop: 0.1V
- Protection Degree: IP30
- Working Temperature: -40°C to +55°C
- Material: Plastic
- Package Includes: 1× Auto Solar Charge Controller, 1× User Manual
How to Install & Use
- Set the discharge mode: The unit ships in normally open mode. To switch to pure light control or light control + timing mode, open the enclosure and adjust the DIP switch (key "on" = 1, key "off" = 0).
- Connect the battery first. If wired correctly, the battery indicator LED will illuminate.
- Connect the solar panel second. Place the panel outdoors in direct sunlight — the charge indicator will light up or flash within 10 seconds once a correct connection is confirmed.
- Connect the load last. Always observe correct polarity (anode/cathode) to avoid damage to the load or controller.
⚠ Important Notes:
- Always observe correct anode/cathode polarity on all connections.
- Minor size variations may occur due to manual measurement.
- Screen color settings may cause slight color variations from the product photos.
Made in Mainland China.
For general guidance on safe solar energy system installation and best practices, visit the U.S. Department of Energy – Homeowner's Guide to Going Solar.
Frequently Asked Questions
Q: Is this solar charge controller compatible with both 6V and 12V battery systems?
A: Yes! The 6V/12V 10A solar charge controller automatically detects your system voltage — no manual configuration needed. It supports up to 60W at 6V and up to 120W at 12V, making it versatile for a variety of small solar setups including garden lighting, RV batteries, and off-grid projects.
Q: How do I change the discharge mode on this solar panel charge controller?
A: The unit ships in "normally open" mode by default. To switch to pure light control mode or light control + timing mode, you'll need to open the enclosure and adjust the DIP switch inside. Key position "on" = 1, and "off" = 0. Refer to the included user manual for the specific switch combinations for each mode.
Q: Does this charge controller offer protection against overload or short circuits?
A: Yes. This solar battery regulator includes built-in overload and short-circuit protection to help safeguard both your battery and your connected load from common electrical faults during operation.
Q: Where should I install this solar charge controller?
A: The controller carries an IP30 protection rating, which means it's best installed in a sheltered, dry indoor or semi-enclosed location (such as inside a weatherproof box or shed). The solar panel itself should be placed outdoors in direct sunlight for optimal charging performance.
