650nm Red Laser Locator Module – Dot, Line & Cross Beam | 10mW–200mW

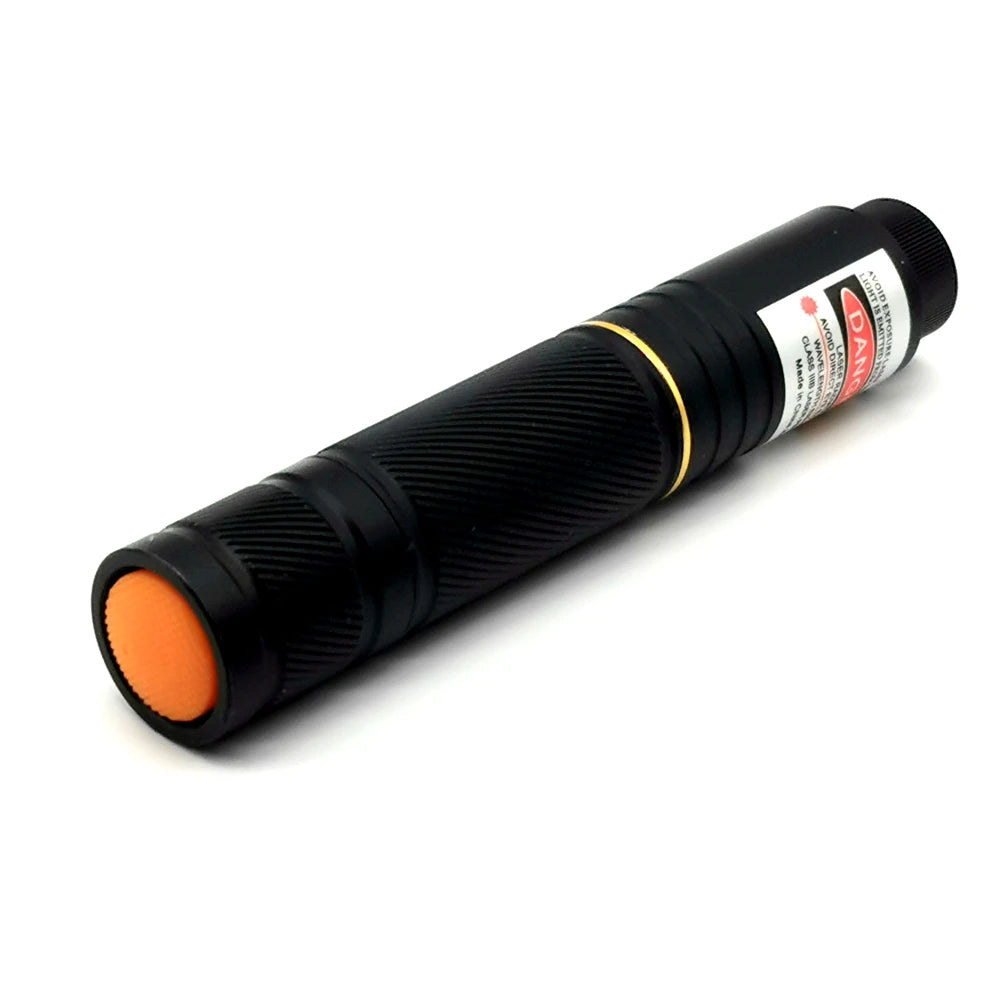

Precision meets versatility with this professional-grade 650nm Red Laser Positioning Module. Engineered from aerospace-grade aluminum, this compact 20×108mm module delivers a crisp, bright red beam in three selectable projection shapes — Dot, Line, or Cross — making it an ideal solution for alignment, positioning, measurement, and stage or industrial applications. With output power options ranging from 10mW to 200mW and a fully adjustable focus, you get pin-sharp accuracy every time.
Made in Mainland China.
Key Features
- Wavelength: 650nm (visible red light)
- Output Power: 10mW / 50mW / 100mW / 150mW / 200mW (select your preferred option)

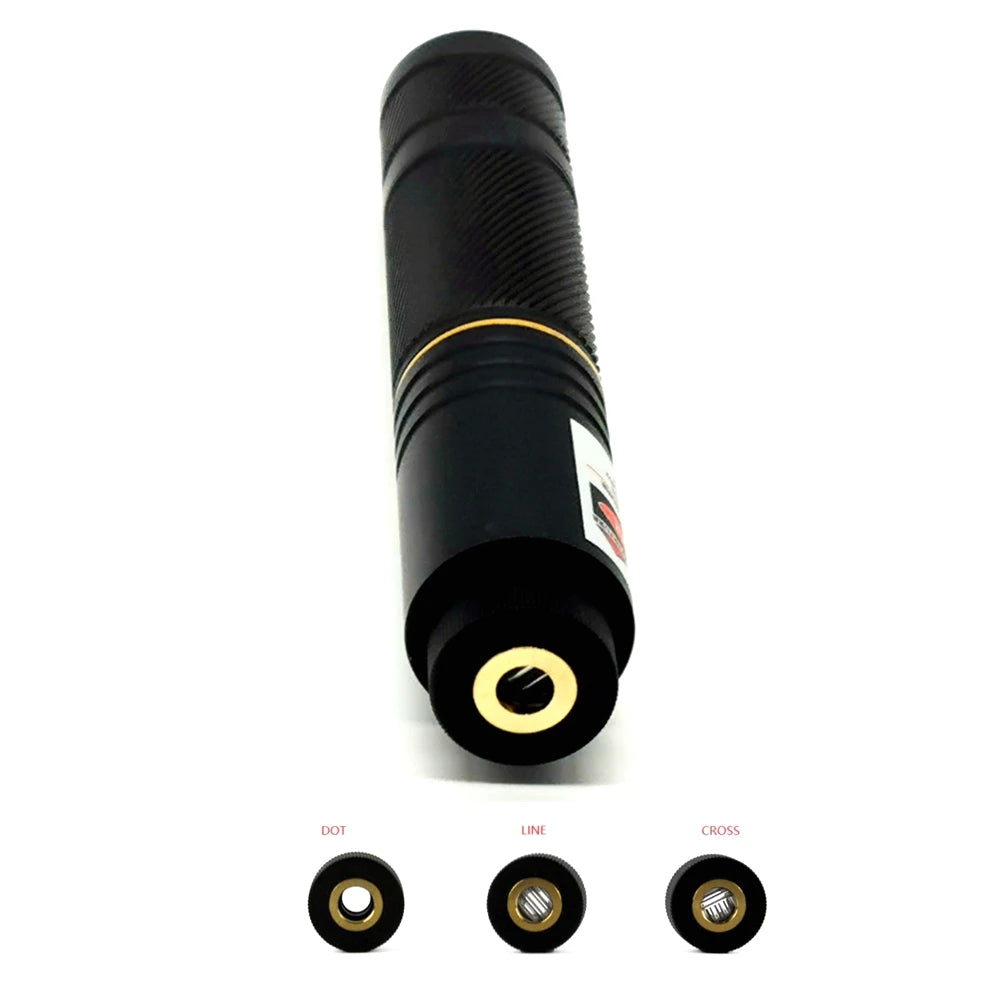

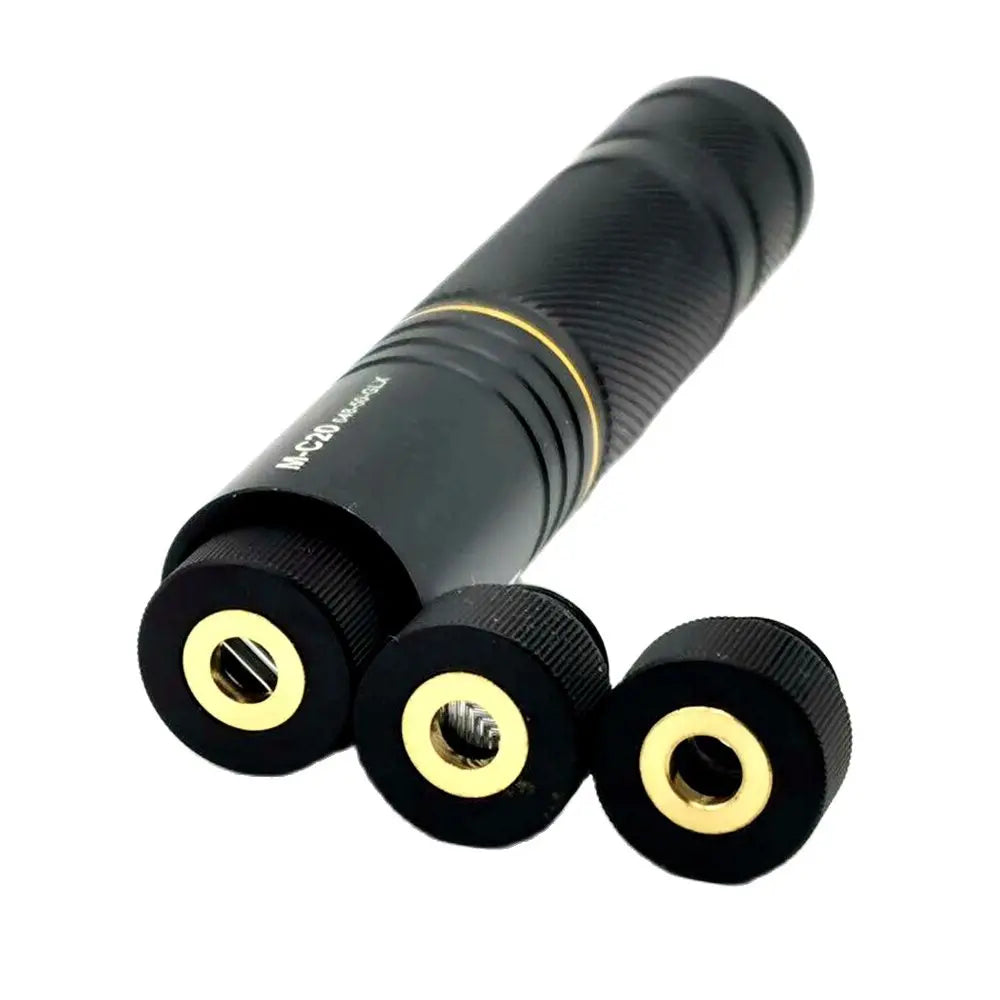

- Beam Shapes: Dot, Line, or Cross — choose the projection pattern that fits your task
- Focusable: Yes — manually adjustable focus for precise beam clarity at varying distances
- Power Supply: 3.7V DC (1× 14500 battery — not included)
- Body Material: Aerospace-grade aluminum — durable, lightweight, and heat-dissipating
- Dimensions: 20 × 108mm — compact mini form factor for easy integration

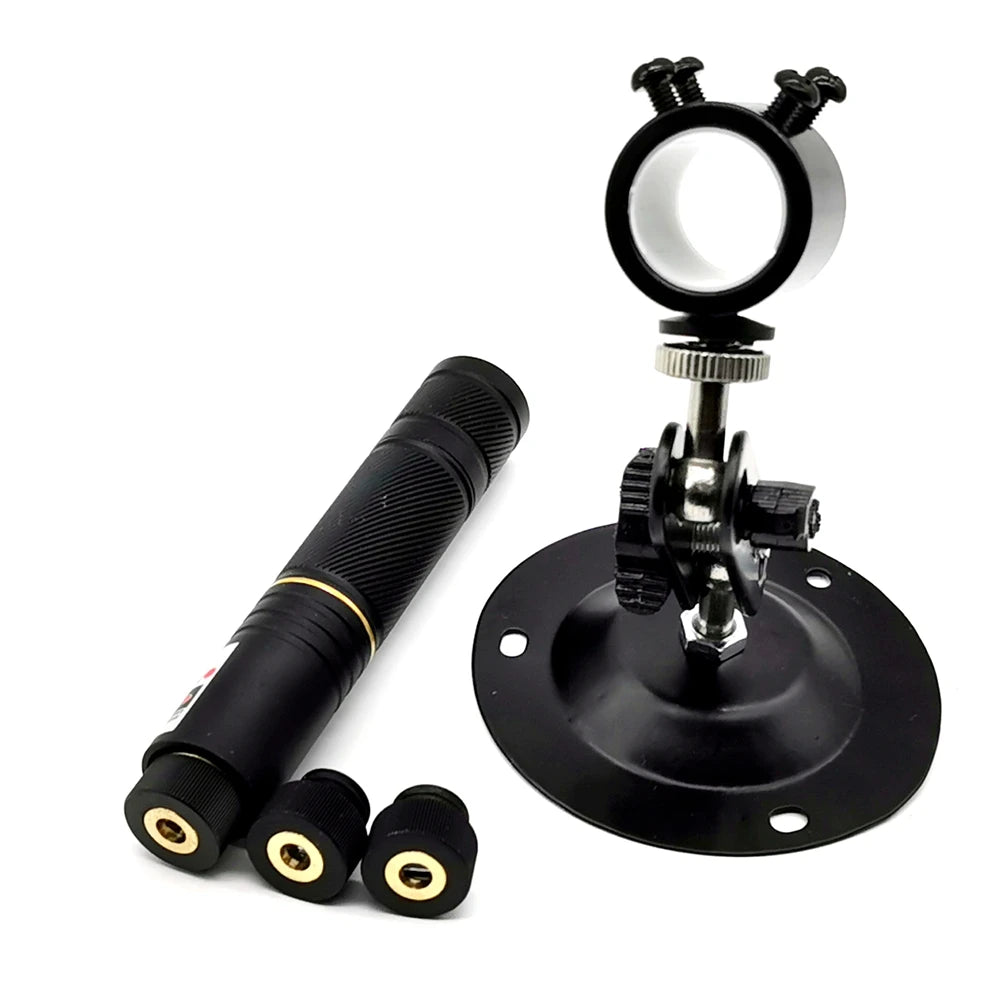

- 360° Adjustable Mounting Holder: Included for flexible positioning in any orientation
What's in the Box?
- 1× 650nm Red Laser Module (battery not included)
- 1× 360° Adjustable Mounting Holder
Ideal Applications
- Industrial alignment and positioning systems
- CNC machine and cutting equipment guides
- Professional stage, DJ, and event lighting effects
- Laboratory and optical measurement setups
- DIY electronics and maker projects
Laser Safety Information
This laser module emits visible red light. Always follow proper laser safety practices. Avoid directing the beam toward eyes or reflective surfaces. For authoritative guidance on laser and radiation product safety, refer to the FDA's Laser Products and Instruments Safety page.
Frequently Asked Questions
Q: What beam shapes does this 650nm red laser module support?
A: This focusable red laser module supports three selectable projection shapes: Dot, Line, and Cross. Simply choose the shape that best suits your positioning or alignment application when placing your order.
Q: What battery does this laser module use, and is it included?
A: The module operates on a single 14500 lithium battery (3.7V). Please note the battery is not included due to shipping and customs regulations. You will need to source a compatible 14500 cell separately.
Q: Can the focus of the laser beam be adjusted?
A: Yes — this module features a fully adjustable focus ring, allowing you to tune the sharpness and size of the beam projection across different working distances for maximum precision.
Q: What power output options are available?
A: You can select from 10mW, 50mW, 100mW, 150mW, or 200mW output power levels depending on your application requirements. Higher power settings produce a brighter, more visible beam over longer distances.
Q: Is a mounting holder included with the laser module?
A: Yes — every purchase includes a 360° adjustable mounting holder, so you can position and lock the laser module at any angle for hands-free operation.
