650nm Red Laser Module Focusable 16mm – Dot Line Cross Beam
650nm Red Laser Module Focusable 16mm – Dot Line Cross Beam
Elubor 650nm Red Laser Locator Module – Focusable, Multi-Mode Beam
Bring precision and visual impact to your projects with the Elubor 650nm Red Laser Module. Engineered from aviation-grade aluminum alloy and equipped with an imported laser diode, K9 glass lens, and a constant-current driver board, this compact 16mm module delivers crisp, visible red laser beams in dot, line, or cross patterns. Whether you're building stage lighting rigs, alignment tools, DIY electronics setups, or custom light-effect installations, this focusable module gives you professional-grade performance in a mini form factor.
Key Features
- Wavelength: 648nm – 650nm visible red laser
- Power Options: 10mW / 50mW / 100mW / 150mW / 200mW / 250mW (select your variant)
- Beam Modes: Dot / Line / Cross (optional configurations)
- Focusable Head: Adjustable focus with wavy glass lenses for sharp, precise beam shaping
- Supply Voltage: DC 5V | Working Current: 10–280mA
- Size: ⌀16mm × 68mm — compact and easy to integrate

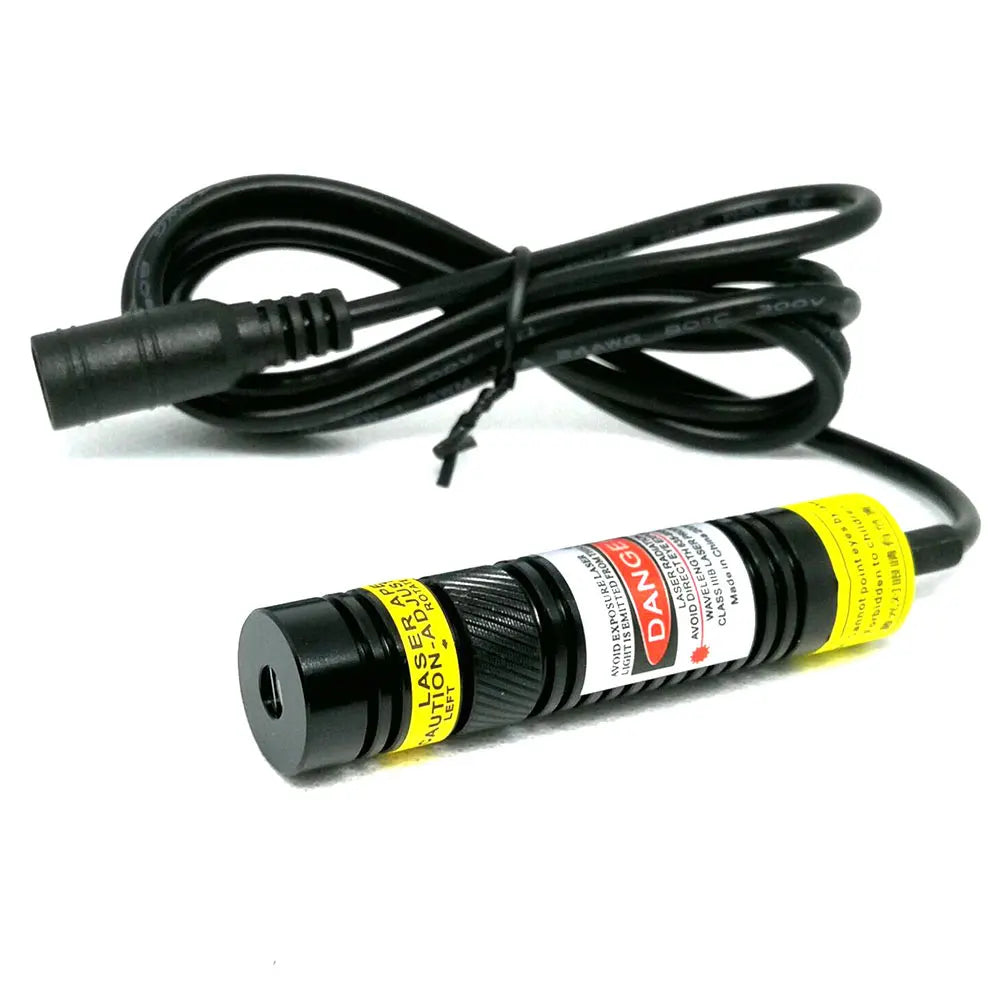

- Cable Length: 1.2m DC cable included
- Operating Temperature: ±50°C
- Working Life: Up to 1,000 hours
- Construction: Aluminum alloy housing + imported laser diode + K9 glass lens + constant-current driver board

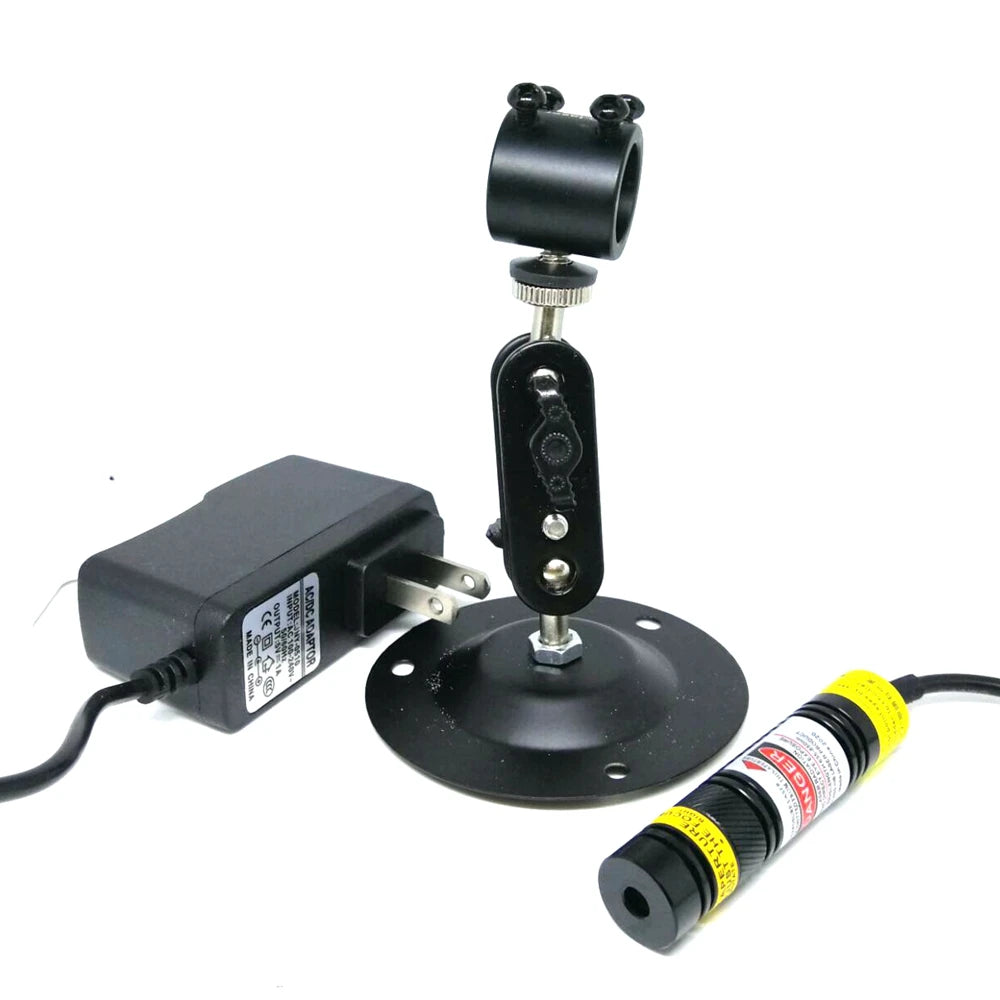

What's in the Box
- 1× 650nm Red Laser Module (model M-16A650)
- 1× 5V Power Adapter

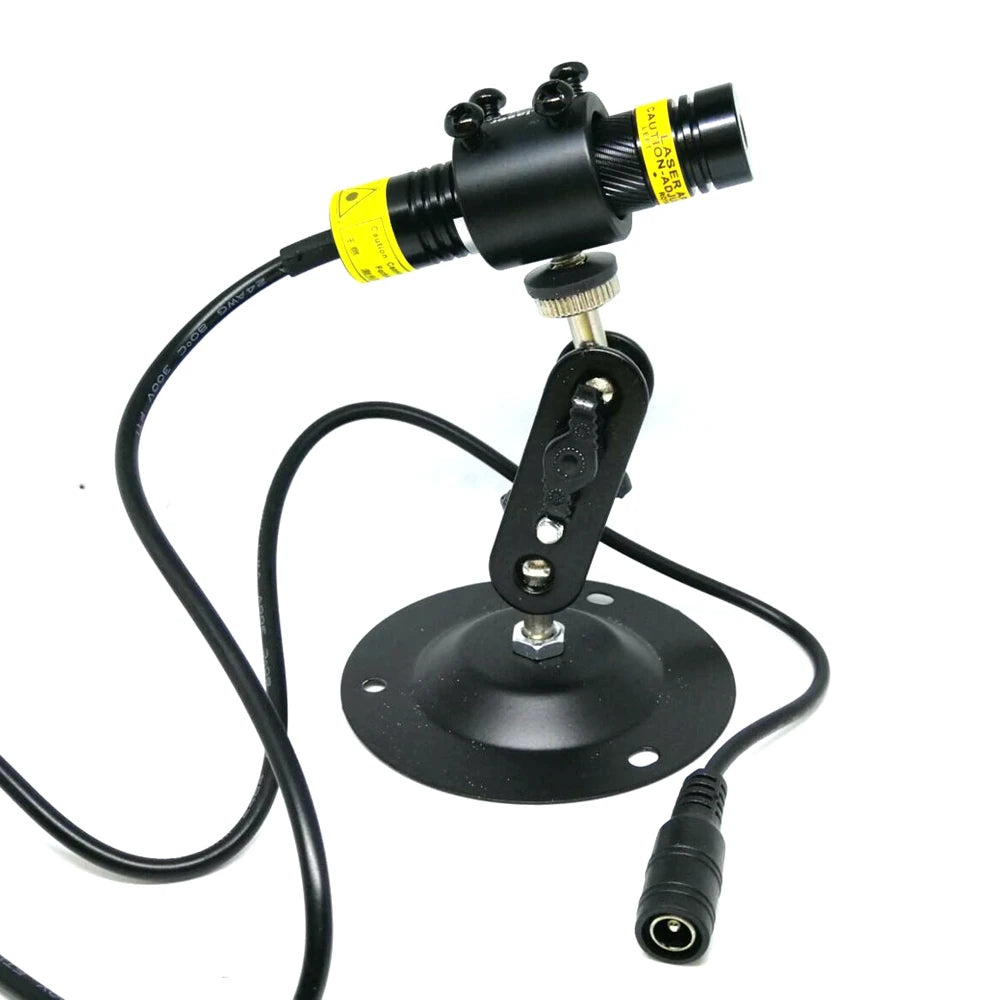

- 1× Mounting Holder
Ideal Applications
- Stage and DJ lighting effects
- DIY laser alignment and positioning tools
- Electronics prototyping and maker projects
- Custom lighting installations and visual displays
- Educational and laboratory demonstrations
Made in Mainland China.
⚠️ Laser Safety Notice: This module emits a visible red laser beam. Always follow laser safety guidelines and avoid directing the beam toward eyes or reflective surfaces. For laser safety standards and guidelines, refer to the OSHA Laser Hazards resource.
Frequently Asked Questions
Q: What beam shapes does the 650nm red laser module support?
A: The Elubor 650nm red laser module supports three beam modes — Dot, Line, and Cross — allowing you to select the pattern best suited for your application, from precise point targeting to wide-area line projection.
Q: Is the focus adjustable on this laser module?
A: Yes. The 16mm head features a focusable design with wavy glass lenses, letting you fine-tune the beam sharpness and spread to match your specific project requirements.
Q: What power supply does this laser module require?
A: The module runs on DC 5V with a working current range of 10–280mA depending on the selected power variant. A 5V adapter is included in the package for immediate use.
Q: Is this laser module suitable for stage lighting setups?
A: Absolutely. The module is designed for professional stage and DJ lighting effects, producing vivid visible red laser beams (648–650nm) that create striking visual effects in performance and entertainment environments.
