Precision Red Laser Diode Module — 650nm Adjustable Focus
Meet the Elubor 650nm Red Laser Diode Module (Model 650M-1668) — a compact, high-performance laser module built for makers, engineers, stage technicians, and DIY enthusiasts who demand pinpoint accuracy and versatile beam options. Housed in a rugged aviation-aluminum shell and powered by an imported laser diode with a K9 glass lens, this module delivers crisp, visible red laser output across three selectable spot modes: Dot, Line, and Cross.
Made in Mainland China.
Key Features
- Wavelength: 648nm / 650nm — vivid visible red beam
- Power Options: 10mW / 50mW / 100mW / 200mW / 250mW (select your variant)
- Supply Voltage: DC 5V — USB-friendly and easy to power
- Working Current: 40mA – 280mA (varies by power setting)

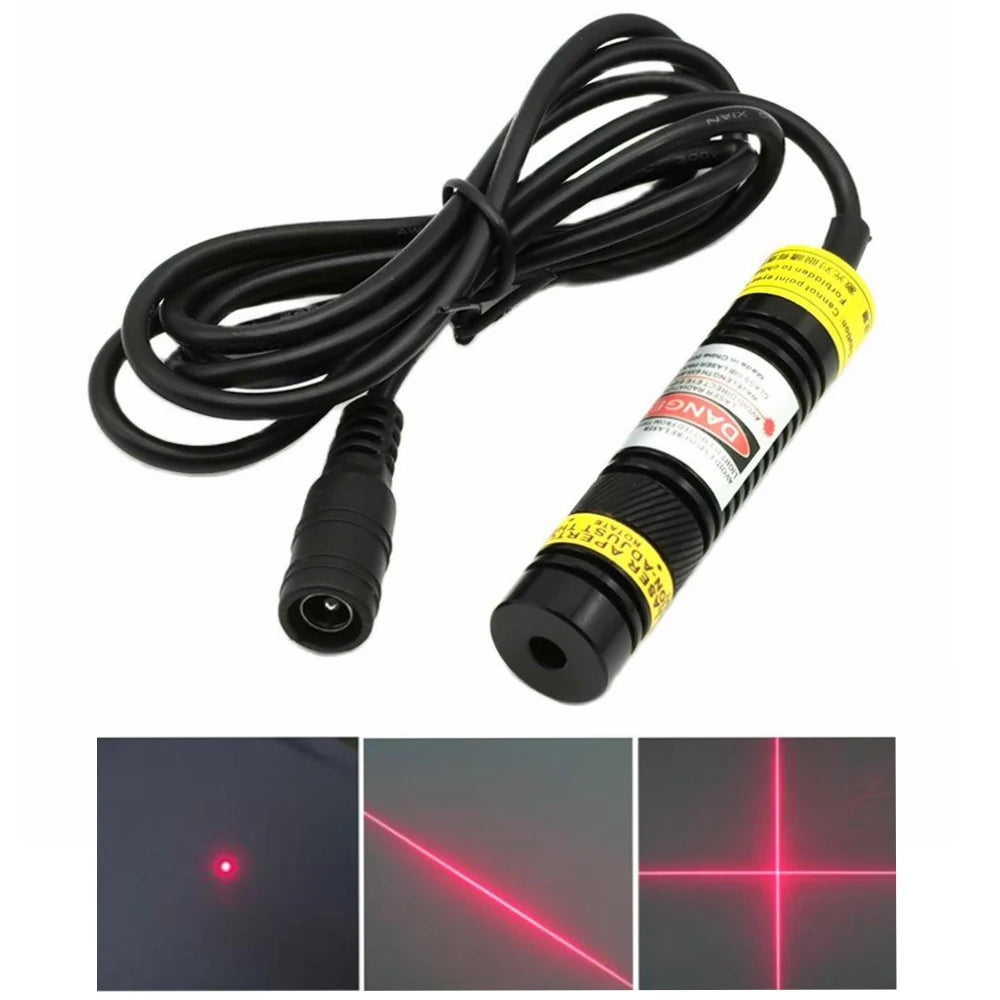

- Spot Modes: Dot / Line / Cross — switchable to match your application

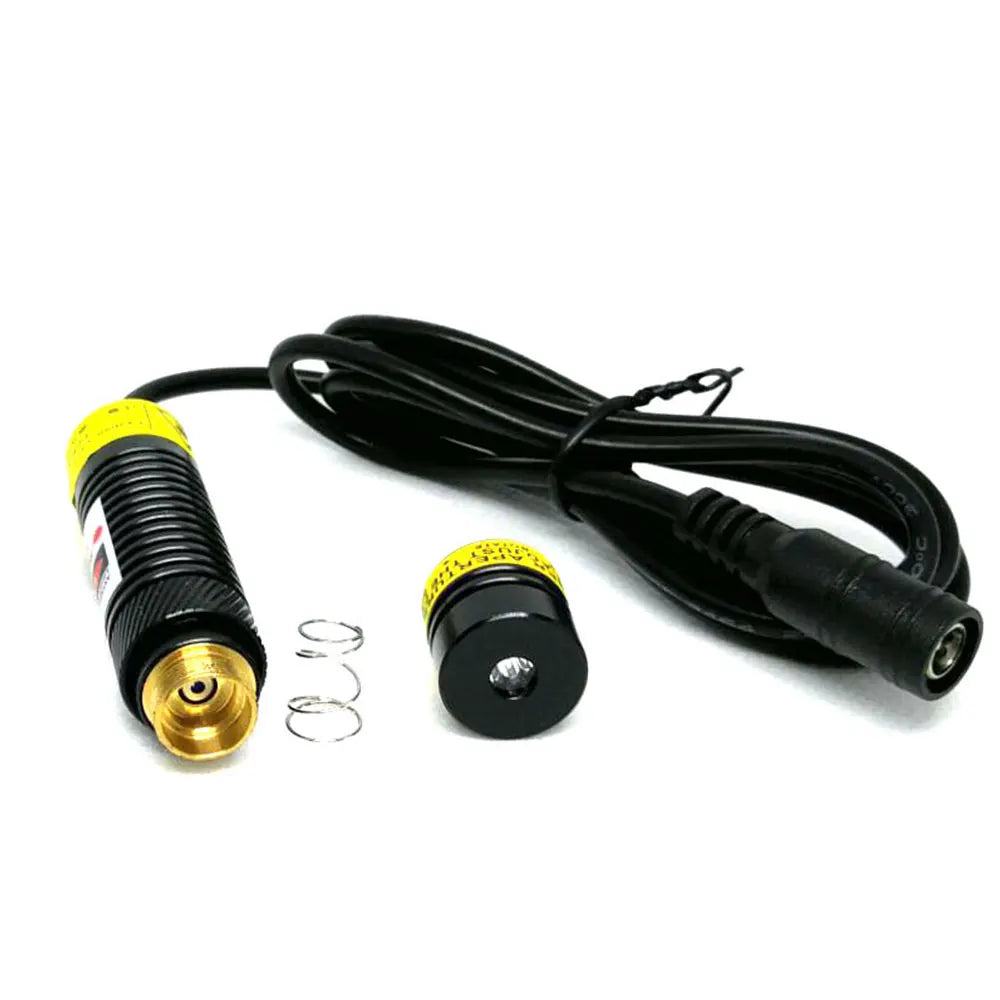

- Adjustable Focus: Fine-tune the beam precisely using the built-in focus mechanism
- Compact Size: ∅16mm × 68mm — fits easily into tight enclosures and mounting rigs
- DC Cable Length: 1.2 m — provides comfortable working distance
- Operating Temperature: ±50°C — wide thermal tolerance for varied environments
- Working Life: 1,000+ hours
Premium Build Quality
The module combines an aviation-grade aluminum alloy shell, an imported laser diode, a K9 optical glass lens, and a constant-current driver board — ensuring stable output, minimal drift, and long service life. The focus lens paired with wavy glass lenses delivers sharp, well-defined beam patterns whether you need a single dot, a ruling line, or a precise cross-hair pattern.
Typical Applications
- Stage and DJ lighting effects
- Laser alignment and positioning systems
- DIY electronics and maker projects
- Measurement and leveling tools
- Laser engraving guidance and machine alignment
- Scientific demonstrations and classroom experiments
What's in the Box
- 1 × 650nm Red Laser Diode Module (model 650M-1668)
⚠ Laser Safety Notice: This module emits a concentrated visible laser beam. Always follow safe laser handling practices. Never point the beam at eyes or reflective surfaces. For professional and informed users only. Review laser safety guidelines from the U.S. FDA Center for Devices and Radiological Health — Laser Products & Instruments.
Frequently Asked Questions
Q: What power levels are available for this 650nm red laser diode module?
A: This laser module is available in five power variants: 10mW, 50mW, 100mW, 200mW, and 250mW. Choose the output level that best suits your project requirements — lower power for safe alignment tasks and higher power for more demanding stage or industrial applications.
Q: Can I switch between Dot, Line, and Cross beam patterns?
A: Yes. The module supports three selectable spot modes — Dot, Line, and Cross — making it highly versatile for alignment, measurement, stage lighting, and DIY applications. The specific mode is selected at time of order based on the variant chosen.
Q: What power supply does this laser module require?

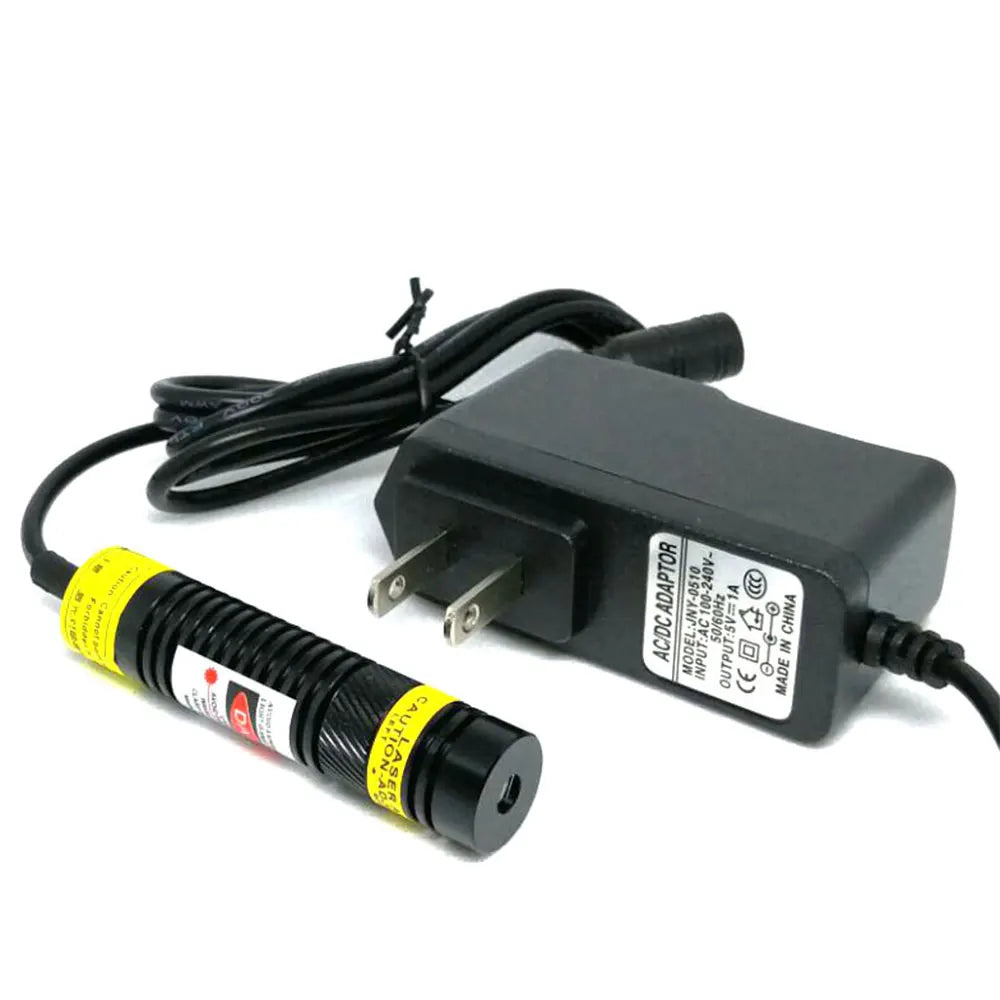

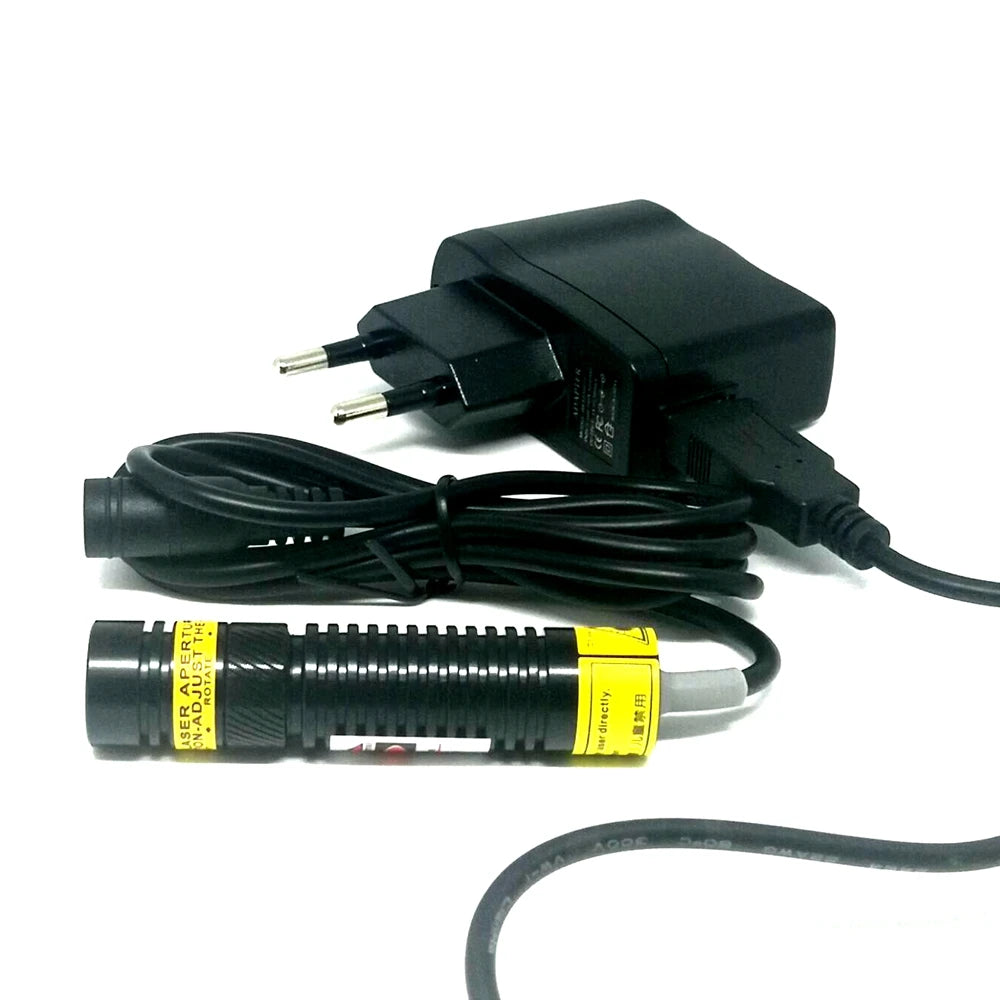

A: The module operates on DC 5V, making it compatible with standard USB power adapters and common bench power supplies. It draws between 40mA and 280mA depending on the power variant selected. The included DC cable is 1.2 metres long for convenient reach.
Q: Is the focus adjustable on this laser module?
A: Yes. The module features an adjustable focus mechanism, allowing you to fine-tune the beam sharpness for your specific working distance. This is especially useful for alignment and positioning tasks where a crisp, well-defined spot or line is critical.
