650nm 200mW Red Fat Beam Laser Module for Stage, DJ & Entertainment Venues
Transform any bar, KTV lounge, escape room, or DJ stage into an electrifying visual experience with the Elubor 650nm 200mW Red Fat Beam Laser Module. This compact yet powerful laser diode module delivers a striking thick red beam that cuts through fog and darkness, creating dramatic atmosphere effects that keep audiences captivated. Made in Mainland China.
Key Features
- Vivid 650nm Red Wavelength — produces a rich, vibrant red beam with strong visual impact in stage and entertainment environments
- 200mW Constant Power Output — delivers a bold, visible fat beam ideal for fog machines, haze effects, and dark-room installations
- Dual Working Modes — operates in both point spot and coarse (fat) beam mode to suit different visual setups
- Compact Mini Form Factor — measures just φ24.5mm × 51.5mm, making it easy to mount and integrate into existing rigs
- Wide Voltage Compatibility — runs on DC 3V–5V, making it compatible with standard USB power supplies and microcontroller setups
- Long Working Life — rated for more than 6,000 hours of operation, ensuring reliable performance over many events
- Wide Operating Temperature Range — functions in environments from -10°C to 65°C for indoor and controlled outdoor use
- Self-Contained Unit — no additional bulbs or batteries required; simply connect to your DC power source
Technical Specifications
- Model: 650MFB-200-QS
- Wavelength: 650nm
- Laser Power: ≤200mW (constant power)
- Working Voltage: DC 3V–5V
- Working Current: <300mA
- Spot Size: 16mm
- Dimensions: φ24.5mm × 51.5mm
- Working Temperature: -10°C to 65°C
- Storage Temperature: -36°C to 65°C
- Luminous Flux: <60
- Power Source: DC
Ideal For
- Bar and nightclub lighting effects
- KTV room atmosphere lighting
- Escape room visual effects
- DJ projector setups and stage productions
- DIY laser display and hobbyist projects
Important Notice
Effect photos are captured in dark, foggy environments. Under normal conditions without fog or haze, the fat beam effect will not be as pronounced as shown in product images. For best results, pair with a fog or haze machine. ⚠️ Laser Safety: Never aim the laser directly at eyes or people. Use appropriate safety precautions in all installations. For guidance on laser product safety, refer to the U.S. Consumer Product Safety Commission (CPSC) Laser Pointer Safety guidelines.
What's in the Box

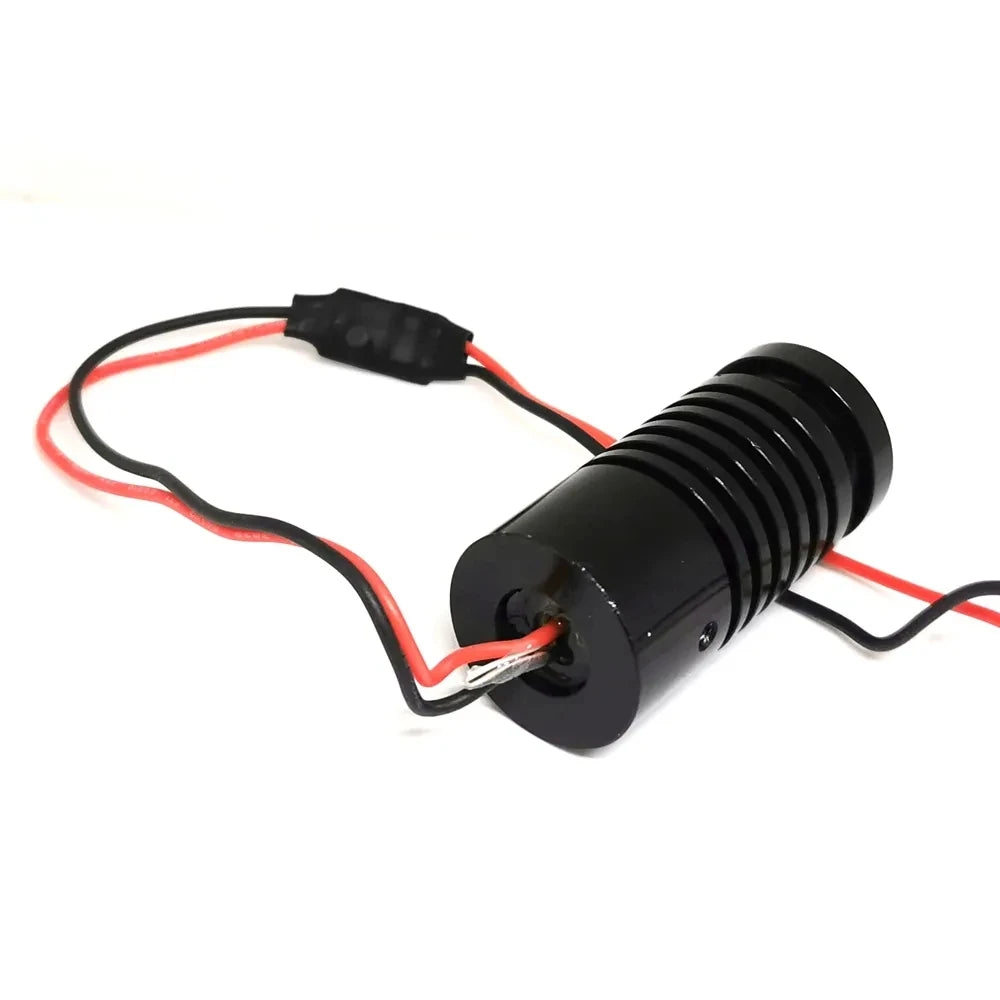

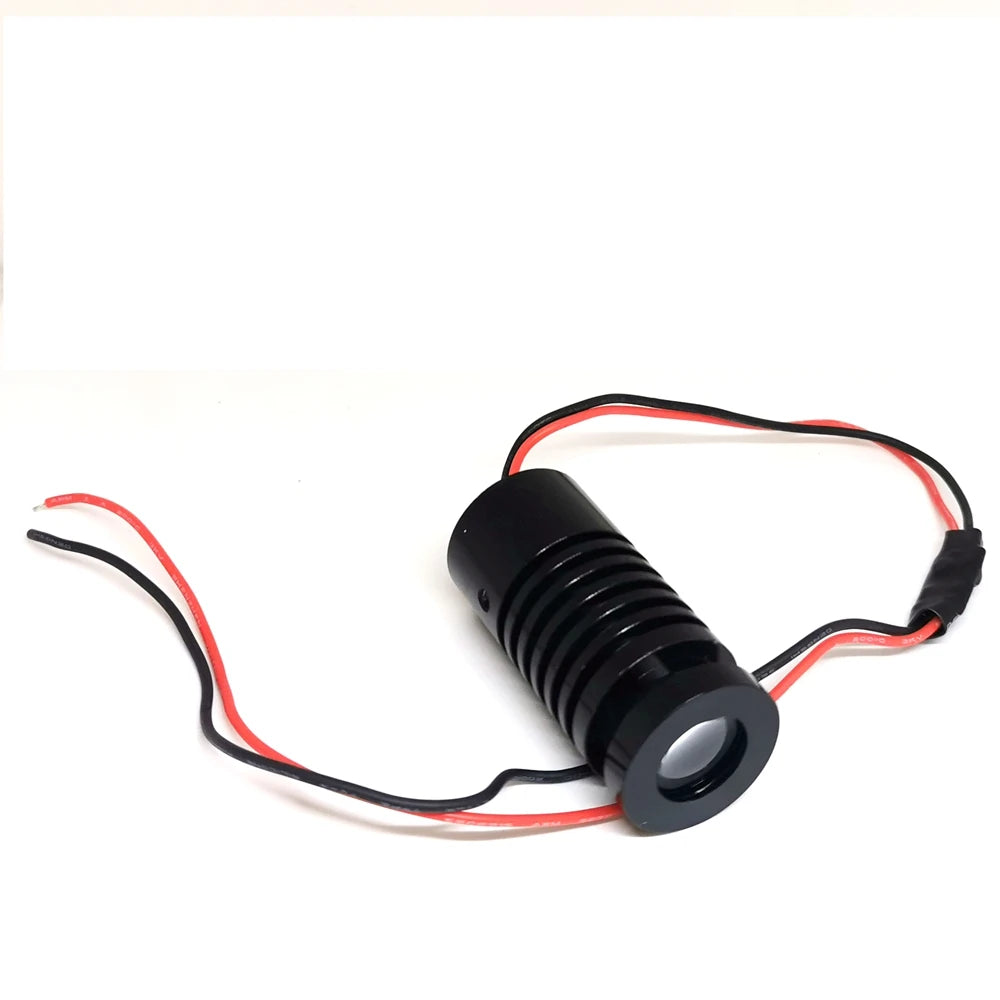

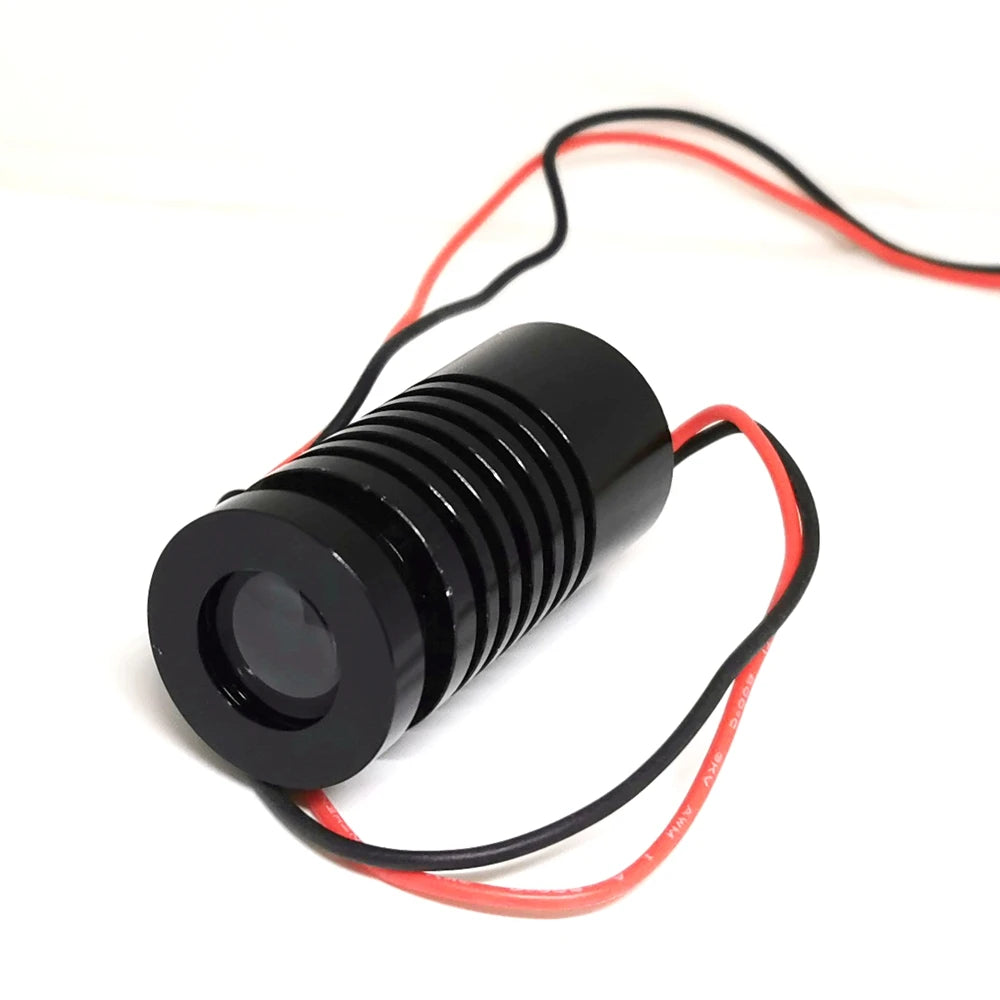

- 1× 200mW 650nm Red Thick Beam Laser Diode Module
Frequently Asked Questions
Q: What kind of power supply does this 650nm red laser module need?
A: The Elubor 650nm 200mW laser module operates on a DC power supply between 3V and 5V, drawing less than 300mA. A standard 5V USB power adapter or a regulated DC power supply works perfectly. Batteries are not included and not required if you use a wired DC source.
Q: Will the fat beam effect be visible without a fog machine?
A: The dramatic thick beam effect is best visible in dark, hazy, or foggy environments. In clear, well-lit conditions, the beam will appear as a standard laser dot/spot. Pairing this module with a fog or haze machine is strongly recommended to achieve the full atmospheric effect seen in the product photos.
Q: Is this laser module suitable for DIY stage lighting projects?
A: Yes! The compact self-contained design, wide voltage compatibility (3V–5V DC), and dual working modes (spot and fat beam) make this module an excellent choice for DIY enthusiasts, escape room builders, and professional stage designers looking for an affordable, reliable red laser light source.
Q: How long will this laser module last?
A: The Elubor 650MFB-200-QS laser diode module is rated for more than 6,000 hours of working life under normal operating conditions, making it a durable and cost-effective solution for recurring events and permanent installations alike.
