Elubor 638nm 100mW USB Red Laser Diode Module – Dot Line Cross
Elubor 638nm 100mW USB Red Laser Diode Module – Dot Line Cross

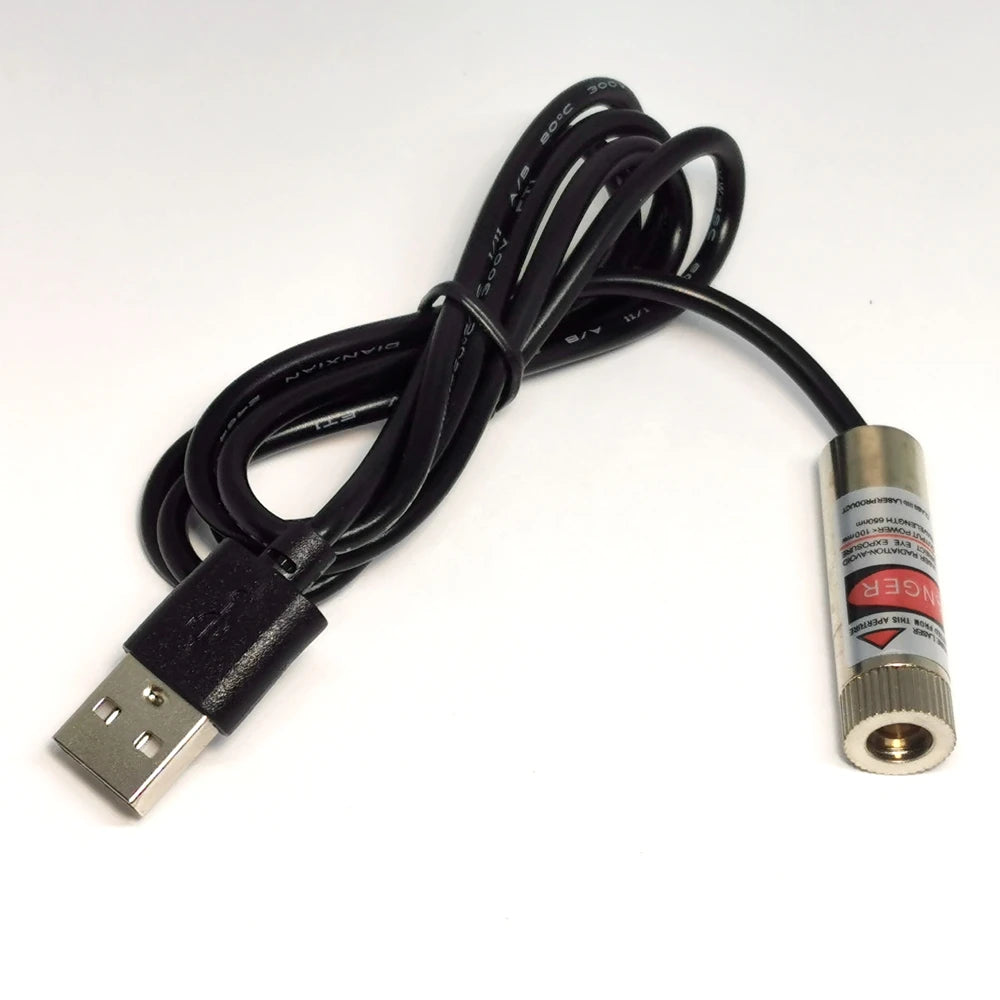

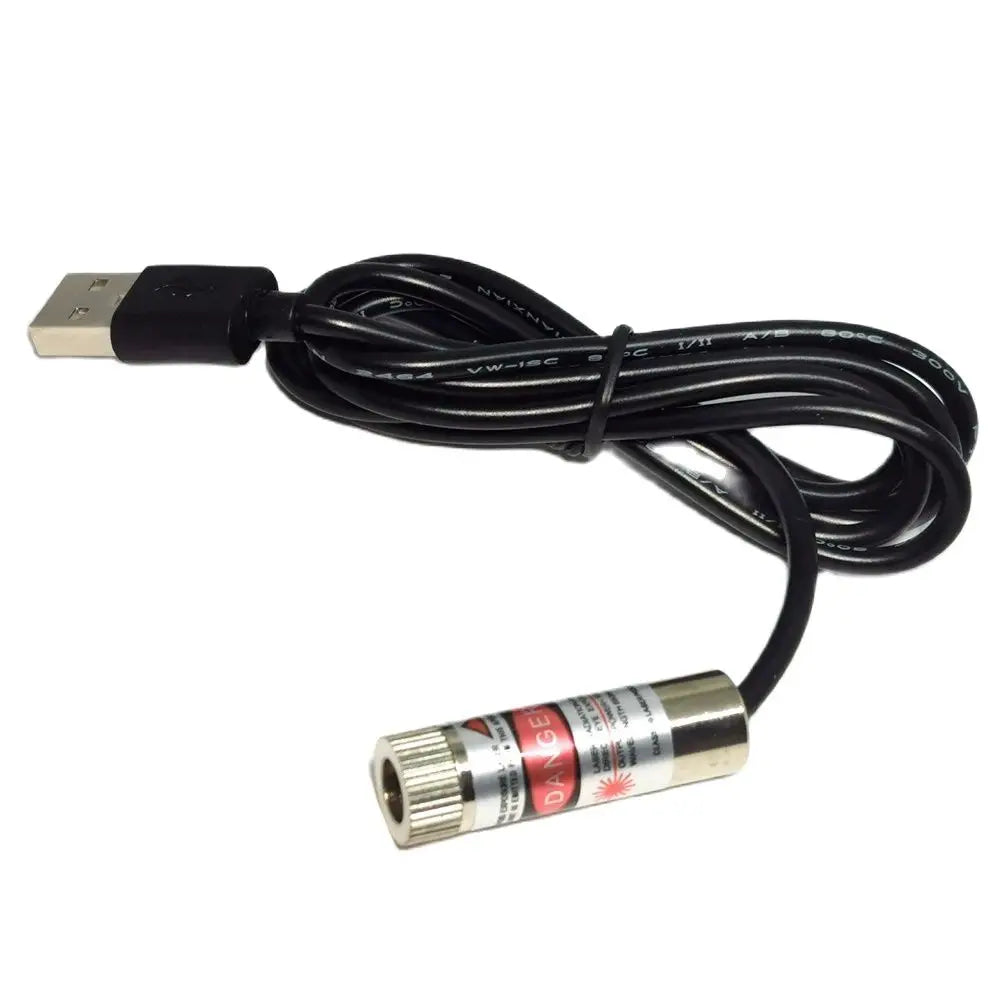

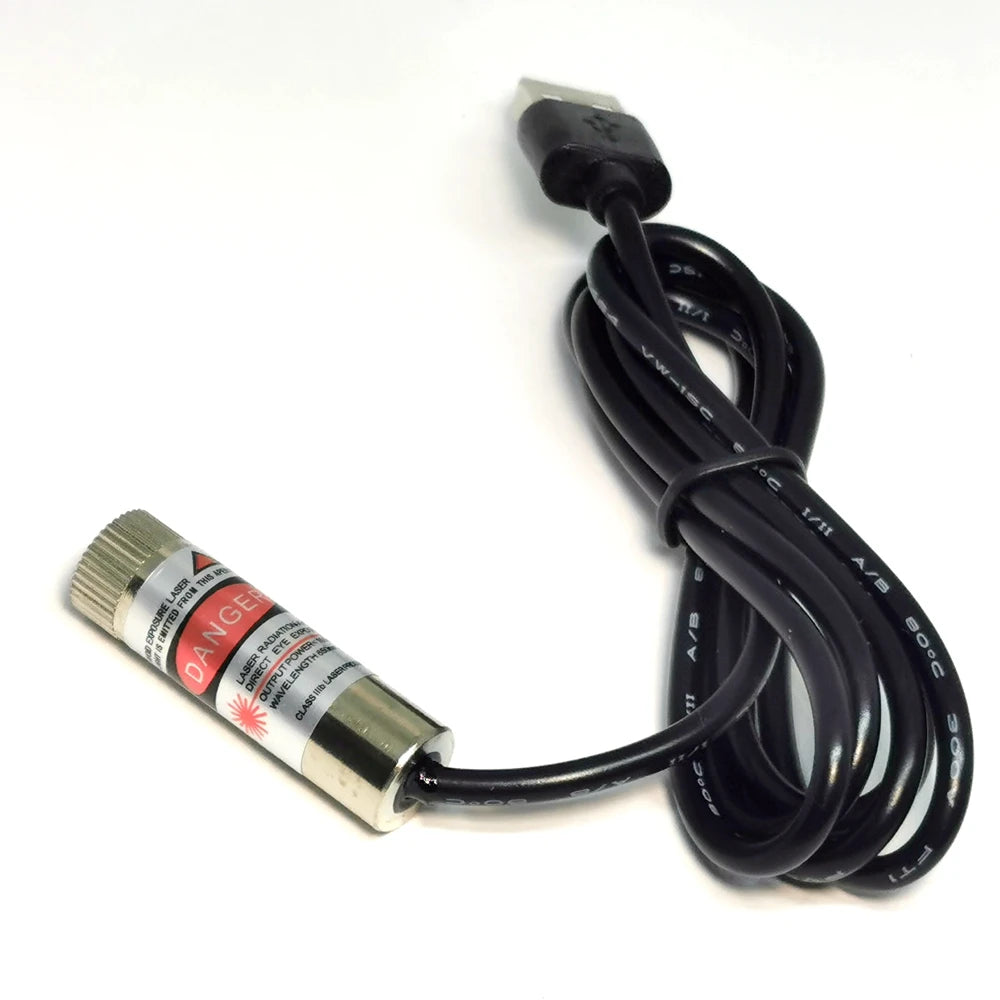

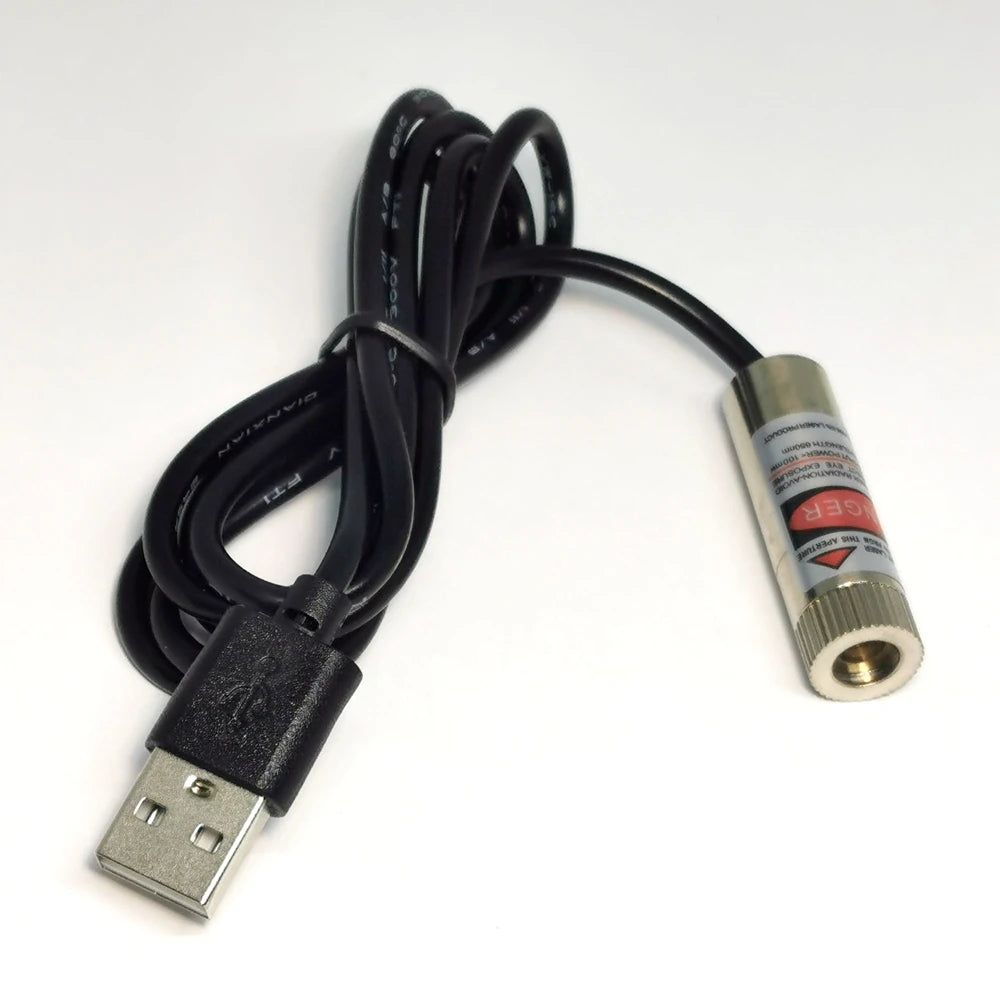

Elubor 638nm 100mW Red Laser Diode Module – USB Powered, Focusable Dot / Line / Cross Beam
Take your stage setup, DIY projects, or alignment tasks to the next level with the Elubor 638M-100-USB Red Laser Diode Module. This compact 12×35 mm module delivers a vivid orange-red 638 nm beam at 100 mW output, switchable between three beam shapes — Dot, Line, and Cross — making it one of the most versatile laser modules available. Powered by a standard 5 V USB connection, it's ready to use right out of the box with any USB power bank, wall adapter, or computer port.
Key Features
- 638 nm Orange-Red Wavelength — vivid, highly visible beam ideal for stage lighting, alignment, and projection effects
- Three Beam Shapes — switch between Dot, Line, and Cross patterns (120° spread as default cross angle) to match your application
- Focusable Design — manually adjust focus to sharpen or diffuse the beam for precise positioning or wide-area effects
- 100 mW Output Power — bright and punchy, suitable for professional stage and DJ environments
- USB Powered (5 V) — plug into any standard USB source; no proprietary power supply needed
- Compact Mini Form Factor — 12×35 mm body fits into tight rigs and mounting brackets with ease
- Wide Operating Temperature — performs reliably from –10 °C to +55 °C
- 1 M Cable Included — gives you flexible positioning away from your power source
Technical Specifications
| Model | 638M-100-USB |
| Wavelength | 638 nm (Orange-Red) |
| Output Power | 100 mW |
| Working Voltage | 3 V – 5 V (USB 5 V) |
| Working Current | 120 mA |
| Beam Shapes | Dot / Line / Cross (120° default) |
| Focusable | Yes |
| Dimensions | 12 × 35 mm |
| Operating Temperature | –10 °C to +55 °C |
| Cable Length | 1 M |
| Power Source | USB (AC adapter or power bank) |
What's in the Box?
- 1 × 638 nm 100 mW Red Laser Diode Module (with 1 M USB cable)
Made in Mainland China.
⚠️ Laser Safety Notice: This module emits visible laser radiation. Never aim the beam at eyes or skin. Always follow appropriate laser safety guidelines. For laser safety best practices, refer to CPSC Laser Safety Guidelines.
Frequently Asked Questions
Q: What beam shapes does the 638nm laser diode module support?
A: The Elubor 638nm 100mW laser module supports three beam shapes — Dot, Line, and Cross. The Cross pattern is set to 120 degrees by default, and the focus is manually adjustable so you can fine-tune the beam spread or sharpness for your specific application.
Q: Can I power this laser module from a laptop or power bank?
A: Yes! The module is USB powered and operates at 5 V / 120 mA, meaning it works with any standard USB port — including laptops, USB wall adapters, and USB power banks. No special power supply is required.
Q: Is this laser module suitable for stage and DJ lighting setups?
A: Absolutely. The module is designed for professional stage and DJ environments, delivering a vivid 638 nm orange-red beam at 100 mW. Its compact 12×35 mm body makes it easy to integrate into existing rigs, and the switchable beam shapes add flexibility for dynamic lighting effects.
Q: What safety precautions should I take when using this laser module?
A: Always avoid directing the beam toward eyes or reflective surfaces that could redirect it unexpectedly. Use appropriate laser safety eyewear when working in close proximity to the beam. Keep out of reach of children. Refer to your local laser safety regulations for compliance requirements.
