60KG Wireless Remote Control Electromagnetic Door Lock Set
60KG Wireless Remote Control Electromagnetic Door Lock Set
60KG / 100 lbs Wireless Remote Control Electromagnetic Door Lock Set
Take control of your home or office access with this compact yet powerful wireless remote control electromagnetic door lock set. Featuring a robust 60KG (100 lbs) holding force, a 315 MHz learning-code remote, and a versatile control panel, this kit delivers keyless convenience without compromising security. Ideal for interior doors, cabinets, gates, and access-controlled rooms.
Made in Mainland China.
Key Features
- Strong Holding Force: 60KG / 100 lbs electromagnet keeps your door firmly secured when powered.
- Wireless Remote Control: Up to 50 meters (165 ft) range in open, barrier-free environments.
- Dual Control Modes: Choose between Jog Mode (hold to unlock, auto-relocks on release) or Self-Locking Mode (one press to unlock, another to re-lock).
- Adjustable Delay Lock: Set the auto-relock delay to 0s, 5s, 10s, or 15s to suit your workflow.
- Multi-Remote & Multi-Panel Support: One control panel stores up to 15 remote controls; one remote can operate up to 4 control panels simultaneously.
- Sliding Key Guard: The remote features a sliding cover over the buttons to prevent accidental activation.
- Fail-Secure Design: Lock remains engaged only while powered — power loss automatically releases the door for safety.
- Wide Operating Range: Works in temperatures from -10°C to 55°C and humidity up to 95%.
- Durable Construction: Aluminum alloy shell with iron striker plate for long-lasting performance.
Technical Specifications
| Working Voltage | DC 12V |
| Standby Current | 30 mA |
| Working Current | 270 mA |
| Holding Force | 60 KG / 100 lbs |
| Remote Frequency | 315 MHz (learning code) |
| Remote Range | Up to 50 m (open area) |
| Remote Storage | Up to 15 remotes per panel |
| Panel Control | 1 remote controls up to 4 panels |
| Delay Settings | 0s, 5s, 10s, 15s (adjustable) |
| Control Modes | Jog Mode / Self-Locking Mode |
| Lock Material | Aluminum alloy shell + iron plate |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 0% to 95% |
| Security Mode | Fail Secure |
How to Set Control Modes & Delays
- Jog Mode: Press the setting button 1 time, then press the remote button once.
- Self-Locking Mode: Press the setting button 2 times, then press the remote button once.
- Delay 5s: Press the setting button 4 times, then press the remote button.
- Delay 10s: Press the setting button 5 times, then press the remote button.
- Delay 15s: Press the setting button 6 times, then press the remote button.

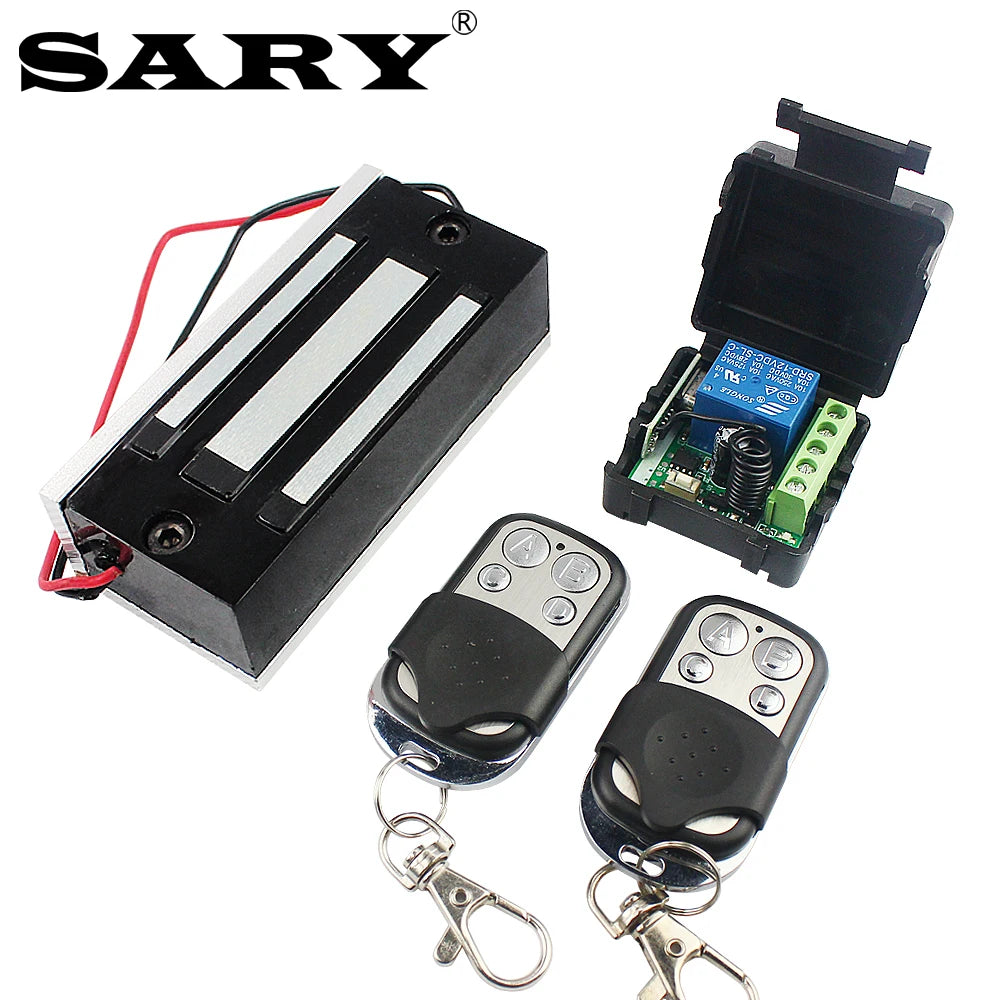

What's in the Box
- 1× 60KG Electromagnetic Lock (aluminum alloy + iron plate)
- 1× Wireless Remote Control Panel (DC 12V)

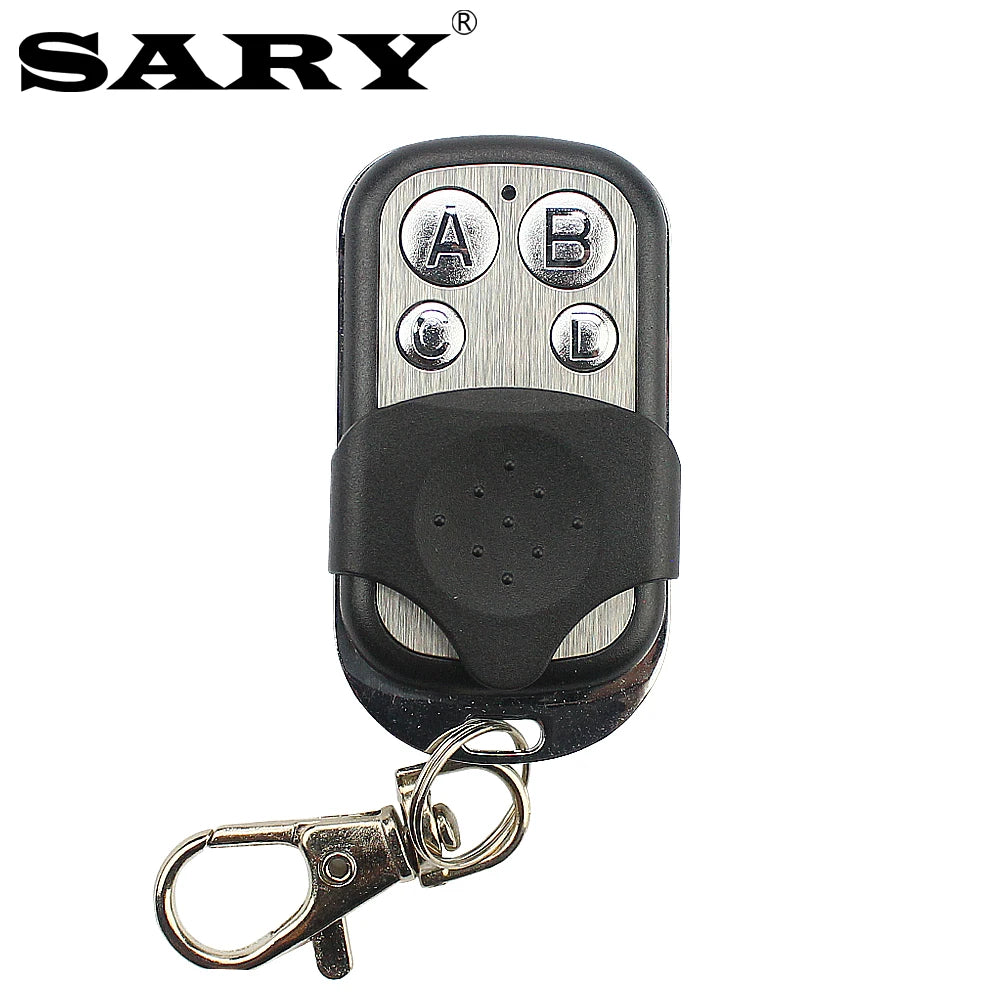

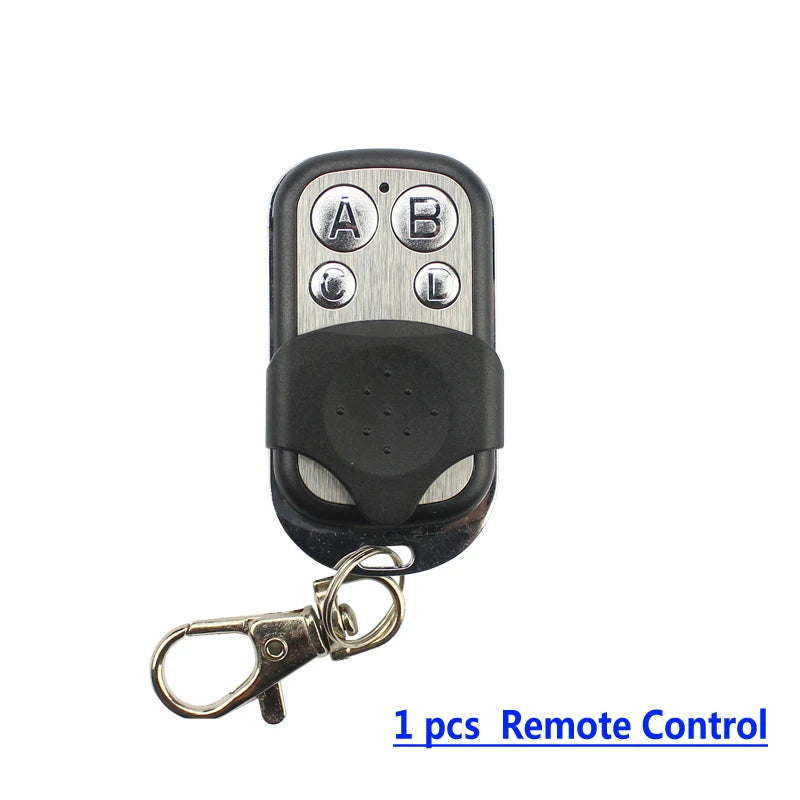

- 1× RF Remote Control (315 MHz)
- Mounting hardware included
For more information on electronic access control standards and best practices, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: How far away can I use the wireless remote control to operate this electromagnetic door lock?
A: The remote control has an effective range of up to 50 meters (approximately 165 feet) in open, barrier-free environments. Walls, metal structures, and other obstacles may reduce this range.
Q: Can I use one remote control to manage multiple doors or control panels?
A: Yes! A single remote can be paired with up to 4 separate control panels, making it ideal for multi-door setups. Conversely, one control panel can store up to 15 different remote controls for shared-access installations.
Q: What happens to the lock if the power goes out?
A: This electromagnetic lock operates in Fail-Secure mode — meaning it requires power to stay locked. If power is interrupted, the lock releases automatically, allowing the door to be opened freely. This design is important for safe egress in emergency situations.
Q: What is the difference between Jog Mode and Self-Locking Mode?
A: In Jog Mode, you must hold the remote button to keep the door unlocked; it re-locks automatically (according to your delay setting) once you release the button. In Self-Locking Mode, a single press unlocks the door and it stays unlocked until you press the remote button again to re-lock it — great for hands-free access.
Q: What power supply does this electromagnetic lock require?
A: The lock and control panel operate on DC 12V. A suitable 12V DC power adapter or power supply (sold separately) is required for installation. The working current is 270 mA and the standby current is 30 mA.
