60A Tuya WiFi Smart Energy Meter | DIN Rail KWh Monitor

60A Tuya WiFi Smart Energy Meter — DIN Rail KWh Monitor with Remote Circuit Breaker

Take full control of your home or business electricity usage with this 60A Tuya WiFi DIN Rail Smart Energy Meter. Combining precision power monitoring, remote circuit switching, and multi-layer electrical protection into a single compact DIN-rail device, it's the ideal upgrade for any distribution box or breaker panel.

Made in Mainland China.

Key Features

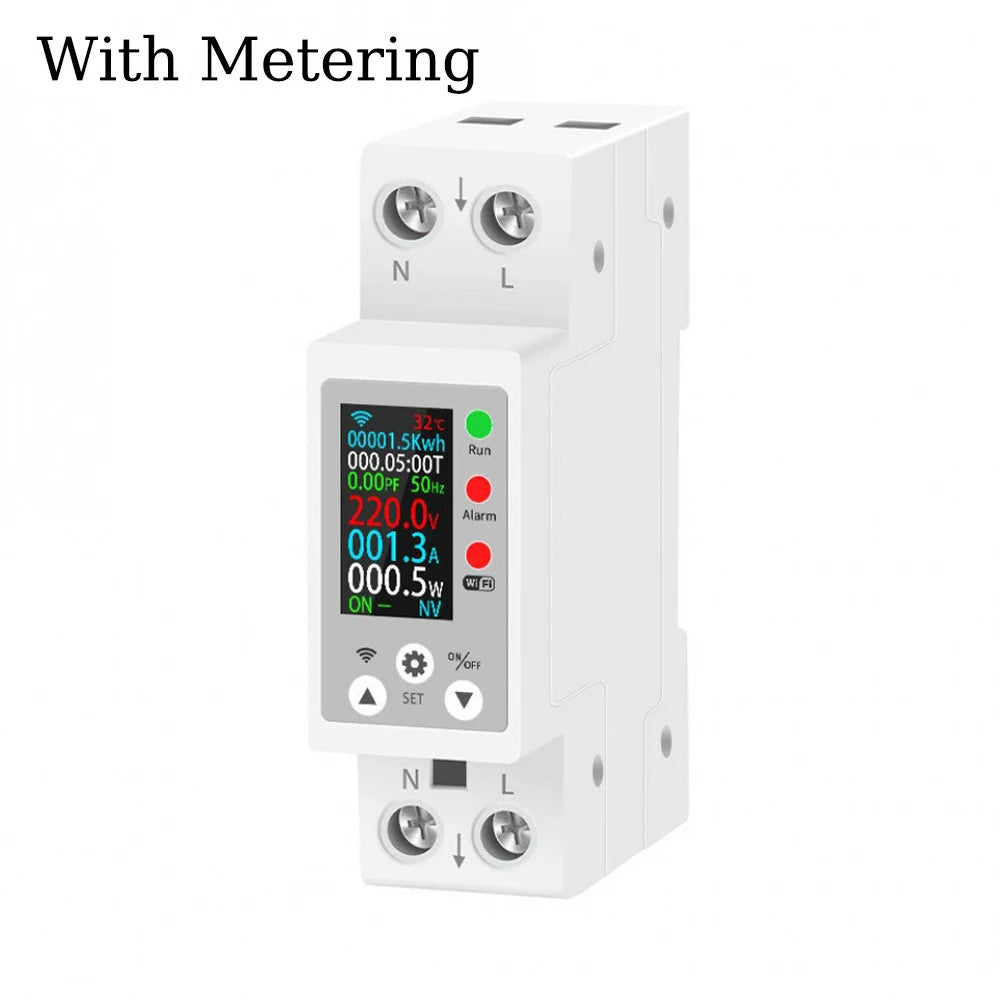

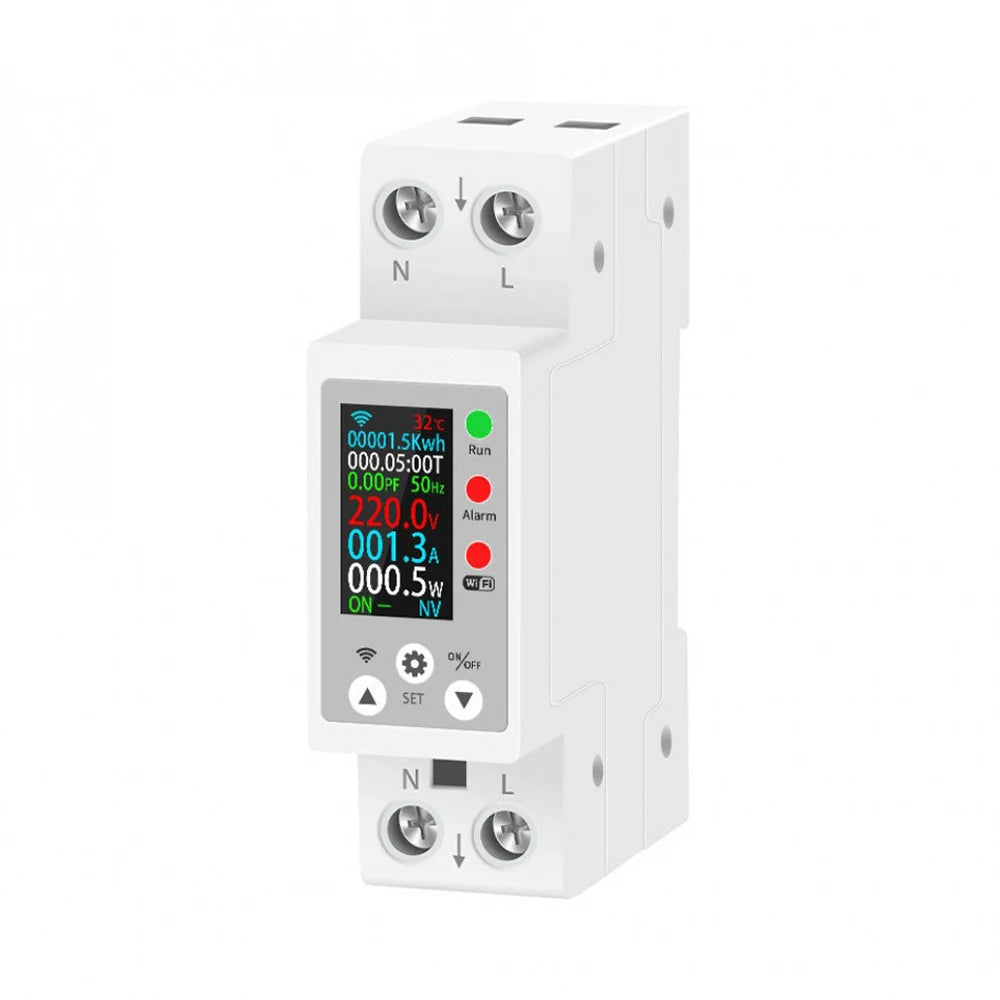

• Real-Time Monitoring: Locally displays voltage, current, active power, cumulative kWh, power factor, grid frequency, and internal temperature on a vivid color digital screen.
• High Accuracy: Measurement accuracy of ±(0.01% + 1) with a rated current range of 0.1–60A — precisely tracks daily and monthly energy consumption for transparent billing.

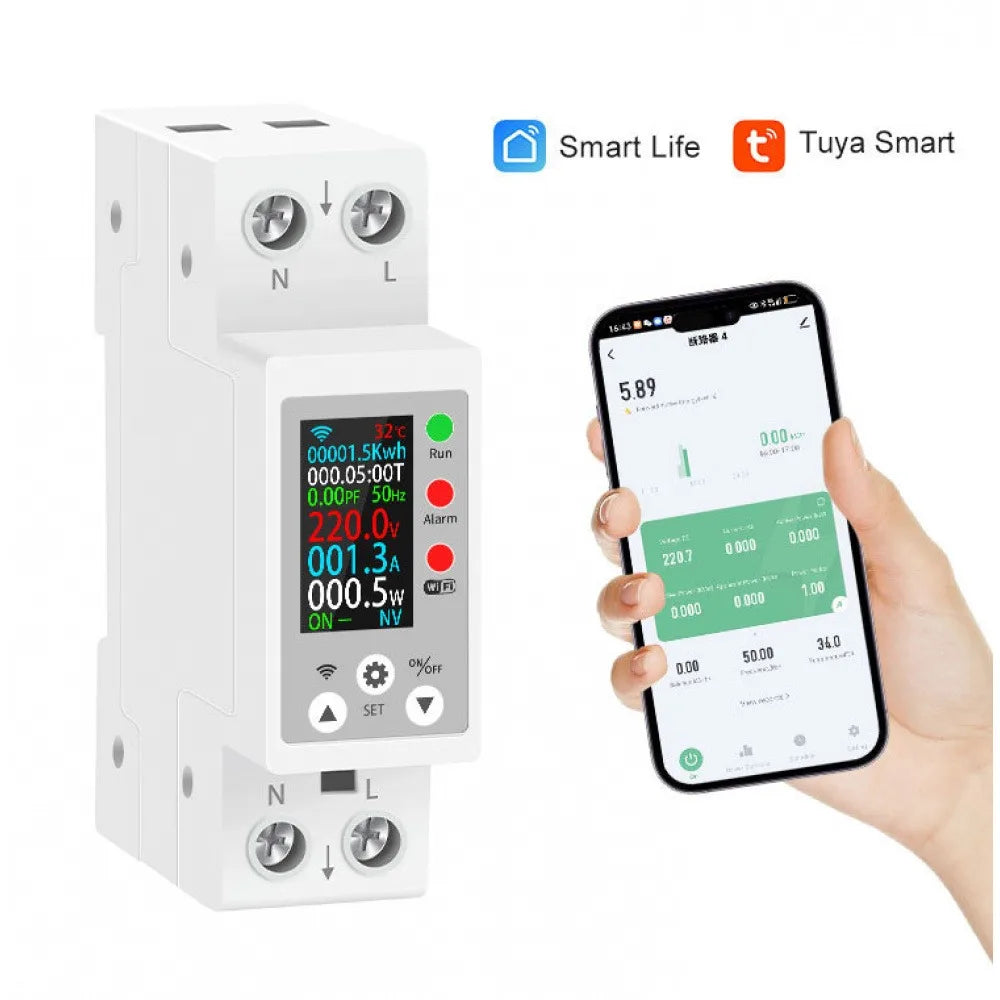

• Gateway-Free WiFi: Built-in 2.4G Tuya WiFi module connects directly to the Tuya Smart App — no hub or gateway required.
• Remote Circuit Control: Switch your circuit on or off from anywhere using your smartphone. Supports timed switching, cycle timing, scene linkage, and full integration with the Tuya smart home ecosystem.
• Multi-Layer Electrical Protection: Automatically cuts power and sends push notifications to your phone upon detecting overvoltage, undervoltage, overcurrent, overload, or overtemperature conditions — helping prevent electrical fires and equipment damage.
• Consumption Reporting: Automatically stores daily and monthly kWh data, generates usage curves in the app, and supports export of power records. Energy totals can be reset to zero — ideal for sub-meter billing, shared housing, store branch circuits, and equipment monitoring.
• Tool-Free DIN Rail Installation: Clips directly onto standard 35mm DIN rails to replace conventional air switches with simple wiring — no complicated renovation needed.

Technical Specifications

What's in the Box

• 1× Tuya WiFi Smart Energy Meter (60A)

Please Note: Due to lighting and display variations, the actual color may differ slightly from product images. Please allow 1mm–1cm variance due to manual measurement.

For guidance on safe electrical installations and energy monitoring best practices, refer to resources from the U.S. Department of Energy — Save Electricity & Fuel and electrical safety standards outlined by the U.S. Consumer Product Safety Commission (CPSC).

Frequently Asked Questions

Q: Does the Tuya WiFi Smart Energy Meter require a separate hub or gateway?

A: No — this smart energy meter has a built-in 2.4GHz WiFi module that connects directly to the Tuya Smart App on your smartphone. No gateway or additional hub is required for remote monitoring and control.

Q: What types of electrical protection does this smart meter provide?

A: The meter features customizable built-in protection against overvoltage, undervoltage, overcurrent, overload, and overtemperature. When any of these conditions are detected, the device automatically cuts off the circuit and sends an instant push notification to your phone.

Q: Is this smart energy meter suitable for sub-meter billing in shared housing or commercial settings?

A: Yes — the meter automatically stores daily and monthly kWh data, generates consumption report curves in the Tuya app, and allows you to export power records. The total energy reading can also be reset to zero, making it ideal for sub-meter billing in shared residences, branch circuit monitoring in stores, and energy tracking for specific equipment.

Q: How is the 60A DIN Rail Smart Energy Meter installed?

A: Installation is straightforward — the meter clips onto a standard 35mm DIN rail inside your distribution box or breaker panel, directly replacing a conventional air switch. Simple wiring with no complicated renovation is needed.
