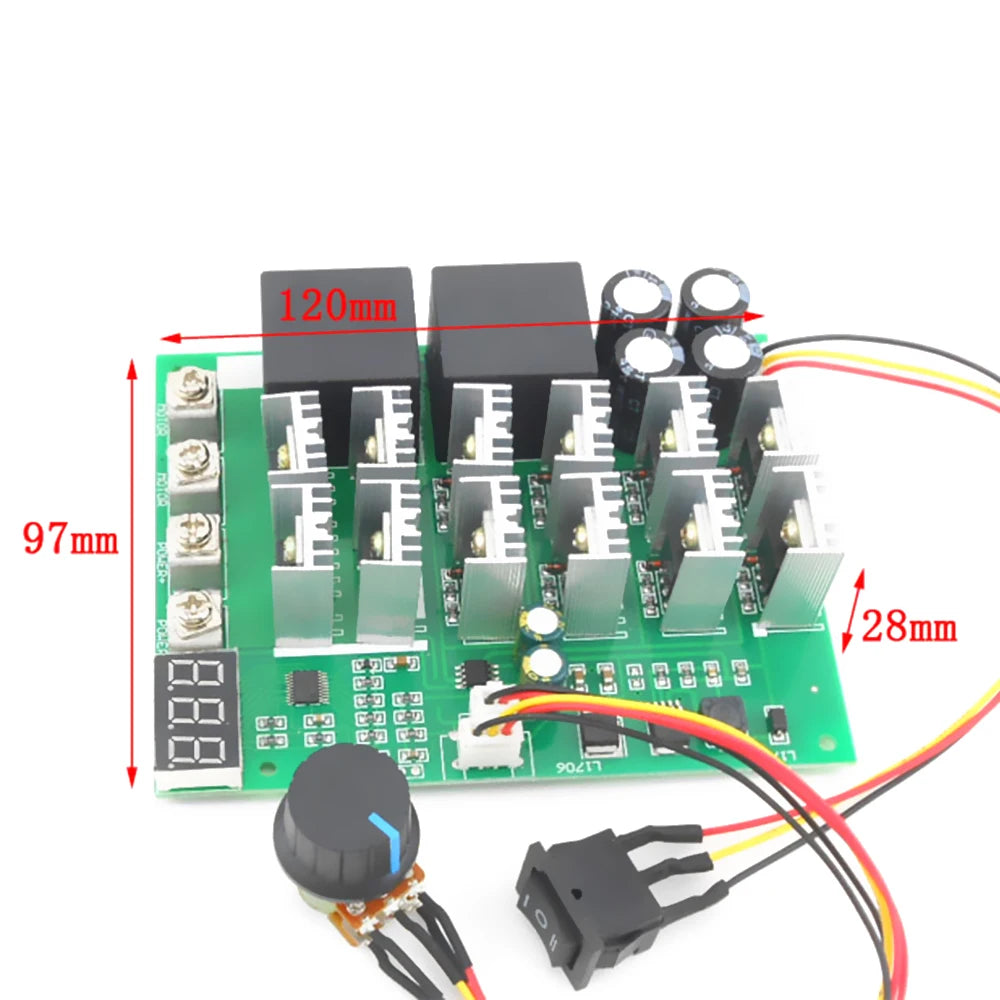

60A Digital Display PWM DC Motor Speed Controller — Full Forward & Reverse Control
Take precise command of your DC motor applications with this high-capacity 60A PWM Speed Controller Module. Featuring a clear digital display and smooth 0–100% speed adjustment, this module is ideal for hobbyists, engineers, and makers who need reliable, variable-speed motor control across a wide voltage range. Whether you're building an electric go-kart, automating a conveyor, or controlling a winch, this controller delivers smooth and efficient performance. Made in Mainland China.
Key Features
- Wide Voltage Range: Operates from 10V to 55V DC, making it compatible with a broad range of battery and power supply configurations.
- High Current Capacity: Rated at 60A continuous with a maximum burst capacity of 100A — built for demanding motor loads.

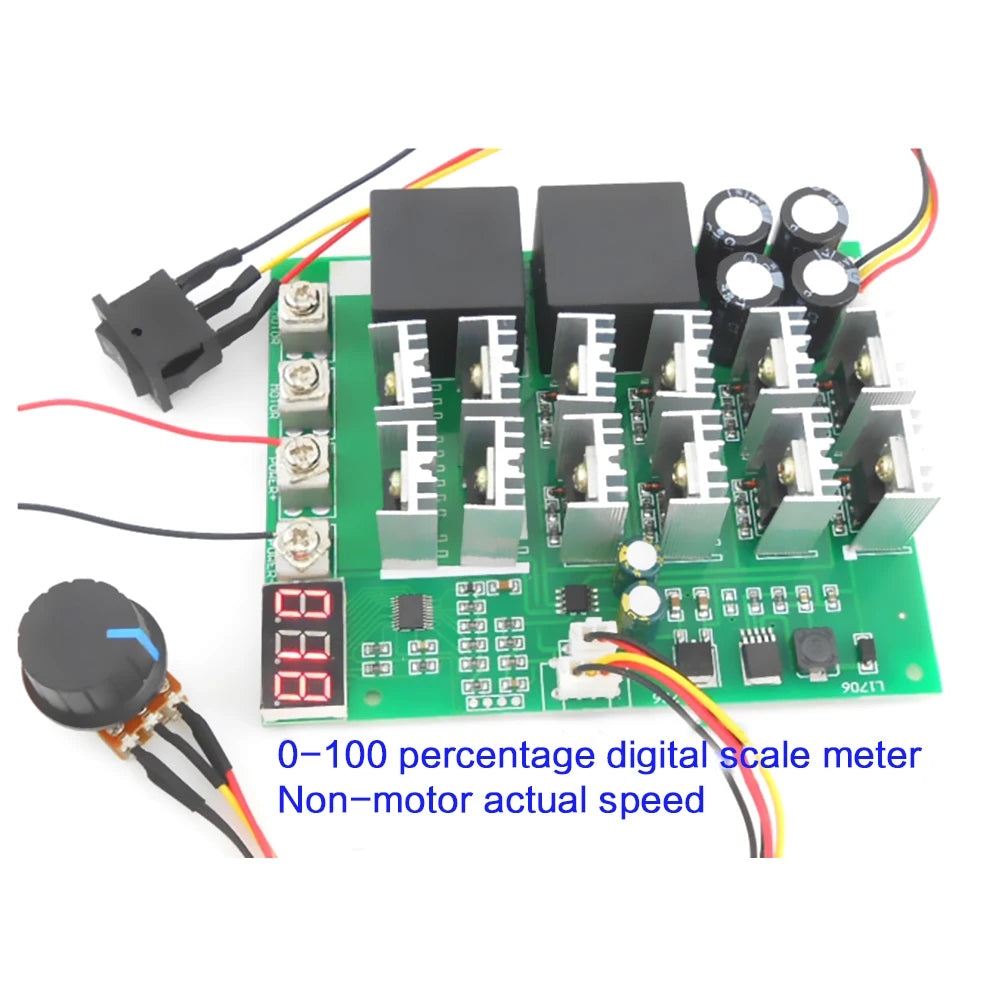

- Digital Display: Onboard digital readout provides real-time speed percentage visibility for precise adjustments.
- Full Speed Range: Seamless 0–100% PWM duty cycle control for fine-tuned motor speed management.
- Forward & Reverse: Built-in directional switching lets you reverse motor rotation with ease — no extra components needed.
- Linear Output Voltage: Output voltage scales linearly under load for consistent, predictable motor behavior.
- Compact Module Design: Easy to integrate into existing projects, enclosures, or custom builds.
Technical Specifications
| Parameter | Value |
|---|---|
| Working Voltage Range | 10V – 55V DC |
| Rated Current | 60A |
| Maximum Current | 100A |
| Speed Control Range | 0% – 100% (Digital Display) |
| Output Voltage | Linear (under load) |
| Motor Direction | Forward & Reverse |
| EU LVD Classification | Low Voltage: Below 50Vac or 75Vdc |
| Country of Origin | Mainland China |
Common Applications
- Electric vehicles and go-karts
- Industrial conveyor and automation systems
- Winches, hoists, and lifting equipment
- DIY robotics and engineering projects
- Fan and pump speed control
- Solar-powered motor systems
Safety & Standards
When working with high-current electrical modules, always follow proper wiring and safety practices. For guidance on electrical safety standards, refer to the OSHA Electrical Safety Guidelines.
Frequently Asked Questions
Q: What types of DC motors are compatible with this 60A PWM speed controller?
A: This PWM speed controller module is compatible with most brushed DC motors operating within the 10V–55V voltage range. It is well-suited for motors used in electric vehicles, conveyors, winches, fans, pumps, and robotics projects that require variable speed and direction control.
Q: Can this controller handle both forward and reverse motor operation?
A: Yes. The module includes built-in forward and reverse directional switching, allowing you to control the rotation direction of your DC motor without requiring additional relays or external switching components.
Q: What is the difference between the rated 60A and the maximum 100A current?
A: The rated 60A is the continuous operating current the controller can safely handle during normal use. The 100A maximum refers to the peak burst current the module can tolerate for short durations, such as motor startup surges. For sustained high-load applications, ensure your setup stays within the 60A continuous rating for optimal reliability and longevity.
Q: Does the digital display show real-time speed percentage?
A: Yes. The onboard digital display provides a real-time readout of the PWM duty cycle as a percentage (0–100%), giving you clear and immediate feedback on the current motor speed setting without the need for additional instrumentation.
