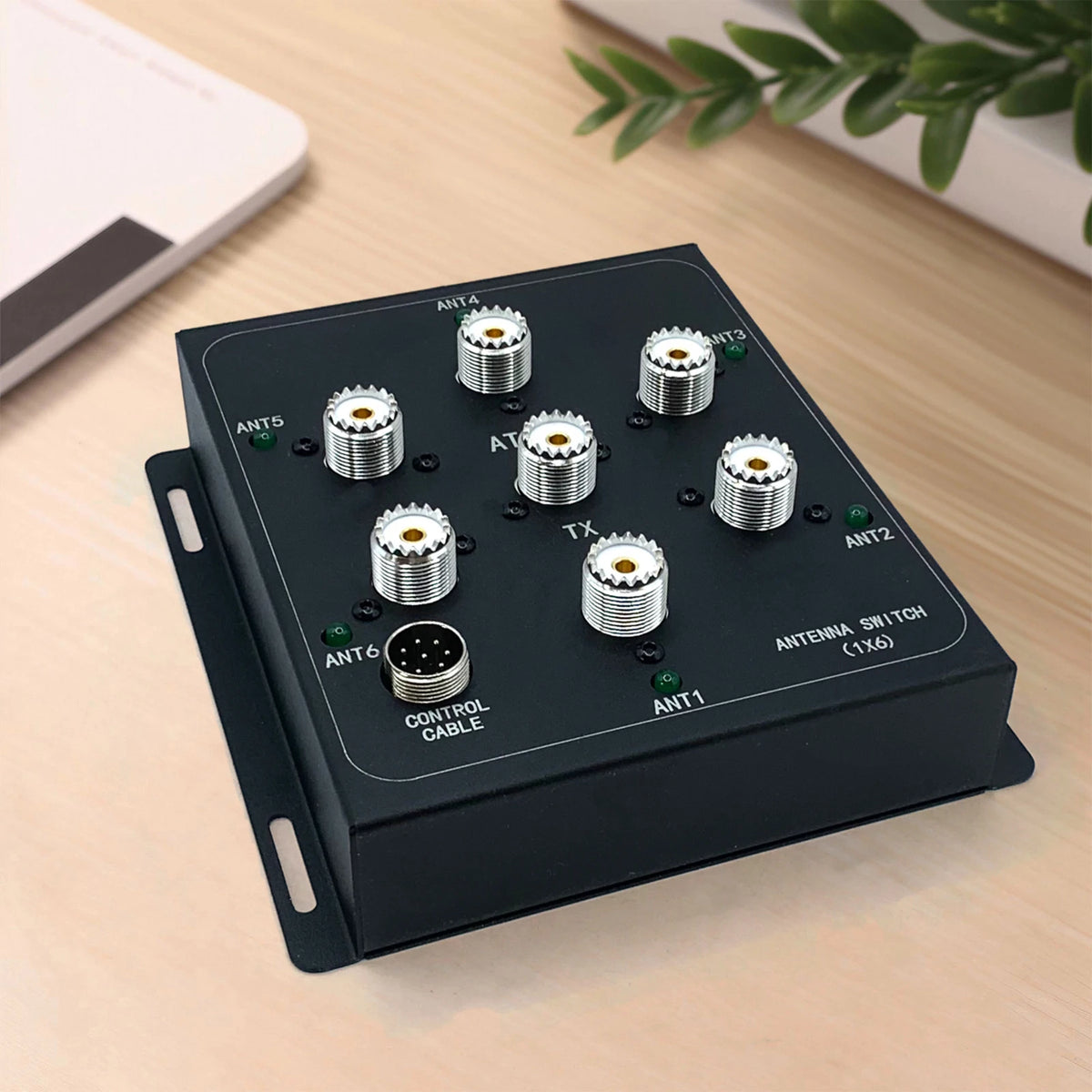

6-Way Coaxial Remote Antenna Switch Kit — 800W PEP | 1.8–55MHz
Take full control of your radio station setup with this professional-grade 6-Way Coaxial Remote Antenna Switch Kit. Engineered for radio hobbyists and professionals alike, this 1-in-6-out switch lets you effortlessly manage multiple antennas from a single transceiver — no more manual cable swapping, no complex configurations.
Key Features
- Wide Frequency Coverage: Operates across a broad 1.8 MHz–55 MHz range, making it compatible with HF and low-VHF amateur radio, CB, and base station setups.
- High-Power Handling: Rated at 800W PEP, this switch is built for high-power transmissions and demanding operating conditions.
- Standard SO-239 Interface: Features industry-standard SO-239 (UHF) connectors for seamless compatibility with most radio transceivers, coaxial cables, and antenna systems.
- Effortless 1-In-6-Out Switching: Instantly route your transceiver signal to any one of six antennas via remote controller — fast, clean switching with no tools required.
- Extreme Temperature Resistance: ABS housing is rated to withstand temperatures up to 105°C, ensuring stable performance even in harsh operating environments.

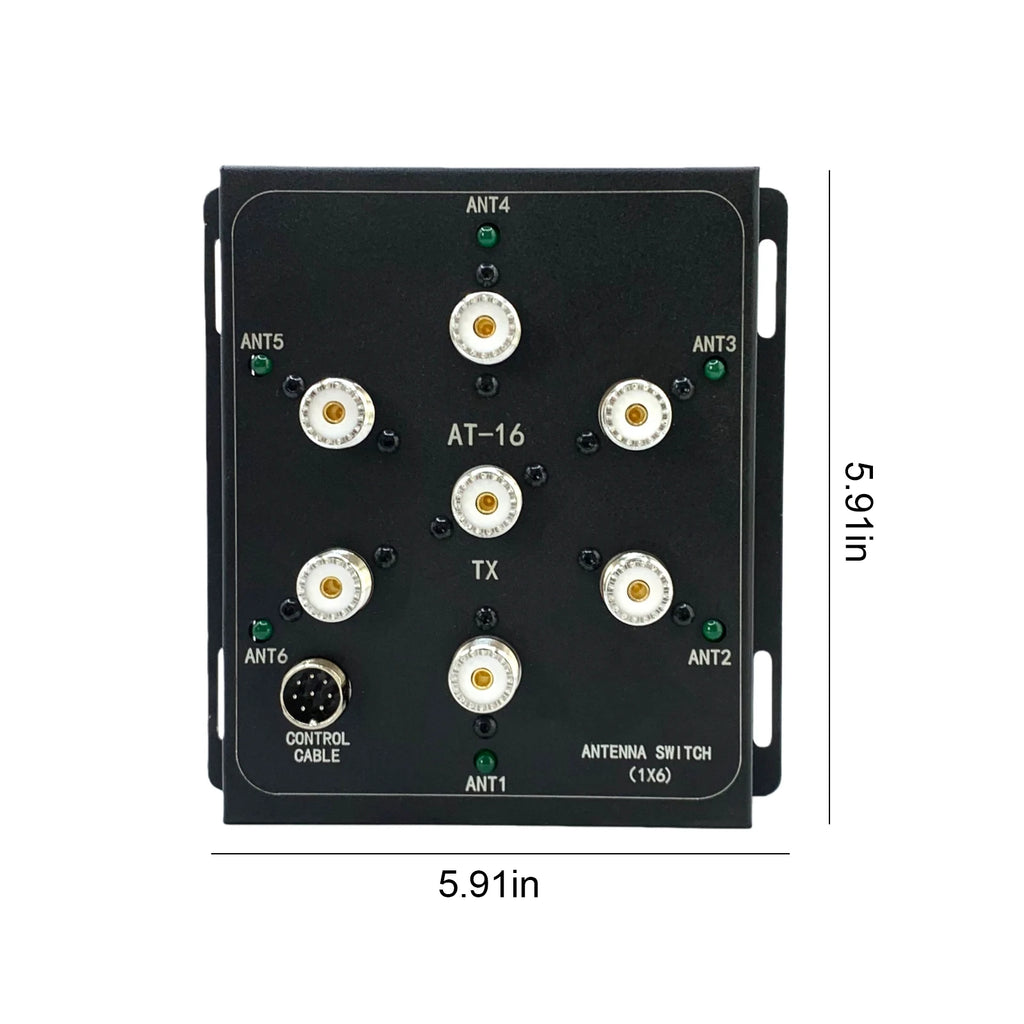

- Compact & Space-Saving Design: Measures approximately 15 × 15 × 5 cm (5.91 × 5.91 × 1.97 in, excluding protrusions), keeping your operating desk organized and clutter-free.
- 12V Operation: Runs on 12V DC (±25%), compatible with standard shack power supplies.
Specifications
| Frequency Range | 1.8 MHz – 55 MHz |
| Power Handling | 800W PEP |
| Operating Voltage | 12V DC ±25% |
| Configuration | 1 Input / 6 Outputs |
| Interface Type | SO-239 (UHF) |
| Housing Material | ABS Plastic |
| Temperature Resistance | Up to 105°C |
| Dimensions | ~15 × 15 × 5 cm / 5.91 × 5.91 × 1.97 in (excl. protrusions) |
| Compatible Radios | Base station & portable/handheld walkie-talkies |
| Country of Origin | Made in China |
What's in the Box
- 1 × AT16 Switch Kit
- 1 × Remote Controller
- 2 × GX16 Connectors
- 1 × DC5525 Female Short Cable (25 cm)
Important Notes
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Please allow a 1–2 cm difference in measurements due to manual measuring.
For guidance on amateur radio best practices and antenna systems, visit the FCC or explore technical resources at the National Institute of Standards and Technology (NIST) for RF and electromagnetic compatibility standards.
Frequently Asked Questions
Q: What radios are compatible with this 6-way coax antenna switch?
A: This coaxial antenna switch is compatible with most base station transceivers and portable/handheld walkie-talkies that use standard SO-239 (UHF) connectors. It covers a frequency range of 1.8 MHz to 55 MHz, making it suitable for HF amateur radio, CB radio, and similar applications.
Q: How does the remote switching work on this coax switch kit?
A: The kit includes a remote controller that allows you to select any one of six antennas from your operating position without physically swapping cables. It operates on 12V DC power (±25%) and connects to the switch unit via the included GX16 connectors and DC5525 cable.
Q: Can this antenna switch handle high-power transmitters?
A: Yes. The switch is rated at 800W PEP (Peak Envelope Power), making it well-suited for high-power HF transmitters and amplifiers. Its ABS housing is also rated to withstand temperatures up to 105°C for reliable performance in demanding environments.
Q: What connectors does this antenna switch use?
A: It uses standard SO-239 (UHF female) connectors for both the input and all six outputs, which are widely used in amateur radio and compatible with PL-259 plugs found on most coaxial cables.
