6–72V DC Brushless Motor Driver with Digital Display & Forward/Reverse Control
Take full command of your three-phase brushless DC motor with this versatile, high-performance motor driver controller. Featuring a wide 6–72V input range, a real-time digital display, and built-in forward/reverse switching, this controller is the ideal speed regulation solution for model aircraft, water pumps, fans, and a broad range of DIY and industrial DC motor applications. Made in Mainland China.
Key Features
- Wide Voltage Compatibility (DC 6–72V): Supports a broad range of DC power supplies, making it adaptable to motors of many different rated voltages — simply match input voltage to your motor's rating.
- High Current Output (up to 15A continuous): Handles demanding, high-load applications with overload protection automatically engaging at 15A.
- Real-Time Digital Display: Onboard screen clearly shows speed percentage (0–100%) for easy, at-a-glance monitoring and debugging during operation.
- Forward & Reverse Control: Bidirectional motor direction switching gives you flexible, versatile control over your motor's running direction.
- Three-Phase Brushless Design: Low-noise, high-efficiency operation — ideal for model aircraft ESC replacement, water pump controllers, and fan speed regulation.
- External PWM Compatible: Supports external PWM input (frequency 1–10 kHz, amplitude 3.3–5V) for integration with microcontrollers and automation systems.
- Potentiometer Speed Regulation: Smooth, precise speed adjustment via the included knob/potentiometer.
- No Hall Sensor Required: Sensorless design simplifies wiring and installation.
Technical Specifications
| Input Voltage | DC 6–72V |
| Maximum Continuous Current | 15A |
| Overload Protection | 15A |
| Supported Motor Type | DC Three-Phase Brushless Motor |
| Direction Control | Forward / Reverse (Bidirectional) |
| Speed Regulation Method | Potentiometer (knob) |
| External PWM Input | Frequency: 1–10 kHz | Amplitude: 3.3–5V |
| Display Content | Speed percentage 0–100% (not actual RPM) |

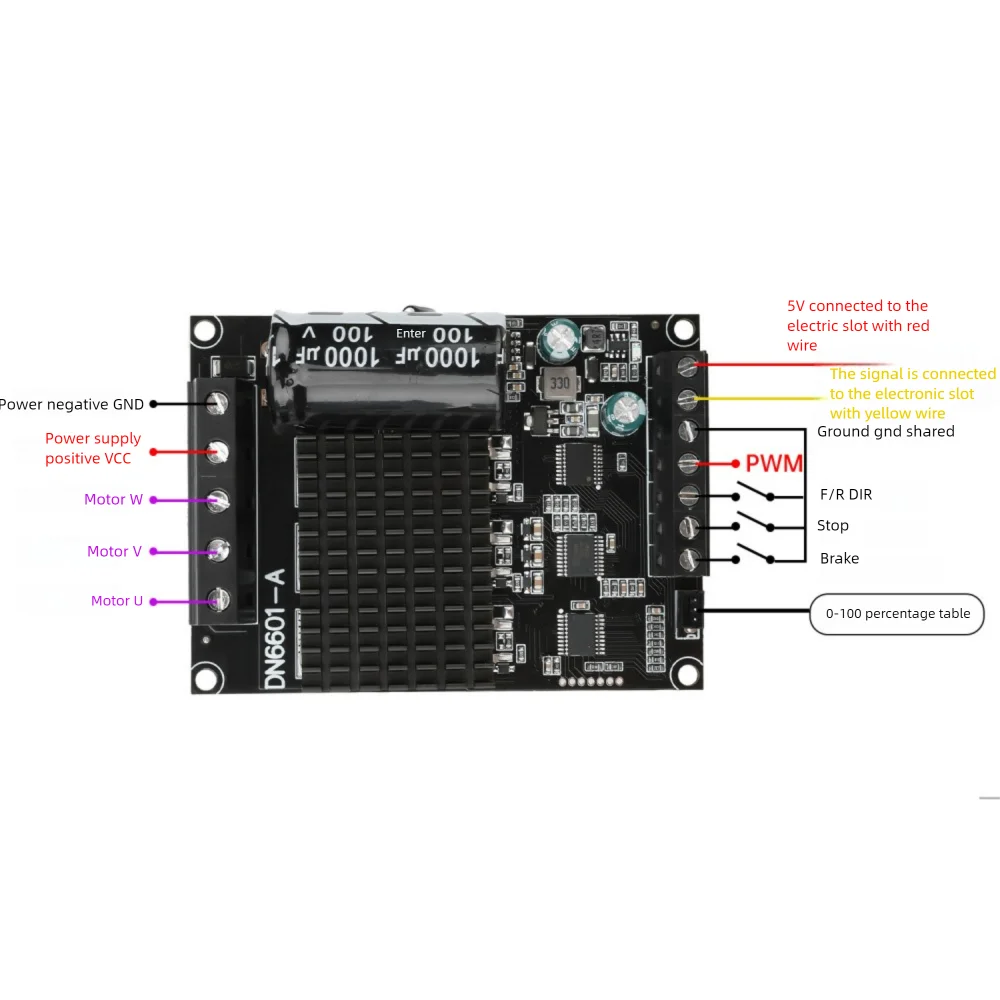

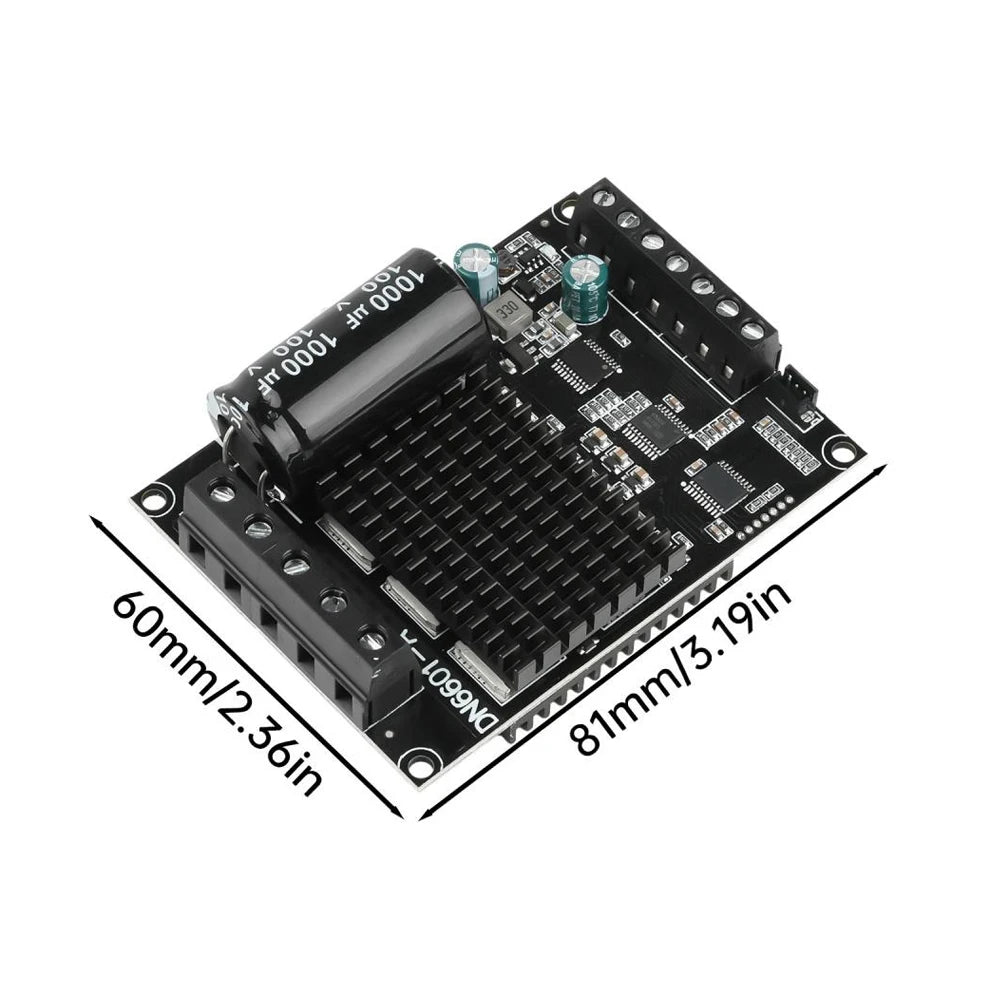

| Display Screen Opening | 32mm (L) × 21mm (H) |
| Hall Sensor | Not required (Sensorless) |
| Forward/Reverse Brake Signal | Active low (low potential effective) |
| Country of Origin | Mainland China |
Important Safety Notices
- Always observe correct positive/negative polarity on input. Match input voltage to your motor's rated voltage (within DC 6–72V range).
- Do NOT connect 220V AC power — DC input only.
- When using external PWM speed regulation, disconnect the potentiometer signal line first.
- Never connect or disconnect wires while power is on.
- Avoid hard braking at full speed with high current. Reduce speed to below 50% before engaging forward/reverse braking stop ports. The brake/start-stop signal ports are low-current MCU signals — keep them isolated from high-voltage lines.
- The digital display shows speed percentage only (0–100%) — it does not display actual motor RPM.
- Color may vary slightly from photos due to monitor/lighting differences. Dimensions may vary ±1–10mm due to manual measurement.
Applications
This brushless motor controller is well suited for: model aircraft (DIY ESC), water pumps, cooling fans, electric scooters, robotics, conveyor systems, DIY electric vehicles, and any project requiring a sensorless three-phase brushless DC motor driver with variable speed control.
What's in the Box

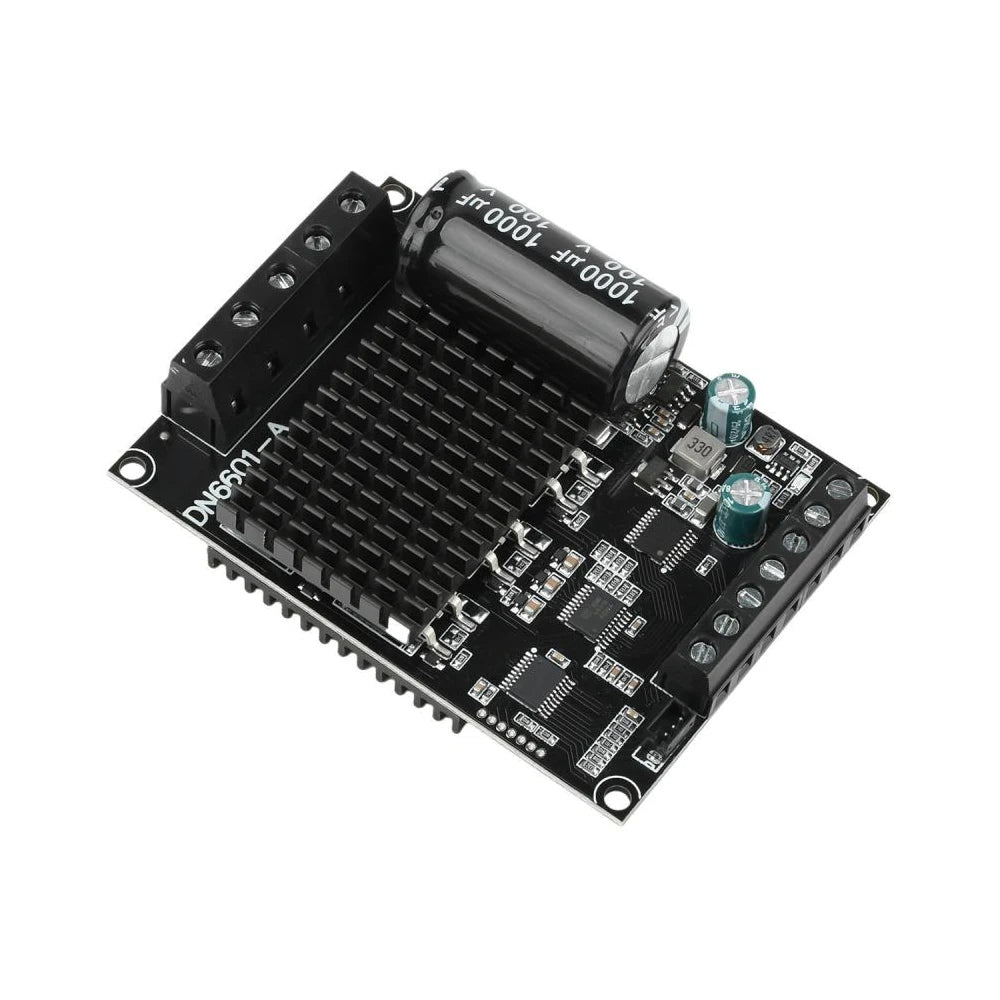

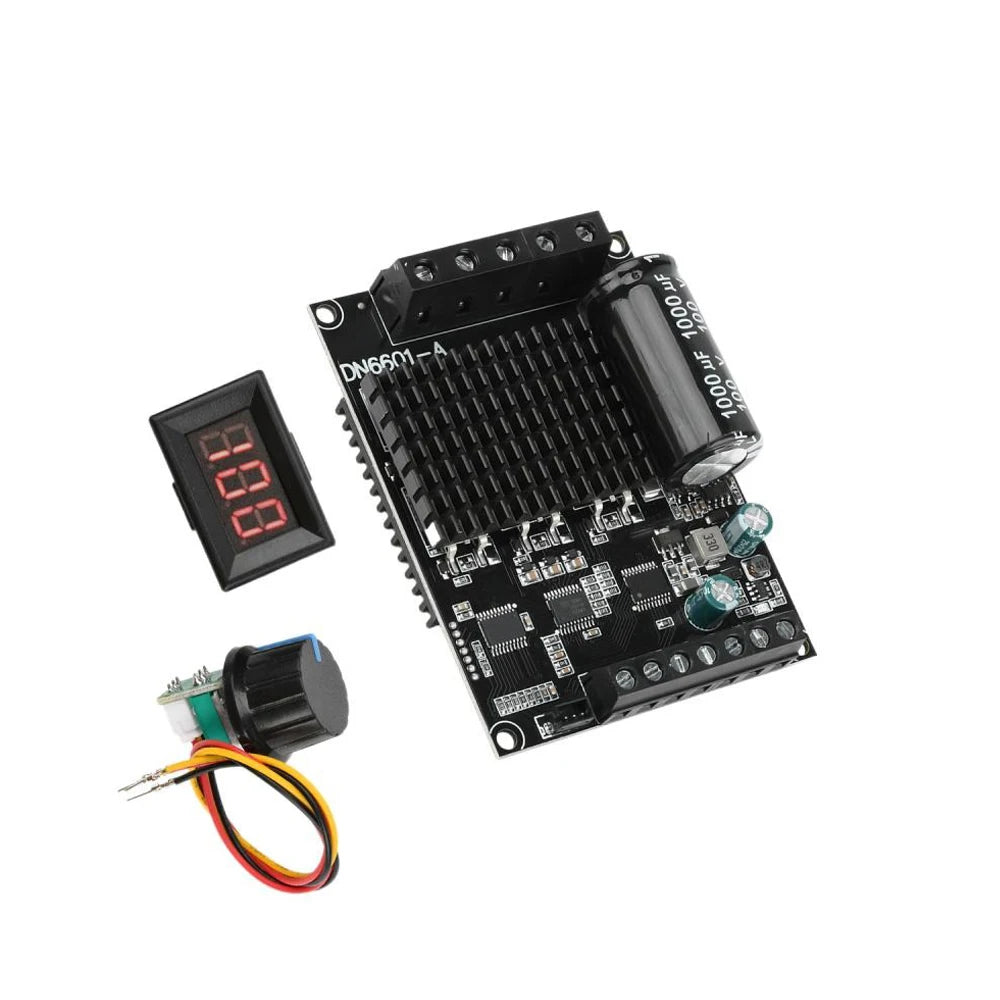

- 1× Motor Controller Board
- 1× Digital Display Module
- 1× Potentiometer Knob
