6-60V 500W BLDC Brushless Motor Driver Controller Module
6-60V 500W BLDC Brushless Motor Driver Controller Module
6-60V 500W BLDC Brushless Motor Driver & Controller Module

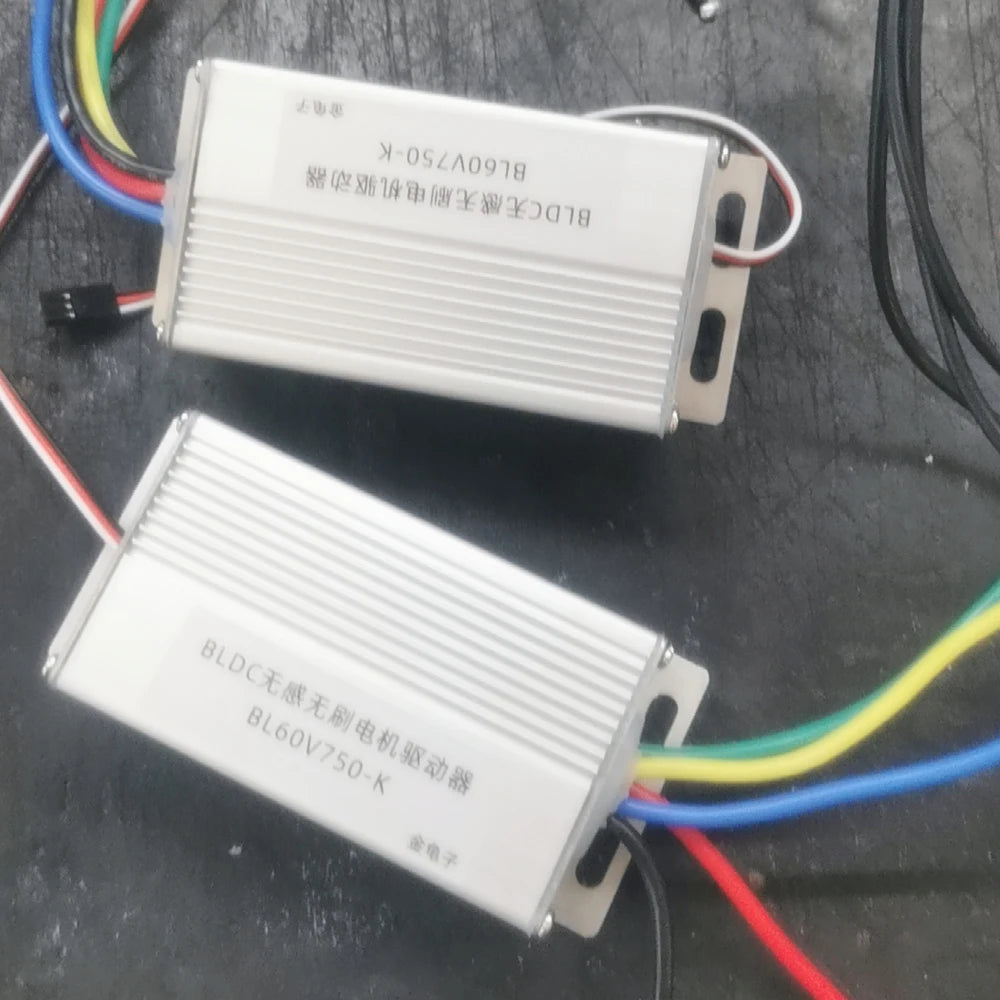

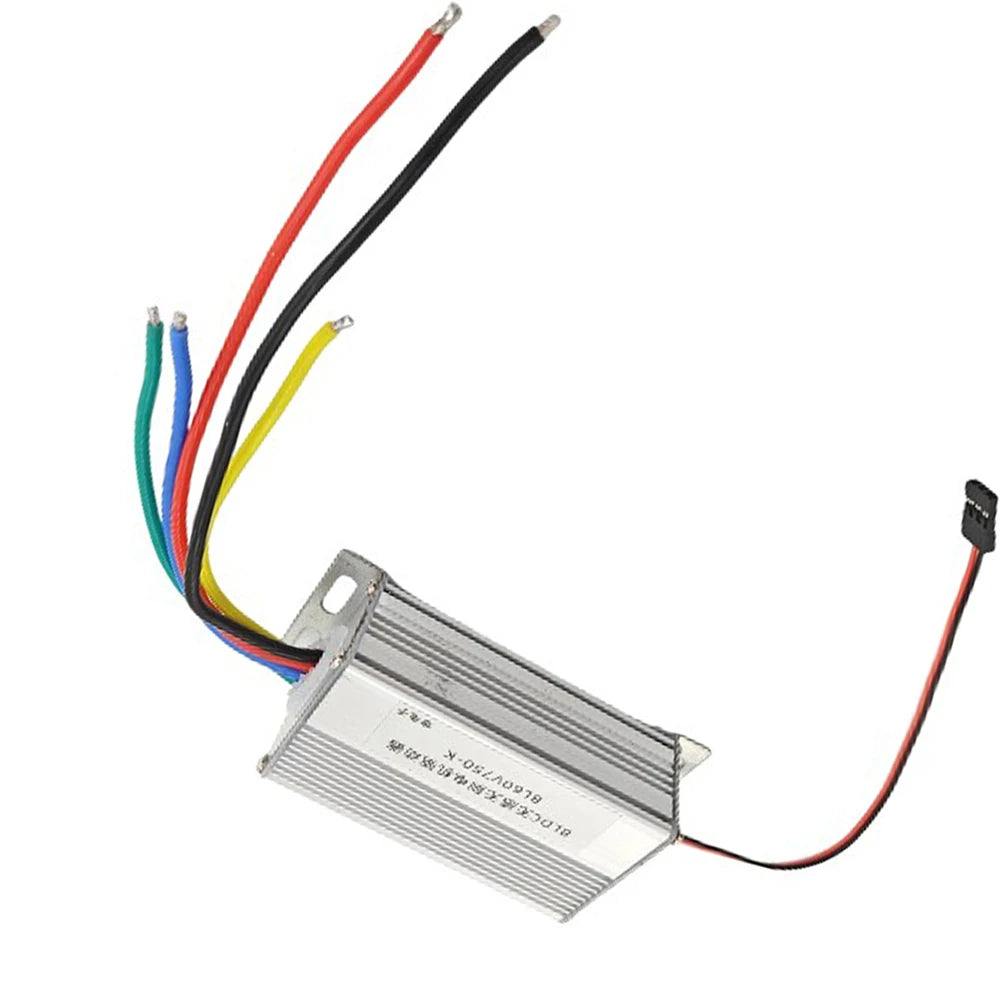

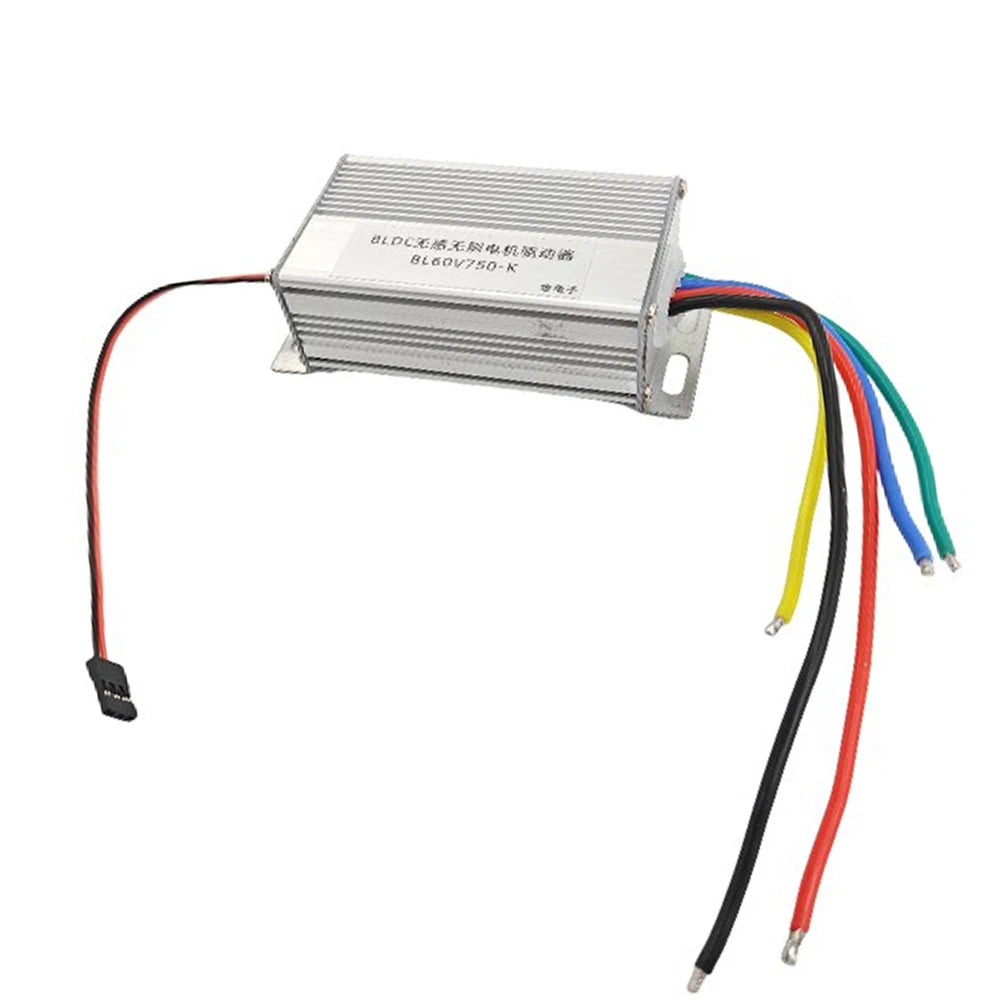

The BL60V750-K Brushless Motor Driver is a high-performance, hall-sensor-free DC brushless three-phase motor controller designed for model aircraft and a wide range of high-power motor applications. With a broad voltage range of 6V to 60V, a rated power of 500W (peak 750W), and support for up to 130,000 RPM, this compact module delivers exceptional driving efficiency with minimal peripheral circuitry. Simply connect the three-phase motor lines (UVW) and you're ready to go.
Whether you're building RC aircraft, electric vehicles, robotics, or custom automation systems, this driver's flexible PWM/PPM signal control, forward and reverse operation, and built-in thermal protection make it an outstanding choice for hobbyists and engineers alike.
Key Features
- Wide Voltage Range: Compatible with 6V–60V power supplies for versatile application
- High Power Output: 500W rated / 750W peak power capacity
- High-Speed Performance: Supports motor speeds up to 130,000 RPM
- Hall-Free Design: Works with sensorless DC brushless three-phase motors — no Hall sensor required
- Forward & Reverse Control: Full directional motor control with stop function

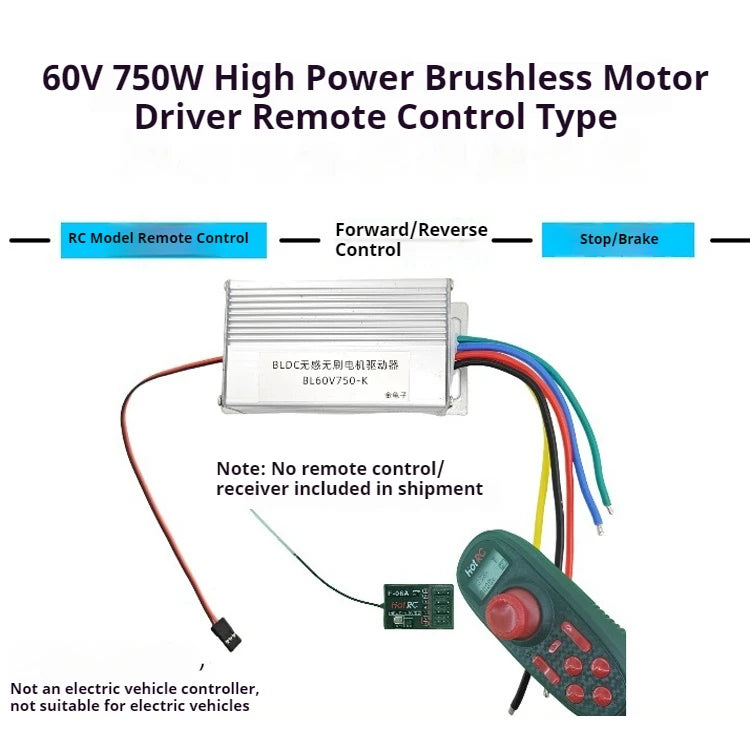

- RC-Compatible Signal Input: 50Hz PWM/PPM signal for seamless RC model aircraft remote control integration
- Thermal Protection: Automatic shutdown at 100°C, recovers at 85°C to prevent overheating
- Compact & Lightweight: Dimensions of just 111mm × 52mm × 31mm for easy integration

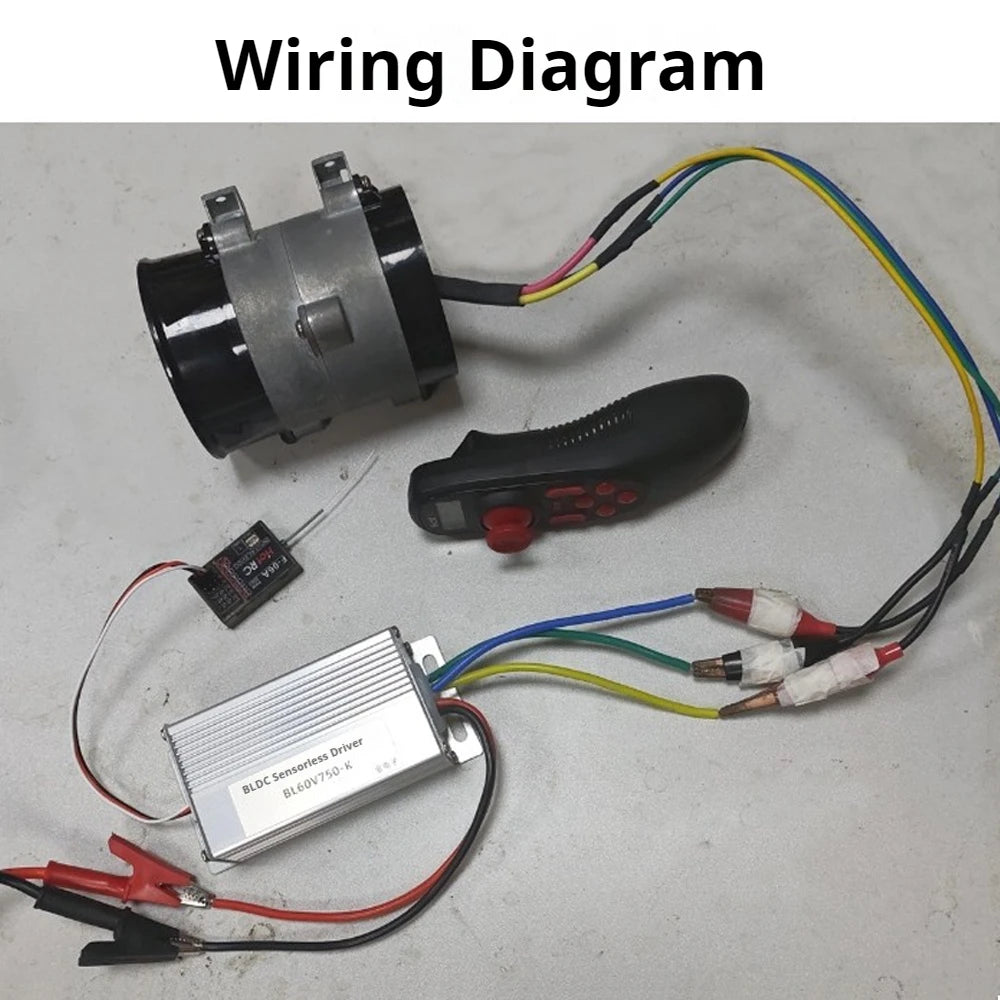

- Simple Wiring: Minimal peripheral circuit — just connect UVW motor lines and power
Technical Specifications
| Working Voltage | 6V – 60V DC |
| Rated Power | 500W |
| Peak Power | 750W |
| Peak Current | 50A |
| Max Continuous Current | 20A |
| Maximum Speed | 130,000 RPM |
| Control Signal | 50Hz PWM / PPM |
| Control Mode | RC Model Aircraft Remote Control |
| Temperature Protection | 100°C shutdown / 85°C recovery |
| Dimensions | 111mm × 52mm × 31mm |
| Functions | Forward, Reverse, Stop Control |
| Battery Included | No |
| Country of Origin | Made in China |
What's in the Box

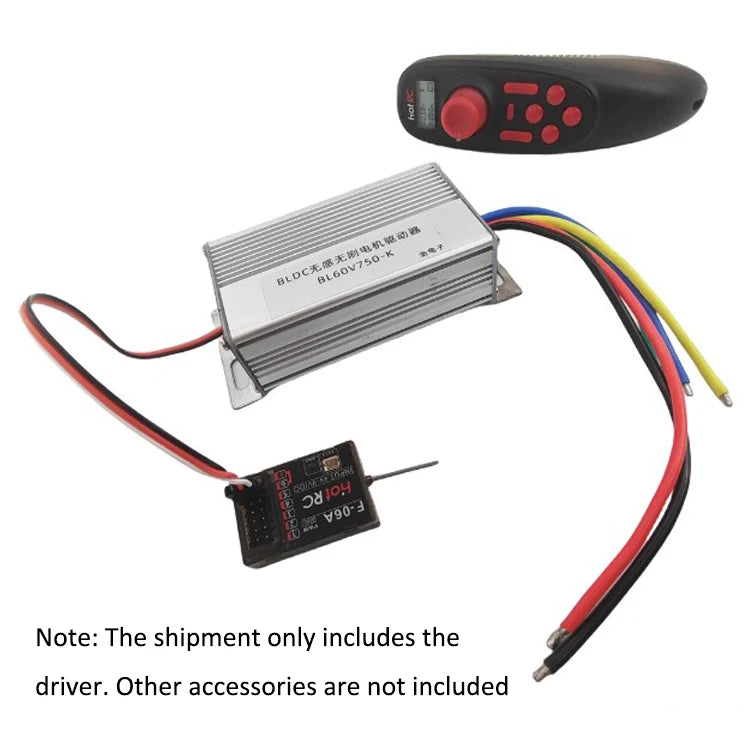

- 1× BL60V750-K BLDC Brushless Motor Driver Module
Important Notes
- Colors may appear slightly different from photos due to monitor/screen settings.
- Please allow ±1–10mm variance due to manual measurement.
- Battery and motor not included.
For more information on electrical component safety standards, visit the U.S. Consumer Product Safety Commission (CPSC).
Frequently Asked Questions
Q: Is this BLDC motor driver compatible with Hall-sensor motors?
A: This driver is specifically designed for sensorless (Hall-free) DC brushless three-phase motors. It does not require Hall sensors — simply connect the three UVW motor phase lines to get started.
Q: What voltage and power range does this brushless motor controller support?
A: The controller supports a wide 6V to 60V DC input range with a rated power of 500W and a peak power of 750W, making it suitable for a broad range of RC aircraft, robotics, and electric drive applications.
Q: Can I use this motor driver for both forward and reverse motor control?
A: Yes. The BL60V750-K module supports forward control, reverse control, and stop functions, giving you complete directional management of your brushless DC motor via a standard RC PWM/PPM signal.
Q: Does the module have thermal (overheat) protection?
A: Yes. The driver features built-in temperature protection that automatically shuts down at 100°C and resumes operation once the temperature drops back to 85°C, protecting both the driver and the motor from heat damage.
